Eagle Group Pass-Thru Heated Drawer, 1-Drawer, Freestanding, Left-Hand Cord, 120V

SKU: DWP-1L-120
$3,108.43
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Warming Drawer Warmers Eagle Group Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment

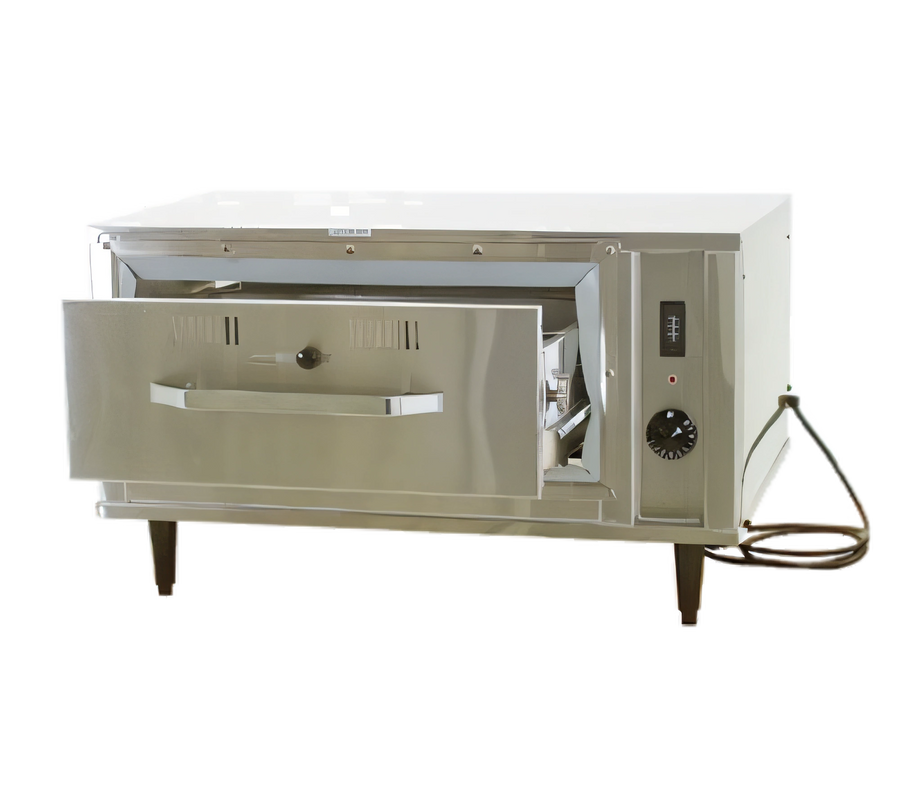

Eagle Group Pass-Thru Heated Drawer, 1-Drawer, Freestanding, Left-Hand Cord, 120V

Stainless Steel Construction, Thermostatic Controls, Full-Size/Fractional Pan Capacity

Keep hot pans within reach on both sides of the line with a durable pass-thru drawer that simplifies service and replenishment.

  • Pass-thru design lets staff replenish the drawer from one side without disrupting service on the other.
  • Accepts standard full-size 12" x 20" and fractional steam table pans up to 6" deep.
  • Heavy-gauge stainless steel interior and exterior with 1-1/2" fiberglass insulation helps retain heat.
  • Recessed thermostat control, thermometer, and indicator light make temperature monitoring easy.
  • Food-grade silicone rubber gaskets help seal the drawer fronts for better efficiency.
  • 4" black adjustable non-marking feet provide stable placement and floor protection.
  • Left-hand cord configuration and 120V single-phase operation simplify installation.

Overall Dimensions:

30.38"W x 23.0"D x 17.75"H

Product Weight:

158.0 lb

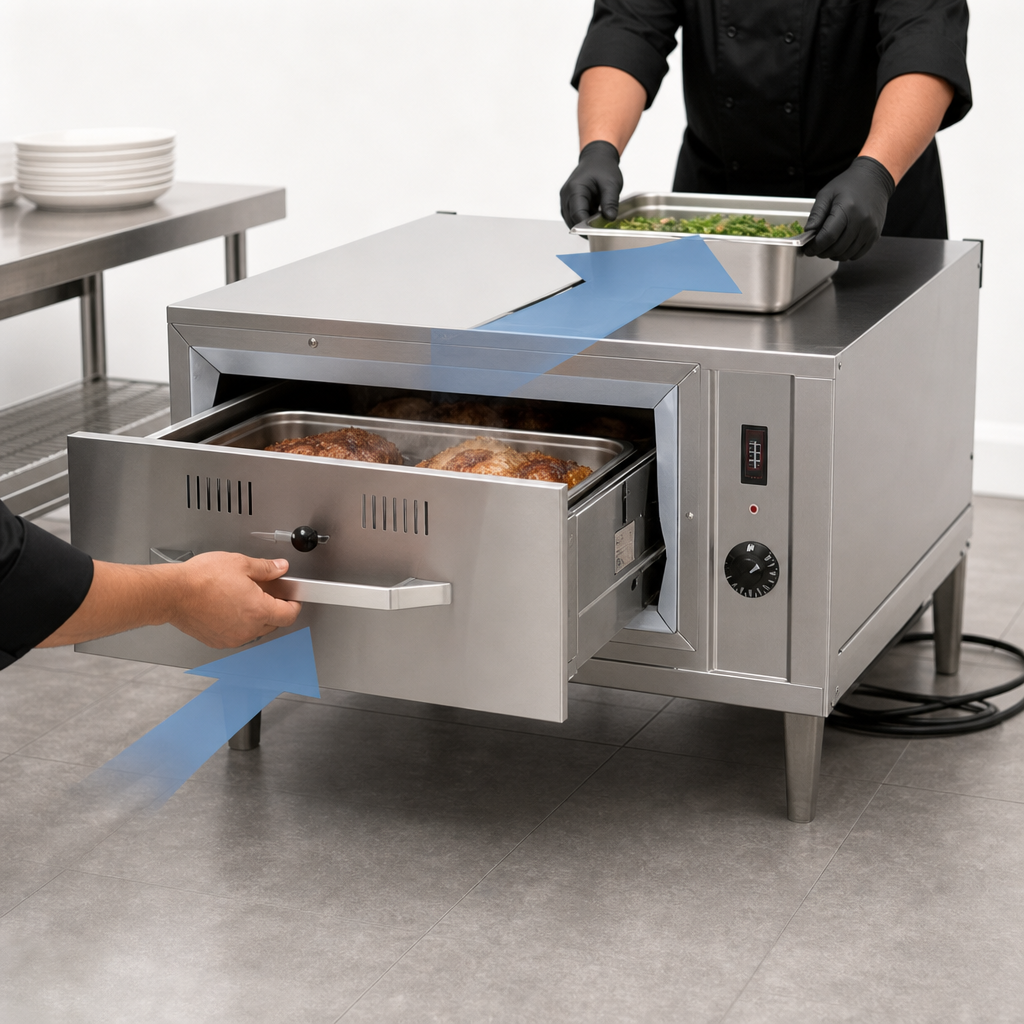

Pass-Thru Access

Drawer can be accessed from both the front and rear, helping kitchen staff replenish from one side while service continues from the other.

Pass-Thru Access

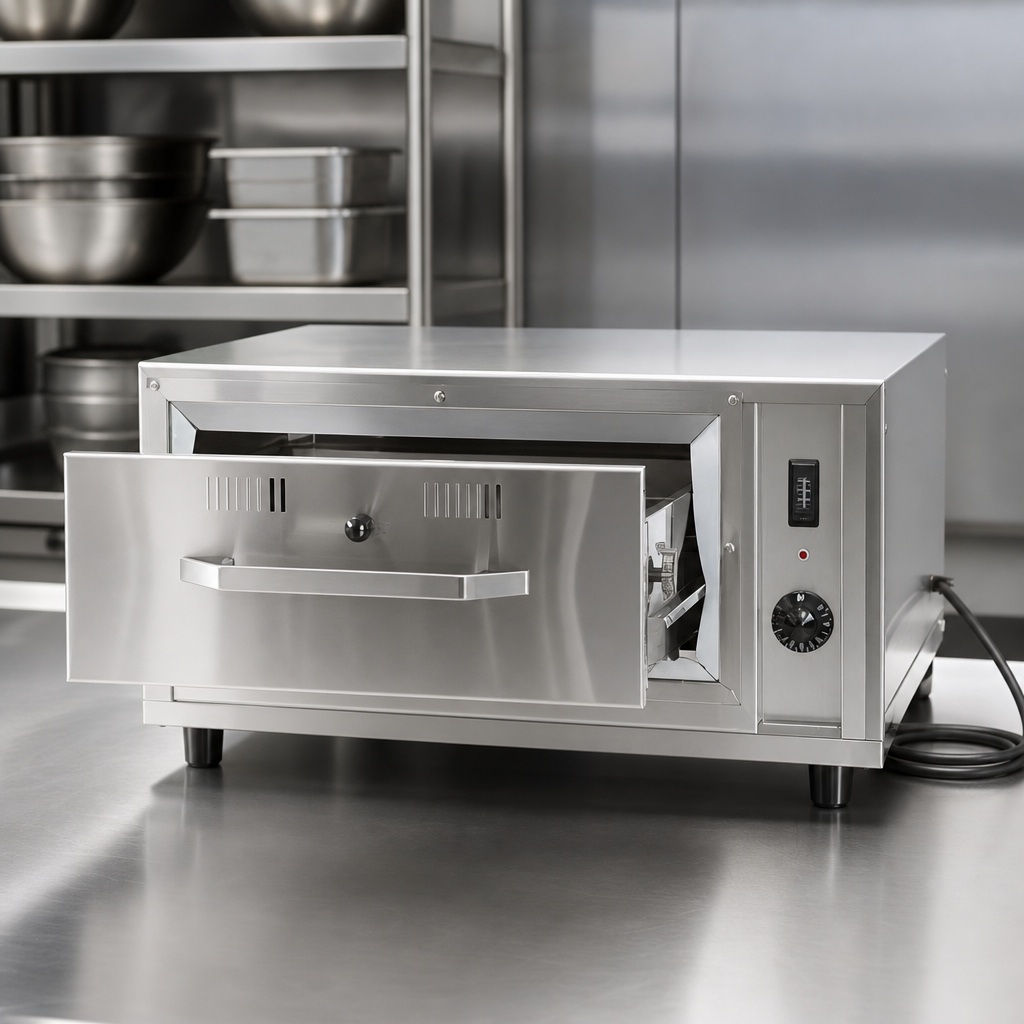

Stainless Steel Construction

Heavy-gauge stainless steel interior and exterior are built for commercial durability and easy cleaning.

Stainless Steel Construction

Insulated Cabinet

1-1/2" fiberglass insulation helps retain heat and improve holding efficiency.

Pan Compatibility

Stainless steel liner accepts standard full-size 12" x 20" and fractional steam table pans up to 6" deep.

Thermostatic Temperature Control

Recessed thermostat control includes a thermometer and indicator light for straightforward monitoring.

Silicone Rubber Gaskets

Food-grade gaskets help seal around the drawer fronts to support heat retention.

Adjustable Non-Marking Feet

4" black adjustable feet help level the unit and protect flooring.

Left-Hand Cord

Factory left-hand cord orientation supports installation flexibility.

Type Pass-Thru Heated Drawer
Style Standard Drawer
Installation Type Freestanding
Controls Thermostatic
Pan Capacity Standard Full-Size/Fractional Steam Table Pans Up To 6 Inches Deep
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Voltage 120 Volts
Amps 3.75 Amps
Watts 450 Watts
Hertz 60 Hz
Phase 1-Phase
Shipping Width 31 Inches
Shipping Depth 23 Inches
Shipping Height 18 Inches
Shipping Weight 158 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12 months from shipment or 6 months from first use, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accepts standard full-size 12" x 20" and fractional steam table pans up to 6" deep.
Yes. The pass-thru design includes handles on both the front and rear for use from either side.
This model uses 120V, 60 Hz, single-phase power and draws 3.75A at 450W.
It includes recessed thermostatic controls, a thermometer, and an indicator light.
The unit has a heavy-gauge stainless steel interior and exterior, a stainless steel liner, 1-1/2" fiberglass insulation, and food-grade silicone rubber gaskets.
