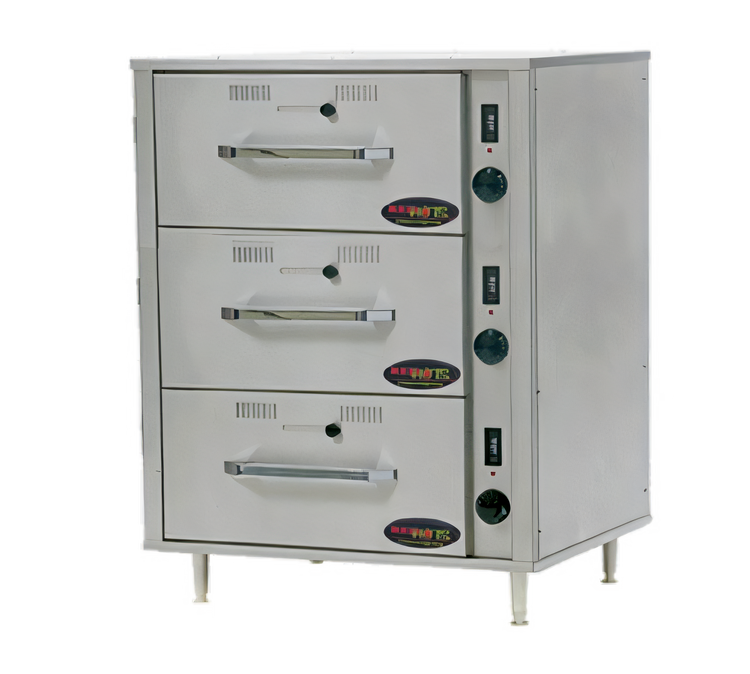

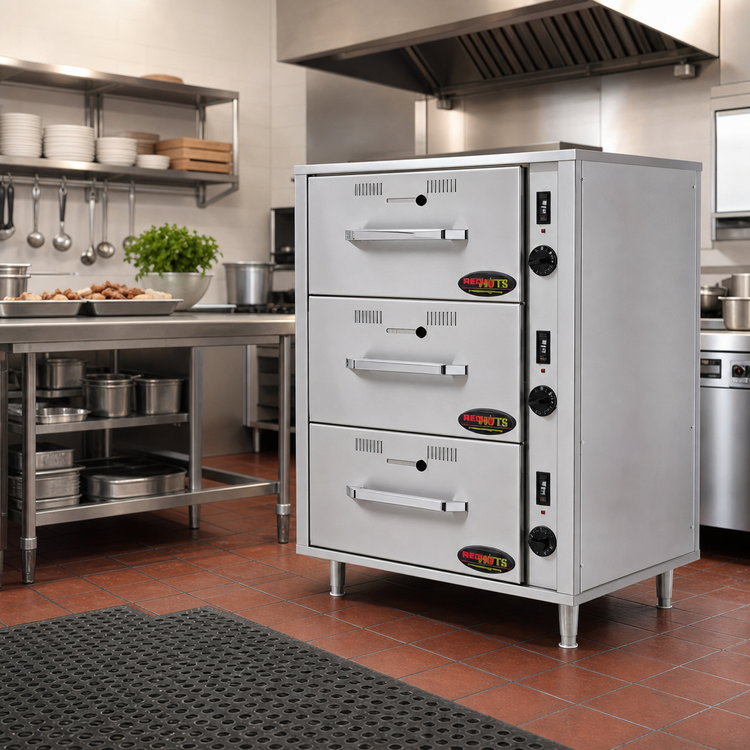

RedHots DWN-3-120 Three Drawer Narrow Width Freestanding Heated Food Warmer

SKU: DWN-3-120
$6,280.56
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

RedHots DWN-3-120 Three Drawer Narrow Width Freestanding Heated Food Warmer

Three-Drawer, Narrow Width, 120V, Freestanding

Keep your culinary creations at their ideal serving temperatures with the durable and precisely controlled RedHots DWN-3-120 heated food warmer.

  • Durable heavy-duty stainless steel construction with 1½" fiberglass insulation.
  • Features three narrow width drawers, each accommodating one 12" x 20" x 6" steam table pan.
  • Individual recessed thermostats, thermometers, and indicator lights for precise temperature control per drawer.
  • Adjustable louvers on each drawer help maintain optimal product moisture levels.
  • Provides quick and even heating with a temperature range of 100°F to 200°F.
  • Equipped with 4" adjustable non-marking feet for stable, freestanding placement.

Overall Dimensions:

21.0"W x 27.75"D x 37.0"H

Product Weight:

268.0 lb

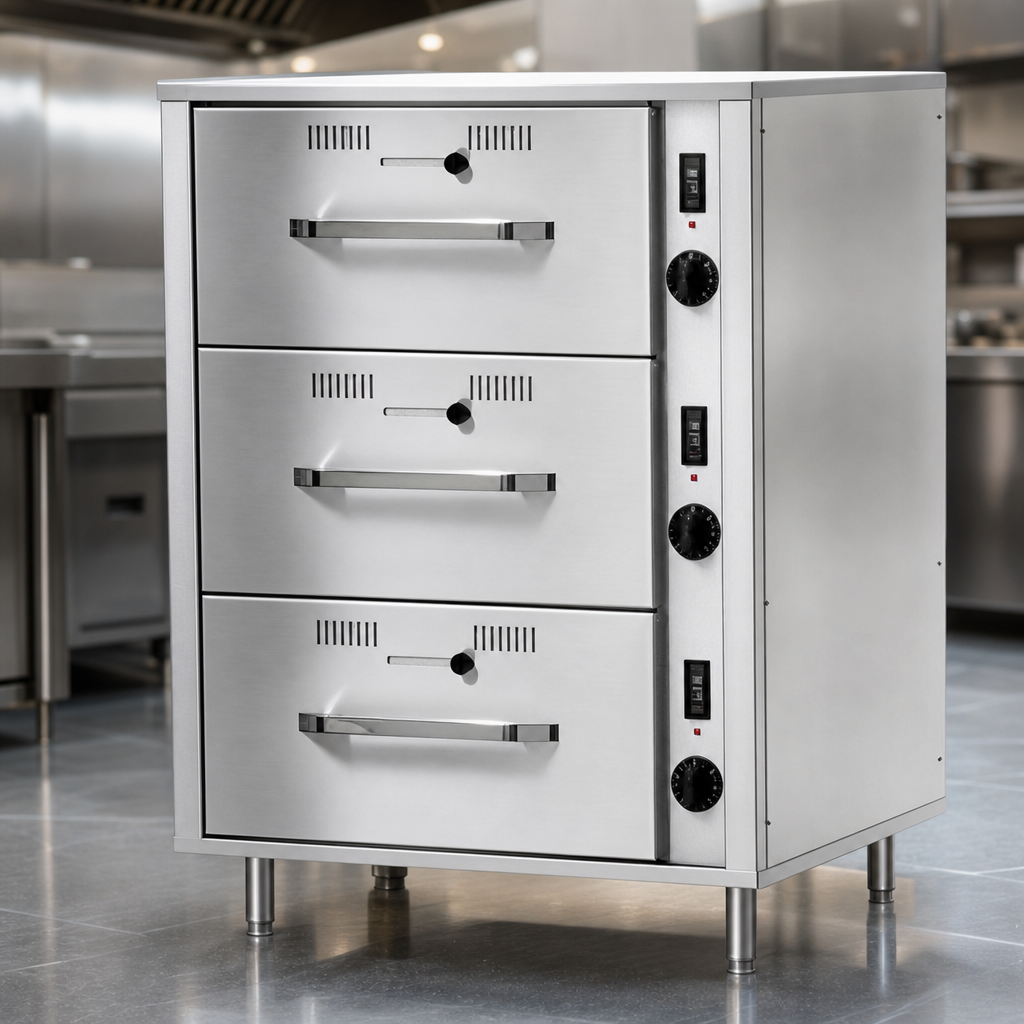

Heavy-Duty Stainless Steel Construction

Built with robust stainless steel and insulated with 1½" fiberglass for excellent heat retention and long-lasting durability in commercial environments.

Heavy-Duty Stainless Steel Construction

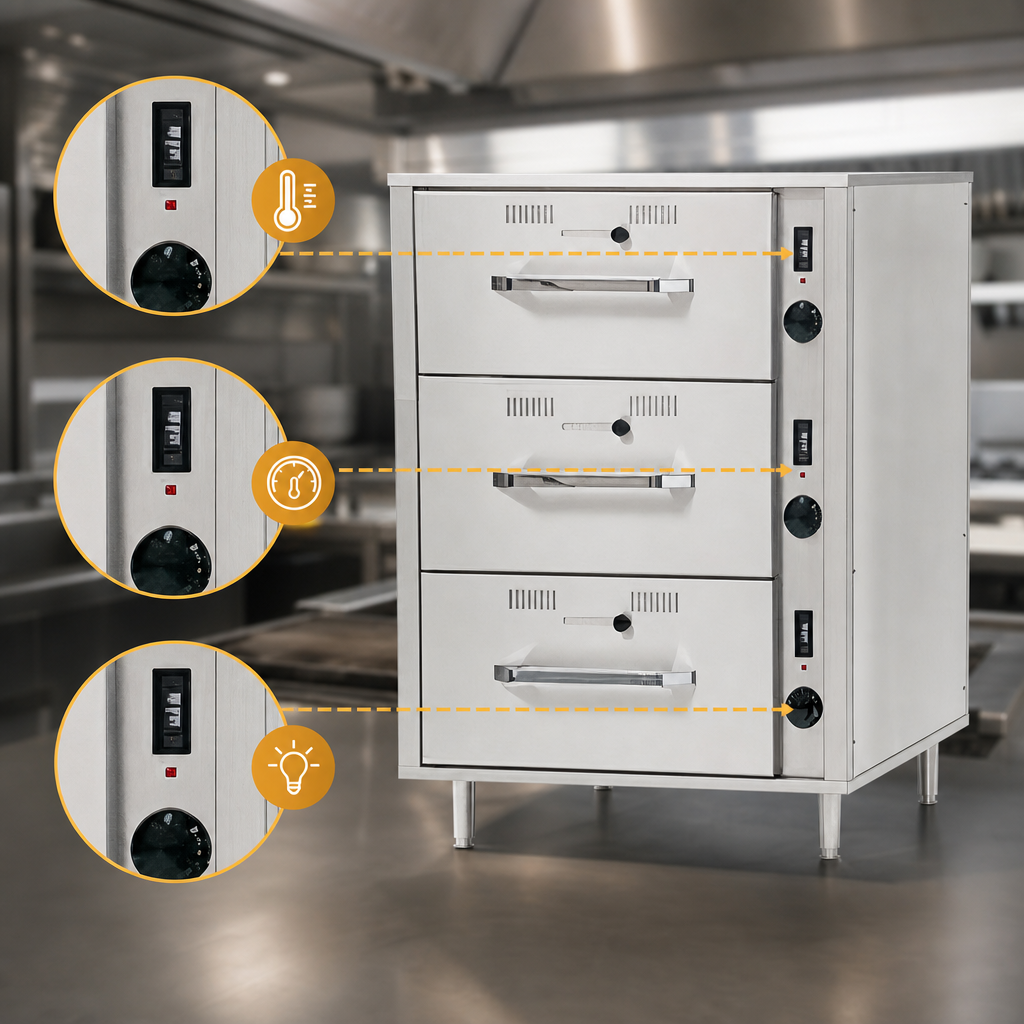

Independent Drawer Control

Each of the three drawers features its own individual heater, recessed thermostat control, thermometer, and indicator light, allowing for precise and separate temperature management for diverse food items.

Independent Drawer Control

Generous Pan Capacity

Each drawer includes a stainless steel liner designed to accept standard full-size (12" x 20") and fractional steam table pans up to 6" deep (pans not included), offering flexible holding options.

Moisture Retention System

Adjustable louvers are integrated into each drawer to help retain ideal product moisture levels, preventing food from drying out and ensuring quality.

Freestanding Versatility

Designed as a freestanding unit, it comes with a 72" (1829mm) three-wire grounded cord and plug, and 4" (102mm) adjustable non-marking feet, providing flexibility for placement within your kitchen.

Efficient and Even Heating

The specialized heating element configuration ensures rapid and uniform heating of contents, maintaining temperatures consistently from 100°F to 200°F.

Interchangeable Drawers

All drawers are interchangeable, simplifying operation and maintenance routines.

Type Heated Drawer
Style Narrow Drawer
Installation Type Floor Model (With Legs)
Compartments 3
Pan Capacity 3 Full-Size Pans
Pan Size 12" x 20" x 6 Inches
Interior Finish Stainless Steel
Material Stainless Steel
Controls Recessed Individual Thermostat with Indicator Lights, Thermometer
Temperature Range 100°F to 200°F
Voltage 120 Volts
Amps 11.25 Amps
Watts 1350 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 72 Inches
Country of Origin USA
Shipping Width 21 Inches
Shipping Depth 28 Inches
Shipping Height 37 Inches
Shipping Weight 268 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12-month parts and labor limited warranty (from shipment) or 6 months from first use (whichever comes first).

Frequently Asked Questions

This warming drawer is designed to accommodate three standard full-size (12" x 20") and fractional steam table pans up to 6" deep in its stainless steel liners.
Yes, each of the three drawers is equipped with its own individual heater, recessed thermostat control, thermometer, and indicator light for precise and separate temperature management.
The DWN-3-120 model requires a 120V, 11.25 Amps, 1350 Watts, 60 Hz, 1-Phase electrical connection and comes with a NEMA 5-15P plug.
Each drawer features an adjustable louver that allows you to control moisture levels, helping to prevent food from drying out and maintain its quality.
The unit provides quick and even heating, maintaining food at temperatures ranging from 100°F to 200°F.
