RedHots Built-In Narrow Single-Drawer Warming Drawer, 240V, Stainless Steel

SKU: DWN-1BI-240
$2,698.67
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Warming Countertop Food Warming Drawer Warmer Drawer Warmers Eagle Group Food Holding & Warming Equipment Food Warmers & Holding Equipment New Arrivals Restaurant Equipment

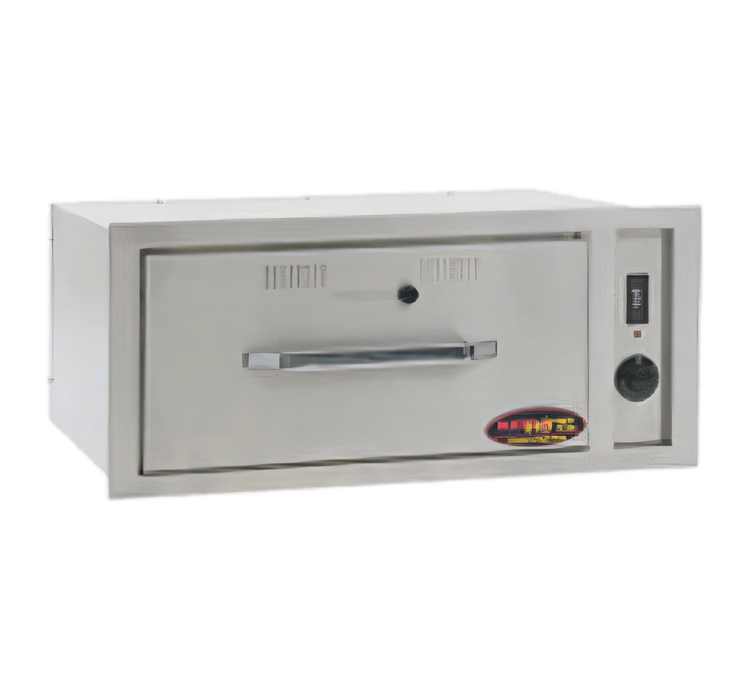

RedHots Built-In Narrow Single-Drawer Warming Drawer, 240V, Stainless Steel

Holds one 12" x 20" x 6" pan; thermostatic controls with indicator light

This built-in narrow warming drawer saves valuable counter space while keeping food hot and ready to serve.

  • Built-in narrow design installs cleanly into a counter cutout for a streamlined holding station.
  • Single drawer holds one 12" x 20" x 6" pan for convenient hot food storage.
  • Recessed thermostatic control with indicator light helps maintain consistent holding temperatures.
  • Stainless steel construction supports durability and easy cleaning in busy kitchens.
  • 240V, 450W operation with a NEMA 6-15P plug simplifies electrical connection.

Overall Dimensions:

23.0"W x 23.25"D x 10.75"H

Product Weight:

143.0 lb

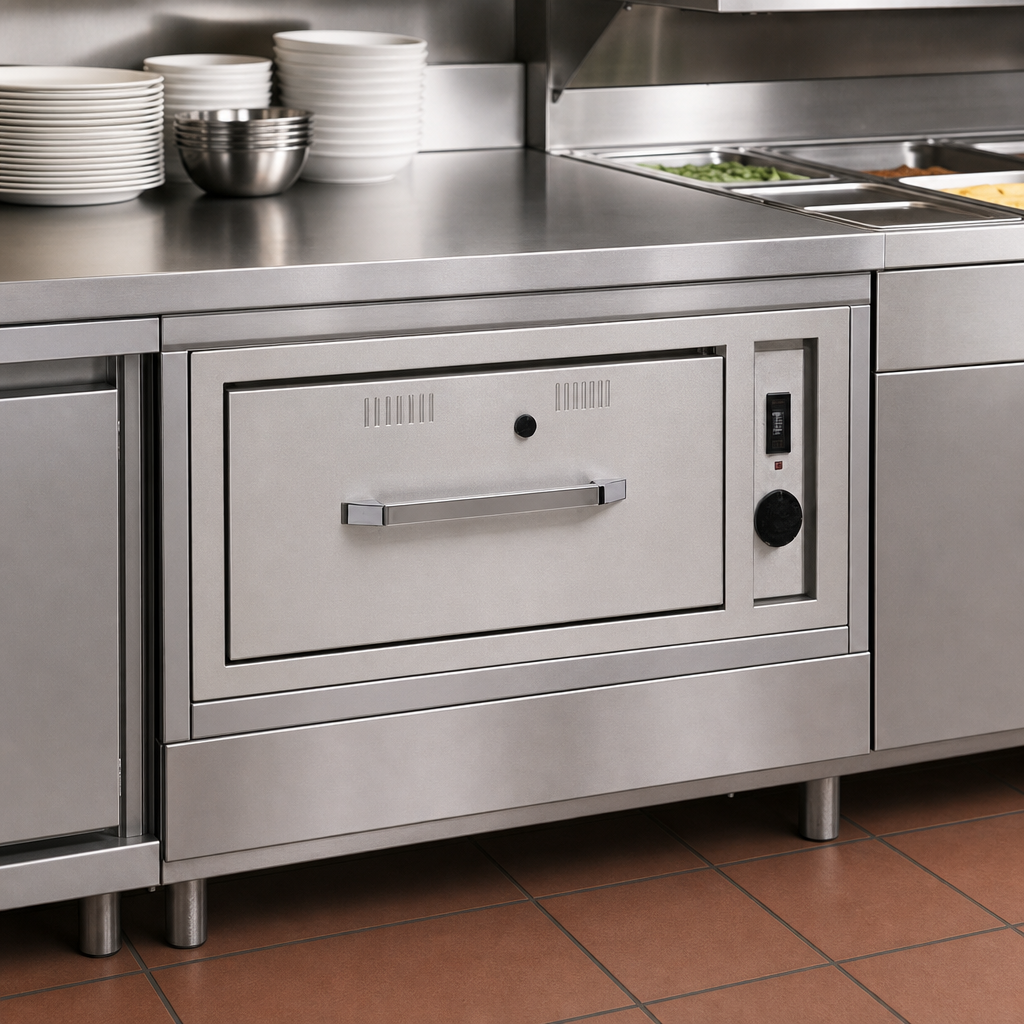

Built-In Design

Designed for built-in installation, creating a flush, integrated look in your holding line or prep area.

Built-In Design

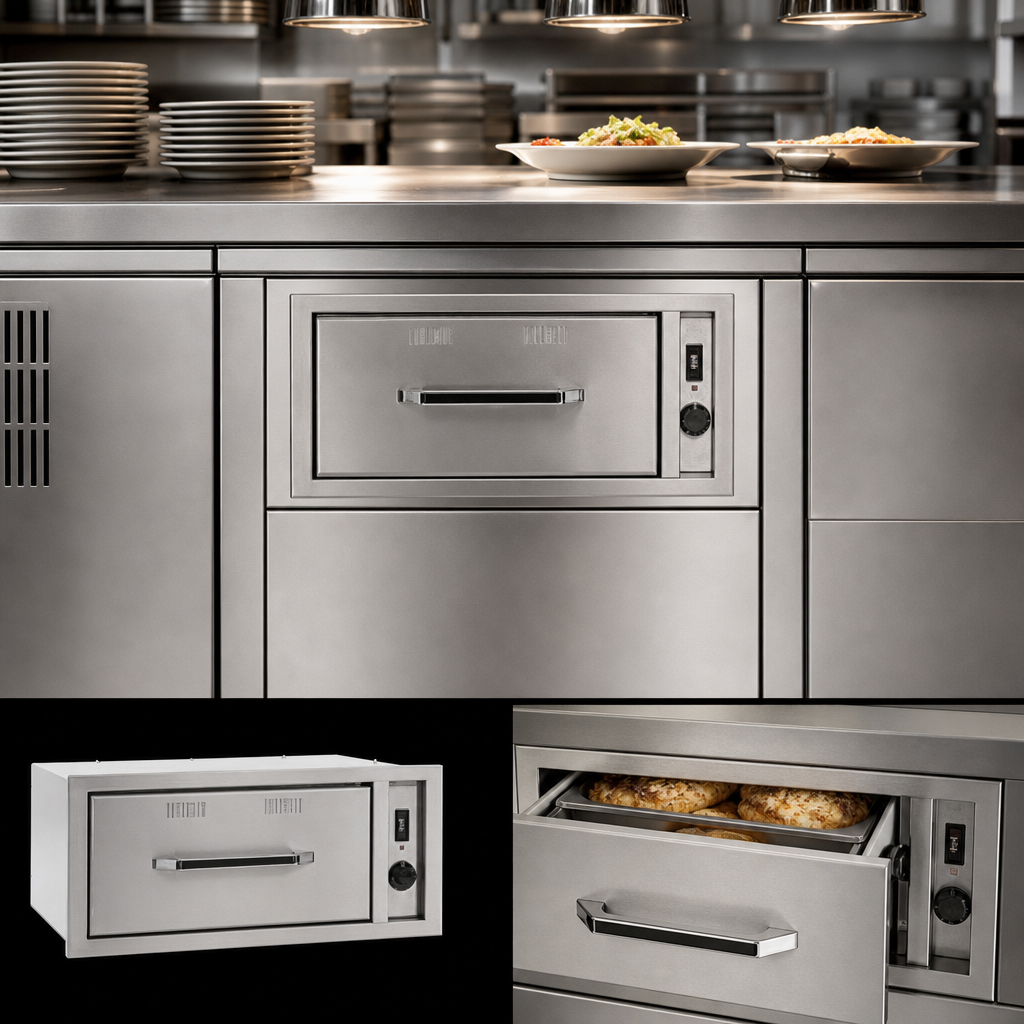

Narrow Single-Drawer Layout

Space-saving narrow-width construction with one drawer for compact commercial applications.

Narrow Single-Drawer Layout

Pan Capacity

Holds one 12" x 20" x 6" pan for practical food holding capacity.

Thermostatic Controls

Recessed thermostat with indicator light provides straightforward temperature monitoring and adjustment.

Stainless Steel Construction

Durable stainless steel body is made for commercial use and easy cleaning.

Electrical Specifications

Operates on 240V, 60 Hz, single-phase power at 450 watts and 1.88 amps with a NEMA 6-15P plug.

Cutout Requirement

Requires a 21-3/4"W x 26-5/8"D x 10-7/8"H opening for installation.

Type Warming Drawer
Style Narrow Drawer
Installation Type Built-In
Drawers 1
Controls Thermostatic
Pan Capacity 1
Pan Size 12 x 20 x 6 Inches
Material Stainless Steel
Voltage 240 Volts
Watts 450 Watts
Amps 1.88 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Selling Unit Each
Units Per Case 1
Shipping Width 23 Inches
Shipping Depth 24 Inches
Shipping Height 11 Inches
Shipping Weight 143 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12 months from factory shipment or 6 months from first placed into service, whichever comes first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds one 12" x 20" x 6" pan.
Yes. It is designed for built-in installation and requires a 21-3/4"W x 26-5/8"D x 10-7/8"H cutout.
The unit uses 240V, 60 Hz, single-phase power, draws 1.88 amps, and includes a NEMA 6-15P plug.
It features recessed thermostatic controls with an indicator light.
Heated drawers are covered for 12 months from factory shipment or 6 months from first placed into service, whichever comes first.
