Eagle Group

Eagle RedHots Freestanding Narrow 1-Drawer Warming Drawer, 120V

SKU: DWN-1-120-X
$2,626.79
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

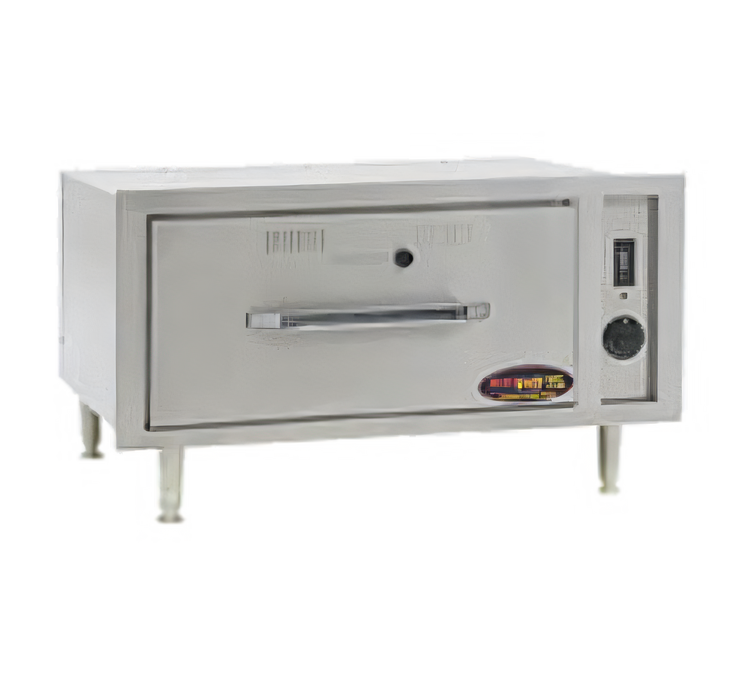

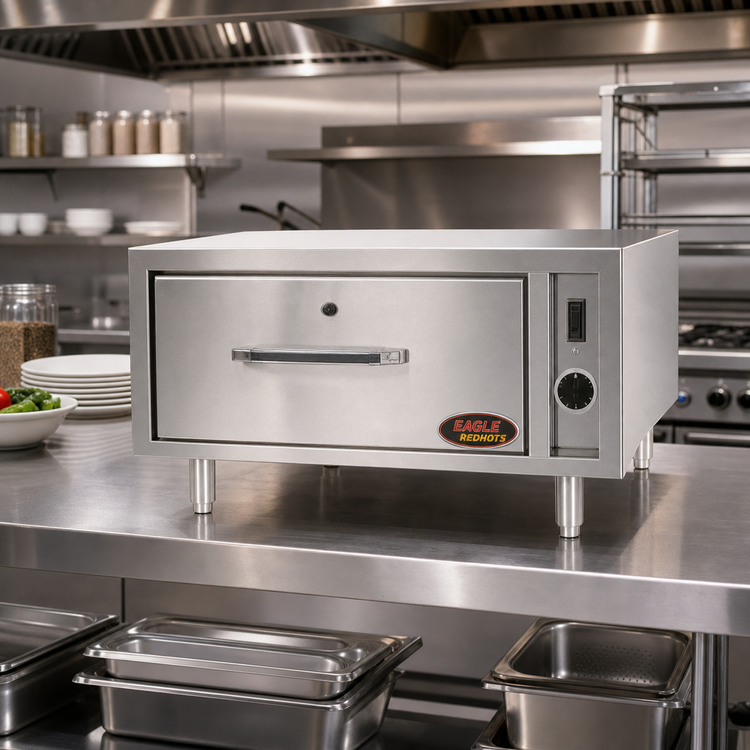

Eagle RedHots Freestanding Narrow 1-Drawer Warming Drawer, 120V

Stainless steel, thermostatic control, holds one 12 x 20 x 6 in. pan

A compact freestanding warming drawer that keeps food ready to serve with thermostatic heat, moisture retention louvers, and a narrow footprint.

  • Freestanding narrow-width design fits tight kitchen spaces without sacrificing holding capacity.
  • Holds one 12 x 20 x 6 inch steam table pan for convenient food warming and holding.
  • Recessed thermostat control with indicator light makes temperature management simple.
  • Heavy-duty stainless steel construction includes fiberglass insulation for efficient heat retention.
  • Adjustable louvers help retain product moisture during extended holding periods.
  • 120V operation with a standard NEMA 5-15P plug for straightforward installation.

Overall Dimensions:

21.0"W x 27.75"D x 16.25"H

Product Weight:

143.0 lb

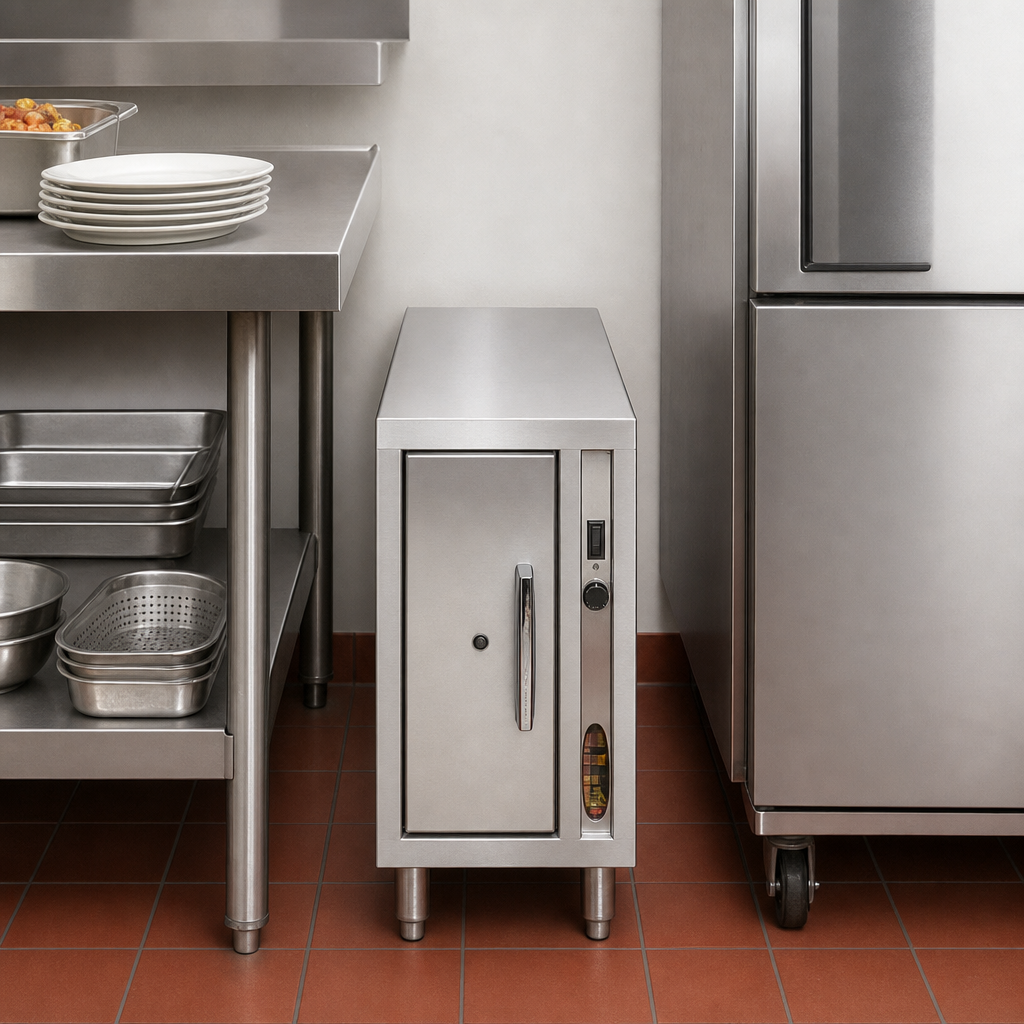

Freestanding Narrow-Width Design

A compact 21-inch wide footprint designed for floor placement in space-constrained kitchens.

Freestanding Narrow-Width Design

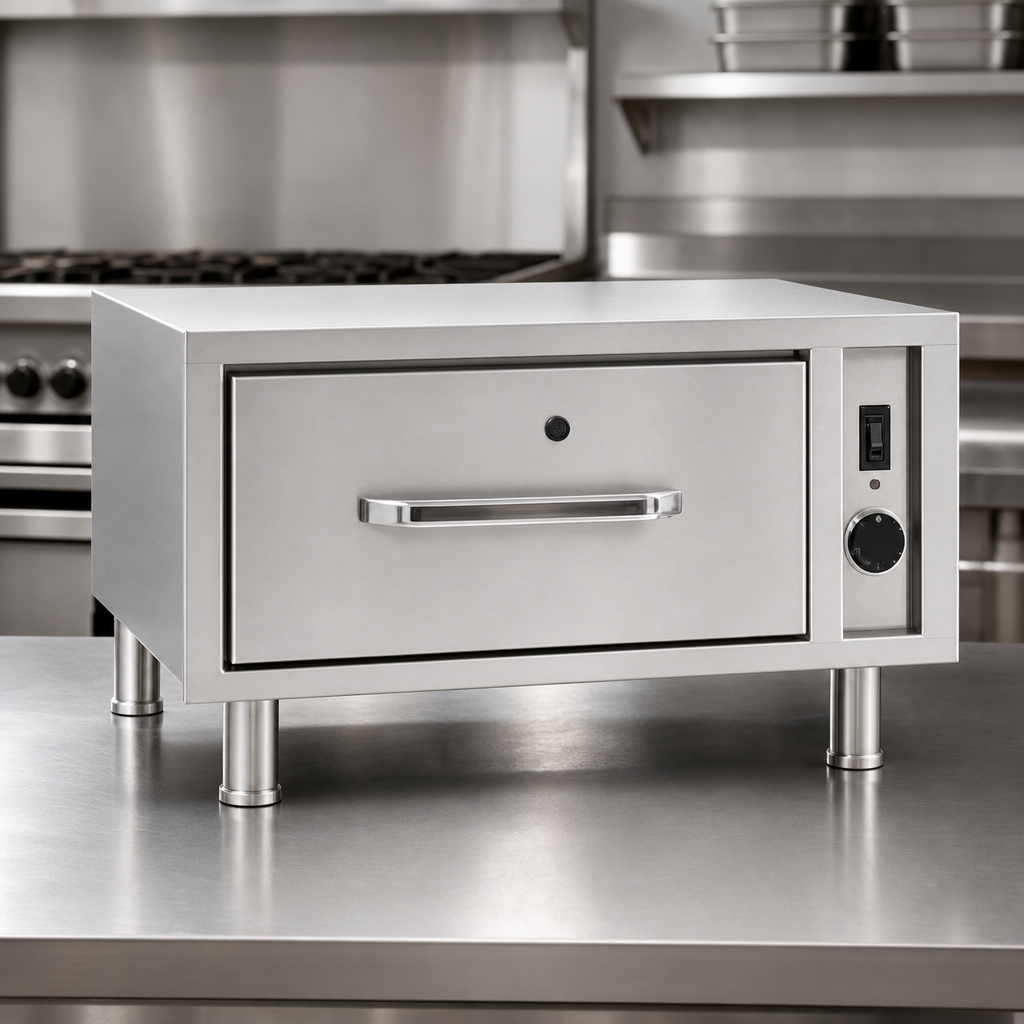

Stainless Steel Construction

Heavy-duty stainless steel build provides durability and a professional appearance.

Stainless Steel Construction

Fiberglass Insulation

1 1/2-inch fiberglass insulation helps retain heat and improve holding efficiency.

Single Heated Drawer

One drawer holds one 12 x 20 x 6 inch pan and accepts standard steam table pans.

Thermostatic Control With Indicator Light

Recessed thermostat control lets operators manage holding temperature easily, while the indicator light shows when the unit is active.

Adjustable Moisture Retention Louver

The adjustable louver helps maintain ideal product moisture during holding.

Adjustable Non-Marking Feet

4-inch adjustable feet help level the unit and protect floors.

Cord And Plug Included

Freestanding units include a 72-inch grounded cord and plug for 120V operation.

Type Warming Drawer
Style Narrow Drawer
Installation Type Freestanding
Material Stainless Steel
Pan Capacity 1 Pan
Pan Size 12 x 20 x 6 Inches
Controls Thermostatic
Temperature Range 100°F to 200°F
Voltage 120 Volts
Amps 3.75 Amps
Watts 450 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 72 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 21 Inches
Shipping Depth 28 Inches
Shipping Height 17 Inches
Shipping Weight 143 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12 months from shipment or 6 months from first use, whichever comes first.

Frequently Asked Questions

It holds one 12 x 20 x 6 inch pan.
It operates on 120V, 60 Hz, single-phase power and draws 3.75 amps at 450 watts with a NEMA 5-15P plug.
This model is freestanding.
The unit heats quickly and evenly from 100°F to 200°F.
Yes, the adjustable louver is designed to help retain product moisture.
