Key specifications

Dimensions
20.0"W × 8.0"D × 1.0"H
Type
Glass Rinser Trough
Installation Type
Drop-In
Material
Stainless Steel
Diameter
4.5 in
Hose Length
12 in
Spec sheet
Eagle Group SKU: DIGRT-18

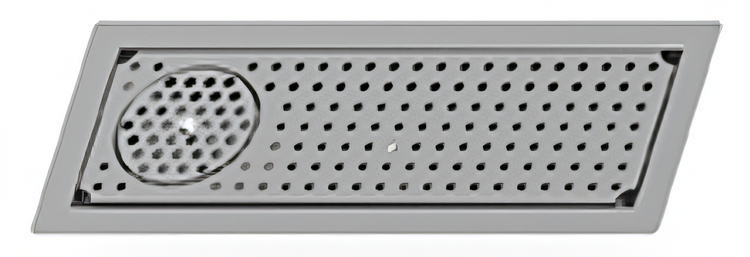

Eagle Group DIGRT-18 Drop-In Glass Rinser Trough

$307.06
/each
Estimated to ship in 3–6 business days
Model
Included: Eagle Group warranty Limited warranty for one year from the original installation, not to exceed 18 months from the date of shipment

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $28/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Glass Rinser Trough
Installation Type Drop-In
Material Stainless Steel
Diameter 4.5 in
Hose Length 12 in
Hose Construction Braided Stainless Steel
Compression Fitting Size 3/8 in
FIP Fitting Size 1/2 in
Drain Size 1/2 in
Drain Fitting Barbed
Pressure Regulator Inline Preset
Cover Removable Stainless Steel
Cutout Dimensions 6.25 in W x 18.25 in L

Description

The Eagle Spec-Bar® DIGRT-18 is a drop-in glass rinser trough designed to sit flush with the countertop. Its 4.5-inch actuation disk activates rinsing when a glass is placed upside down and pressed down.

It includes a 12-inch braided stainless steel hose with 3/8-inch compression and 1/2-inch FIP fittings, an inline preset pressure regulator, a removable stainless steel trough cover, and a 1/2-inch drain with a barbed drain fitting.

Overall Dimensions:

20.0"W x 8.0"D x 1.0"H

Product Weight:

4.5 lb

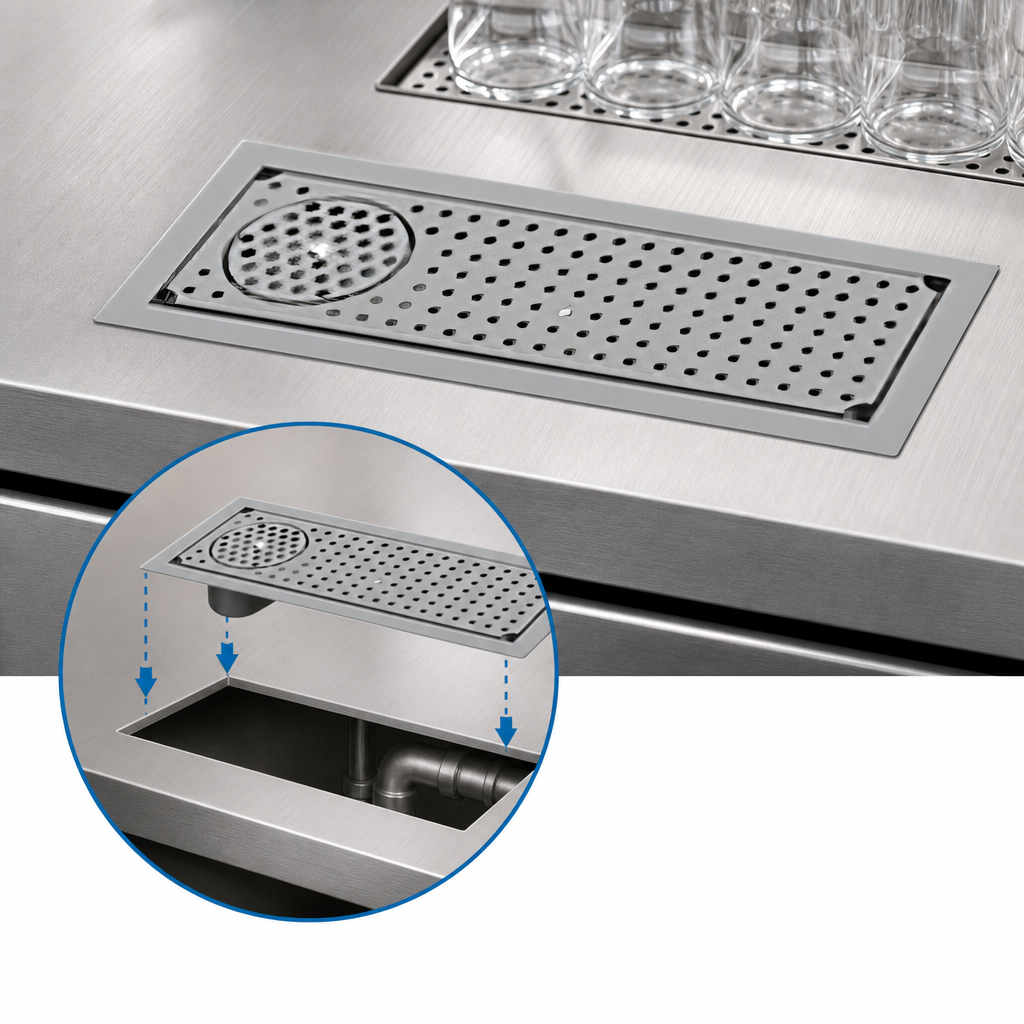

Drop-In Design

Designed to sit flush with the countertop.

Push-Down Actuation

The 4.5-inch-diameter disk activates the rinser when a glass is placed upside down and pressed down.

Braided Hose Included

Includes a 12-inch braided stainless steel hose with 3/8-inch compression and 1/2-inch FIP fittings.

Inline Preset Pressure Regulator

An inline, preset pressure regulator is provided.

Removable Trough Cover

The stainless steel trough cover is removable.

Barbed Drain Connection

A 1/2-inch drain with a barbed drain fitting is provided.

Frequently Asked Questions

Place a glass upside down on the rinser and press down on the actuation disk.
A 12-inch braided stainless steel hose with a 3/8-inch compression fitting and a 1/2-inch FIP fitting is included.
The cutout dimensions are 6.25 inches wide by 18.25 inches long.
Yes. The drop-in design is intended to sit flush with the countertop.
Yes. The stainless steel trough cover is removable.
