Key specifications
- Amps
- 18 Amps
- Phase
- 1-Phase
- Dimensions
- 79.0"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model

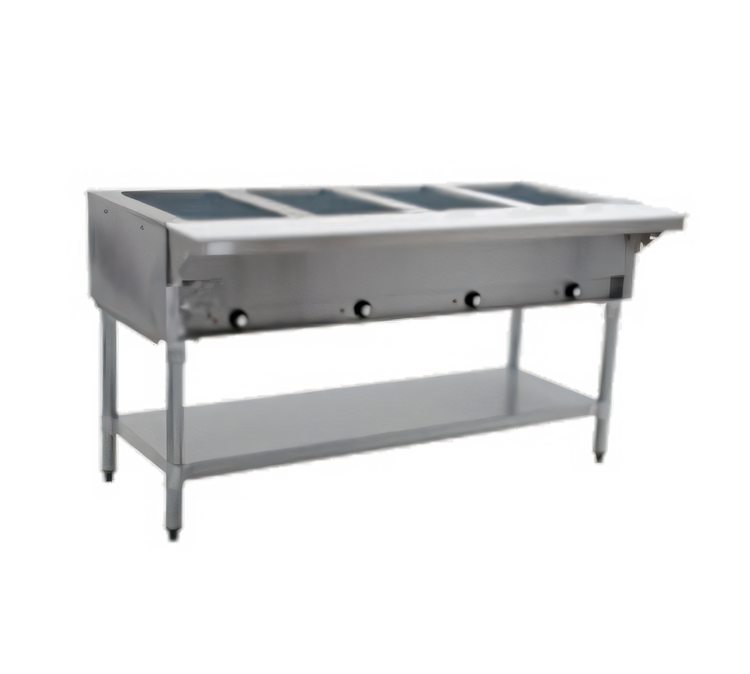

Eagle Group DHT5-208 79-Inch 5-Pan Hot Food Table
- 208 V · 1-phase · 18 A
- 208 V · 3-phase · 12.5 A
- 240 V · 1-phase · 15.6 A
- 240 V · 3-phase · 10.8 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Electric hot food holding: This open-base hot food table has five 12 x 20-inch dry wells, individual infinite controls, and a 430 stainless steel top and body.
- Each dry well is 8 inches deep.
- An 8-inch polycarbonate cutting board is mounted on the control side.
- The galvanized steel undershelf and tubular legs include adjustable bullet feet.
- The 3.75 kW electrical configuration operates at 208 volts, 60 Hz, single phase, and 18 amps with a NEMA 6-30P plug.
The unit is specified with NSF and cULus certifications.
Overall Dimensions:
79.0"W x 30.5"D x 34.0"HProduct Weight:

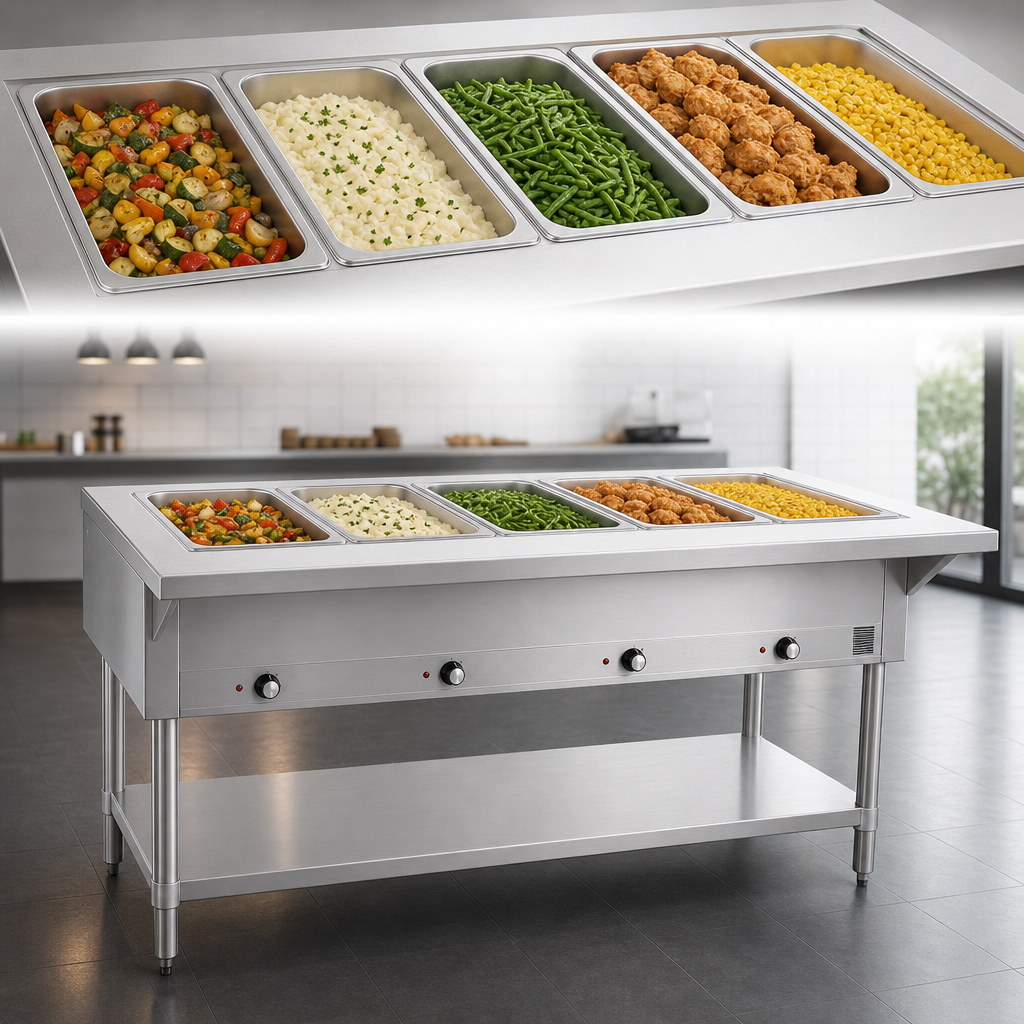

244.0 lbFive Dry Wells
Five 12 x 20-inch dry wells provide 8 inches of compartment depth.
Infinite Controls
Individual infinite controls provide high and low selections plus eight other temperature settings.

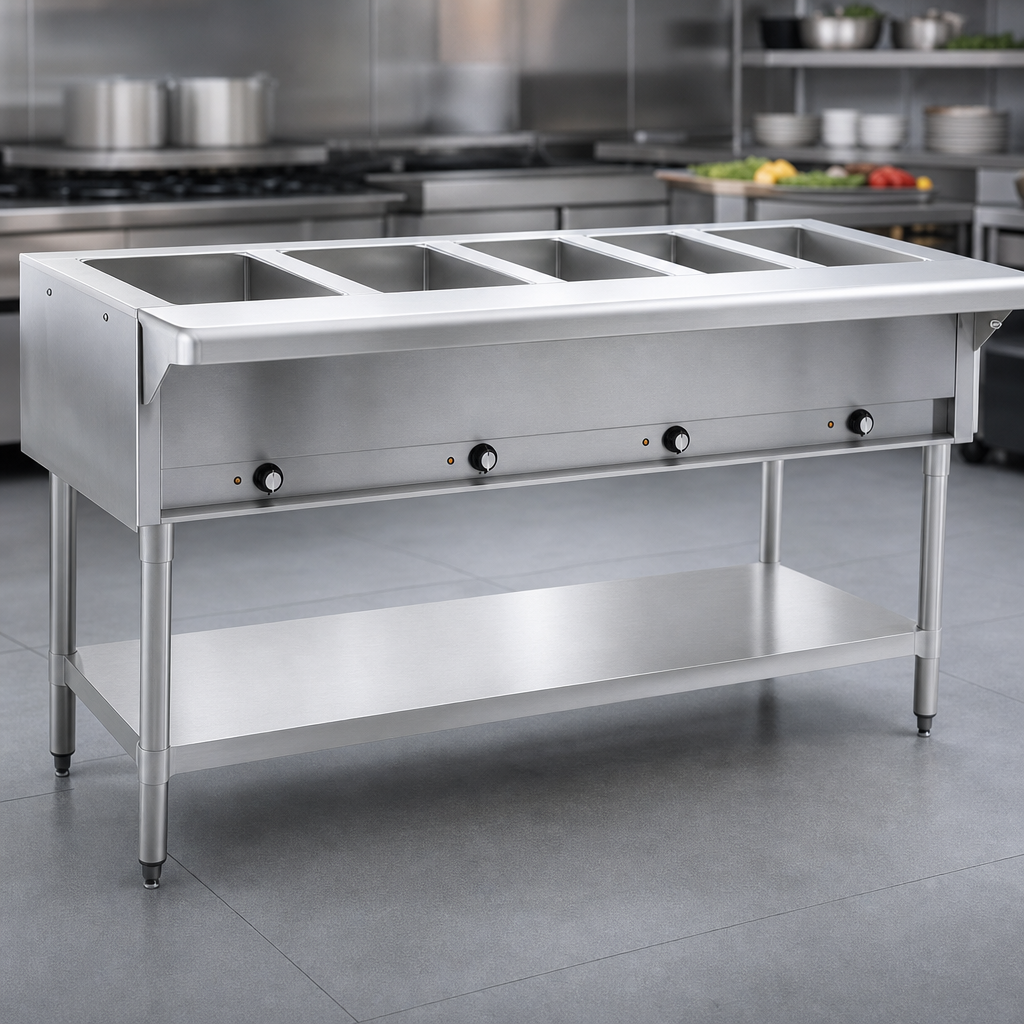

430 Stainless Steel Top and Body
The top and body are constructed of 430 stainless steel.
Open Base Structure
The unit has a galvanized steel adjustable undershelf and tubular legs with adjustable bullet feet.
Polycarbonate Cutting Board
An 8-inch polycarbonate cutting board is mounted on the control side.
Electrical Connection
The unit is rated at 3.75 kW, 208 volts, 60 Hz, single phase, and 18 amps with a NEMA 6-30P plug.
Certifications
NSF and cULus certifications are specified for the product.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
