Key specifications
- Amps
- 12.5 Amps
- Phase
- 1-Phase
- Dimensions
- 63.5"W × 30.5"D × 34.0"H
- Type
- Hot Food Table
- Style
- Open Base
- Installation Type
- Floor Model

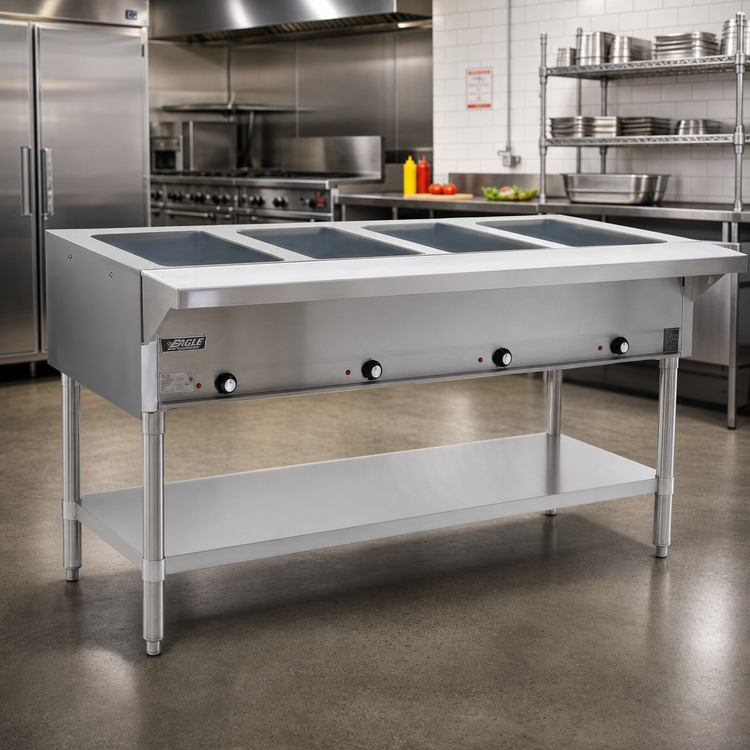

Eagle Group DHT4-240 4-Pan Electric Hot Food Table
- 120 V · 1-phase · 16.6 A
- 208 V · 1-phase · 14.4 A
- 240 V · 1-phase · 12.5 A
- 240 V · 3-phase · 8.3 A
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Eagle Group DHT4-240 is an electric hot food table with an open base, four dry wells, and individual infinite controls.
- Four 12 x 20-inch dry wells for standard pan sizing.
- 430 stainless steel top and body.
- Galvanized steel adjustable undershelf and tubular legs with adjustable bullet feet.
- Polycarbonate cutting board.
- 240-volt, 3 kW electrical configuration with a 6-foot cord and NEMA 6-20P plug.
The wells are designed for dry operation; wet operation requires a spillage pan.
Overall Dimensions:
63.5"W x 30.5"D x 34.0"HProduct Weight:

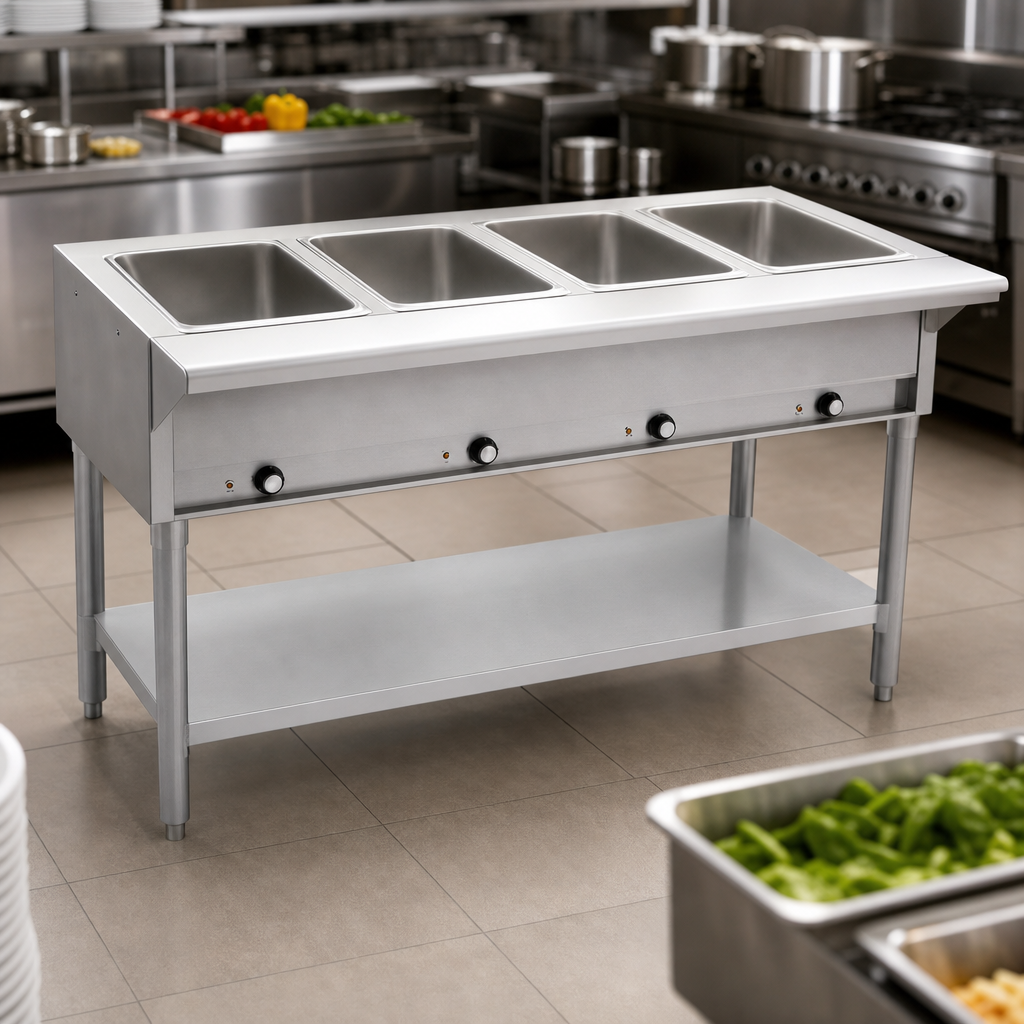

198.0 lbFour Dry Wells
Four 12 x 20-inch dry wells accommodate the specified pan format.
Infinite Controls
Individual infinite controls provide high and low settings plus eight other temperature settings.
Open Base
The stationary table has an open base with a galvanized steel adjustable undershelf and tubular legs.
430 Stainless Steel Construction
The top and body are constructed of 430 stainless steel.
Polycarbonate Cutting Board
A polycarbonate cutting board is specified for the table.
Adjustable Bullet Feet
Adjustable bullet feet are specified for leveling the table.
Electrical Configuration
The unit operates at 240 volts, 3 kW, 12.5 amps, 60 Hz, and single phase, with a NEMA 6-20P plug.
Dry Operation
The wells are designed for dry operation; wet operation requires a spillage pan.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
