Key specifications

Amps
12.5 Amps
Phase
1-Phase
Dimensions
63.5"W × 31.5"D × 34.0"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: DHT4-240-FM

Eagle Group DHT4-240-FM 63.5-Inch 4-Well Hot Food Table

$2,916.50
/each
Estimated to ship in 3–6 business days
Electrical
Capacity
Overshelf kit
Factory Add-Ons
Spillage pans
Included: Eagle Group warranty Eagle warrants hot food tables for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $270/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Base Material Galvanized Steel
Finish Polished
Base Finish Galvanized
Well Type Dry
Well Depth 8 in
Pan Capacity 4 Pans
Pan Size 12 in x 20 in
Shelf Count 2
Controls Infinite Controls
Cutting Board Material Polycarbonate
Cutting Board Width 8 in
Overshelf Type Double Tier Flex-Master
Post Height 30 in
Undershelf Adjustable
Voltage 240 Volts
Amps 12.5 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P

Description

The Eagle Group DHT4-240-FM is an electric hot food table with an open base, four dry wells, and a 63.5-inch-wide 430 stainless steel top and body.

It includes four 12-inch by 20-inch wells, individual infinite controls, an 8-inch-wide polycarbonate cutting board, and double-tier Flex-Master overshelves with 30-inch posts. The galvanized adjustable undershelf and tubular legs complete the open-base design.

This 3 kW table operates at 240 volts, 60 Hz, single phase, and 12.5 amps with a NEMA 6-20P plug. It is designed to maintain preheated foods at proper temperatures, not to cook or heat refrigerated or frozen foods.

Overall Dimensions:

63.5"W x 31.5"D x 34.0"H

Product Weight:

198.0 lb

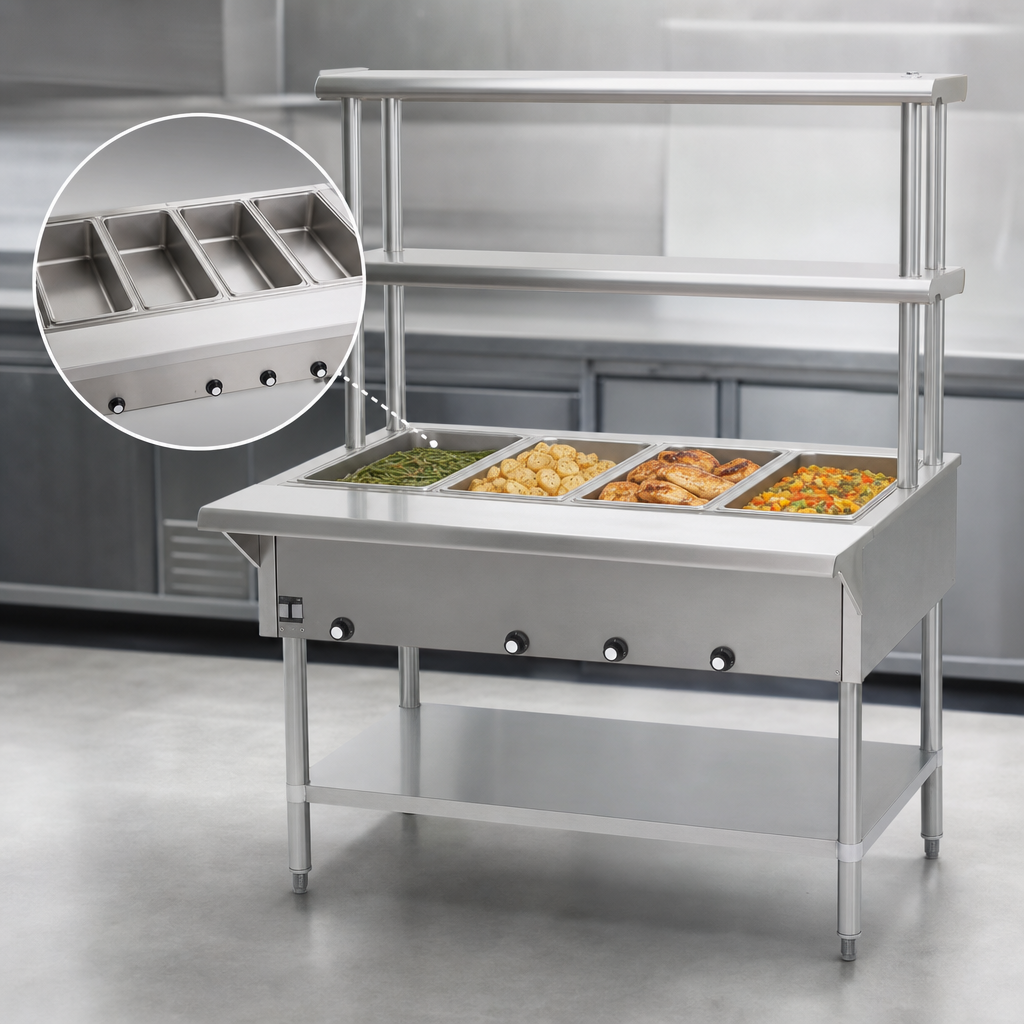

Four Dry Wells

Four 12-inch by 20-inch dry wells are 8 inches deep.

Infinite Controls

Individual infinite controls provide high and low selections plus eight other temperature settings.

Stainless Steel Construction

The top and body are made of 430 stainless steel.

Flex-Master Overshelves

Double-tier overshelves are supported by 30-inch posts.

Open Base

The unit has a galvanized adjustable undershelf, tubular legs, and adjustable bullet feet.

Polycarbonate Cutting Board

An 8-inch-wide polycarbonate cutting board is included.

Electrical Configuration

The table operates at 240 volts, 60 Hz, single phase, and 12.5 amps with a NEMA 6-20P plug.

Frequently Asked Questions

It has four dry wells, each measuring 12 inches by 20 inches.
It requires 240-volt, 60 Hz, single-phase power, draws 12.5 amps, and uses a NEMA 6-20P plug.
No. It is designed to maintain preheated foods at proper temperatures and is not designed to cook or heat refrigerated or frozen foods.
The table is 63.5 inches wide, 31.5 inches deep, and 34 inches high, with a listed weight of 198 pounds.
