Key specifications
- Amps
- 10.7 Amps
- Phase
- 1-Phase
- Dimensions
- 78.0"W × 30.0"D × 34.0"H
- Type
- Cold Pan Unit
- Style
- Recessed
- Installation Type
- Floor Model
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

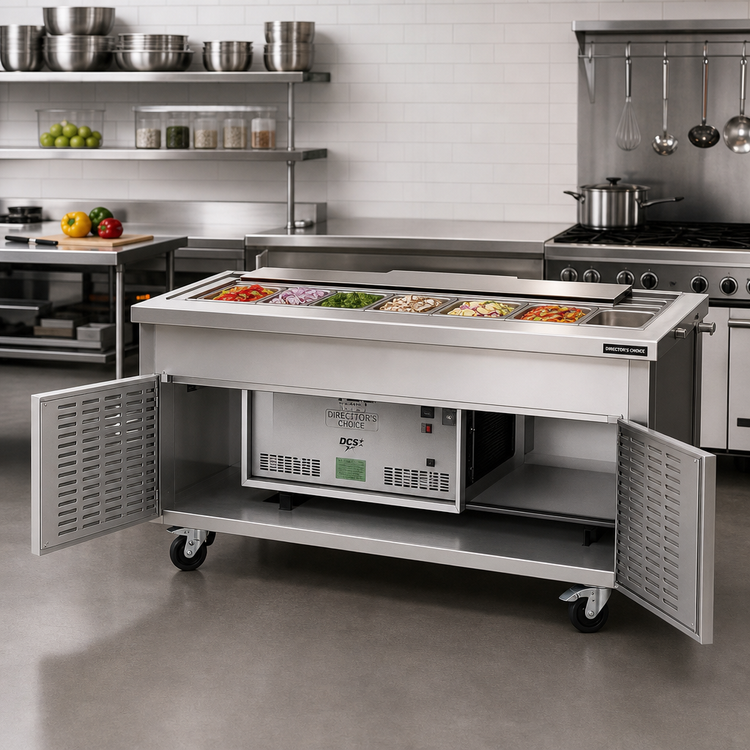

The Director's Choice DCS5-CFURN is a self-contained refrigerated cold pan unit with a 3-inch recessed stainless steel top and capacity for five 12 × 20-inch pans.
- 304 stainless steel construction includes a 16-gauge 304 stainless steel top.
- Welded open base with an operator-side apron.
- Mobile design uses five 5-inch poly casters, including two with brakes.
- Includes a 3/4-inch drain and valve.
- Electrical specification: 120 Volts, 10.7 Amps, 60 Hz, 1-Phase, NEMA 5-15P plug, and 6-foot cord.
- Standard front panel is holly berry red laminate.
Overall Dimensions:
78.0"W x 30.0"D x 34.0"HProduct Weight:
435.0 lbSelf-Contained Refrigeration
The refrigerated cold pan system is self-contained.
Five-Pan Capacity
Accommodates five 12 × 20-inch pans.
Recessed Top
The top has a 3-inch recess and is specified for NSF-7.
Stainless Steel Construction
The unit has 304 stainless steel construction and a 16-gauge 304 stainless steel top.
Mobile Base
The welded open base uses five 5-inch poly casters, with two casters equipped with brakes.
Operator-Side Apron
The open base includes an apron on the operator side.
Drain and Valve
A 3/4-inch drain and valve are provided.
Front Panel
The standard front panel is holly berry red laminate.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
