Key specifications

Amps
6 Amps
Phase
1-Phase
Dimensions
50.0"W × 30.0"D × 34.0"H
Type
Cold Pan Unit
Installation Type
Floor Model
Material
304 Stainless Steel
Spec sheet
Eagle Group SKU: DCS3-CFURN

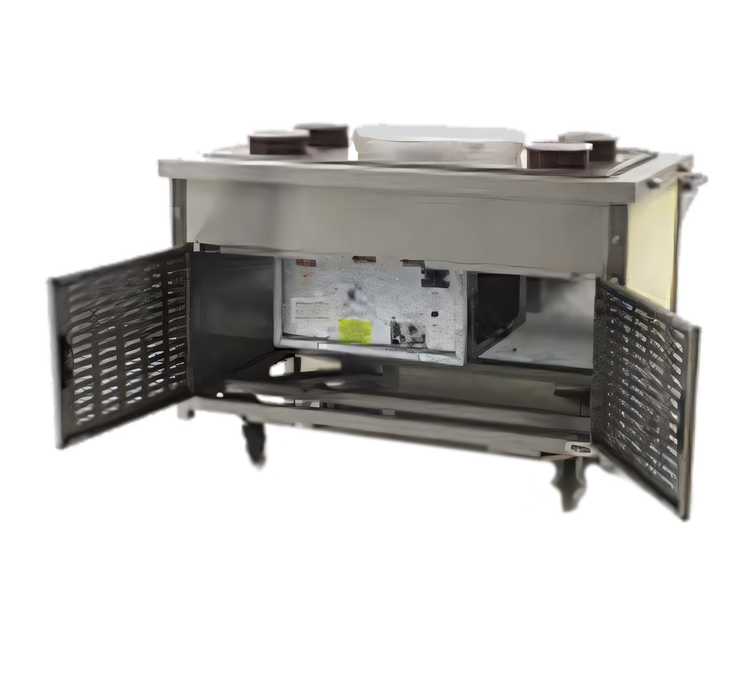

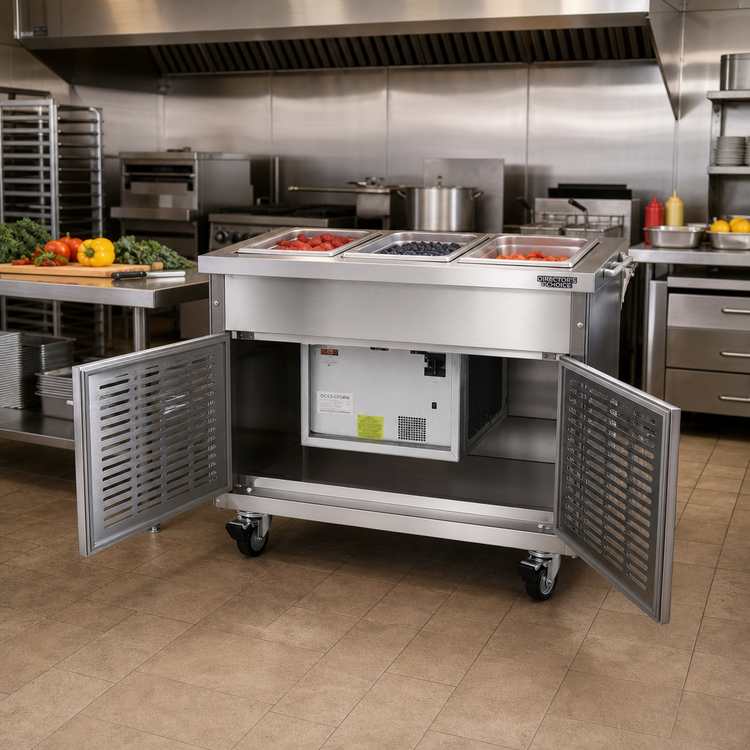

Eagle Group Director's Choice DCS3-CFURN 3-Pan Refrigerated Cold Pan

$7,295.81
/each
Estimated to ship in 3–6 business days Free Shipping
Width
Working height
Front panel
End panels
Included: Eagle Group warranty Eagle warrants Cold Pan Units for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $675/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cold Pan Unit
Installation Type Floor Model
Material 304 Stainless Steel
Color Holly Berry Red
Pan Capacity 3 Pans
Pan Size 12 x 20 Inches
Pan Depth 9 Inches
Recessed Top 3 Inches
Base Design Open Base
Front Panel Material Laminate
Mobility Mobile
Refrigeration Type Self-Contained
Refrigeration Standard NSF-7
Width 50 Inches
Depth 30 Inches
Working Height 34 Inches
Voltage 120 Volts
Amps 6 Amps
Hertz 60 Hz
Phase 1-Phase
Horsepower 1/4 HP
Plug Type NEMA 5-15P
Cord Length 6 Feet
Caster Size 5 Inches
Braking Casters 2 Casters
Drain Size 3/4 Inch

Description

Director's Choice DCS3-CFURN is a self-contained refrigerated cold pan unit with a 50-inch stainless steel top, three 12 x 20-inch pan positions, and a 34-inch open base.

The unit has 304 stainless steel construction, an operator-side apron, a holly berry red laminated front panel, and 5-inch poly casters with two brakes. It operates at 120 volts with a 6-amp draw, single-phase power, a NEMA 5-15P plug, and a 6-foot cord.

  • NSF-7 recessed top with a 9-inch full-depth refrigerated cold pan
  • Three 12 x 20-inch pan positions with removable adapter bars
  • 304 stainless steel construction and 16-gauge type 304 stainless steel top
  • NSF and UL listed

Overall Dimensions:

50.0"W x 30.0"D x 34.0"H

Product Weight:

325.0 lb

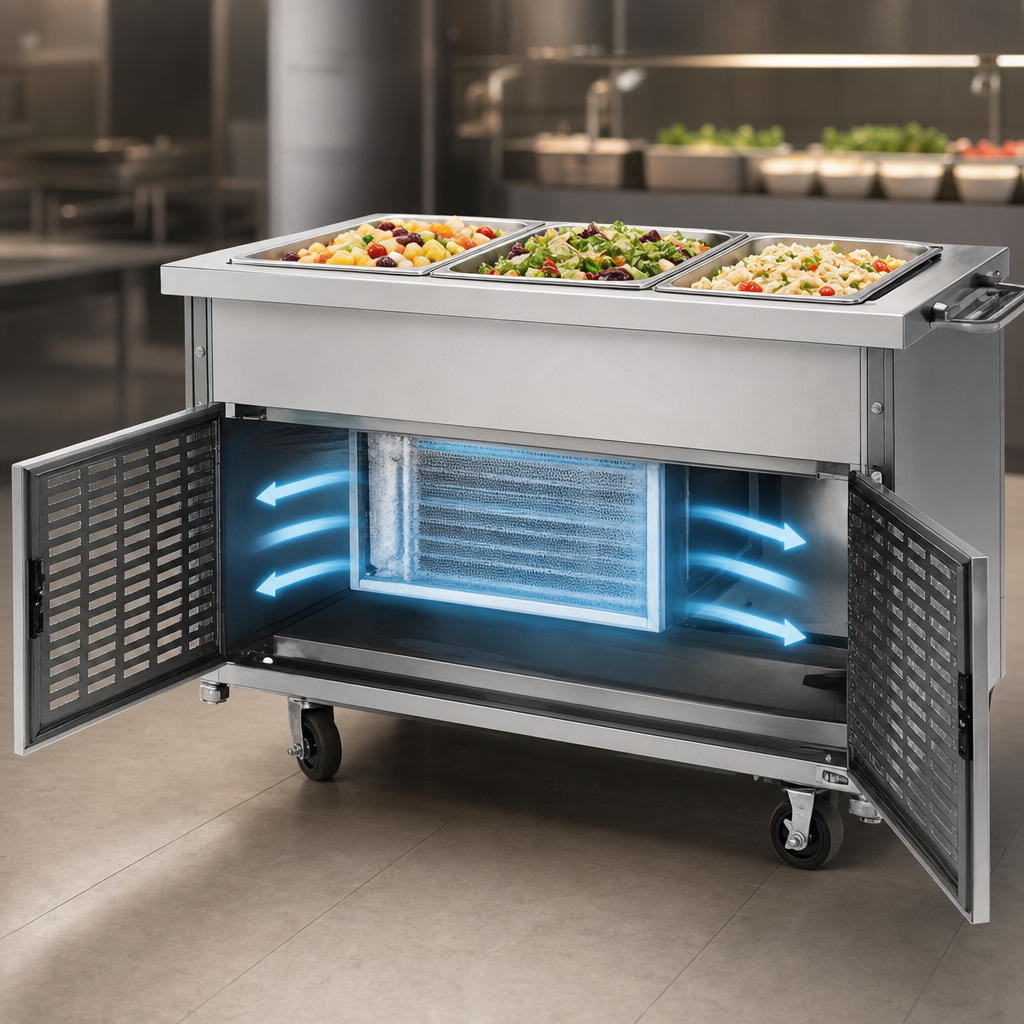

Self-Contained Refrigeration

The unit has a self-contained refrigeration system for its cold pan.

NSF-7 Recessed Top

The DCS3-CFURN has a 3-inch recessed top with a 9-inch full-depth refrigerated cold pan.

Three-Pan Format

The cold pan accommodates three 12 x 20-inch food pans and includes removable adapter bars.

Stainless Steel Construction

The top is 16-gauge type 304 stainless steel, and the base construction is type 304 stainless steel.

Mobile Open Base

The welded open base is fitted with 5-inch poly casters, two with brakes.

Operator-Side Apron

The open-base frame includes a type 304 stainless steel apron on the operator side.

Laminated Front Panel

The front panel is holly berry red laminate, Wilsonart D307-60.

Electrical Connection

The unit operates at 120 volts, 60 Hz, single phase, draws 6 amps, and uses a NEMA 5-15P plug with a 6-foot cord.

Frequently Asked Questions

Yes. The DCS3-CFURN has a self-contained refrigeration system for its cold pan.
It accommodates three 12 x 20-inch food pans and includes removable adapter bars.
The unit is 50 inches wide, 30 inches deep, and 34 inches high.
It operates at 120 volts, 60 Hz, single phase, and 6 amps, with a NEMA 5-15P plug and 6-foot cord.
Yes. It has 5-inch poly casters, two with brakes.
The exact product is listed with NSF and UL certifications.
