Eagle Group

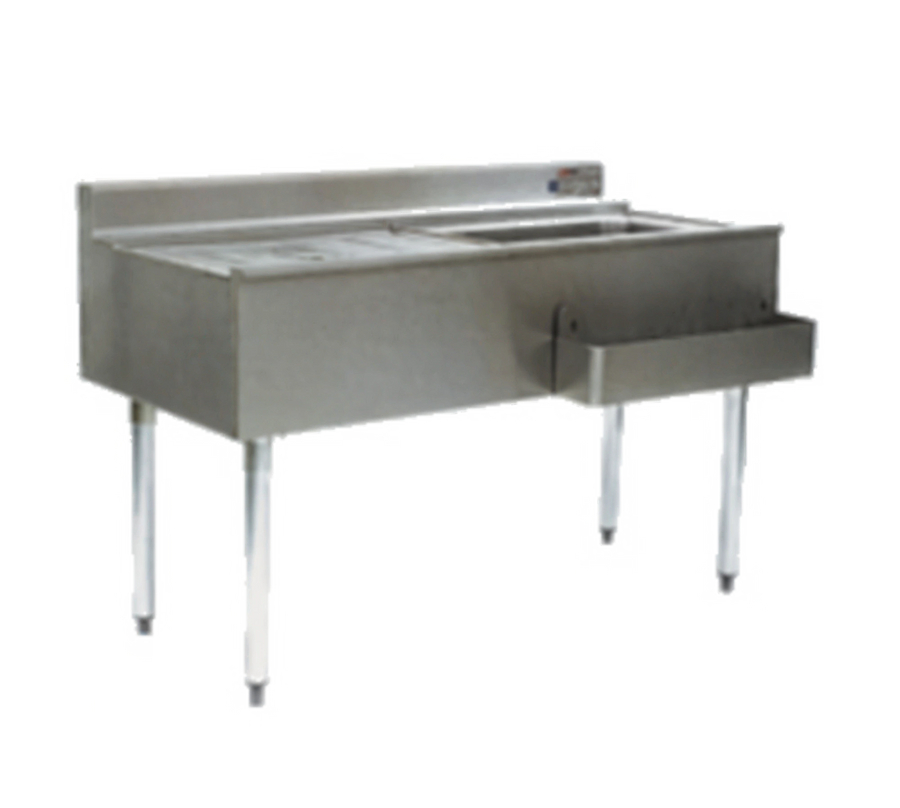

Eagle Group 2200 Series CWS5-22R Underbar Cocktail Workstation, 60"W x 24"D, Right Ice Bin, 75 lb Capacity

SKU: CWS5-22R
$1,647.90
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Eagle Group CWS5-22R is a 2200 Series underbar cocktail workstation measuring 60 in wide by 24 in deep. It features a right-side insulated ice bin with 75 lb capacity, a left drainboard, and a 24 in stainless steel speed rail.

  • Right-side ice bin: The fully insulated bin is 8 in deep and holds approximately 75 lb of ice.
  • Stainless steel work surface: The work surface, ice bin, and front are constructed from type 304 stainless steel.
  • Integrated drainage: Includes a 1-1/2 in NPT drain.
  • Galvanized support structure: End panels, back, bottom, and welded tubular legs are galvanized.
  • Stable base: Includes non-marking plastic bullet feet.
  • Cold plate: This model is listed without a cold plate.

Overall Dimensions:

24.0"W x 24.0"D x 33.5"H

Product Weight:

83.0 lb

Right-side insulated ice bin

The fully insulated ice bin is positioned on the right and has an approximate 75 lb capacity.

Left drainboard

A 36 in drainboard is positioned on the left side of the workstation.

Stainless steel work surface

The work surface is type 304 stainless steel; the ice bin and front are also specified as type 304 stainless steel.

Stainless steel speed rail

Includes a 24 in stainless steel speed rail.

Bullnose front

The workstation has a bullnose front end.

NPT drain

Includes a 1-1/2 in NPT drain.

Galvanized support components

End panels, back, bottom, and welded tubular legs are galvanized.

Non-marking bullet feet

Includes non-marking plastic bullet feet.

Without cold plate

The catalog attributes list this model without a cold plate.

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Eagle Group Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment Underbar Ice Bins & Cocktail Stations
Series 2200 Series
Product type Underbar cocktail workstation
Overall width 60 in
Overall depth 24 in
Ice bin location Right
Ice bin size 24 in x 8 in deep
Ice capacity Approximately 75 lb
Cold plate Without
Drainboard location Left
Drainboard length 36 in
Speed rail length 24 in
Drain connection 1-1/2 in NPT
Work surface material Type 304 stainless steel
Construction Stainless steel and galvanized
Splash 4 in
Leg construction 1-5/8 in welded galvanized tubular legs
Feet Non-marking plastic bullet feet
Certification NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty from the date of original installation, not to exceed 18 months from the date of shipment from Eagle.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Modular bar dies PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The ice bin is located on the right side of the CWS5-22R.
The fully insulated ice bin has an approximate capacity of 75 lb.
No. This model is listed without a cold plate.
The workstation is 60 in wide and 24 in deep. A product height is not provided in the authoritative dimensions.
The 36 in drainboard is located on the left side.
It uses a 1-1/2 in NPT drain.
