Eagle Group

RedHots Chef's Line Extra-Deep 24-Inch Countertop LP Gas Griddle with Thermostatic Controls

SKU: CLAGGDT-24-LP-X
$2,623.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

RedHots Chef's Line Extra-Deep 24-Inch Countertop LP Gas Griddle with Thermostatic Controls

3/4-Inch Smooth Polished Steel Plate, 62,500 BTU

This heavy-duty 24-inch griddle combines a thick polished steel plate, thermostatic control, and 62,500 BTU output for fast, even cooking.

  • 24-inch extra-deep countertop LP gas griddle for high-volume cooking.
  • Thermostatic snap-action controls are angled at 45° for easier operator access.
  • 3/4-inch smooth polished steel griddle plate is fully welded to the top assembly.
  • 4-inch rear and side splash guards and a front trough help contain grease and drips.
  • 7-1/2-quart stainless steel grease drawer simplifies cleanup.
  • Adjustable cast metal legs with flanged feet provide stable placement.
  • 504 square inches of cooking surface gives ample working space.

Overall Dimensions:

24.0"W x 28.31"D x 18.0"H

Product Weight:

234.0 lb

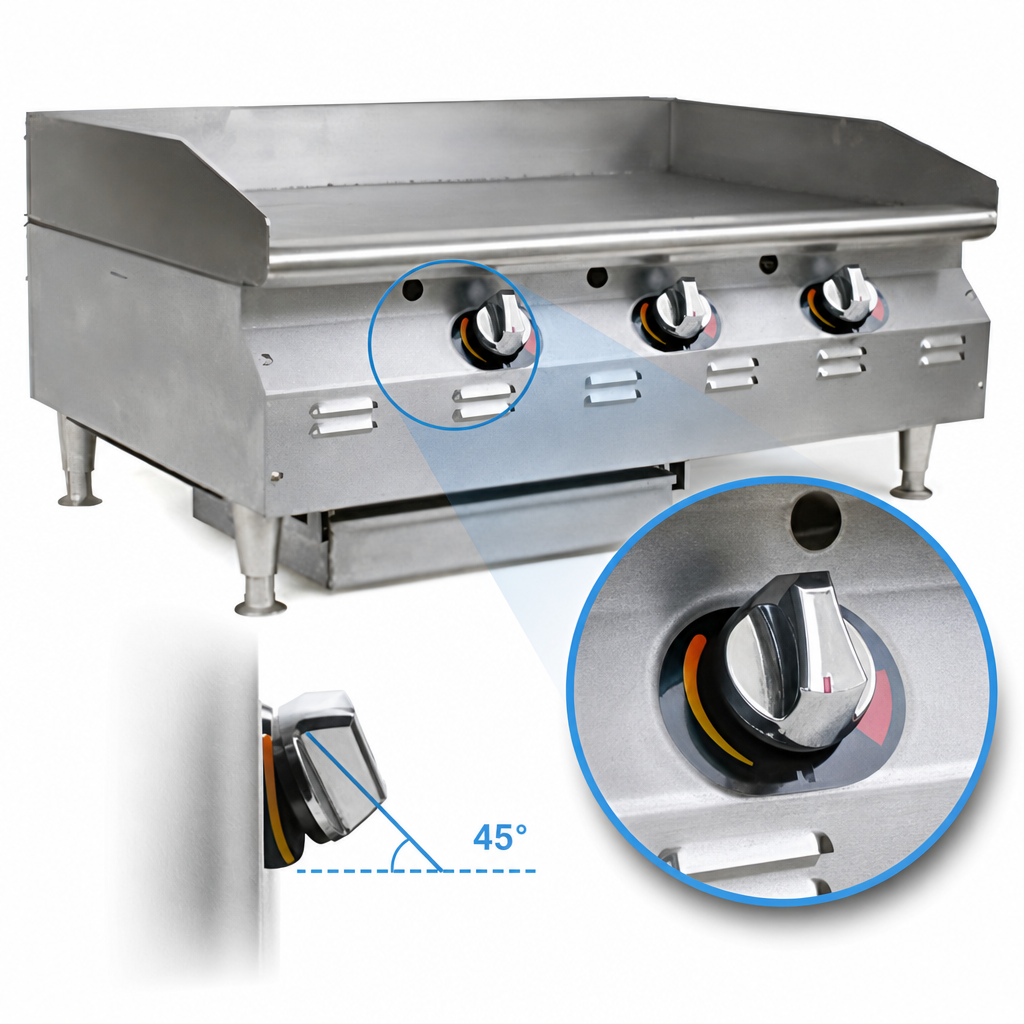

Thermostatic Snap-Action Controls

Controls are angled at 45° for ergonomic operation and dependable temperature management.

Thermostatic Snap-Action Controls

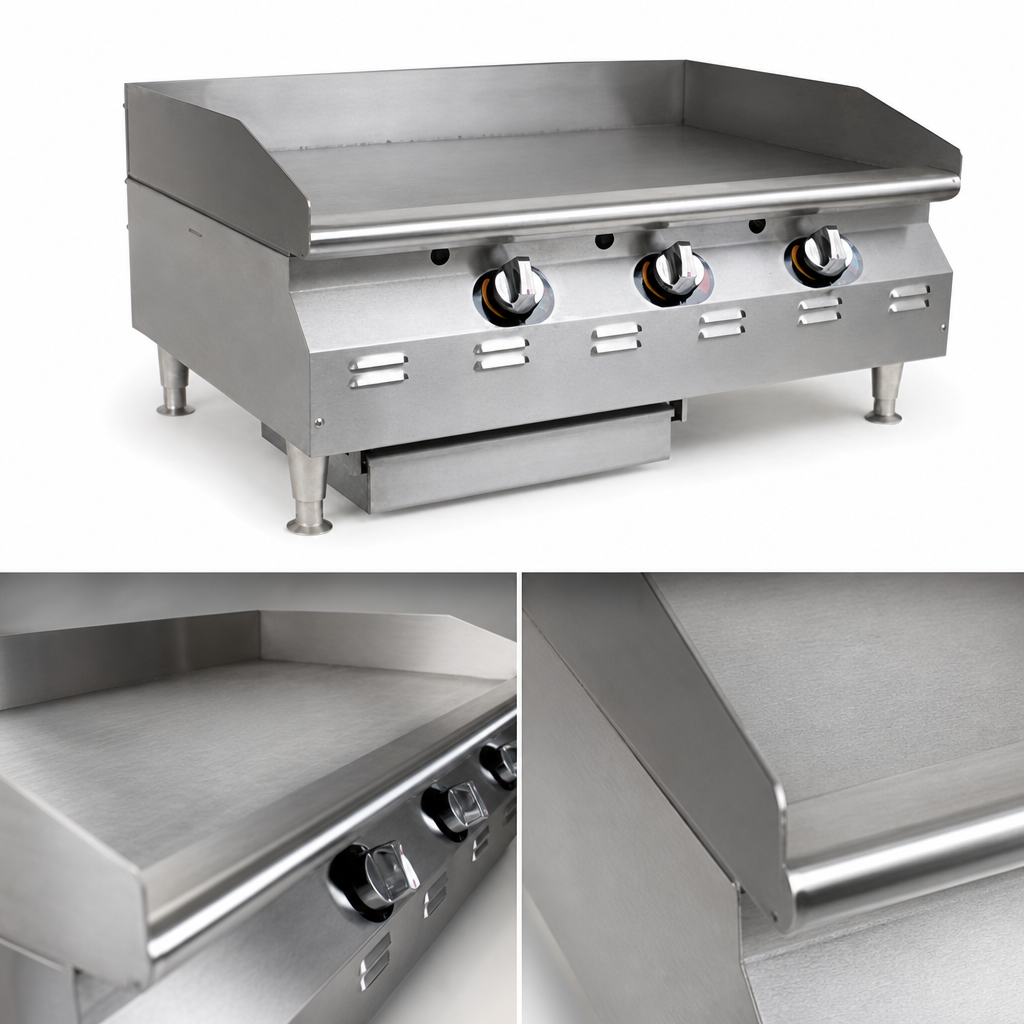

3/4-Inch Smooth Polished Steel Griddle Plate

A heavy griddle surface fully welded to the top assembly for durability and heat retention.

3/4-Inch Smooth Polished Steel Griddle Plate

4-Inch Rear And Side Splash Guards

Sloped splash guards help contain grease and food debris during cooking.

Bullnosed Front Edge

Protects the control area and provides a durable front profile above the controls.

7-1/2-Quart Stainless Steel Grease Drawer

Large-capacity grease collection drawer helps simplify daily cleanup.

3-1/2-Inch Front Trough With Chute

Front trough with chute helps manage runoff and accommodates a standard spatula.

Adjustable Cast Metal Legs With Flanged Feet

Heavy-duty legs provide stable support and can be adjusted for installation.

Stainless Steel Front And Aluminized Sides

Durable exterior construction designed for demanding kitchen environments.

62,500 BTU Output

Powerful LP gas heat output supports quick recovery and even cooking performance.

Type Gas Griddle
Style Extra-Deep
Installation Type Countertop
Controls Thermostatic Snap-Action
Material Stainless Steel
Finish Smooth Polished Steel
Capacity 504 Square Inches
BTU 62,500 BTU
Gas Type Propane
Gas Connection Size 3/4 Inch N.P.T. Rear
Gas Inlet Pressure 9-1/2 Inches W.C.
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 29 Inches
Shipping Height 18 Inches
Shipping Weight 234 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Frequently Asked Questions

This model is LP gas (propane). The series is also available in natural gas versions.
It uses thermostatic snap-action controls mounted at a 45° angle for ergonomic operation.
The 24-inch model provides 504 square inches of cooking surface.
The griddle plate is 3/4 inch thick and made of smooth polished steel.
It includes a 7-1/2-quart stainless steel grease drawer and a 3-1/2-inch front trough with chute.
Yes. This commercial griddle must be installed according to national and/or local ventilation code requirements.
