Eagle Group

Panco CH3000B-240 Half-Height Electric Cook & Hold Cabinet with Digital Controls

SKU: CH3000B-240
$11,687.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ovens Cook and Hold Ovens Cooking Equipment Eagle Group Equipment New Arrivals Ovens Restaurant Equipment Specialty Ovens

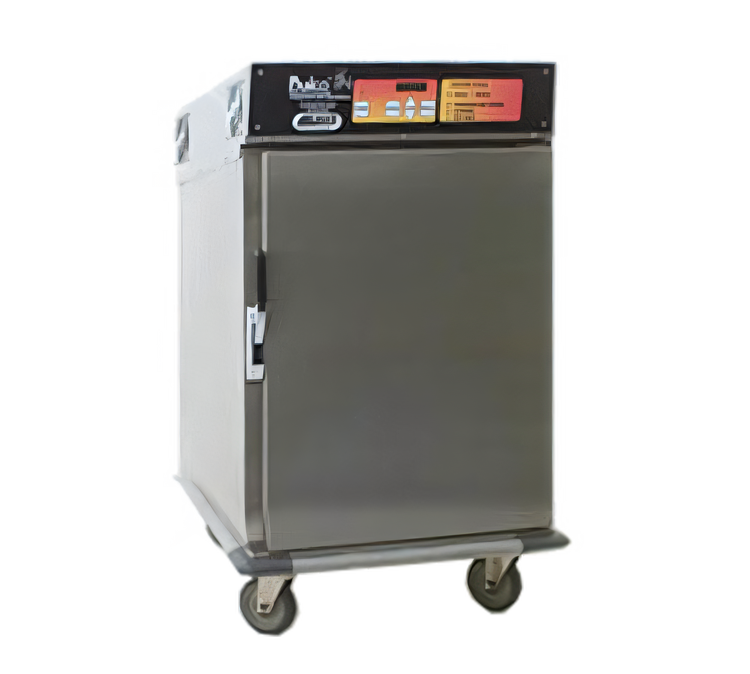

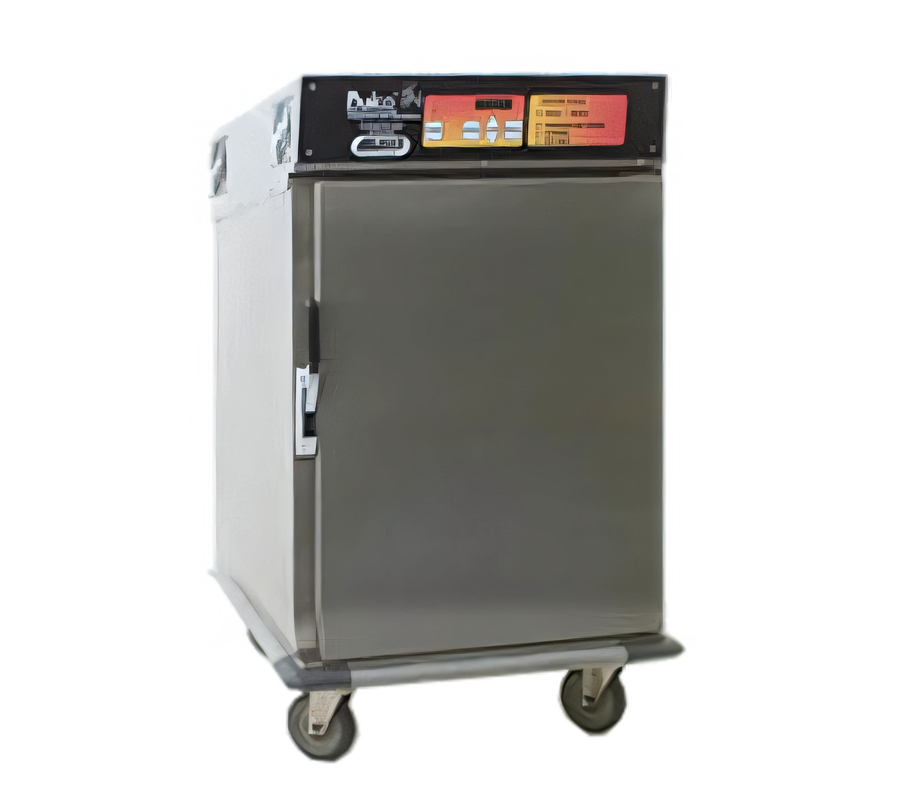

Panco CH3000B-240 Half-Height Electric Cook & Hold Cabinet with Digital Controls

Half-Height, Mobile, 9 Full-Size Pan Capacity, 240V

Achieve precise cooking and holding temperatures with the Panco CH3000B-240 cabinet, designed to maintain food quality and extend holding times.

  • Patented TEMP-GARD® AIR-FLOW® design ensures absolute precise control over temperature and humidity with an 8°F variance.
  • Features three 1000-watt heating elements for powerful and even convection heating.
  • Top-mounted digital control panel offers easy operation with memory for 16 programs and a 2" x 16" character LCD readout.
  • Automatically transitions from cooking to holding when set time or temperature probe parameters are met.
  • Durable 18 gauge type 300 stainless steel interior and exterior construction for long-lasting commercial use.
  • Equipped with heavy-duty 5" polymer swivel casters, two with brakes, and a full-perimeter bumper for mobility and protection.

Overall Dimensions:

27.5"W x 32.5"D x 46.5"H

Product Weight:

453.0 lb

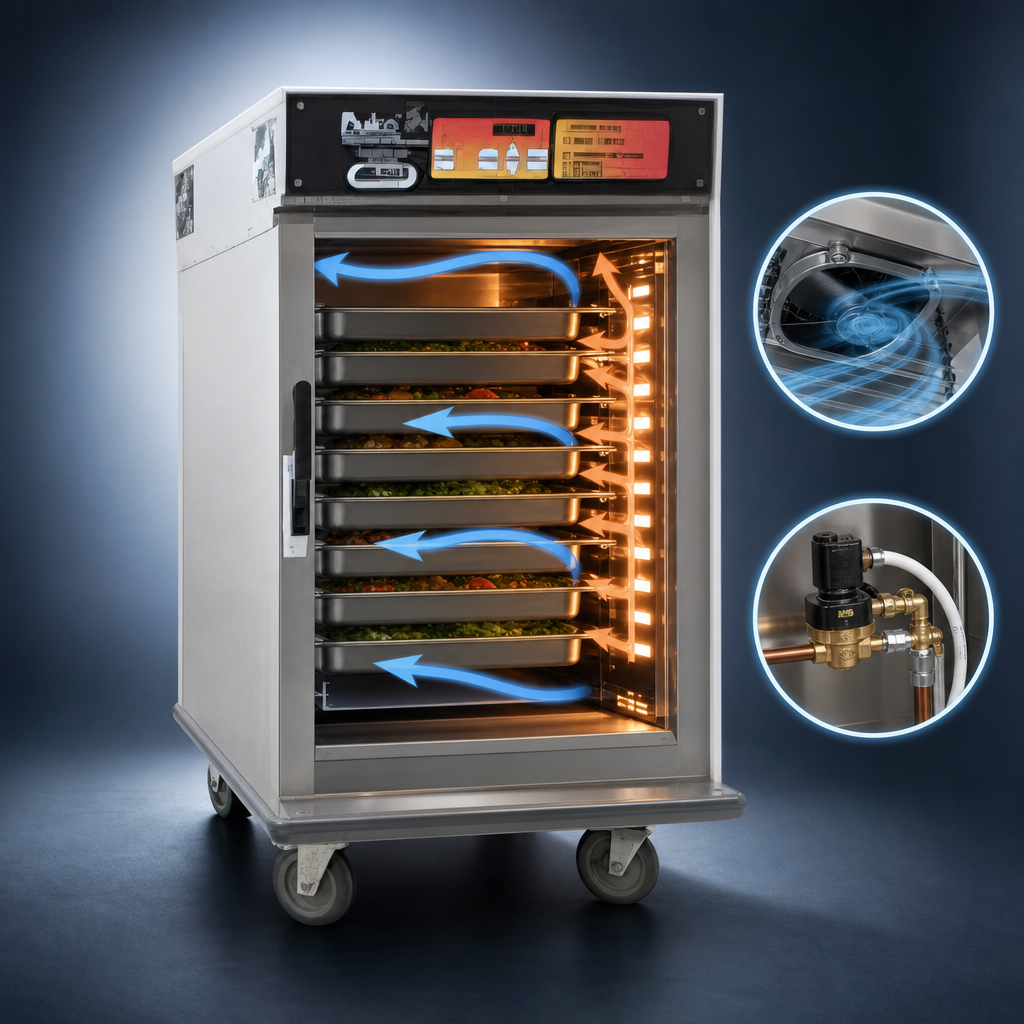

Advanced Temperature and Humidity Control

Utilizes a patented TEMP-GARD® AIR-FLOW® Design (Patent # 6,847,013 B2) for absolute precise control, maintaining an 8°F variance anywhere within the cabinet. Humidity is controlled via a solenoid plumbed directly to the water supply.

Advanced Temperature and Humidity Control

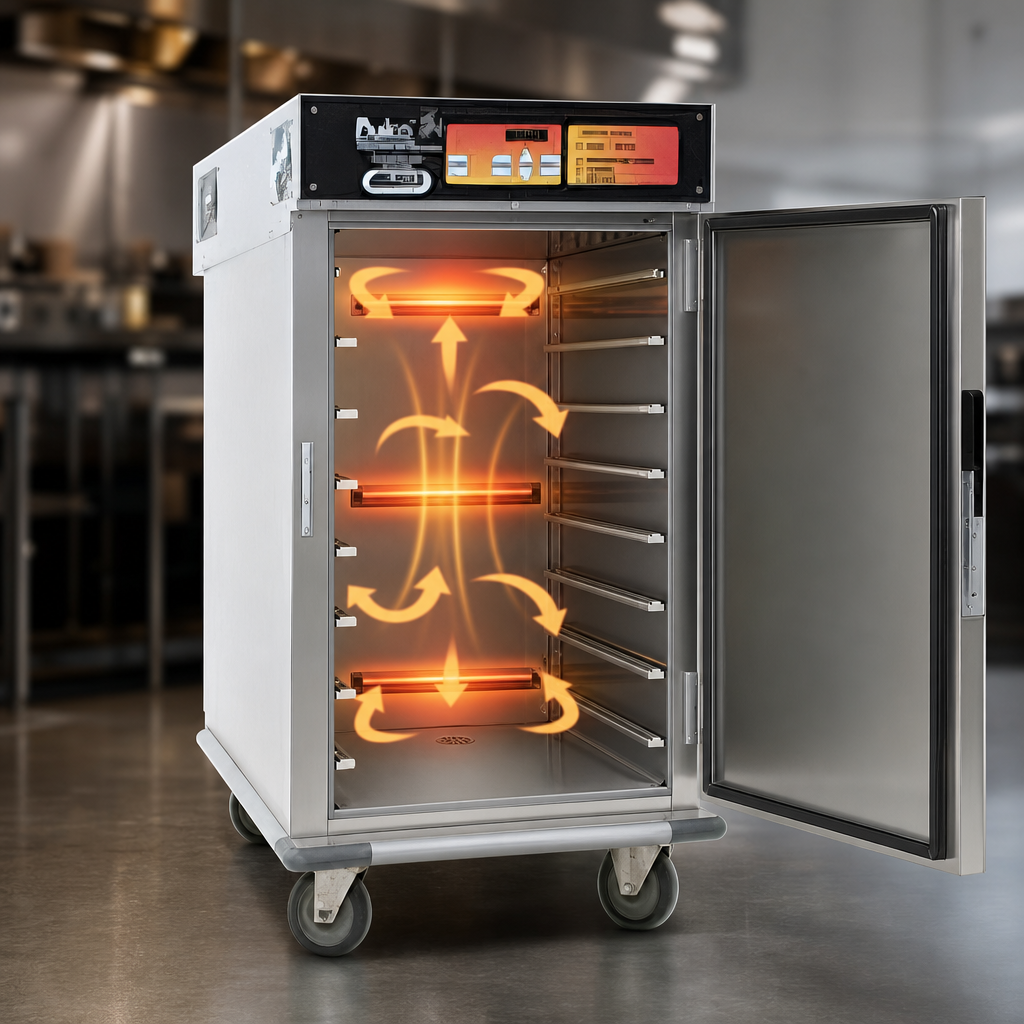

Efficient Convection Heating

Engineered airflow design ensures even convection heating throughout the cabinet, powered by three 1000-watt heating elements.

Efficient Convection Heating

Robust Construction

Built with triple-wall insulated cabinet body for superior heat retention and 18 gauge type 300 stainless steel for both interior and exterior walls, ensuring durability and easy cleaning.

Reversible Full-Size Door

Features a single full-size door that is easily reversible and swings 180° for flexible placement, equipped with a positive closing latch for secure sealing.

Intuitive Digital Control Panel

A standard top-mounted digital control panel includes a 2" x 16" character LCD readout, digital temperature settings, memory for 16 programs, embedded LEDs for operational status, and overheat/power outage caution alarms. Membrane switches allow for easy-touch operation.

Automated Cook & Hold Cycle

Automatically changes from cooking to holding mode once the programmed time or temperature probe parameters have been met, ensuring optimal food quality and reduced monitoring.

Wide Temperature Range

Offers a cook/probe temperature range of 100-350°F and a holding temperature range of 145-200°F, convertible from Fahrenheit to Celsius. Cook/hold time can be set up to 24 hours.

Mobile Design

Equipped with heavy-duty 5" (127mm) polymer swivel casters, two of which include brakes, providing excellent mobility and stability. A full-perimeter bumper protects the cabinet during transport.

Chrome Wire Tray Slides

Comes standard with nine pairs of chrome wire tray slides for versatile pan loading.

Type Cook and Hold Cabinet
Style Half-Height
Installation Type Floor Model (Mobile)
Exterior Finish All Stainless Steel Exterior
Interior Finish 300 Stainless Steel
Material 18 Gauge Type 300 Stainless Steel
Controls Programmable Digital
Pan Capacity 9 Full-Size Pans
Temperature Range 100-350°F (Cook/Probe), 145-200°F (Hold)
Heating Elements 3 x 1000 Watts
Watts 3 kW
Voltage 240 Volts
Amps 12.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Cord Length Cord Provided
Water Connection Required
Shipping Width 28 Inches
Shipping Depth 33 Inches
Shipping Height 47 Inches
Shipping Weight 453 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

12 months parts and labor from shipment date or 6 months from installation (whichever comes first).

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Options & accessories PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Panco CH3000B-240 cabinet is designed to hold 9 full-size (18" x 26") pans, utilizing its nine pairs of chrome wire slides.
This unit offers a cooking and probe temperature range of 100-350°F and a holding temperature range of 145-200°F. Temperatures can be displayed in either Fahrenheit or Celsius.
The cabinet features a patented TEMP-GARD® AIR-FLOW® Design, which allows for absolute precise control over temperature and humidity, maintaining an 8°F variance anywhere within the cabinet. Humidity is managed via a solenoid plumbed directly to the water supply.
Yes, the single full-size door is easily reversible and swings 180°, allowing for flexible placement and access in various kitchen layouts.
The CH3000B-240 model requires a 240V, 60 Hz, 1-phase electrical connection and comes with a NEMA 6-20P plug and cord provided.
Eagle Group warrants Transport Holding Cabinets for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first. This limited warranty covers parts and component materials against defects under normal use, with certain exclusions for misuse or improper installation. Travel expenses for approved warranty work are covered up to $150.00.
