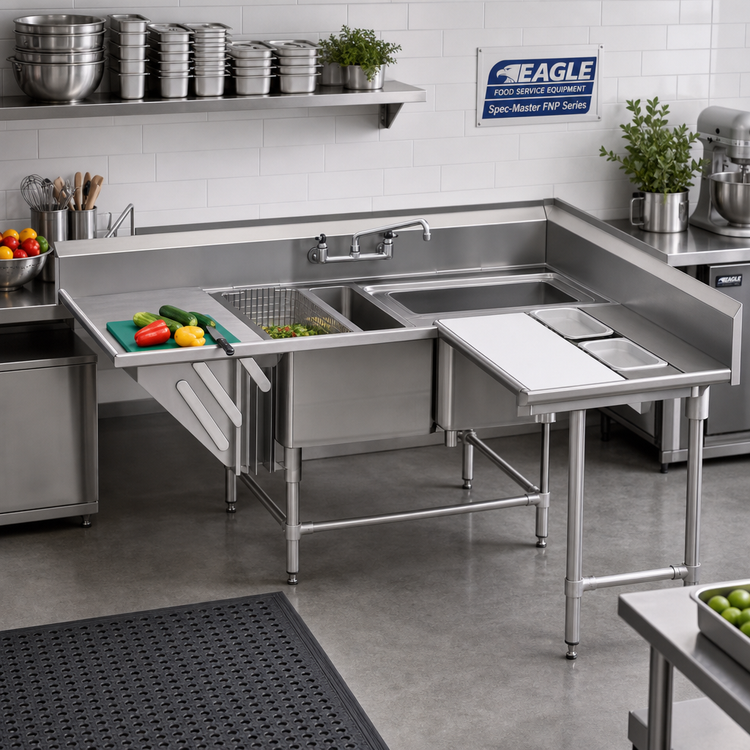

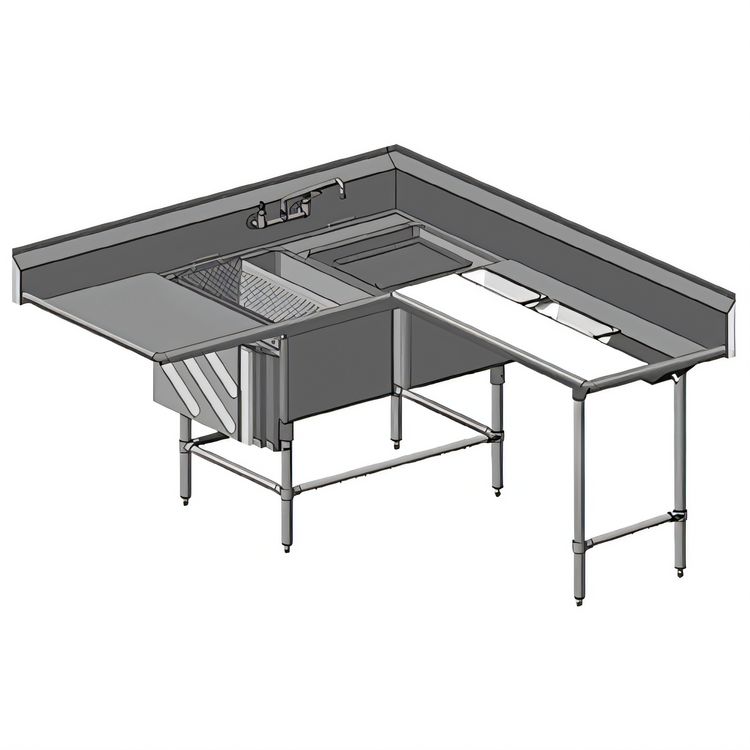

Eagle Spec-Master FNP Series Two-Compartment Prep Sink with Left-Hand Prep Area and Right-Hand Drainboard

14 Gauge 304 Stainless Steel, 28x20x14 Inch Bowls, 48 Inch Left-Hand Prep Area

Designed for rigorous commercial kitchen use, this Spec-Master FNP Series prep sink offers a dedicated workspace and durable stainless steel construction for efficient food preparation.

  • Durable 14 gauge 304 stainless steel construction ensures long-lasting performance.
  • Patented prep area with slanted troughs and flush nozzles for efficient washing and rinsing.
  • Includes multi-polyboard holder, magnetic utensil holder, rinse basket, and bun pan holder for comprehensive prep solutions.
  • Two generously sized 28"W x 20"D x 14"H coved-corner sink bowls.
  • Adjustable stainless steel legs and crossbracing provide stability and support.
  • 9½" high backsplash with 1" upturn and tile edge for easy cleaning and wall protection.

Overall Dimensions:

81.0"W x 35.0"D x 44.0"H

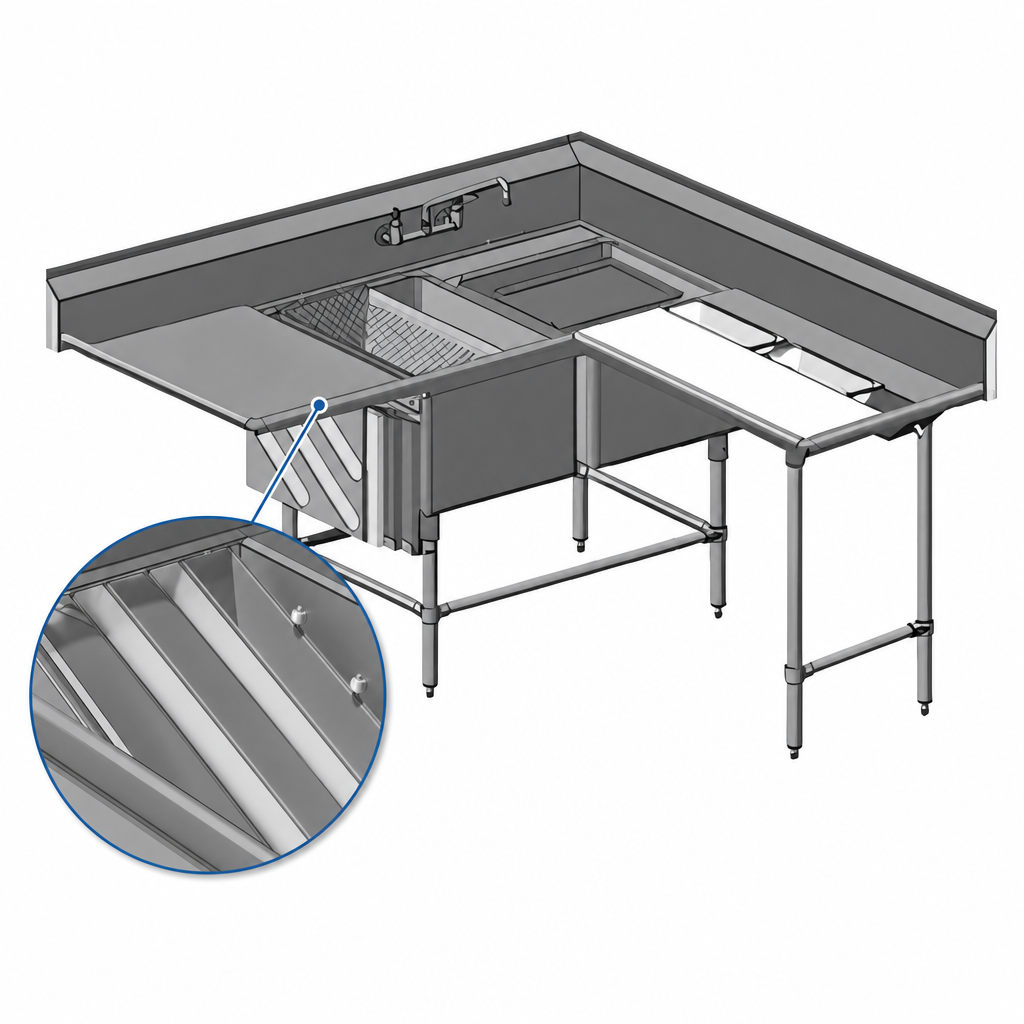

Patented Prep Area Design

Features a patented design with 6-inch and 3-inch wide slanted troughs, each supplied with flush nozzles, facilitating efficient washing and rinsing on the left-hand side.

Patented Prep Area Design

Multi-Polyboard Holder Assembly

Affixed to the sink bowl in the drainboard area, includes three colored polyboards (green for vegetables, blue for chicken/fish, red for beef) to prevent cross-contamination.

Integrated Workstation Accessories

Comes with a magnetic utensil holder, a custom-fit rinse basket, a removable bun pan holder, and an attachment for a hose reel.

Removable Cutting Board

A 14-inch wide white poly cutting board is provided along the prep area.

Heavy-Duty Construction

Unit is constructed of 14 gauge type 304 stainless steel throughout, with integrally welded drainboard, prep area, backsplash, and rolled rims.

Coved Corner Sink Bowls

Sink compartments are fabricated with a 1 5/8-inch radius using state-of-the-art seamless welding techniques for easy cleaning and hygiene.

Adjustable Stainless Steel Base

Features 1 5/8-inch O.D. stainless steel tubing legs with stainless steel gussets, adjustable stainless steel bullet feet, and 1 1/4-inch diameter stainless steel crossbracing for superior stability.

High Backsplash

A 9 1/2-inch high backsplash with a 1-inch upturn and tile edge protects walls from splashes.

8" On-Center Faucet Holes

Pre-punched 1 1/8-inch faucet holes on 8-inch centers for easy faucet installation.

Basket-Type Waste Drains

Each sink bowl includes a basket-type waste drain that fits a 3 1/2-inch opening and features a 1 1/2-inch outlet.

Type Two-Compartment Prep Sink
Style Coved Corner Design
Installation Type Floor Model
Material 304 Stainless Steel
Top Gauge 14 Gauge
Interior Finish 304 Stainless Steel
Compartments 2
Compartment Width 28 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Water Level 14 Inches
Flood Level 17 Inches
Prep Area Length 48 Inches (on left)
Prep Area Trough Widths 6 Inches, 3 Inches
Drainboard Length 24 Inches (on right)
Backsplash Height 9.5 Inches
Backsplash Upturn 1 Inch
Faucet Hole Centers 8 Inches
Faucet Hole Diameter 1.125 Inches
Drain Opening Size 3.5 Inches
Drain Outlet Size 1.5 Inches
Legs Diameter 1.625 Inches O.D.
Crossbracing Diameter 1.25 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 81 Inches
Shipping Depth 35 Inches
Shipping Height 44 Inches
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The sink is constructed from heavy-duty 14 gauge, type 304 stainless steel throughout, including the sink bowls, drainboard, prep area, backsplash, and rolled rims, ensuring durability and hygiene.
The left-hand prep area features a patented design with 6-inch and 3-inch wide slanted troughs, each equipped with flush nozzles for efficient washing and rinsing. It also includes a removable 14-inch wide white poly cutting board.
The sink comes with a multi-polyboard holder assembly (including three colored polyboards for different food types), a magnetic utensil holder, a custom-fit rinse basket, a removable bun pan holder, and an attachment for a hose reel.
Each of the two sink bowls measures 28 inches wide by 20 inches deep, with a 14-inch water level capacity and a 17-inch flood level.
Eagle Group provides a limited warranty of one year from the date of original installation or up to 18 months from the date of shipment from Eagle, covering defects in materials and workmanship under normal use. Accessory items like drains and faucets may have a 90-day limited warranty.
