Eagle Group

314 Series Corner 3-Compartment 16-Gauge 304 Stainless Steel Sink with Dual 18-Inch Drainboards

SKU: C314-16-3-18
$4,440.86
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks Eagle Group New Arrivals Restaurant Equipment Sinks & Handwashing Stations

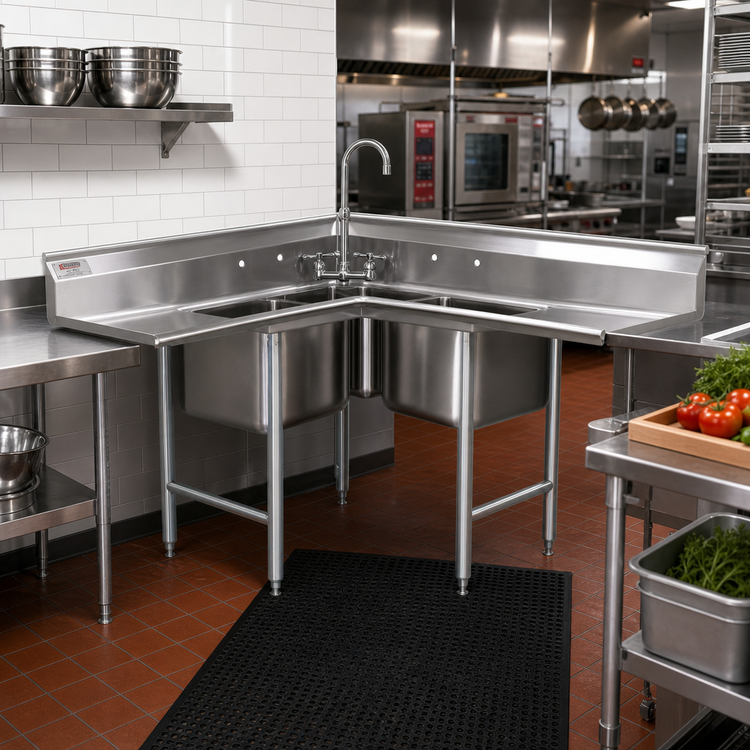

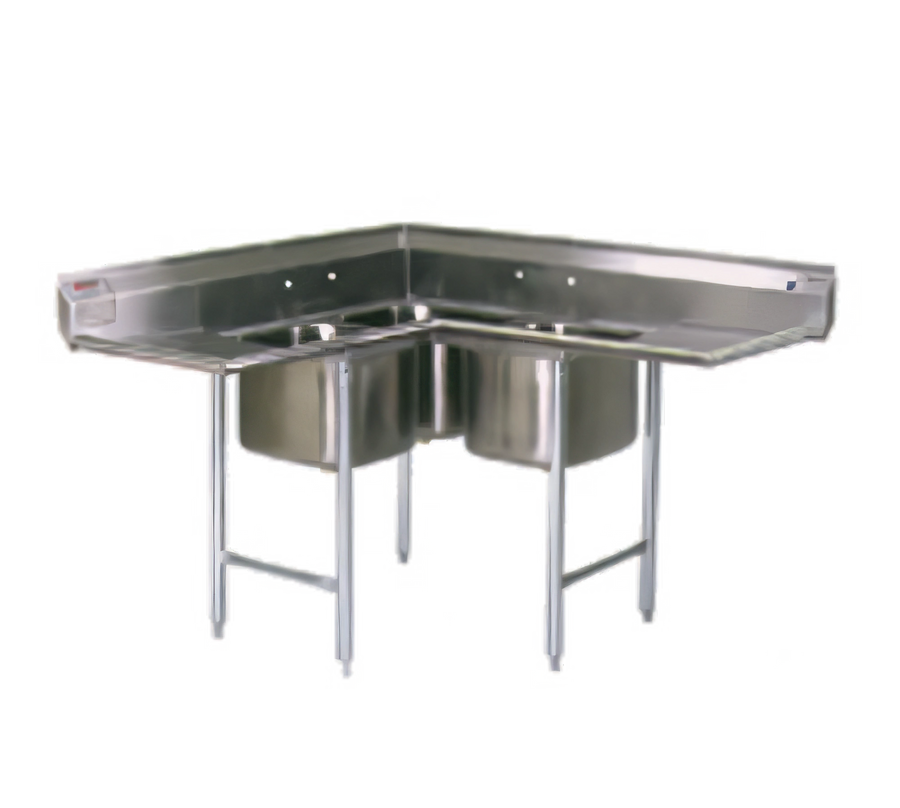

314 Series Corner 3-Compartment 16-Gauge 304 Stainless Steel Sink with Dual 18-Inch Drainboards

Corner layout with dual drainboards, 9-1/2-inch backsplash, and included sink cover

This corner sink combines three working compartments, dual drainboards, and a rugged stainless-steel build to streamline cleanup in a compact footprint.

  • Space-saving corner design helps maximize valuable kitchen floor space.
  • Three-compartment layout supports wash, rinse, sanitize, or prep workflows.
  • 16-gauge 304 stainless steel construction is built for daily commercial use.
  • Left and right 18-inch drainboards add landing space for dishes and supplies.
  • 9-1/2-inch backsplash with tile edge helps protect the wall behind the sink.
  • Includes a poly cutting board/sink cover and three basket drains; requires two faucets.

Overall Dimensions:

59.75"W x 57.25"D x 41.0"H

Product Weight:

211.0 lb

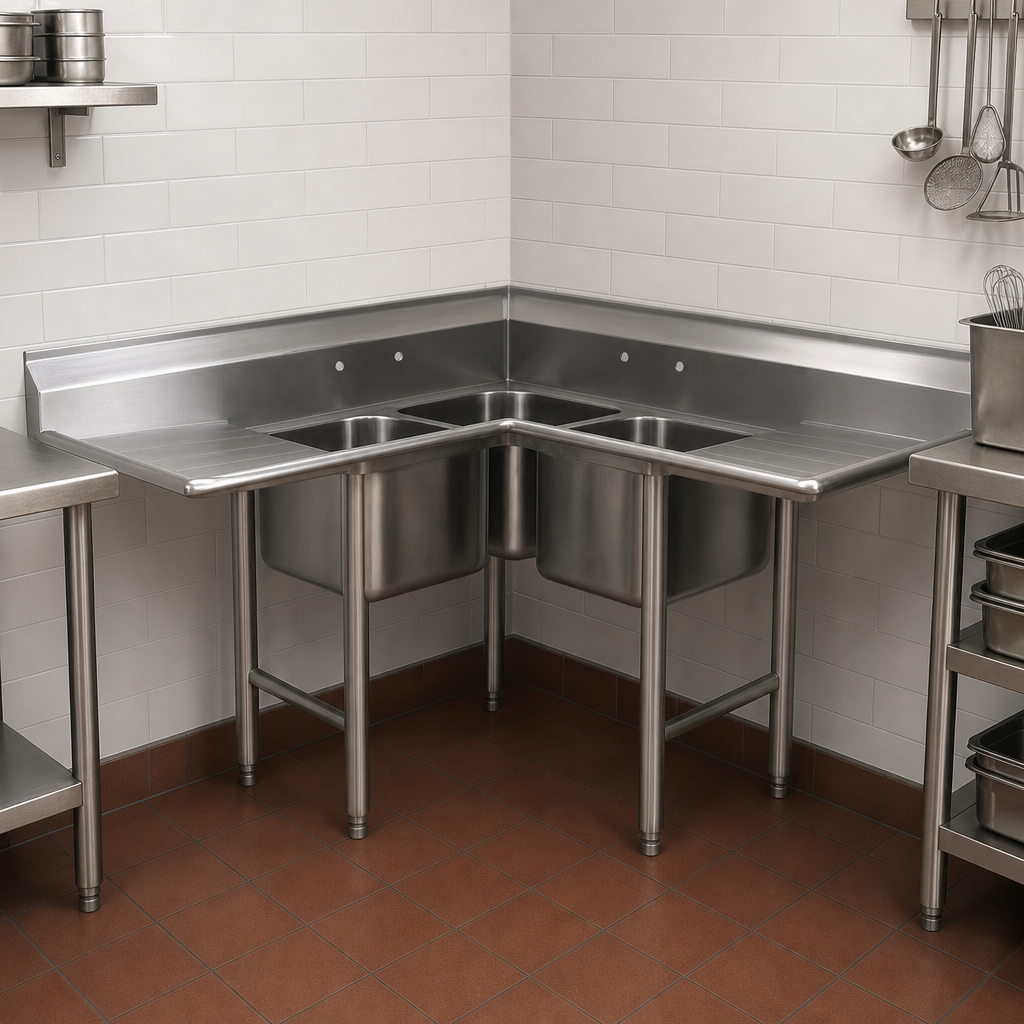

Corner Configuration

Designed for corner installation to make efficient use of tight kitchen layouts.

Corner Configuration

Three Compartments

Provides separate sink areas for multi-step cleaning or prep tasks.

16-Gauge 304 Stainless Steel Construction

Commercial-grade stainless steel build for durability and corrosion resistance.

Dual 18-Inch Drainboards

Drainboards on the left and right sides create convenient landing space.

9-1/2-Inch Backsplash with Tile Edge

Helps protect the wall from splashes and supports cleaner wall-mounted installation.

Rolled Front and Side Edges

Smooth rolled edges improve safety and make the sink easier to clean.

Splash-Mount Faucet Openings

Includes two sets of 8-inch on-center splash-mount faucet holes and requires two faucets.

Included Accessories

Supplied with one poly cutting board/sink cover and three basket drains.

Galvanized Support Base

Galvanized legs and side crossbracing provide stable support.

Adjustable Plastic Bullet Feet

Helps level the sink on uneven floors.

Type Sink
Style Corner
Installation Type Floor Model
Compartments 3
Material 304 Stainless Steel
Top Gauge 16 Gauge
Base Construction Galvanized
Backsplash Height 9-1/2 Inches
Drainboard Length 18 Inches
Drainboard Location Left and Right
Faucet Hole Spacing 8 Inches O.C.
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 58 Inches
Shipping Height 41 Inches
Shipping Weight 211 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Brochure 1 PDF Download PDF Brochure 2 PDF Download PDF Care & maintenance PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It includes two sets of 8-inch on-center splash-mount faucet holes and requires two faucets.
One poly cutting board/sink cover and three basket drains are included.
It has three compartments.
Yes. It has 18-inch drainboards on both the left and right sides.
It uses galvanized legs with side crossbracing and adjustable plastic bullet feet.
The standard Eagle limited warranty covers defects in materials and workmanship for 1 year from original installation, not to exceed 18 months from shipment. Accessory items have a 90-day limited warranty.
