Eagle Group

Eagle Group Spec-Bar 30" x 24" Underbar Beer Drainer with Removable Stainless Steel Insert

SKU: BD30-24
$1,031.76
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

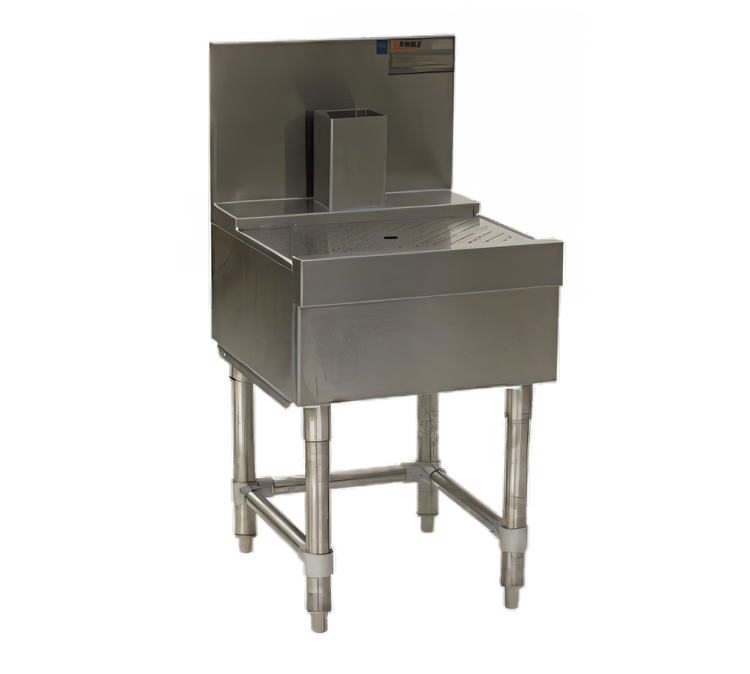

Eagle Group Spec-Bar 30" x 24" Underbar Beer Drainer with Removable Stainless Steel Insert

1-1/2" I.P.S. Threaded Drain, Stainless Steel Top, Legs, and Crossrails

Built for efficient bar cleanup, this compact underbar beer drainer combines durable stainless steel construction, a removable insert, and a built-in threaded drain.

  • Removable stainless steel insert helps simplify cleaning and maintenance.
  • 1-1/2" I.P.S. threaded drain includes nut and washer for secure installation.
  • Rear deck includes a built-in tubing chase for cleaner routing.
  • 20/304 stainless steel top, front, and ends deliver durable foodservice performance.
  • Galvanized back plus stainless steel legs and crossrails provide solid support.
  • Adjustable bullet feet help level the unit on uneven floors.
  • NSF listed for commercial sanitation requirements.

Overall Dimensions:

30.0"W x 24.0"D x 37.0"H

Product Weight:

64.0 lb

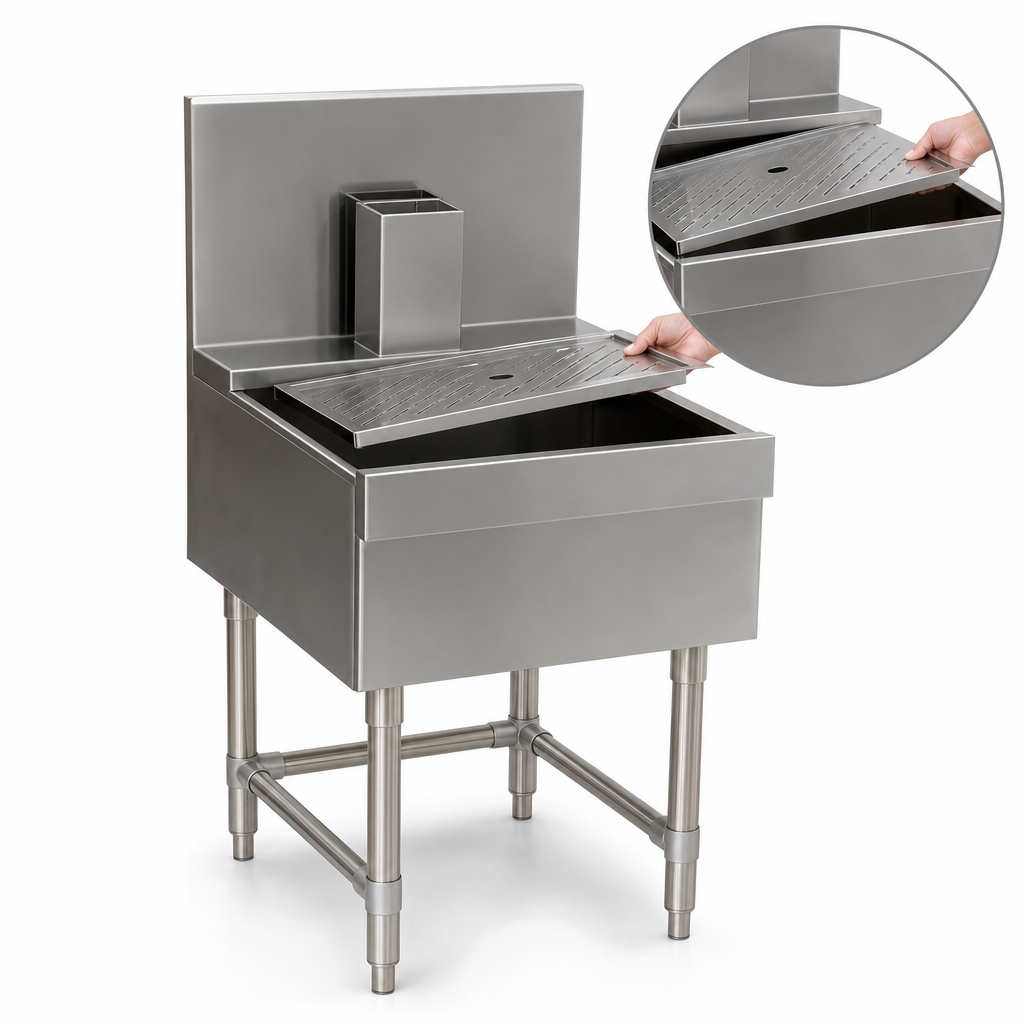

Removable Stainless Steel Insert

Insert lifts out for easier cleaning and routine maintenance.

Removable Stainless Steel Insert

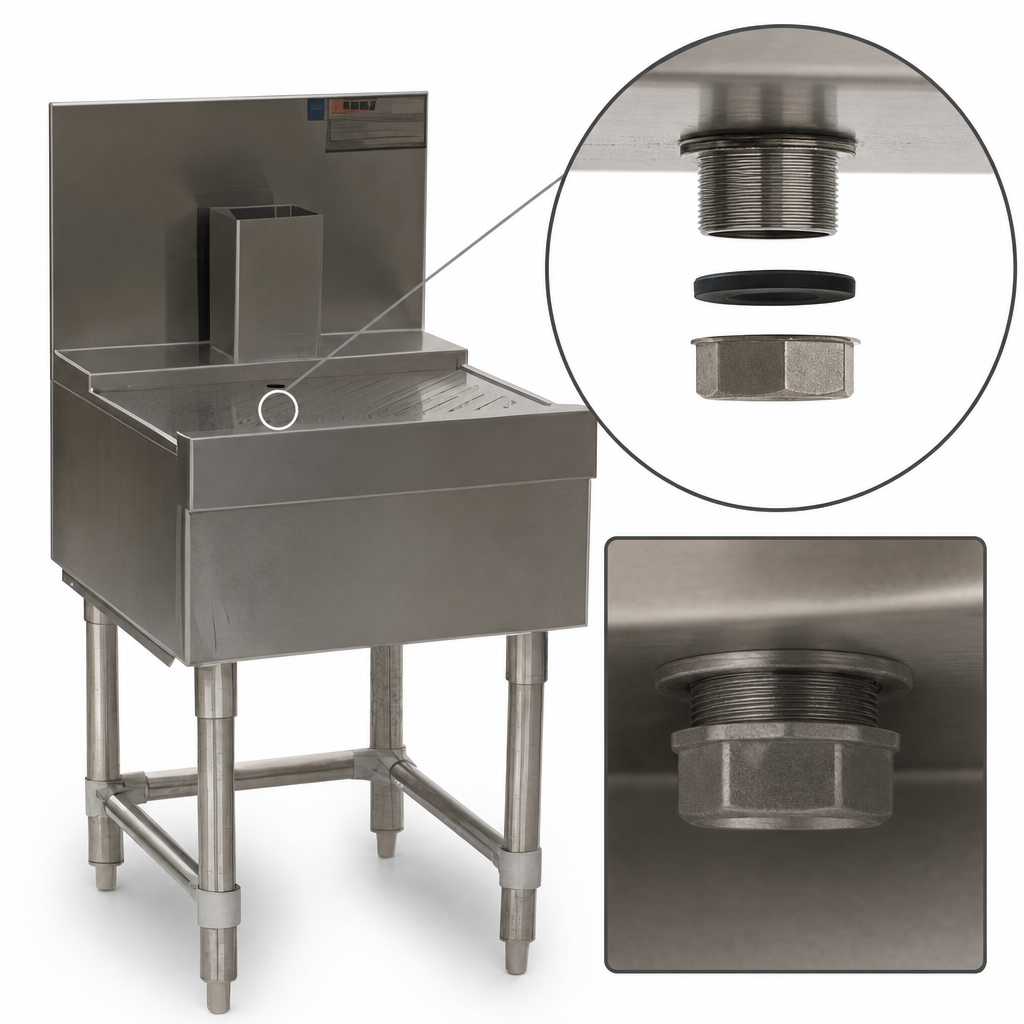

Threaded Drain Assembly

Includes a 1-1/2" I.P.S. threaded drain with nut and washer.

Threaded Drain Assembly

Built-In Tubing Chase

Rear deck tubing chase helps route tubing neatly and efficiently.

Stainless Steel Working Surfaces

Top, front, and ends are made from 20/304 stainless steel for durability.

Galvanized Rear Panel

Galvanized back adds structural support to the unit.

Stainless Steel Support Frame

Stainless steel legs and crossrails provide stable support.

Adjustable Bullet Feet

Bullet feet allow leveling on uneven flooring.

NSF Listed

Designed to meet commercial sanitation standards.

Type Beer Drainer
Style Underbar
Installation Type Floor Model
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 64 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit measures 30 inches wide, 24 inches deep, and 37 inches high.
It includes a 1-1/2" I.P.S. threaded drain with nut and washer.
Yes, the stainless steel insert is removable for easier cleaning.
The top, front, and ends are 20/304 stainless steel, with a galvanized back and stainless steel legs and crossrails.
Yes, this product is NSF listed.
Eagle’s limited warranty covers defects in materials and workmanship for 1 year from original installation, not to exceed 18 months from shipment.
