Eagle Group 1800 Series Underbar Sink/Blender Module with Left Sink Bowl and Right Blender Recess, 24 x 20 Inches

Type 304 Stainless Steel, Liquid Waste Chute, 120V Field-Wire Receptacle

Built for fast beverage prep, this compact underbar module combines a sink, blender recess, and liquid waste chute in a durable stainless steel frame.

  • Compact 24" x 20" footprint fits underbar beverage stations.
  • 10" x 14" x 9-1/2" deep sink bowl on the left supports rinsing and cleanup.
  • 12" blender recess with liquid waste chute on the right helps keep prep organized.
  • Includes a splash-mount faucet and 1-1/2" drain for daily bar service.
  • Type 304 stainless steel top and body support durability and easy sanitation.
  • Galvanized tubular legs with adjustable bullet feet help with stability and leveling.
  • NSF certified for commercial foodservice use.

Overall Dimensions:

24.0"W x 20.0"D

Product Weight:

44.0 lb

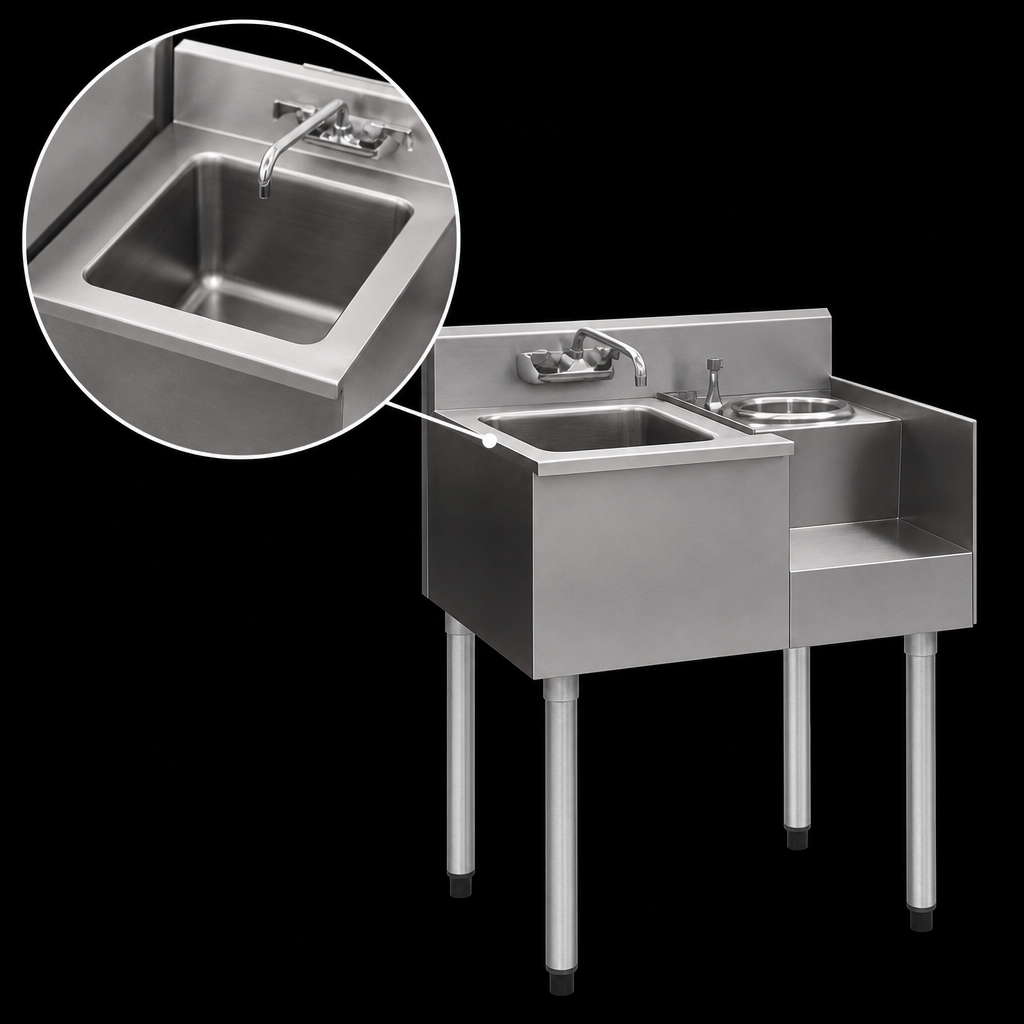

Left Sink Bowl

Single 10" x 14" x 9-1/2" deep sink bowl is positioned on the left side for rinsing and cleanup.

Left Sink Bowl

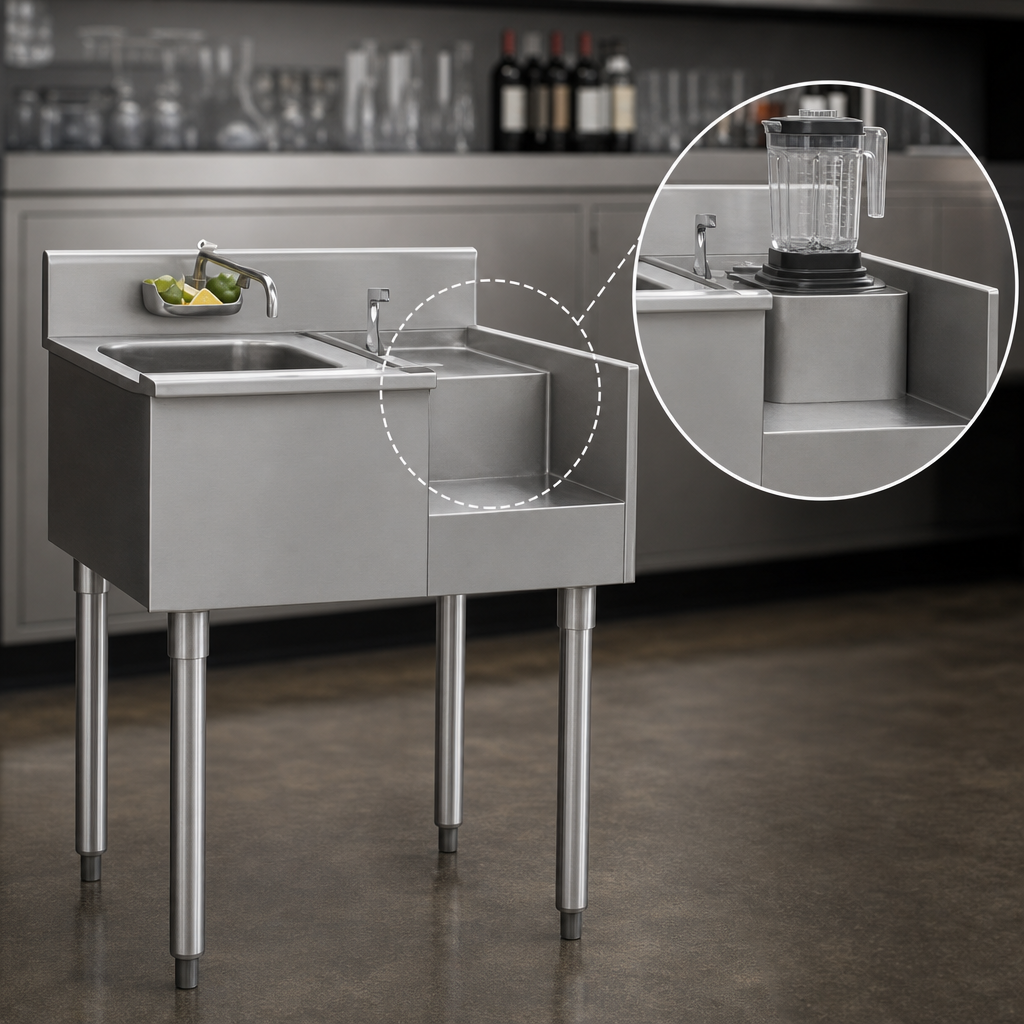

Right Blender Recess

12" blender recess on the right provides a dedicated space for blending equipment.

Right Blender Recess

Liquid Waste Chute

Built-in liquid waste chute helps direct waste away from the work area.

Splash-Mount Faucet

Includes a splash-mount faucet for convenient water access at the station.

304 Stainless Steel Construction

Type 304 stainless steel top and body provide corrosion resistance and easy cleaning.

120V, 15-Amp Receptacle

Field-wire receptacle supports blender power access at the station.

Galvanized Tubular Legs

1-5/8" O.D. galvanized tubular legs with adjustable bullet feet provide sturdy support and leveling.

NSF Certified

Meets NSF sanitation standards for commercial foodservice applications.

Type Underbar Sink/Blender Module
Style Liquid Waste Chute, Dump Sink With Blender, Recessed Step
Installation Type Floor Model (With Legs)
Material 304 Stainless Steel
Voltage 120 Volts
Amps 15 Amps
Drain Connection Size 1-1/2 Inches
Shipping Width 24 Inches
Shipping Depth 20 Inches
Shipping Weight 44 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Modular bar dies PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit measures 24 inches wide by 20 inches deep.
It includes one sink bowl that measures 10 inches by 14 inches by 9-1/2 inches deep.
Yes, it has a 12-inch blender recess with a liquid waste chute on the right side.
The unit includes a 120V, 15-amp receptacle and is field wired.
The top and body are type 304 stainless steel, and the legs are galvanized tubular steel.
Eagle's limited warranty is 1 year from original installation, not to exceed 18 months from shipment; accessory items such as faucets and drains are covered for 90 days.
