Eagle Group

Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Left and Right Drainboards, 96 Inch W x 19 Inch D x 37 Inch H

SKU: B8RL-4-19
$3,599.18
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

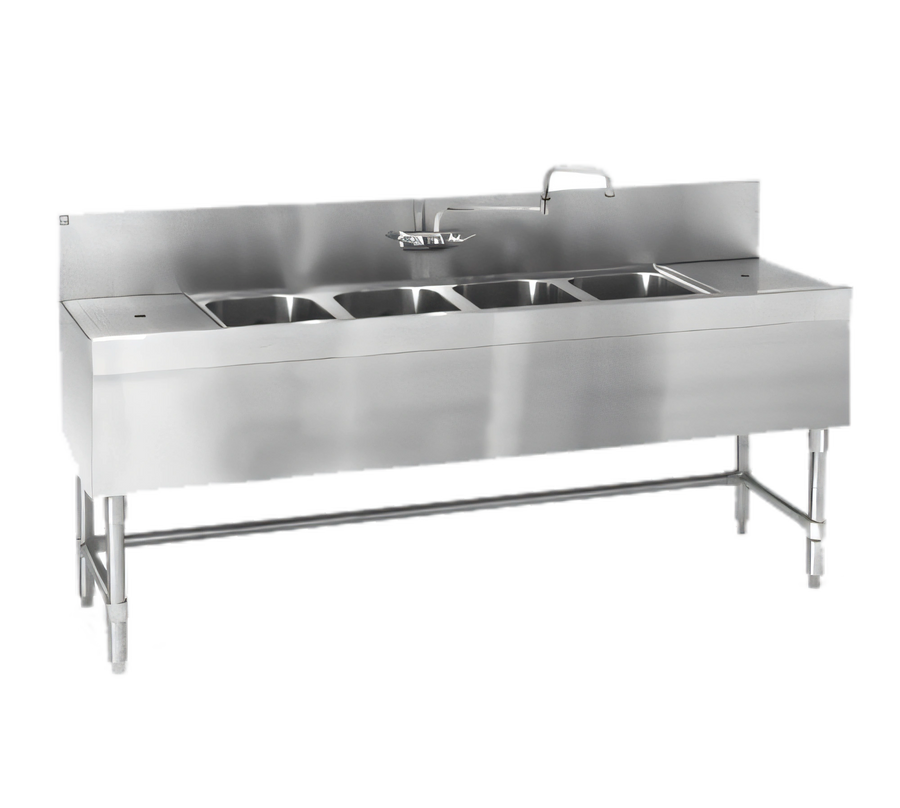

Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Left and Right Drainboards, 96 Inch W x 19 Inch D x 37 Inch H

304 Stainless Steel Construction, 8 Inch Backsplash, T&S Faucet Included

Built for busy bars, this four-compartment sink combines deep bowls, dual drainboards, and durable stainless steel construction into one space-efficient work station.

  • Four-compartment underbar sink unit designed for high-volume bar prep and cleanup.
  • 96-inch wide footprint with left and right drainboards for added workspace and drying room.
  • Heavy-duty stainless steel construction with 304 frame members and adjustable bullet feet.
  • Includes an 8-inch backsplash, splash-mounted double-hinged T&S faucet, drains, and overflow standpipes.
  • NSF listed for commercial sanitation requirements.

Overall Dimensions:

96.0"W x 19.0"D x 37.0"H

Product Weight:

125.0 lb

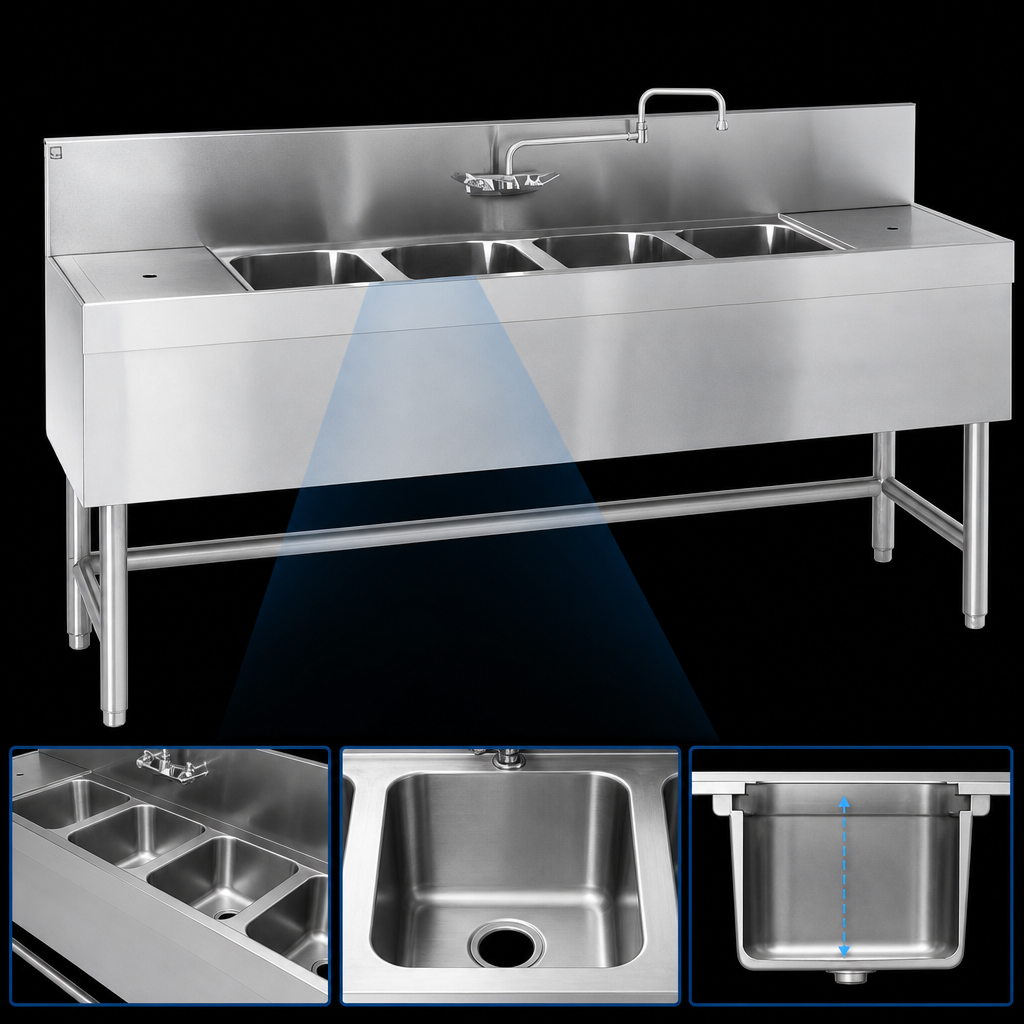

Four Deep Sink Compartments

Four 10 inch x 14 inch x 9.5 inch deep stainless steel bowls support fast-paced bar service and cleanup.

Four Deep Sink Compartments

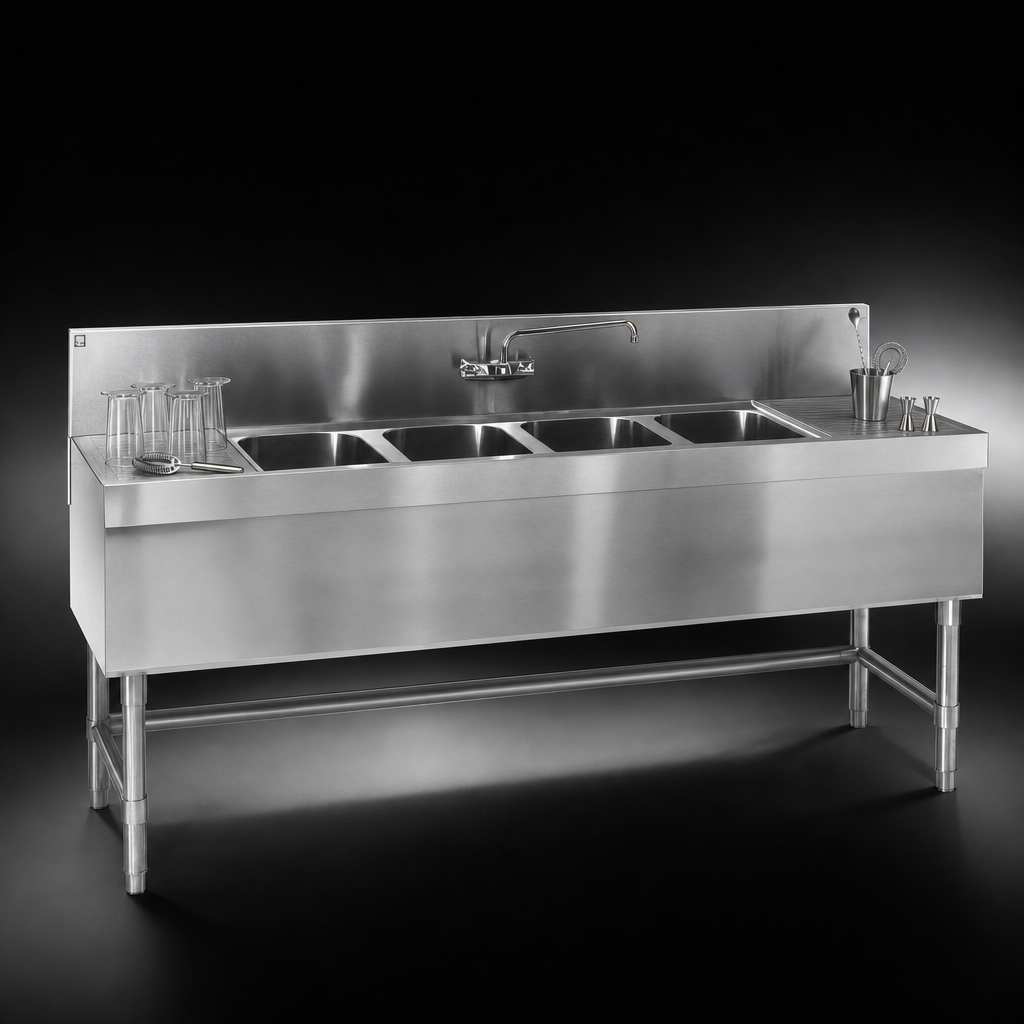

Dual Drainboards

24 inch drainboards on the left and right provide landing space for glassware, tools, and drying.

Dual Drainboards

Removable Perforated Inserts

Stainless steel drainboard inserts remove easily for cleaning and improved drainage.

8 Inch Backsplash

The backsplash helps contain splashes and protect the wall behind the sink.

Splash-Mounted T&S Faucet

Double-hinged faucet mounts on 4 inch centers with a 1/2 inch NPT inlet; hot and cold water connections are required.

Heavy-Duty Stainless Steel Construction

Type 304 stainless steel body, legs, leg channels, cross rails, and front/side apron provide strength and corrosion resistance.

Included Drains And Overflow Standpipes

The sink includes 1-1/2 inch drains and removable overflow standpipes.

Adjustable Bullet Feet

Stainless steel adjustable bullet feet make leveling easier on uneven floors.

Type Underbar Sink Unit
Style Spec-Bar
Installation Type Freestanding
Compartments 4
Material 304 Stainless Steel
Bowl Size 10 Inches x 14 Inches x 9.5 Inches Deep
Drainboard Length 24 Inches Each
Drainboard Location Left and Right
Backsplash Height 8 Inches
Water Inlet Size 1/2 Inch NPT
Water Connection Required
Drain Connection Size 1-1/2 Inches IPS
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 125 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec-bar® modular bar die PDF Download PDF Assembly instructions PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has four sink compartments.
Each compartment measures 10 inches x 14 inches x 9.5 inches deep.
Yes. It includes left and right 24 inch drainboards with removable perforated stainless steel inserts.
Yes. It includes a splash-mounted double-hinged T&S faucet on 4 inch centers with a 1/2 inch NPT inlet; hot and cold water connections are required.
Yes. The unit includes 1-1/2 inch drains and removable overflow standpipes.
The body, legs, leg channels, cross rails, and front/side apron are type 304 stainless steel, with stainless steel bowls and components.
