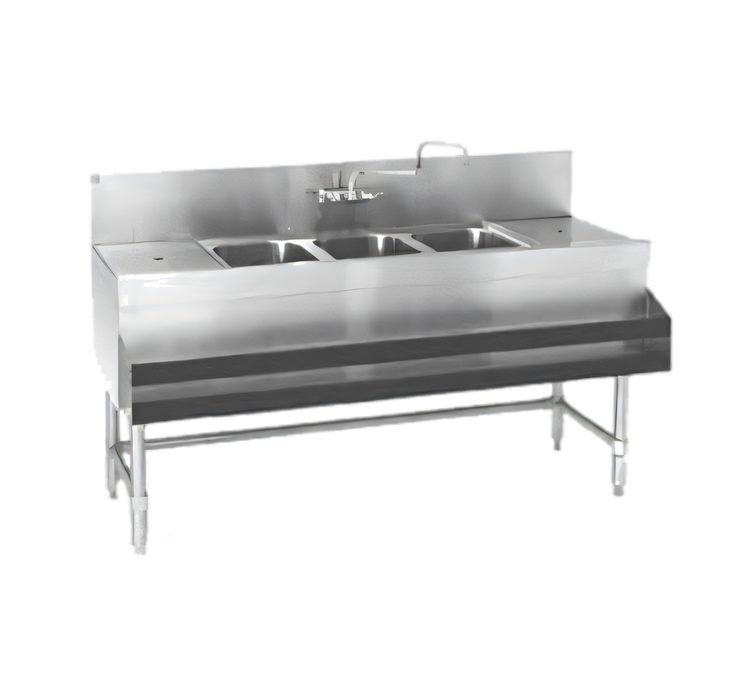

Eagle Group Spec-Bar Three-Compartment Underbar Sink Unit with Dual Drainboards, 96"W x 24"D x 37"H

304 Stainless Steel, 8" Backsplash, Included T&S Faucet

Built for busy bars and prep areas, this heavy-duty three-compartment sink combines dual drainboards, durable stainless steel construction, and an included faucet in one efficient underbar station.

  • Three 10" x 14" sink compartments support washing, rinsing, and sanitizing tasks.
  • Left and right 30" drainboards add valuable landing and drying space.
  • Heavy-gauge 304 stainless steel construction delivers strength and corrosion resistance.
  • Includes an 8" backsplash, splash-mounted T&S faucet, drains, and overflow standpipes.
  • Adjustable stainless steel bullet feet help with leveling on uneven floors.
  • NSF listed for commercial foodservice use.

Overall Dimensions:

96.0"W x 24.0"D x 37.0"H

Product Weight:

357.0 lb

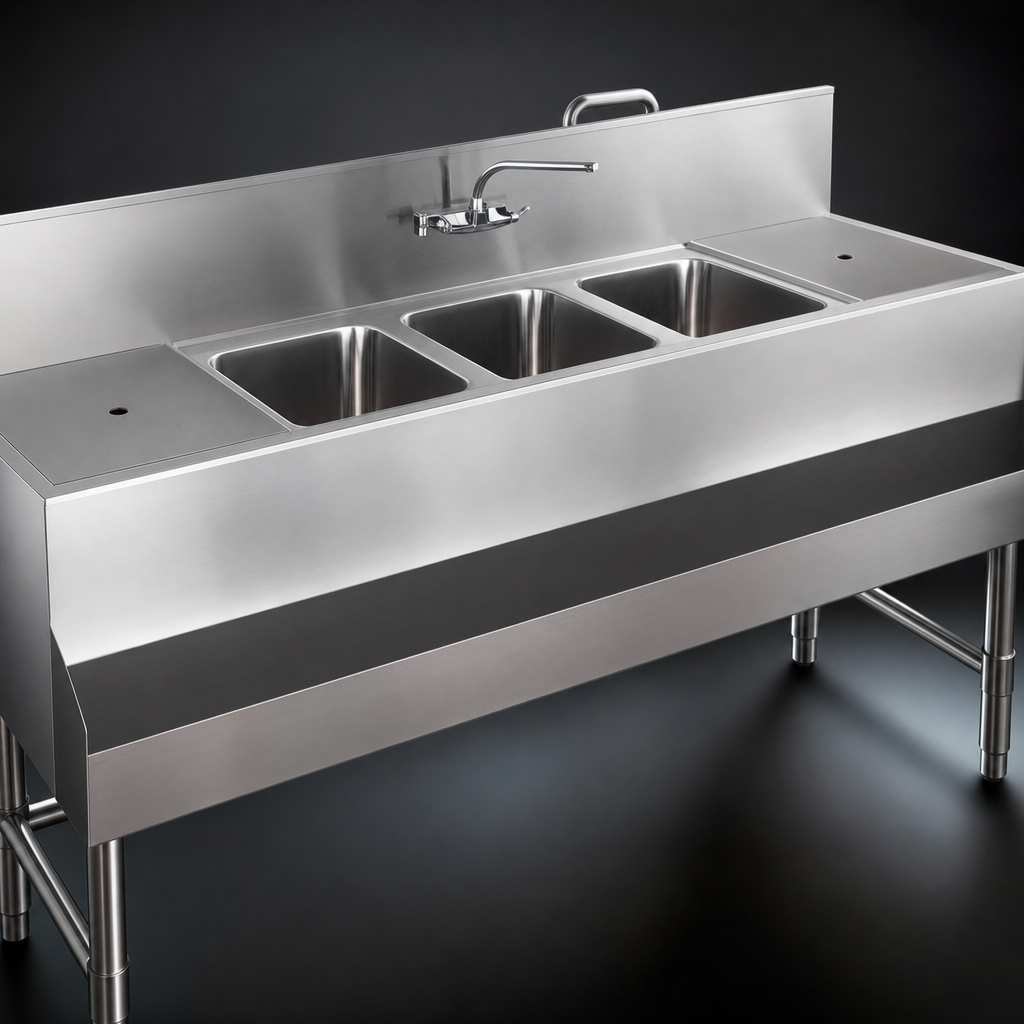

Three Drawn Sink Bowls

Three stainless steel compartments measure 10" x 14" x 9" deep for dedicated bar sink workflow.

Three Drawn Sink Bowls

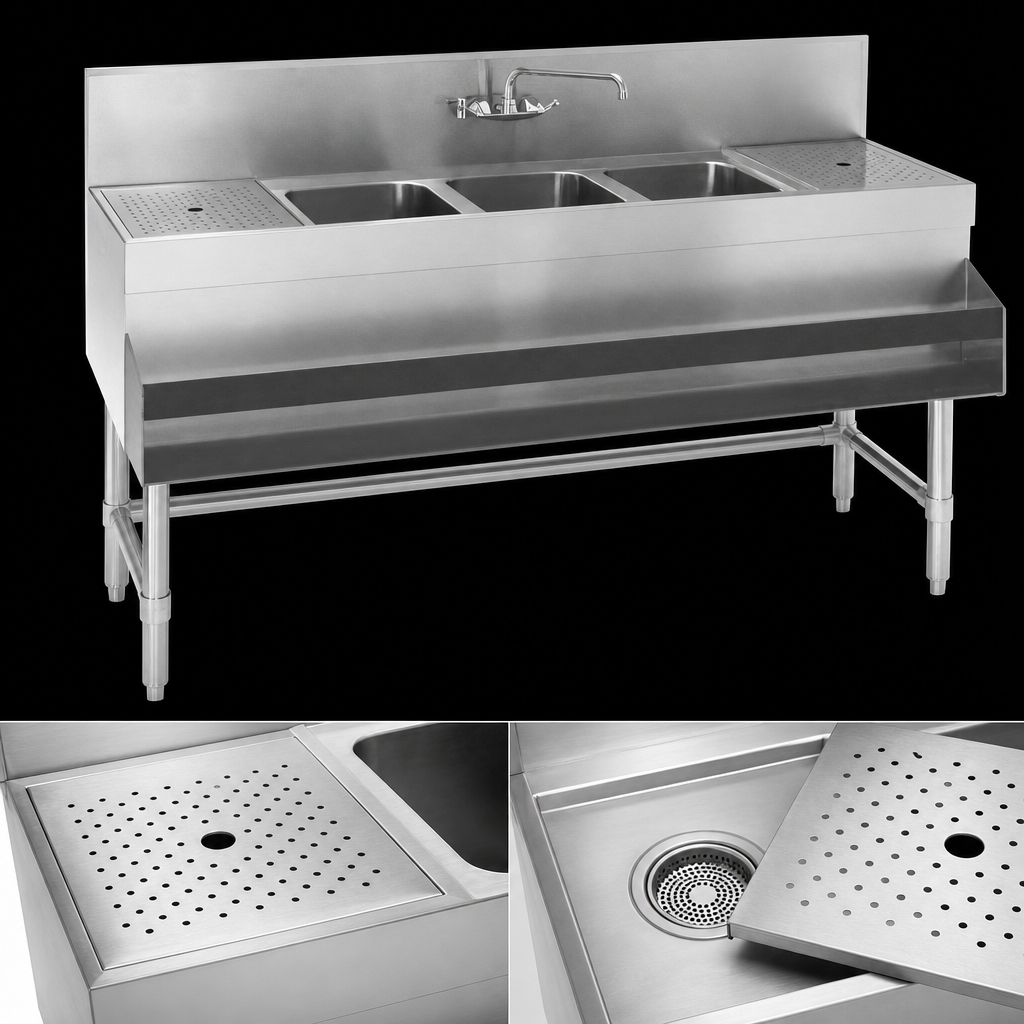

Dual Drainboards

Stainless steel drainboards on the left and right include independent drains and removable perforated stainless steel inserts.

Dual Drainboards

304 Stainless Steel Construction

Body, legs, leg channels, and cross rails are type 304 stainless steel for durability and corrosion resistance.

Heavy-Gauge Build

Backsplash, sides, bottom, front panel, drain pans, perforated inserts, and bowls are 20-gauge stainless steel; legs and crossbracing are 16-gauge.

Included T&S Faucet

A backsplash-mounted double-hinged T&S faucet is included with 4" centers and a 1/2" NPT inlet.

Plumbing Components Included

Each bowl includes a 1-1/2" threaded drain and removable overflow standpipe.

8 Inch Backsplash

The raised backsplash helps protect the wall behind the sink from splashes.

Adjustable Bullet Feet

Stainless steel bullet feet make it easier to level the unit during installation.

Optional Accessories

Optional speed rail and scrap basket accessories are listed for the Spec-Bar sink line.

Type Underbar Sink Unit
Style Three-Compartment
Installation Type Floor Model
Material 304 Stainless Steel
Compartments 3
Bowl Size 10 Inches x 14 Inches
Bowl Depth 9 Inches
Backsplash Height 8 Inches
Drainboard Length 30 Inches
Drainboard Location Left and Right
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inches IPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from the date of original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three sink compartments, each measuring 10" x 14" x 9" deep.
Yes. It includes a backsplash-mounted double-hinged T&S faucet.
Yes. The unit has 30" drainboards on the left and right, each with a removable perforated stainless steel insert.
Hot and cold water connections are required, and the drains are 1-1/2" threaded IPS.
The overall size is 96"W x 24"D x 37"H.
Yes. The documentation lists optional speed rail and scrap basket accessories.
