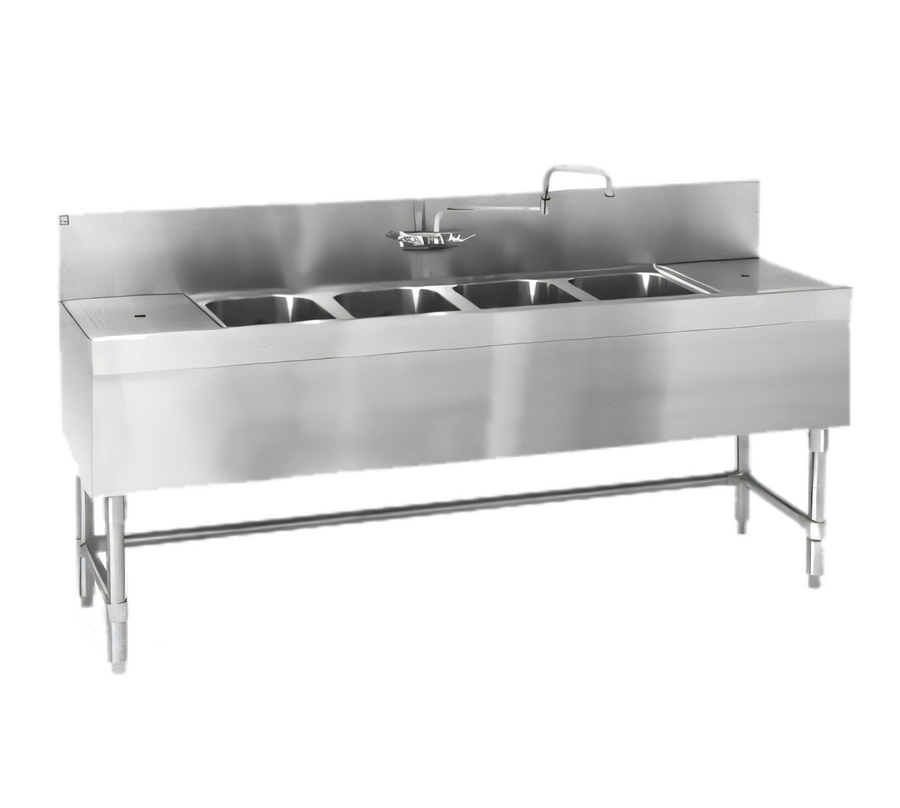

Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Left & Right Drainboards, 84-Inch Wide
Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Left & Right Drainboards, 84-Inch Wide
24-Inch Deep, Stainless Steel Construction, 8-Inch Backsplash
This heavy-duty four-compartment sink gives busy bars four wash stations and dual drainboards in a durable stainless steel package built for fast underbar service.
- Four 10" x 14" x 9-1/2" deep compartments support high-volume bar prep and cleanup.
- 18" drainboards on both the left and right sides provide convenient landing and drying space.
- Heavy-gauge stainless steel construction is built for durability in demanding commercial use.
- Includes a splash-mounted double-hinged T&S faucet, 1-1/2" drains, and removable overflow standpipes.
- An 8" backsplash and stainless steel adjustable bullet feet help protect walls and simplify leveling.
Overall Dimensions:
84.0"W x 24.0"D x 37.0"HProduct Weight:

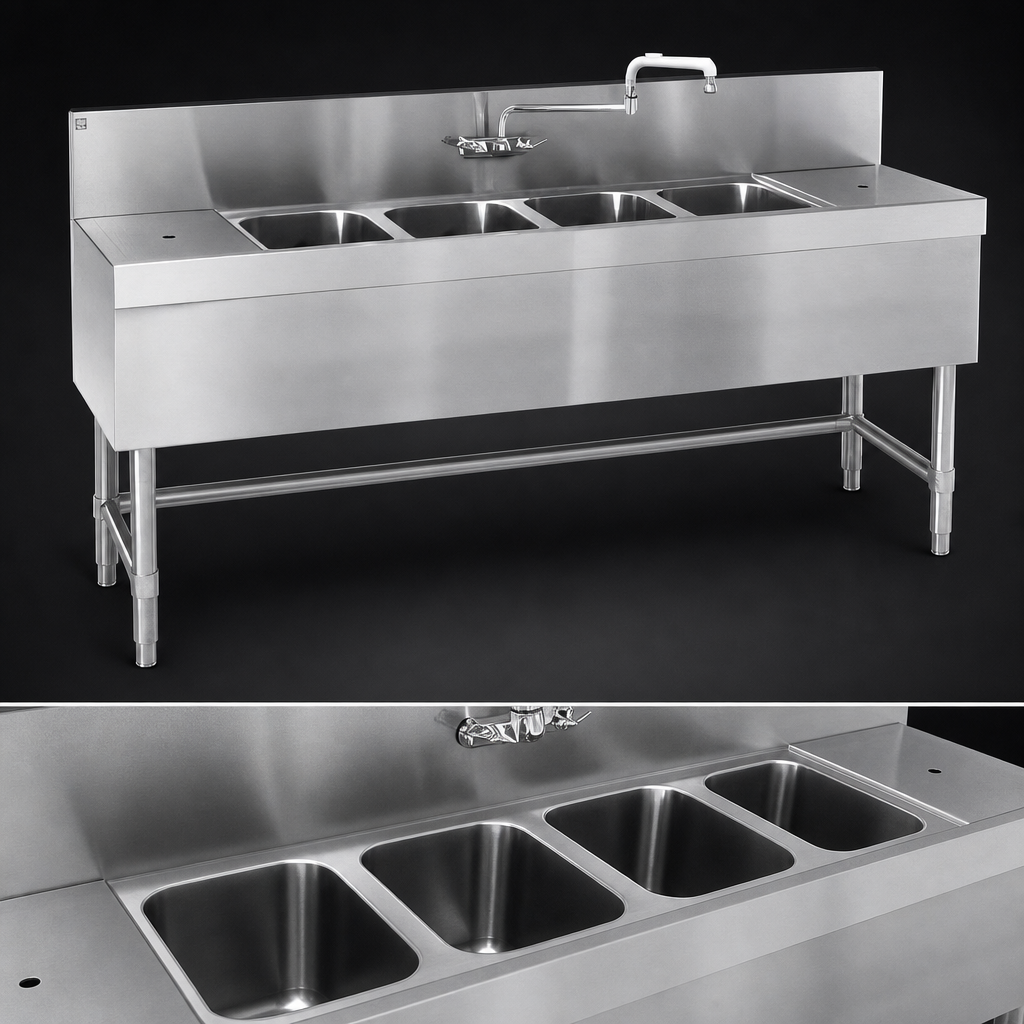

357.0 lbFour-Compartment Layout
Provides four separate sink bowls for rinsing, washing, and staging tasks in one compact underbar unit.

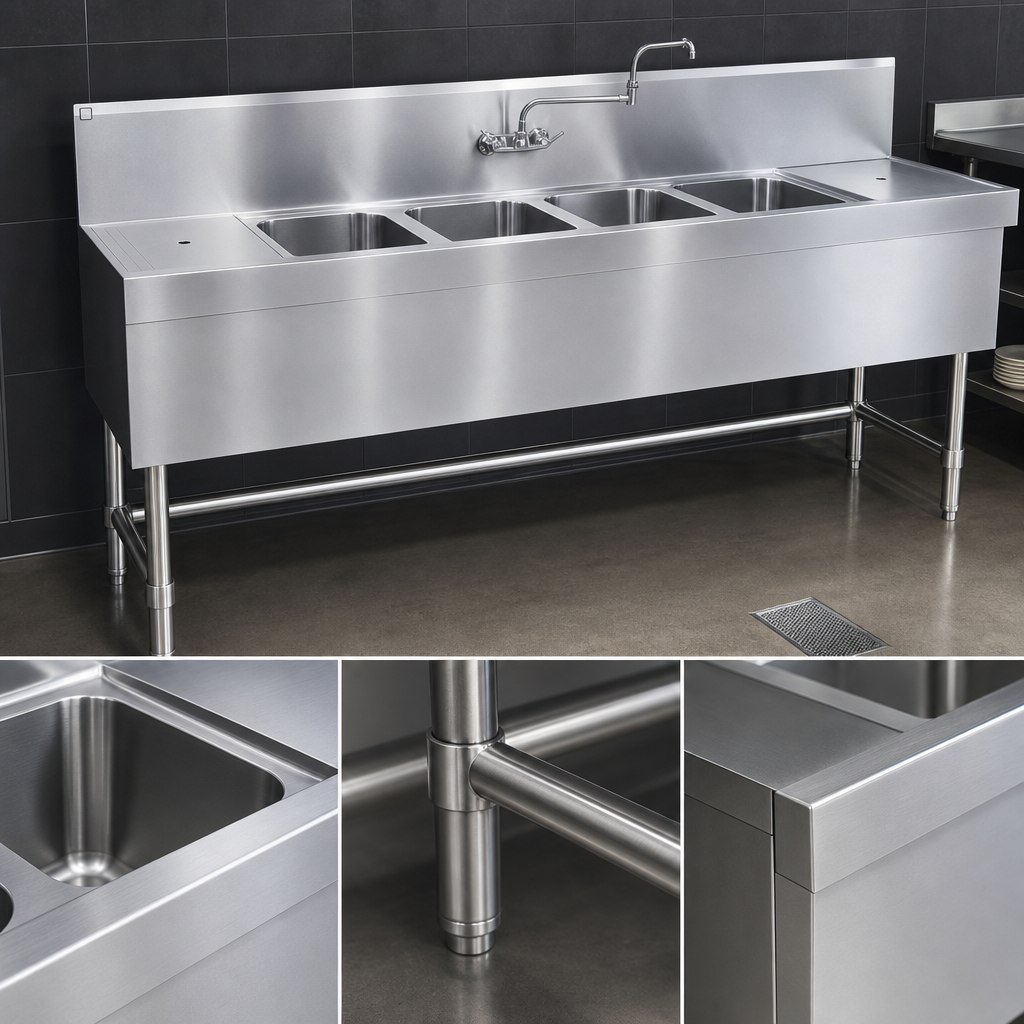

Heavy-Gauge Stainless Steel Construction
Built with stainless steel bowls, body, legs, leg channels, and cross rails for strength and corrosion resistance.
Dual 18-Inch Drainboards
Left and right drainboards add usable workspace for glassware, utensils, and cleanup staging.
Removable Perforated Inserts
Drainboards include removable perforated stainless steel inserts to promote drainage and simplify cleaning.
Splash-Mounted T&S Faucet
Includes a backsplash-mounted double-hinged T&S faucet on 4-inch centers with a 1/2-inch NPT inlet; hot and cold water connections are required.
1-1/2-Inch Drains with Overflow Standpipes
Drain openings are threaded and include removable overflow standpipes for practical drainage control.
8-Inch Backsplash and Stainless Apron
An integrated backsplash and stainless steel front and side apron help contain splashes and protect surrounding surfaces.
Adjustable Bullet Feet
Stainless steel bullet feet make it easier to level the unit on uneven floors.
Certifications & Compliance
Warranty & Protection
1 year from original installation, not to exceed 18 months from shipment
