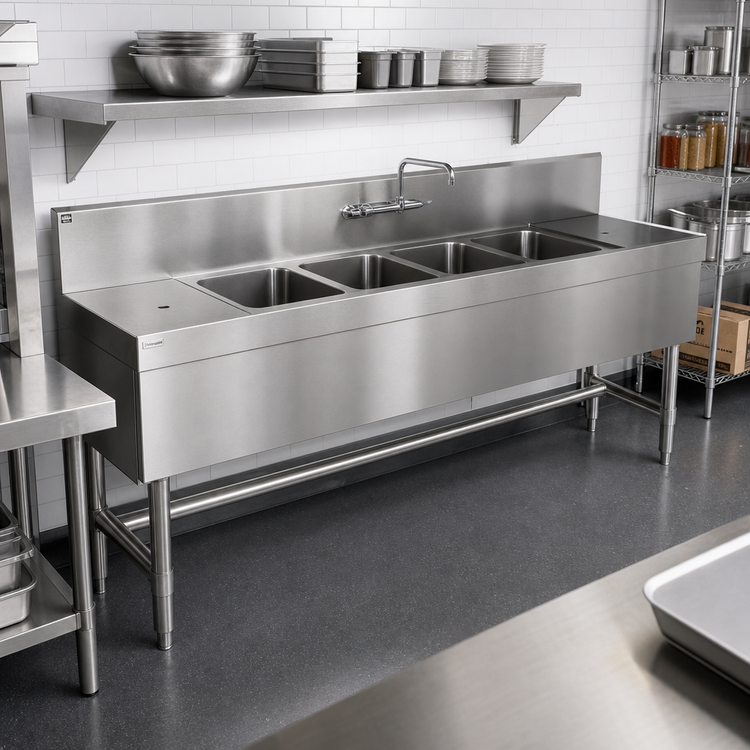

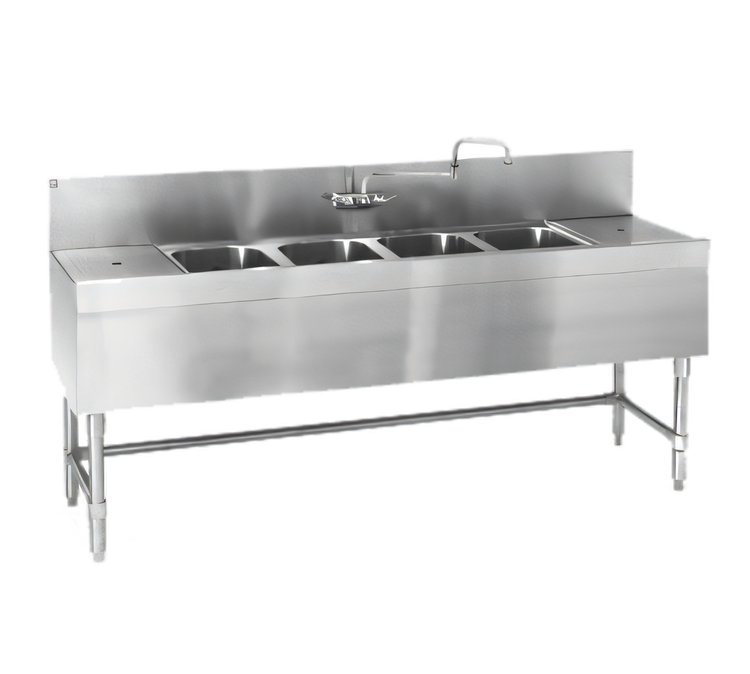

Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Left and Right Drainboards, Faucet, 84 Inch Wide

84" W x 19" D x 37" H, 304 Stainless Steel

This heavy-duty four-compartment underbar sink combines dual drainboards, a backsplash-mounted faucet, and stainless steel construction to handle high-volume bar cleanup.

  • Four 10" x 14" x 9-1/2" deep sink compartments support washing, rinsing, and prep tasks.
  • 18" left and right drainboards include removable perforated stainless steel inserts.
  • 304 stainless steel body, legs, leg channels, and crossbracing help resist corrosion and wear.
  • 8" backsplash with splash-mounted double-hinged T&S faucet helps contain messes.
  • 1-1/2" IPS threaded drains include removable overflow standpipes.
  • Stainless steel adjustable bullet feet make leveling easier on uneven floors.

Overall Dimensions:

84.0"W x 19.0"D x 37.0"H

Product Weight:

207.0 lb

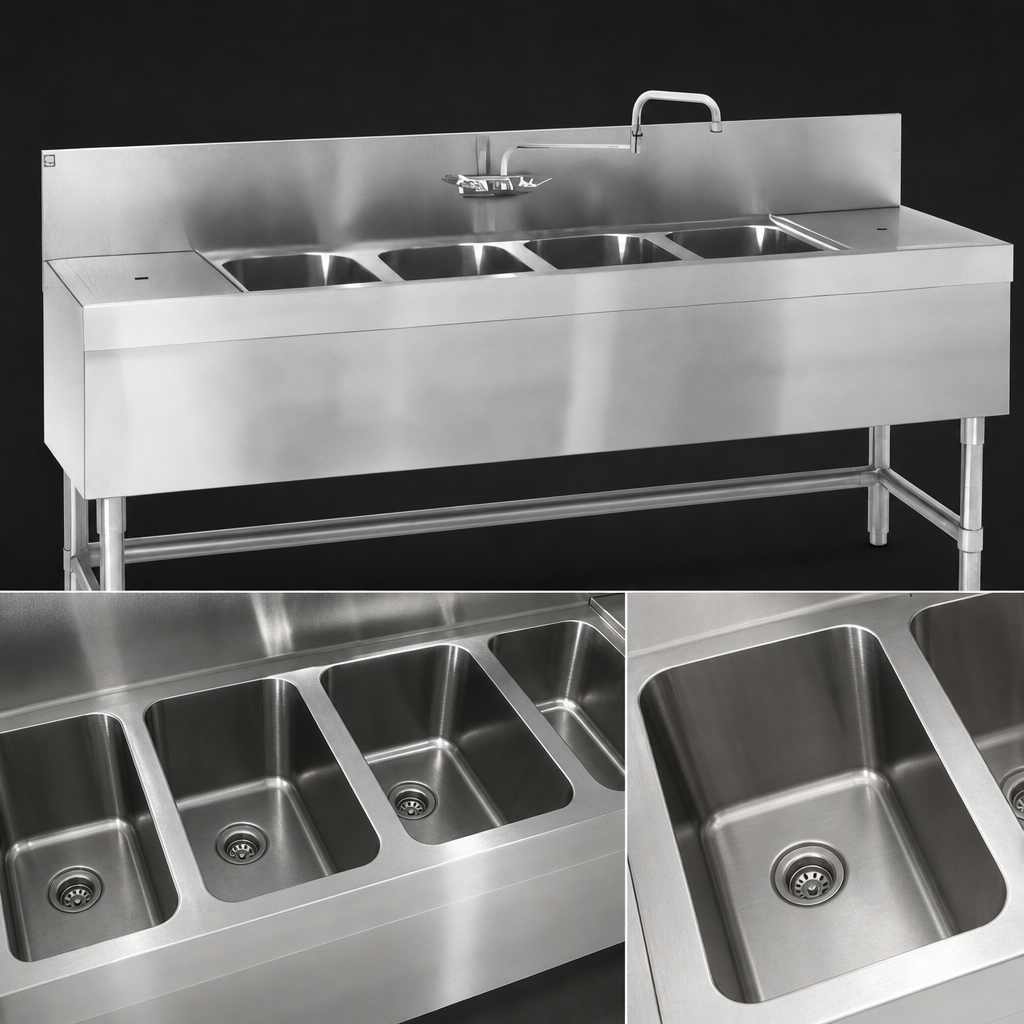

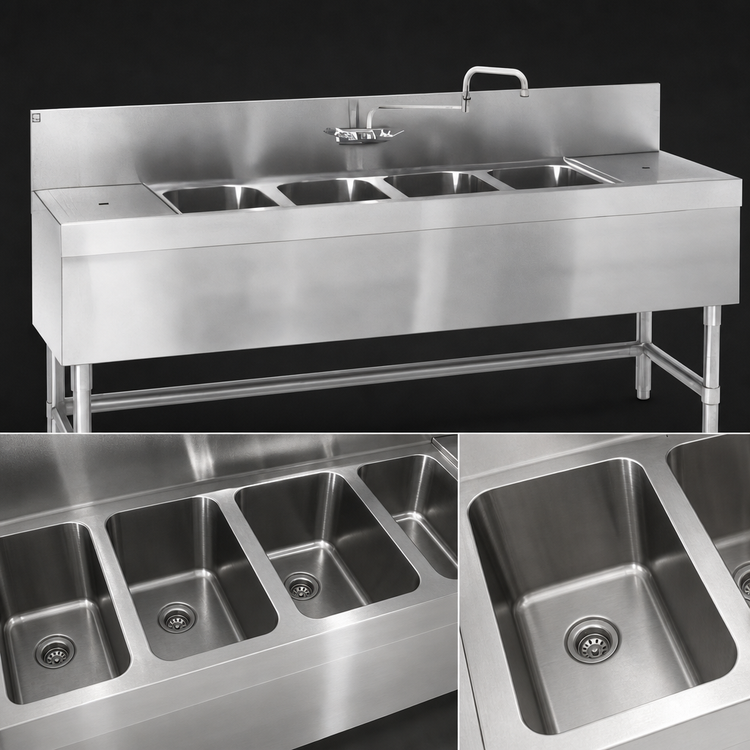

Four Compartment Basin Layout

Provides four separate 10" x 14" x 9-1/2" deep sink bowls for multi-stage bar and prep cleaning.

Four Compartment Basin Layout

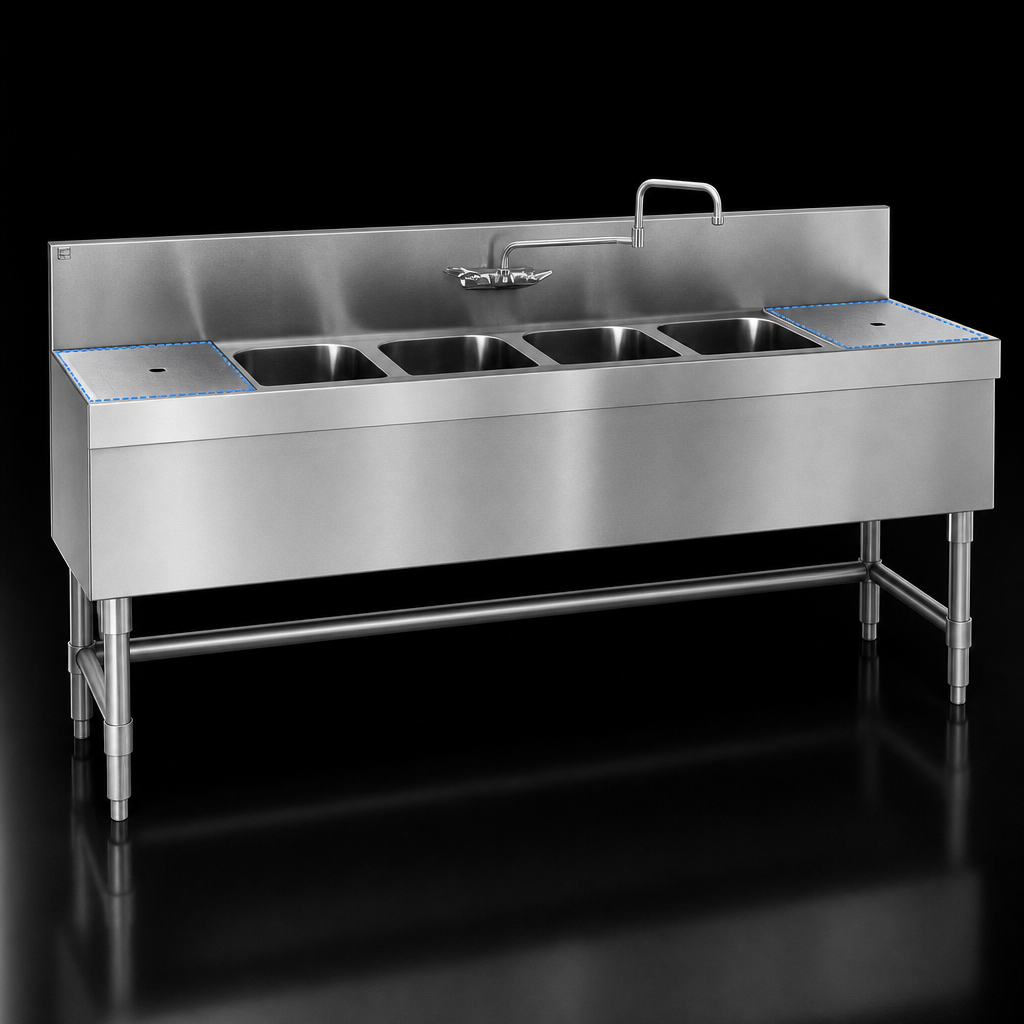

Dual Drainboards

Left and right 18" drainboards give you dedicated landing space for glassware, utensils, or pre-rinse staging.

Dual Drainboards

Stainless Steel Construction

Built with heavy-gauge type 304 stainless steel components for durability and corrosion resistance.

Splash-Mounted Faucet

Includes a backsplash-mounted double-hinged T&S faucet on 4" centers with a 1/2" NPT inlet.

Integrated Drain System

Features 1-1/2" IPS threaded drains and removable overflow standpipes for standard sink drainage.

Leveling Feet

Stainless steel adjustable bullet feet help stabilize the unit during installation.

Finished Front and Sides

Stainless steel apron on the front and sides provides a clean, professional underbar appearance.

Type Underbar Sink Unit
Style Four Compartment
Installation Type Floor Model
Compartments 4
Material 304 Stainless Steel
Finish Stainless Steel
Drainboard Location Left And Right
Drainboard Length 18 Inches
Bowl Size 10 Inches x 14 Inches
Bowl Depth 9-1/2 Inches
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 207 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has four sink compartments.
Each compartment measures 10" x 14" x 9-1/2" deep.
Yes. It includes 18" drainboards on both the left and right sides with removable perforated stainless steel inserts.
Hot and cold water connections are required. The faucet uses a 1/2" NPT inlet, and the drains are 1-1/2" IPS threaded.
The general Eagle warranty is 1 year from the date of original installation, not to exceed 18 months from shipment. Accessory items such as faucets and drains are covered for 90 days unless a separate manufacturer warranty applies.
