Eagle Group Spec-Bar 3-Compartment Underbar Sink Unit with Left and Right Drainboards, 84W x 19D x 37H

304 Stainless Steel, 8" Backsplash, 12" Swing Spout

Built for busy bar service, this 3-compartment underbar sink combines dual drainboards, stainless steel construction, and an included splash-mounted faucet to speed cleanup and prep.

  • Three 10" x 14" x 9-1/2" deep compartments support washing, rinsing, and sanitizing.
  • 24" drainboards on both sides add workspace and include removable perforated inserts.
  • Heavy-duty 304 stainless steel construction stands up to wet, high-traffic bar environments.
  • Includes a splash-mounted faucet with a 12" swing spout, plus drains and overflow standpipes.
  • 8" backsplash, adjustable bullet feet, and side/rear crossbracing improve stability and cleanup.

Overall Dimensions:

84.0"W x 19.0"D x 37.0"H

Product Weight:

231.0 lb

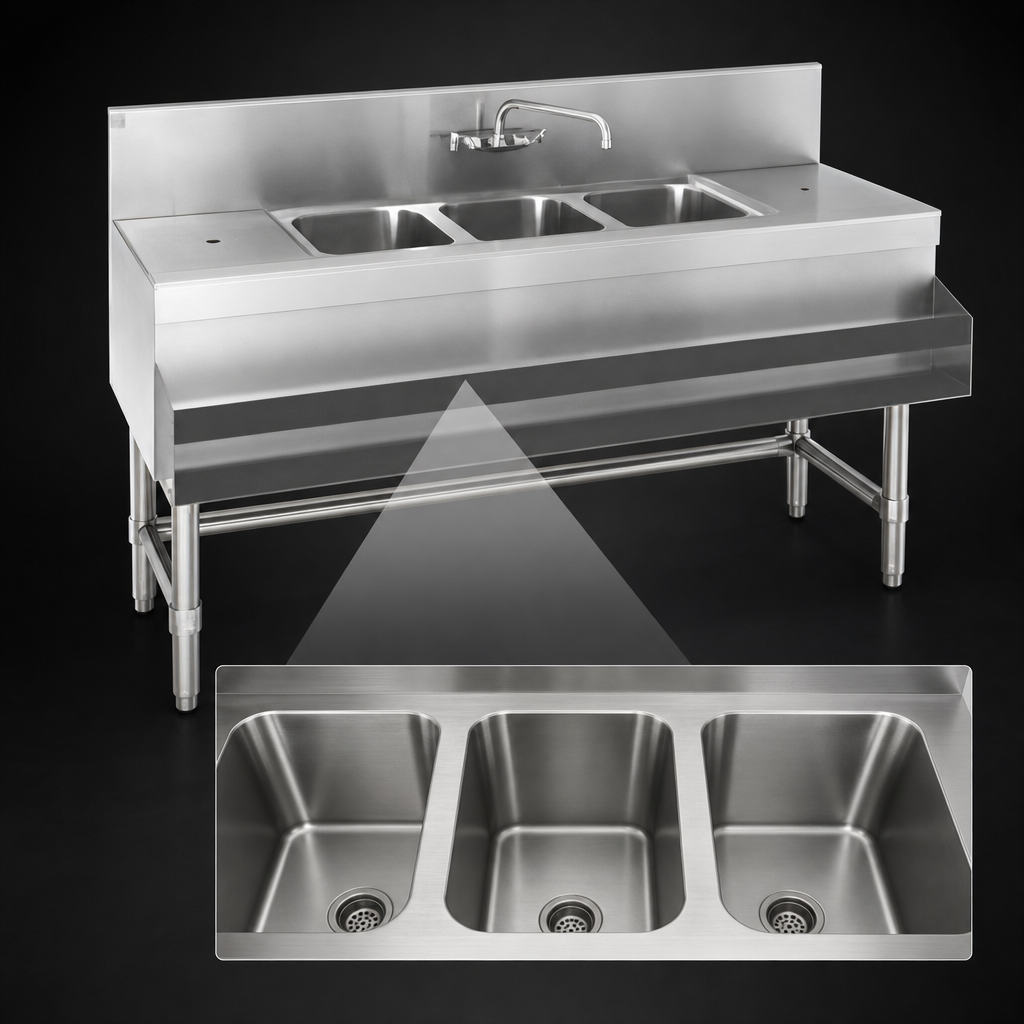

Three Deep Sink Compartments

Includes three 10" x 14" front-to-back x 9-1/2" deep stainless steel bowls for multi-step bar cleanup and prep.

Three Deep Sink Compartments

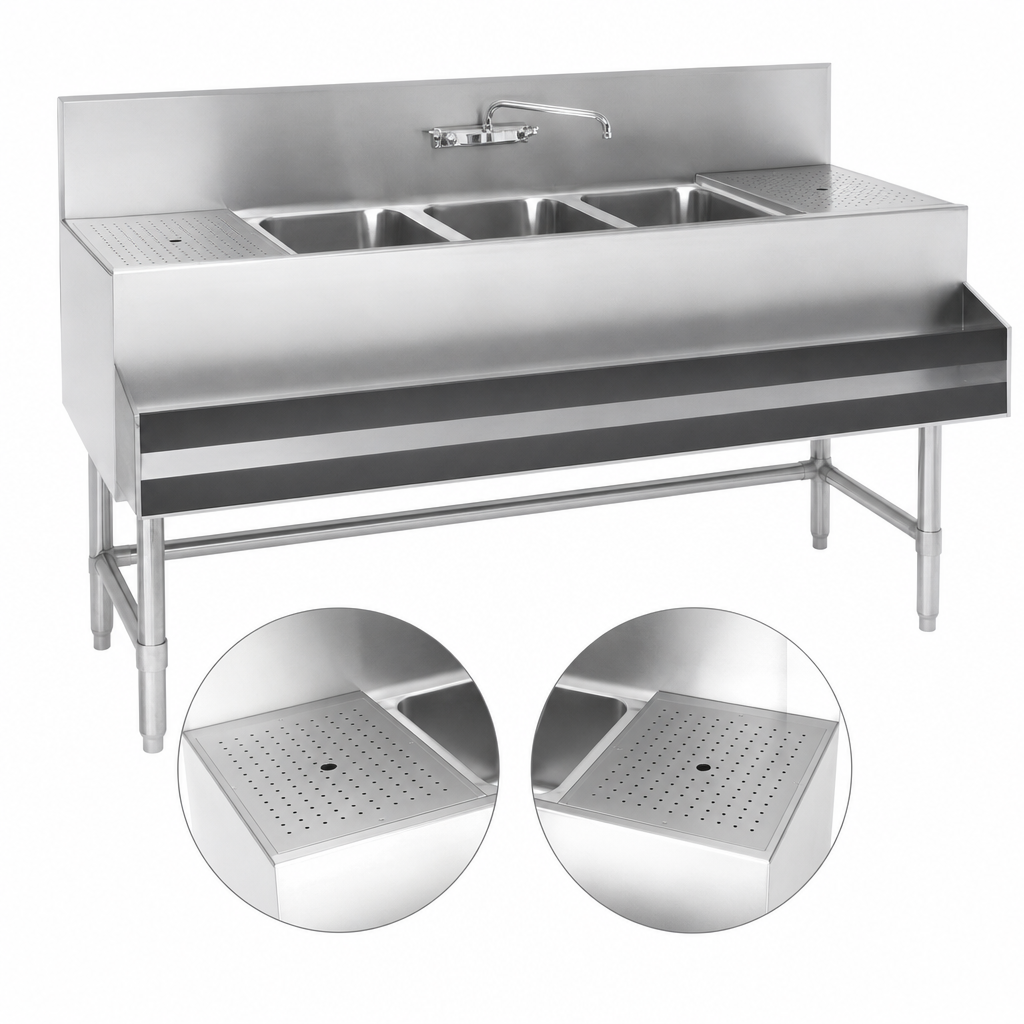

Dual Drainboards

Left and right 24" drainboards expand usable work area and feature removable perforated stainless steel inserts.

Dual Drainboards

Heavy-Gauge Stainless Steel Construction

Body, legs, and cross rails are type 304 stainless steel, with 20-gauge stainless steel used for the backsplash, sides, bottom, front panel, drain pans, inserts, and bowls.

Included Splash-Mounted Faucet

Supplied with a splash-mounted T&S faucet and 12" swing spout; hot and cold water connections are required.

Drain and Overflow Package

Includes 1-1/2" drains and removable overflow standpipes for each compartment.

Backsplash and Support Bracing

An 8" backsplash helps contain splashes, while side and rear crossbracing adds rigidity.

Adjustable Leveling Feet

Stainless steel adjustable bullet feet help level the unit on uneven floors.

Type Underbar Sink Unit
Style Three-Compartment
Installation Type Floor Model
Compartments 3
Material 304 Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inches IPS
Spout Length 12 Inches
Mounting Type Splash Mounted
Shipping Width 84 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 231 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three stainless steel sink compartments.
Each compartment measures 10" x 14" front-to-back x 9-1/2" deep.
Yes. It includes a splash-mounted T&S faucet with a 12" swing spout.
Yes. The perforated stainless steel drainboard inserts are removable.
Hot and cold water connections are required, and the faucet uses a 1/2" NPT inlet.
The unit includes 1-1/2" drains and removable overflow standpipes.
