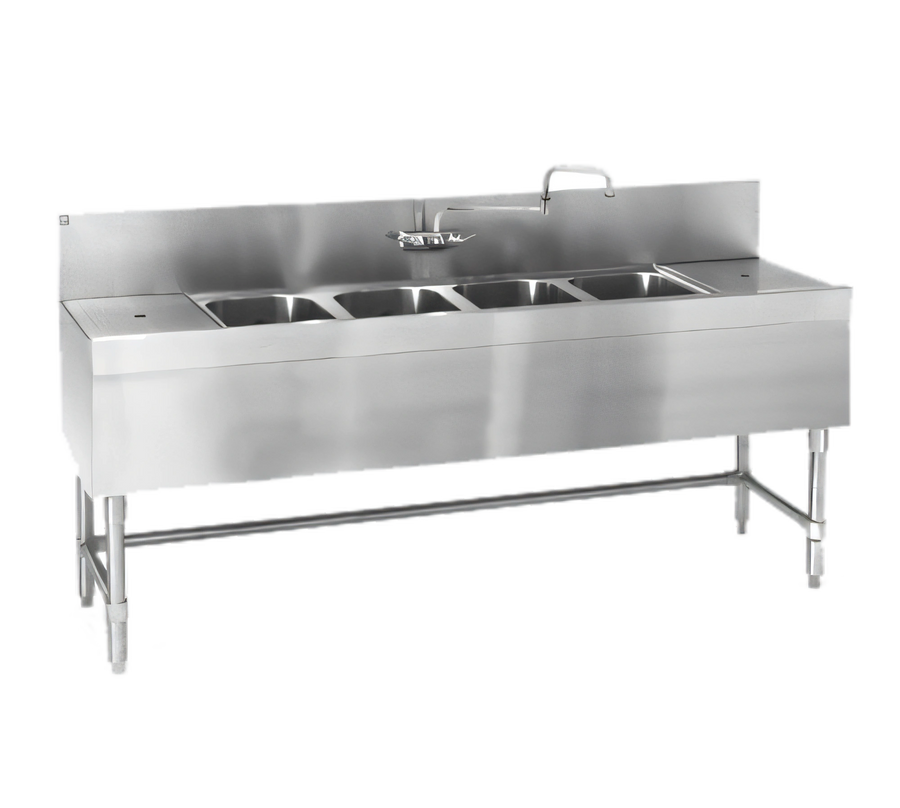

Eagle Spec-Bar Four-Compartment Stainless Steel Underbar Sink Unit with Right Drainboard, 72W x 24D x 37H
Eagle Spec-Bar Four-Compartment Stainless Steel Underbar Sink Unit with Right Drainboard, 72W x 24D x 37H
24" Right Drainboard, 8" Backsplash, Splash-Mounted T&S Faucet
A heavy-duty four-compartment bar sink built from stainless steel with a right-side drainboard, integrated faucet, and adjustable bullet feet for dependable underbar service.
- Four 10" x 14" x 9-1/2" deep sink compartments support efficient washing and rinsing.
- Right-side 24" drainboard includes a removable perforated stainless steel insert for better drainage.
- 304 stainless steel construction with front apron, sides, legs, and crossbracing adds durability.
- 8" backsplash and splash-mounted double-hinged T&S faucet help reduce splatter behind the sink.
- Includes 1-1/2" drains, removable overflow standpipes, and stainless steel adjustable bullet feet.
- NSF listed for commercial foodservice use.
Overall Dimensions:
72.0"W x 24.0"D x 37.0"HProduct Weight:

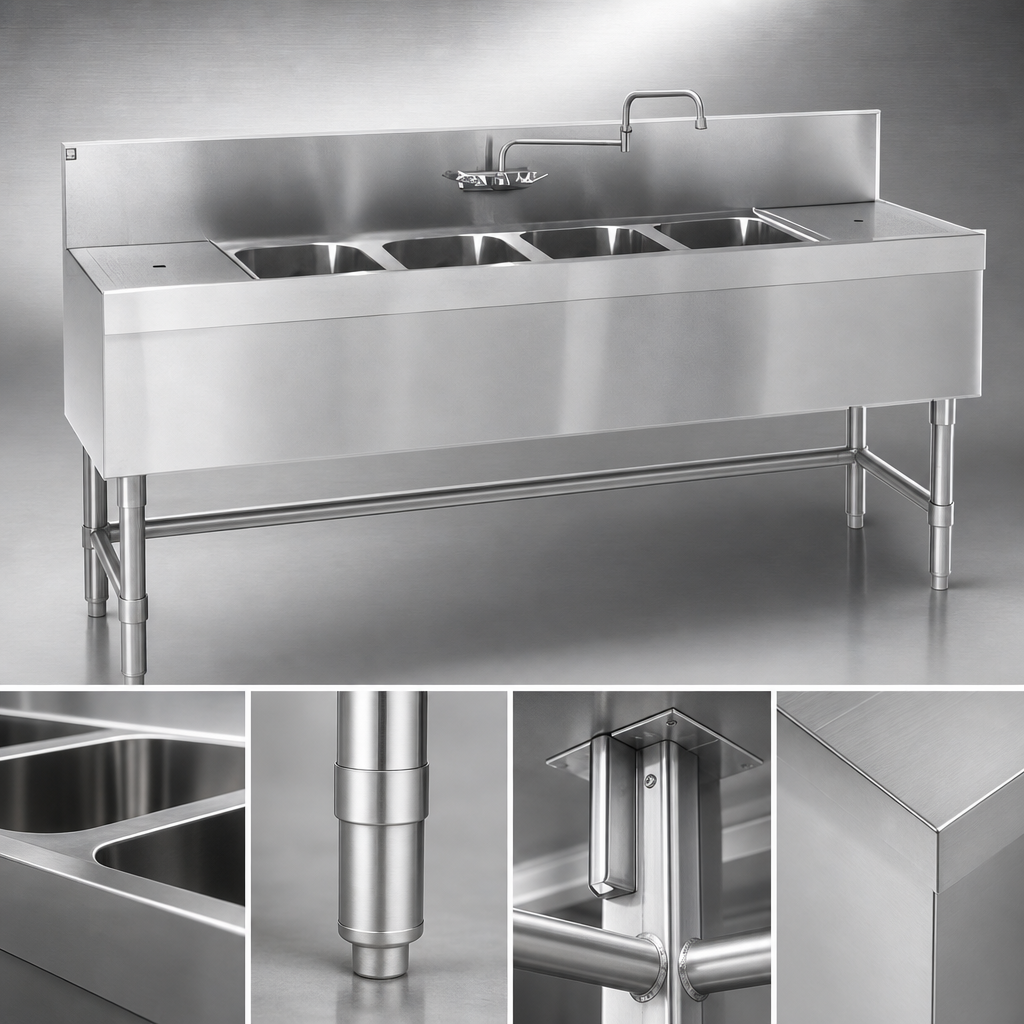

95.0 lb304 Stainless Steel Construction
Body, bowls, legs, leg channels, and cross rails are made from type 304 stainless steel for strength and corrosion resistance.

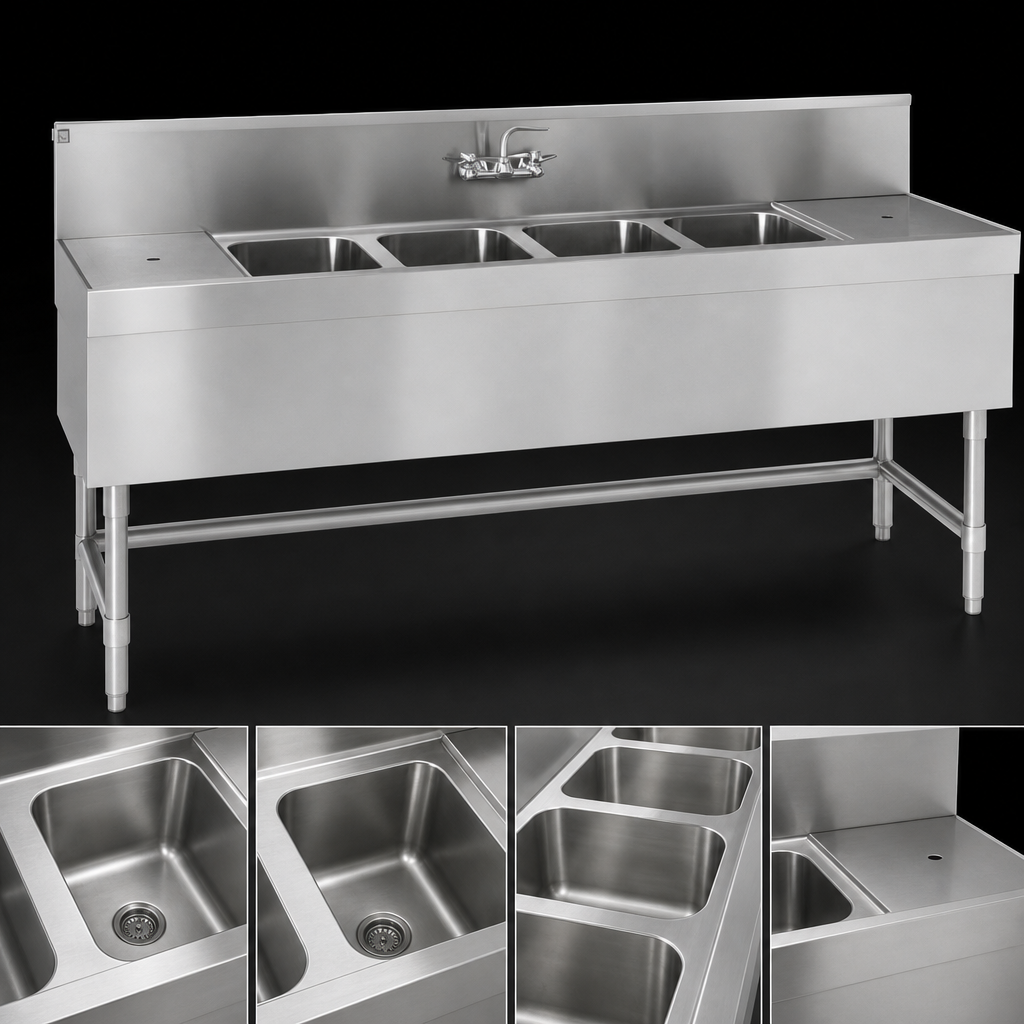

Four Sink Compartments
Four drawn compartments measure 10" x 14" x 9-1/2" deep to handle multiple bar prep and wash tasks.
Right-Side Drainboard
A 24" drainboard on the right side provides added landing space and includes a removable perforated stainless steel insert.
Splash-Mounted Faucet
Double-hinged T&S faucet mounts on 4" centers and uses a 1/2" NPT inlet; hot and cold water connections are required.
Integrated Drain System
Includes 1-1/2" IPS threaded drains with nut and washer plus removable overflow standpipes.
8" Backsplash and Apron
The backsplash helps contain splashes, while the stainless steel apron on the front and sides adds a clean, professional look.
Adjustable Bullet Feet
Stainless steel bullet feet make leveling easier on uneven floors.
Certifications & Compliance
Warranty & Protection
1 year from original installation, not to exceed 18 months from shipment.
