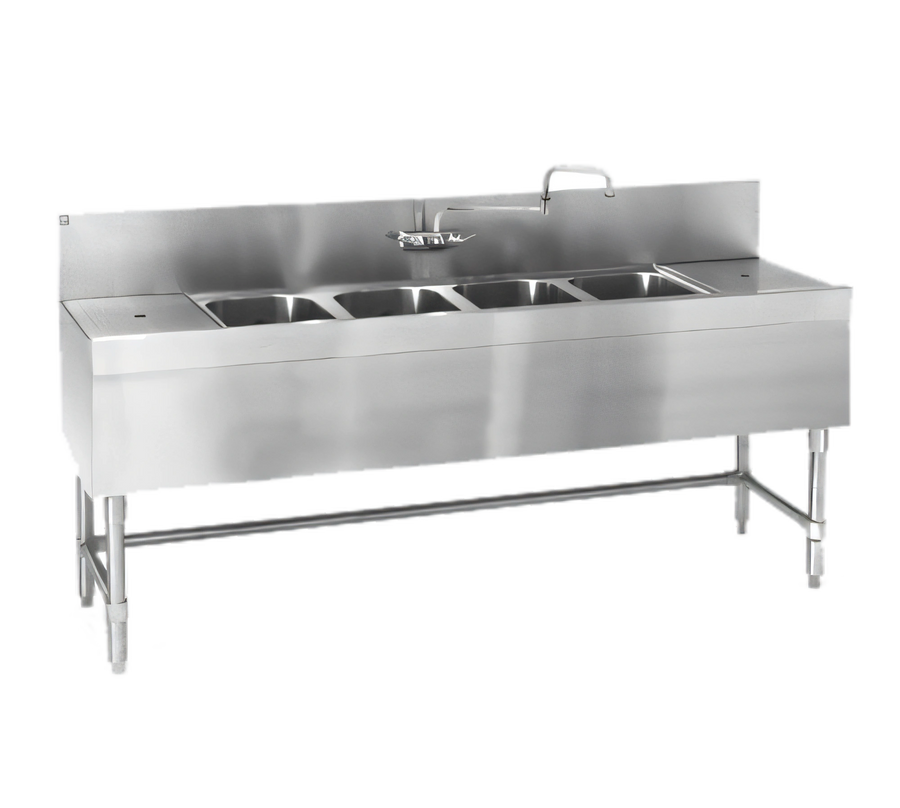

Eagle Group Spec-Bar Four-Compartment Underbar Sink Unit with Left Drainboard, 72 Inch W x 24 Inch D

304 Stainless Steel, 8 Inch Backsplash, T&S Faucet Included

This heavy-duty four-compartment underbar sink gives bar stations a durable stainless steel wash area with a left drainboard, integrated faucet, and complete drain hardware.

  • Four 10 Inches x 14 Inches x 9-1/2 Inches deep sink bowls support fast bar-sink workflows.
  • 24-inch left drainboard includes a removable perforated stainless steel insert and independent drain.
  • Type 304 stainless steel body, bowls, legs, and crossbracing help resist corrosion in wet service areas.
  • 8-inch backsplash with splash-mounted double-hinged T&S faucet is ready for hot and cold water connections.
  • Includes 1-1/2-inch drains, removable overflow standpipes, stainless apron panels, and adjustable bullet feet.

Overall Dimensions:

72.0"W x 24.0"D x 37.0"H

Product Weight:

95.0 lb

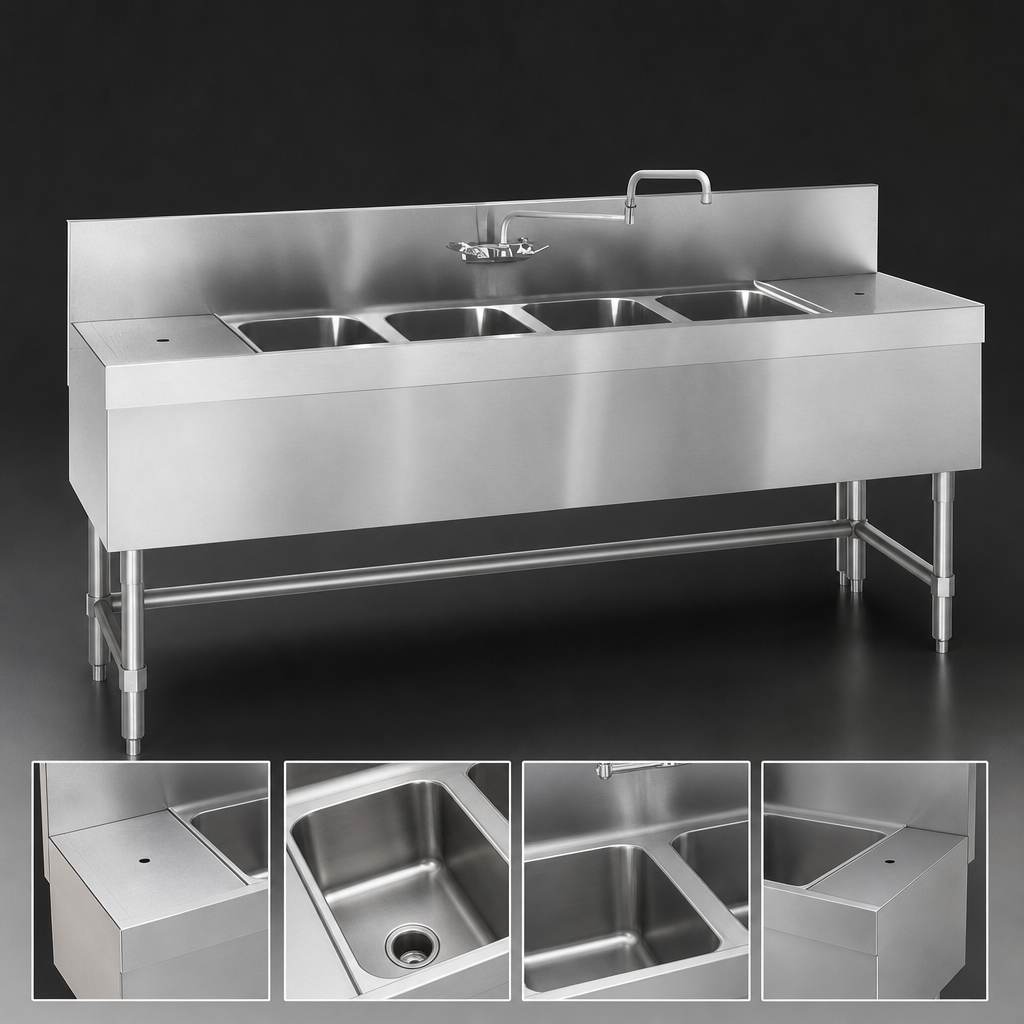

Four-Compartment Layout

Four separate bowls help streamline washing, rinsing, and staging tasks at the bar.

Four-Compartment Layout

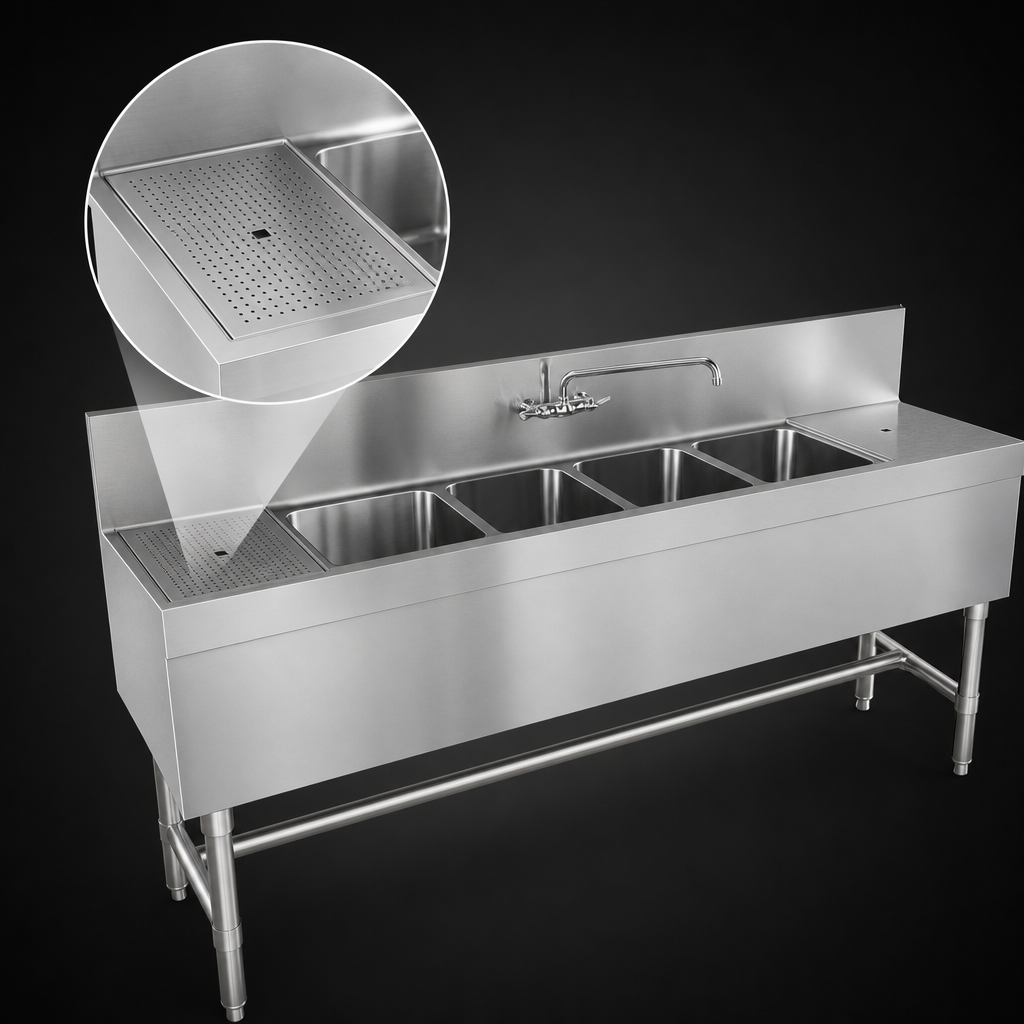

Left Drainboard

A 24-inch drainboard on the left side provides draining and prep space with a removable perforated stainless steel insert.

Left Drainboard

304 Stainless Steel Construction

Heavy-gauge stainless steel construction on the sink, body, legs, and cross rails supports long service life in demanding environments.

Splash-Mounted Faucet

Includes a backsplash-mounted double-hinged T&S faucet on 4-inch centers with a 1/2-inch NPT inlet; hot and cold water connections are required.

Complete Drain Hardware

Each compartment includes a 1-1/2-inch drain and removable overflow standpipe.

Adjustable Bullet Feet

Stainless steel adjustable bullet feet make leveling easier on uneven floors.

Type Underbar Sink Unit
Style Four Compartment
Installation Type Freestanding
Compartments 4
Material 304 Stainless Steel
Drainboard Location Left
Drainboard Length 24 Inches
Bowl Size 10 Inches Wide x 14 Inches Front-to-Back x 9-1/2 Inches Deep
Backsplash Height 8 Inches
Water Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Required
Drain Connection Size 1-1/2 Inches IPS
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 95 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four compartments.
Yes. This model includes a 24-inch drainboard on the left side with a removable perforated stainless steel insert.
Each bowl measures 10 Inches Wide x 14 Inches Front-to-Back x 9-1/2 Inches Deep.
Yes. It includes a splash-mounted double-hinged T&S faucet, 1-1/2-inch drains, and removable overflow standpipes.
Overall dimensions are 72 Inches W x 24 Inches D x 37 Inches H.
