Eagle Group

Spec-Bar Four-Compartment Stainless Steel Underbar Sink Unit with Left Drainboard, 72-Inch Wide x 19-Inch Deep

SKU: B6L-4-19
$3,207.62
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Spec-Bar Four-Compartment Stainless Steel Underbar Sink Unit with Left Drainboard, 72-Inch Wide x 19-Inch Deep

37-Inch High, 8-Inch Backsplash, T&S Faucet Included

Built for high-volume bar service, this durable four-compartment sink combines a left drainboard, stainless steel construction, and an included splash-mounted faucet for efficient cleanup.

  • Four 10" x 14" x 9-1/2" deep sink compartments support fast, organized washup.
  • 24-inch left drainboard includes a removable perforated stainless steel insert.
  • Heavy-gauge 304 stainless steel construction helps resist corrosion in demanding bar environments.
  • Includes an 8-inch backsplash and splash-mounted double-hinged T&S faucet on 4-inch centers.
  • 1-1/2-inch drains and removable overflow standpipes are included.
  • Stainless steel apron, legs, crossbracing, and adjustable bullet feet provide durability and stability.

Overall Dimensions:

72.0"W x 19.0"D x 37.0"H

Product Weight:

90.0 lb

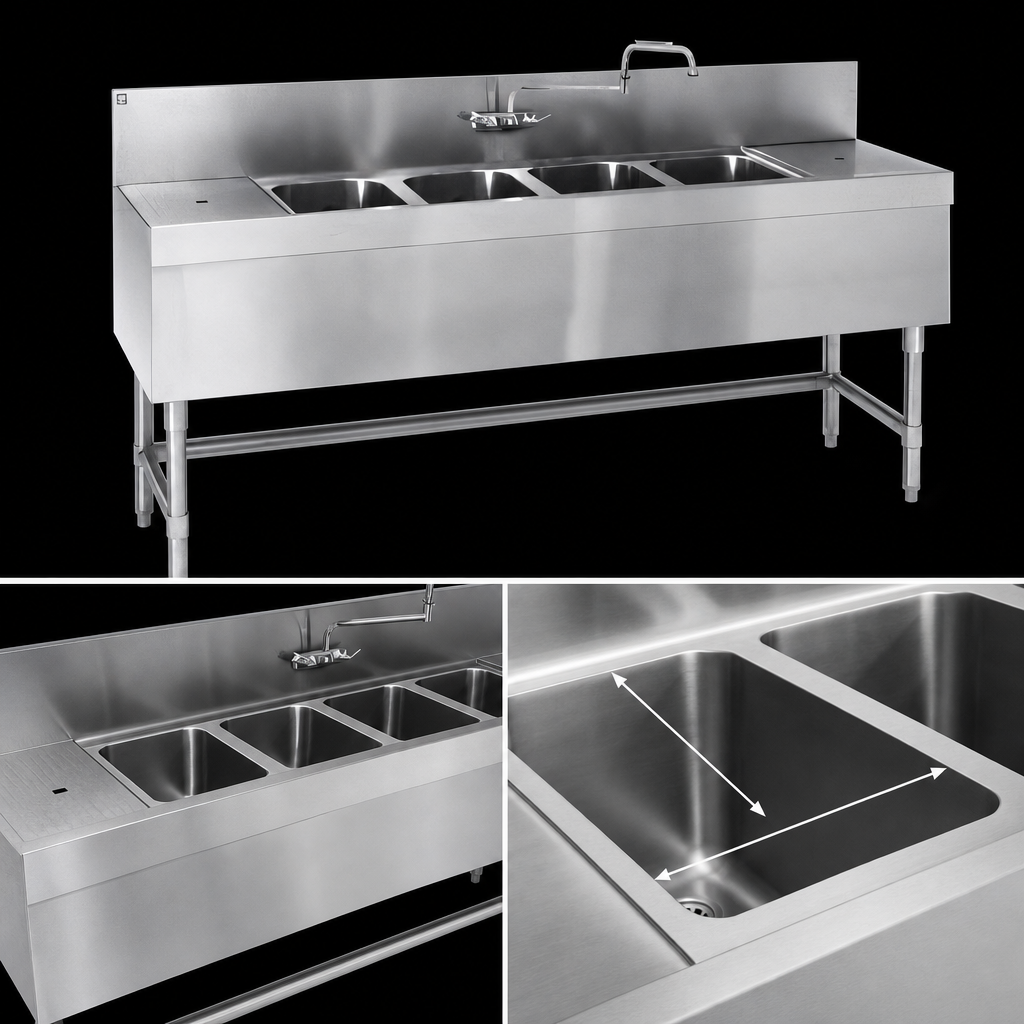

Four Compartment Sink Design

Provides four stainless steel bowls, each measuring 10 inches x 14 inches front-to-back x 9-1/2 inches deep.

Four Compartment Sink Design

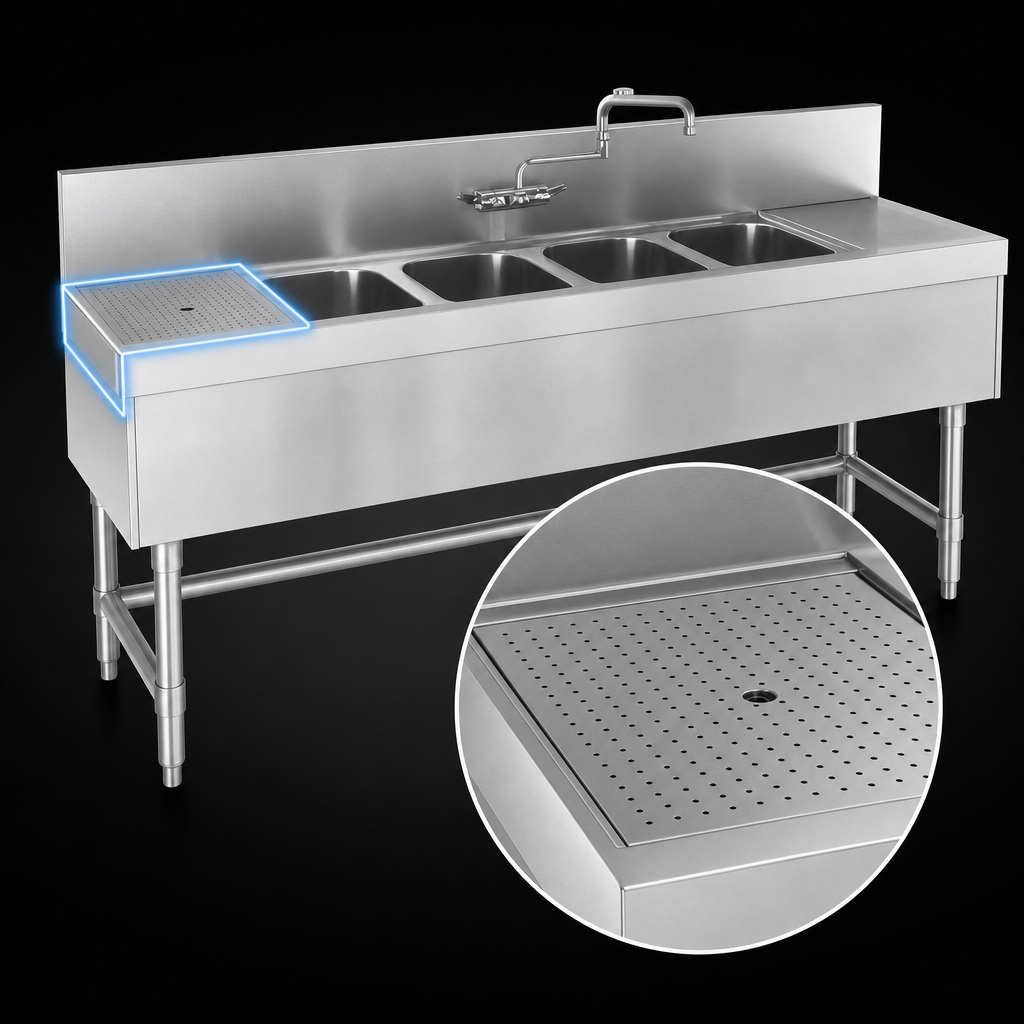

Left Drainboard

Features a 24-inch drainboard on the left side with a removable perforated stainless steel insert and independent drain.

Left Drainboard

304 Stainless Steel Construction

Built with heavy-gauge 304 stainless steel for the body, legs, leg channels, cross rails, and sink bowls.

Included T&S Faucet

Splash-mounted double-hinged T&S faucet mounts on 4-inch centers; hot and cold water connections are required.

8-Inch Backsplash

Helps contain splashes and protect the wall behind the sink area.

Drain and Overflow Assembly

Includes 1-1/2-inch drains plus removable overflow standpipes for each compartment.

Adjustable Bullet Feet

Stainless steel bullet feet make leveling easier on uneven floors.

Stainless Steel Apron and Framing

Stainless steel apron on the front and sides adds durability and a clean underbar appearance.

Type Underbar Sink
Style Four Compartment
Installation Type Floor Model
Material 304 Stainless Steel
Compartments 4
Bowl Size 10 Inches x 14 Inches x 9-1/2 Inches Deep
Drainboard Location Left
Drainboard Length 24 Inches
Backsplash 8 Inches
Water Inlet Size 1/2 Inch NPT
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model has four sink compartments.
Each bowl measures 10 inches x 14 inches front-to-back x 9-1/2 inches deep.
Yes. It includes a splash-mounted double-hinged T&S faucet on 4-inch centers.
It has a 24-inch drainboard on the left side with a removable perforated stainless steel insert.
The unit includes 1-1/2-inch drains and removable overflow standpipes.
Yes. Hot and cold water connections are required for the included faucet.
