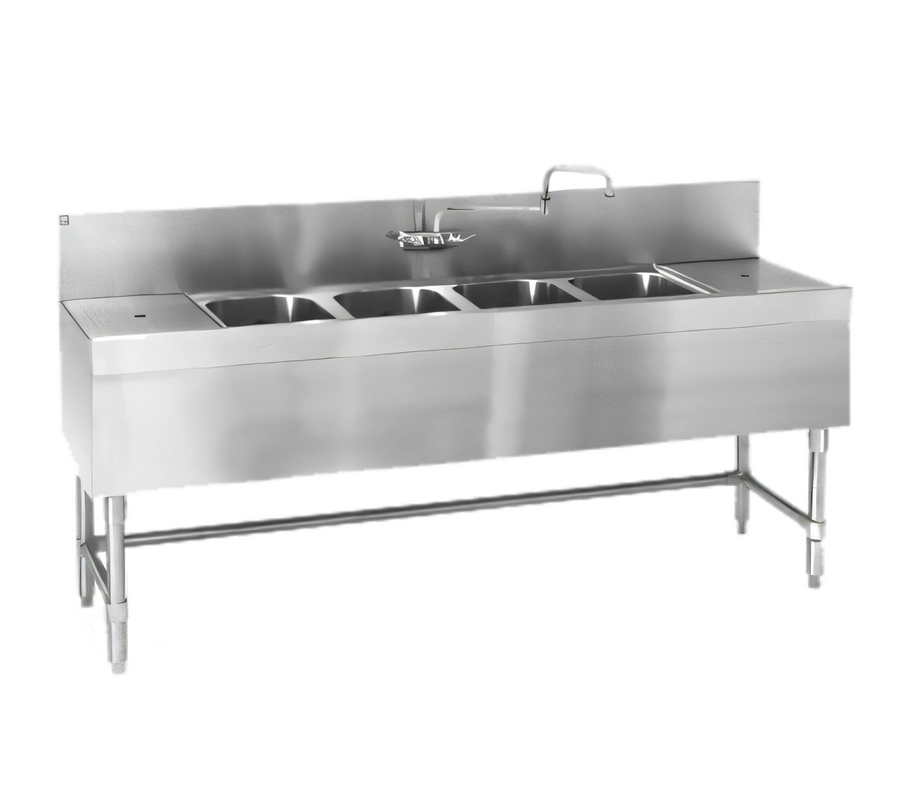

Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Right Drainboard, 60 x 24 x 37 Inches
Eagle Spec-Bar Four-Compartment Underbar Sink Unit with Right Drainboard, 60 x 24 x 37 Inches
20/304 Stainless Steel, 8-Inch Backsplash, Splash-Mounted T&S Faucet
A durable four-station underbar sink with a right-side drainboard and built-in faucet, designed for busy bar and beverage service.
- Four 10-inch x 14-inch x 9-1/2-inch deep compartments support multi-step wash and rinse tasks.
- 12-inch right drainboard includes a removable perforated stainless steel insert for drainage and drying.
- Heavy-duty stainless steel construction is built for commercial bar service and corrosion resistance.
- 8-inch backsplash and splash-mounted T&S faucet help contain water at the sink area.
- Includes 1-1/2-inch drains, removable overflow standpipes, and adjustable stainless steel bullet feet.
Overall Dimensions:
60.0"W x 24.0"D x 37.0"HProduct Weight:

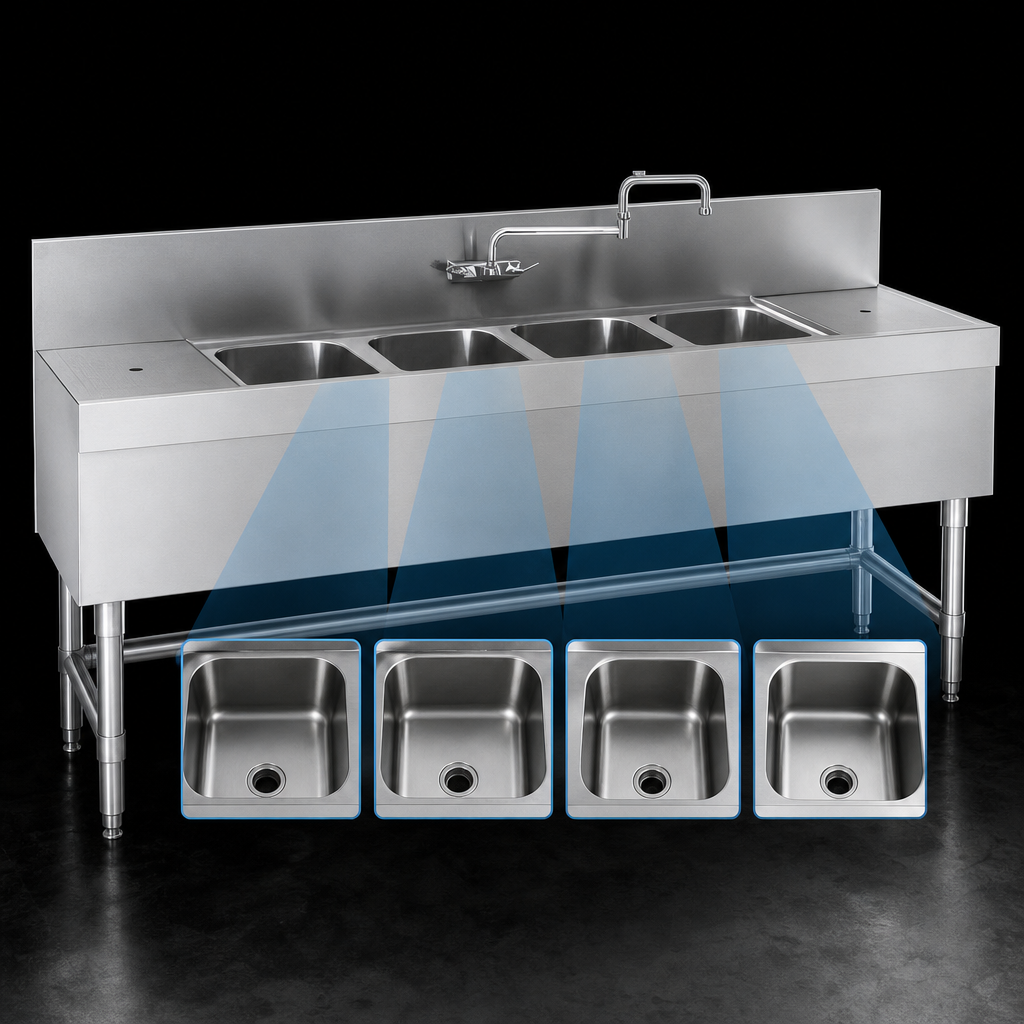

82.0 lbFour-Compartment Layout
Provides four separate sink bowls for organized washing, rinsing, and holding tasks behind the bar.

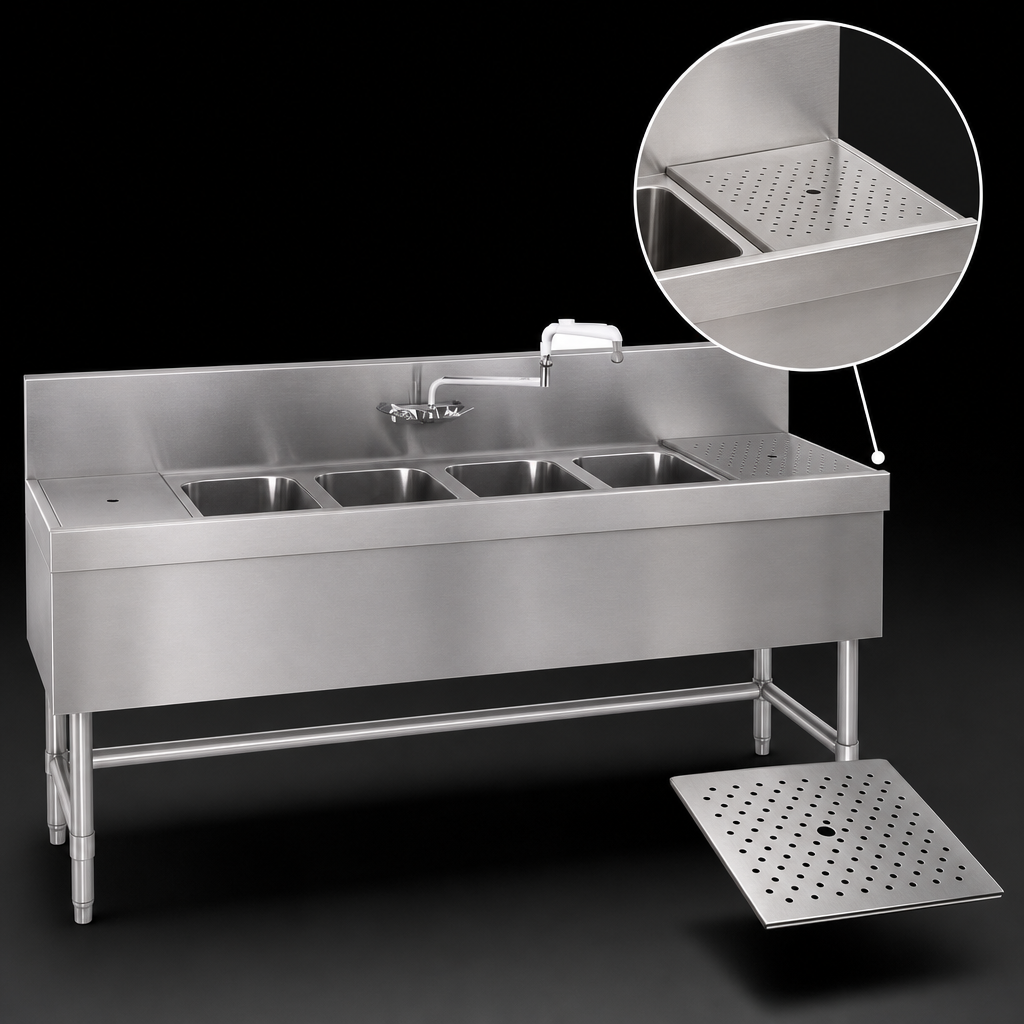

Right Drainboard
A 12-inch drainboard is positioned on the right side and includes a removable perforated stainless steel insert.
304 Stainless Steel Construction
Type 304 stainless steel construction adds strength and corrosion resistance for demanding commercial environments.
20-Gauge Sink Assembly
Backsplash, sides, bottom, front panel, drain pans, perforated inserts, and bowls are formed from 20-gauge stainless steel.
Splash-Mounted Faucet
Includes a backsplash-mounted double-hinged T&S faucet on 4-inch centers with a 1/2-inch NPT inlet; hot and cold water connections are required.
Integrated Drain System
Each compartment includes a 1-1/2-inch IPS threaded drain with a removable overflow standpipe.
Reinforced Support Structure
Leg channels, legs, and crossbracing are built from 16-gauge stainless steel for added stability.
Adjustable Bullet Feet
Stainless steel adjustable bullet feet make leveling easier on uneven floors.
Stainless Steel Apron
A stainless steel apron on the front and sides provides a clean finished appearance.
Certifications & Compliance
Warranty & Protection
1-year limited warranty from original installation, not to exceed 18 months from shipment.
