Eagle Group Spec-Bar Four-Compartment Underbar Sink Unit with Right Drainboard, 60 Inches

SKU: B5R-4-19
$3,092.98
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

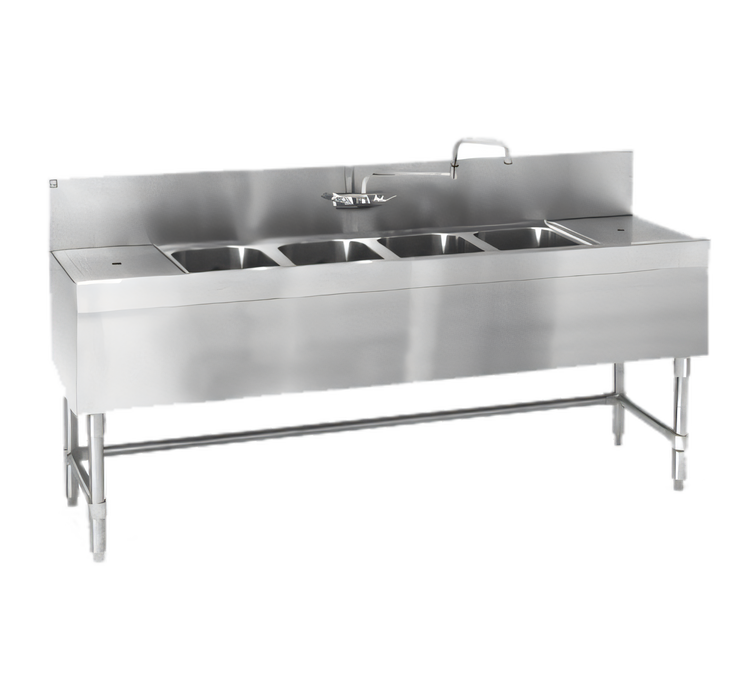

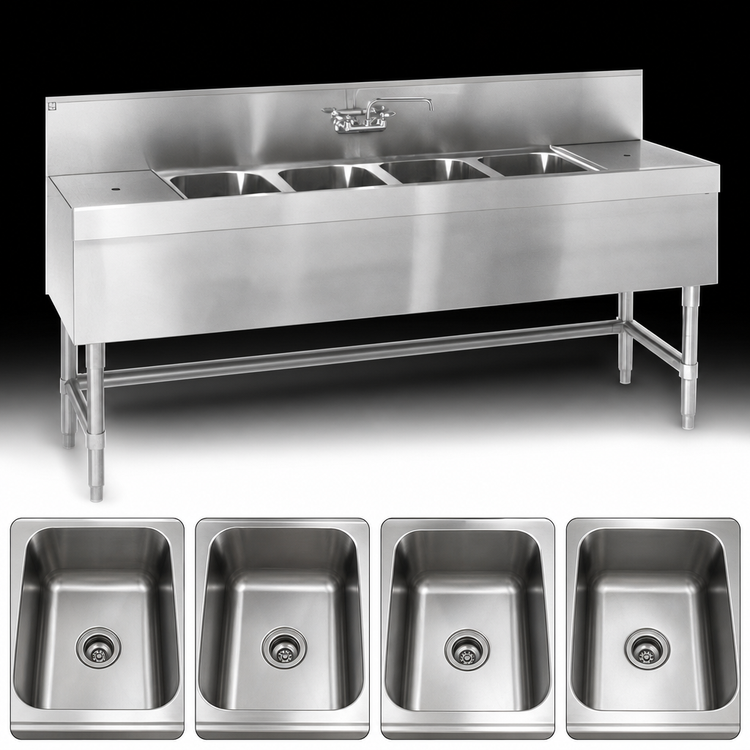

Eagle Group Spec-Bar Four-Compartment Underbar Sink Unit with Right Drainboard, 60 Inches

60 Inches W x 19 Inches D x 37 Inches H, 304 Stainless Steel, 8 Inches Backsplash

Built for high-volume bar service, this four-compartment underbar sink combines a right-side drainboard, durable stainless steel construction, and an integrated faucet and drain package in one compact unit.

  • Four 10 Inches x 14 Inches x 9.5 Inches deep compartments support efficient glassware and utensil washing.
  • 12 Inches right-side drainboard includes a removable perforated stainless steel insert for easy draining.
  • 304 stainless steel construction with stainless steel apron, legs, and crossbracing is built for commercial durability.
  • 8 Inches backsplash and splash-mounted double-hinged faucet help contain messes behind the sink.
  • Includes 1-1/2 Inches drains and removable overflow standpipes for a complete sink setup.
  • Adjustable bullet feet make leveling easier during installation.

Overall Dimensions:

60.0"W x 19.0"D x 37.0"H

Product Weight:

170.0 lb

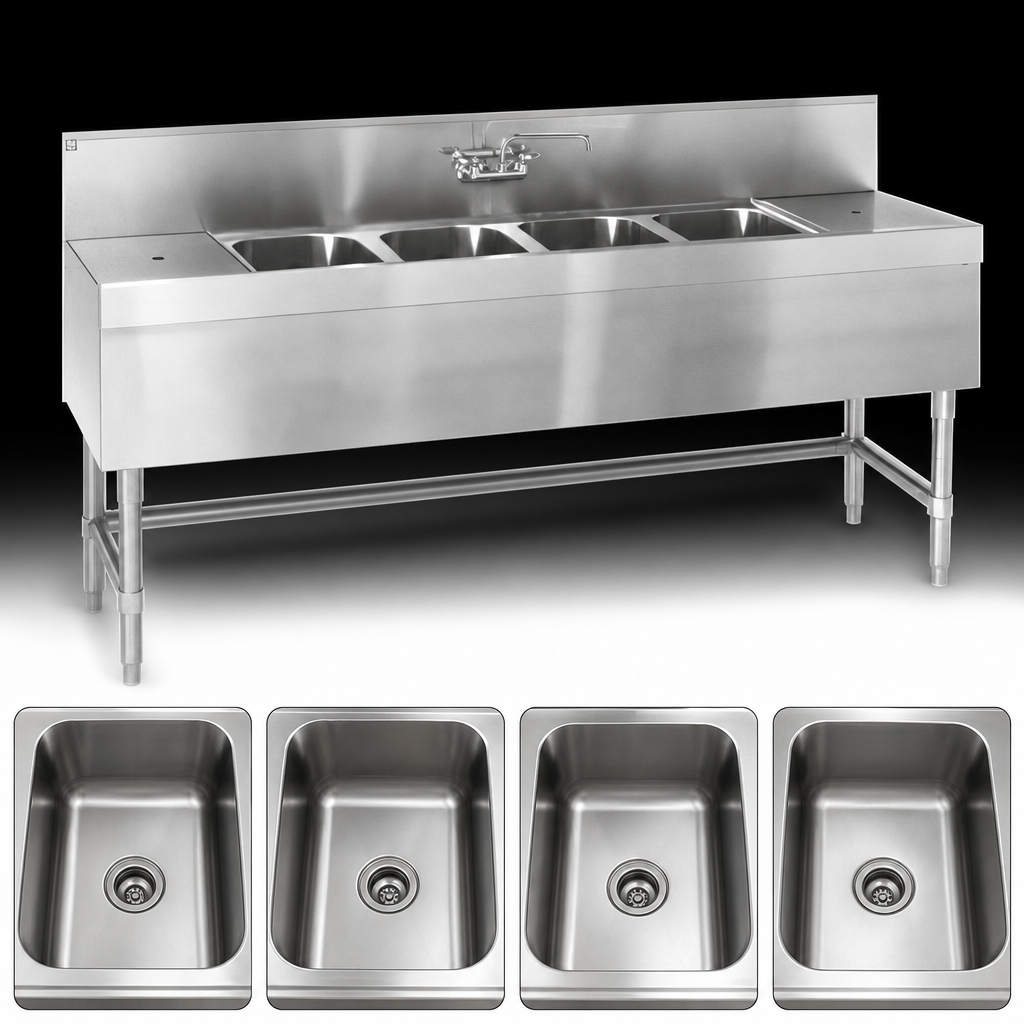

Four-Compartment Sink Design

Provides four separate sink bowls for washing, rinsing, and handling busy bar tasks.

Four-Compartment Sink Design

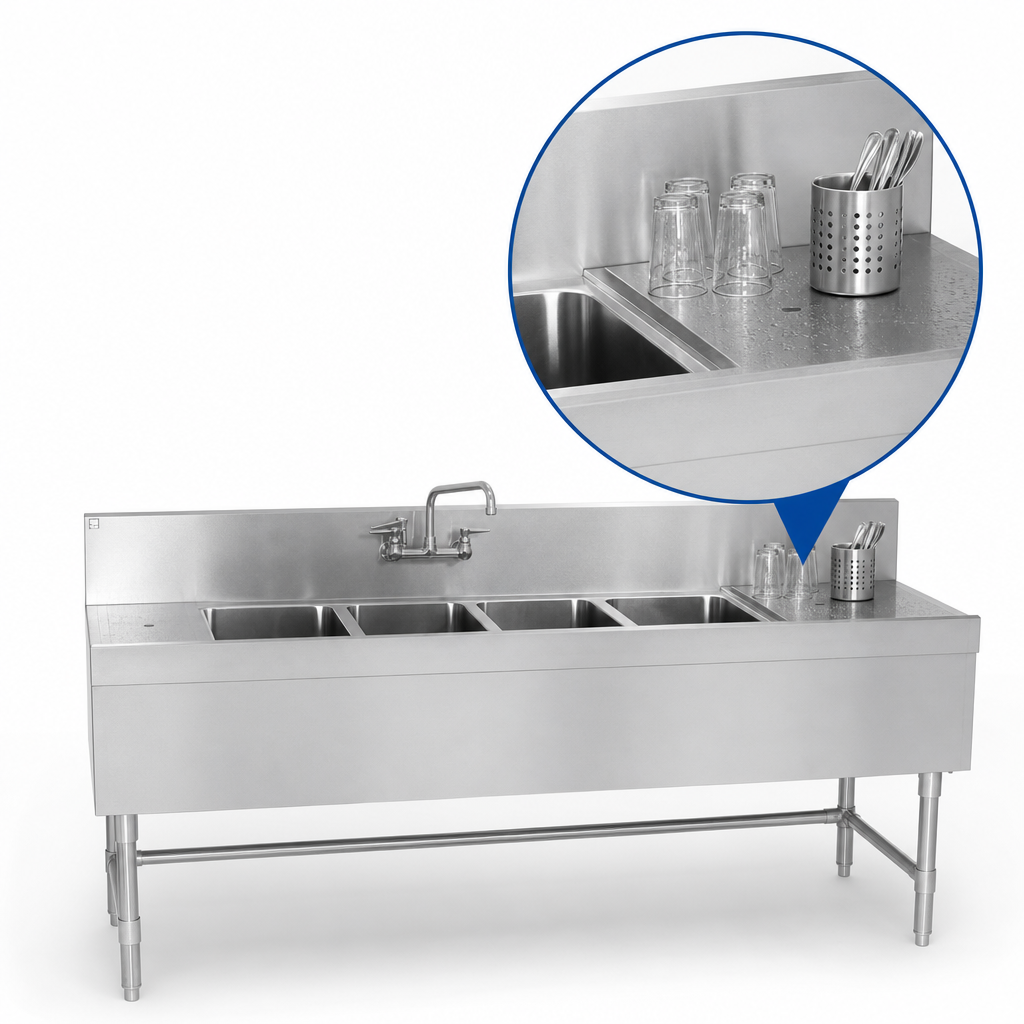

Right Drainboard

A 12 Inches drainboard on the right gives operators space to drain and stage glassware or utensils.

Right Drainboard

304 Stainless Steel Construction

Stainless steel body, bowls, legs, and bracing are designed for durability and corrosion resistance.

Removable Perforated Insert

The drainboard includes a removable perforated stainless steel insert for convenient cleaning and drainage.

Splash-Mounted Faucet

Includes a double-hinged T&S faucet mounted on 4 Inches centers with a 1/2 Inch NPT inlet.

Integrated Drain Package

Supplied with 1-1/2 Inches threaded drains and removable overflow standpipes.

Adjustable Bullet Feet

Stainless steel bullet feet help level the unit on uneven floors.

Type Underbar Sink Unit
Style Four Compartment
Installation Type Freestanding
Material 304 Stainless Steel
Compartments 4
Bowl Size 10 Inches x 14 Inches x 9.5 Inches Deep
Drainboard Location Right
Drainboard Length 12 Inches
Backsplash Height 8 Inches
Water Inlet Size 1/2 Inch NPT
Mounting Type Splash Mounted
Drain Connection Size 1-1/2 Inches IPS
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four sink compartments.
Each compartment measures 10 Inches wide x 14 Inches front-to-back x 9.5 Inches deep.
The drainboard is on the right side and includes a removable perforated stainless steel insert.
The faucet uses a 1/2 Inch NPT inlet, and hot and cold water connections are required. The unit also uses 1-1/2 Inches drains.
Yes, this model is NSF listed.
