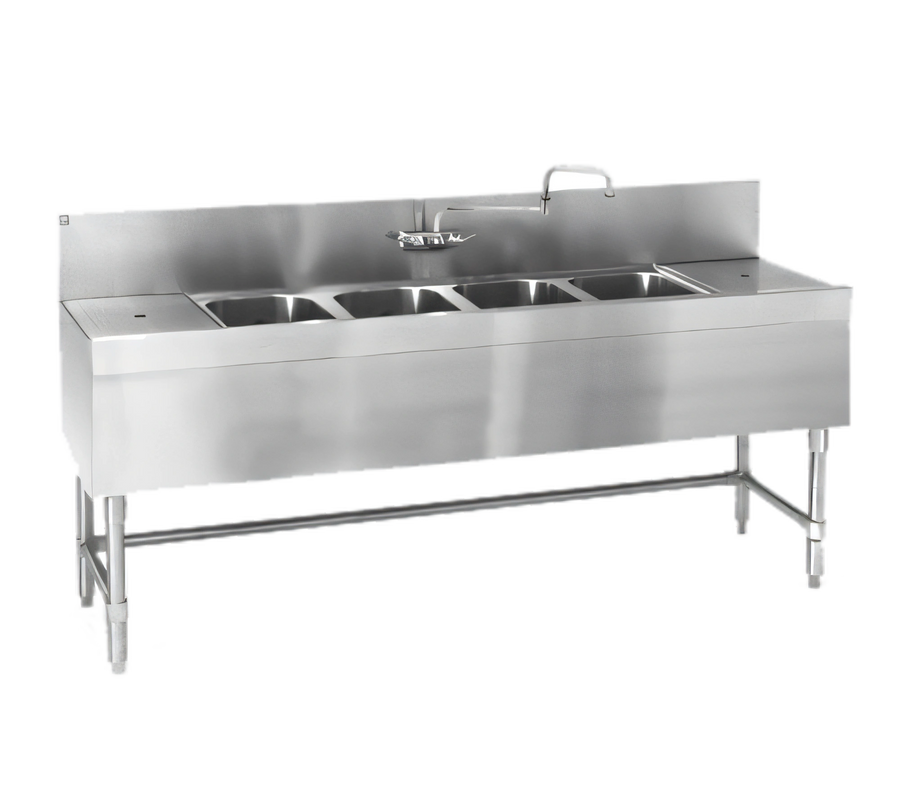

Eagle Spec-Bar Four-Compartment Stainless Steel Underbar Sink Unit with Left Drainboard, 60 x 24 Inch

304 Stainless Steel, 8-Inch Backsplash, T&S Faucet Included

A durable, space-efficient underbar sink built for busy beverage stations, with four compartments, a left drainboard, and heavy-duty stainless steel construction.

  • Four-compartment underbar sink for efficient bar and beverage workflow.
  • Left-side 12-inch drainboard with removable perforated stainless steel insert.
  • Heavy-duty stainless steel construction with apron panels, legs, and crossbracing.
  • Includes an 8-inch backsplash, splash-mounted T&S faucet, drains, and overflow standpipes.
  • Stainless steel adjustable bullet feet help level the unit on uneven floors.
  • 60-inch by 24-inch footprint fits standard underbar layouts.

Overall Dimensions:

60.0"W x 24.0"D x 37.0"H

Product Weight:

85.0 lb

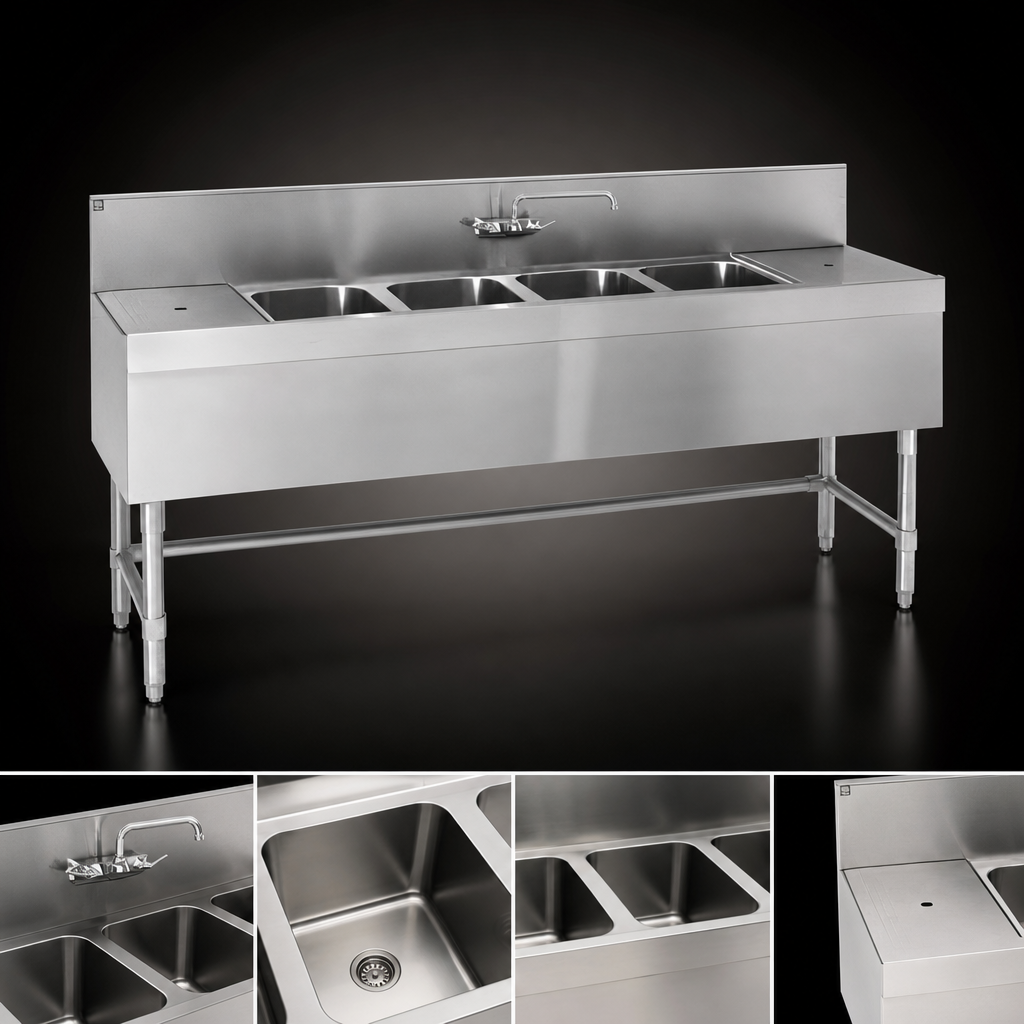

Four Sink Compartments

Includes four stainless steel sink bowls, each measuring 10 inches wide x 14 inches front-to-back x 9-1/2 inches deep.

Four Sink Compartments

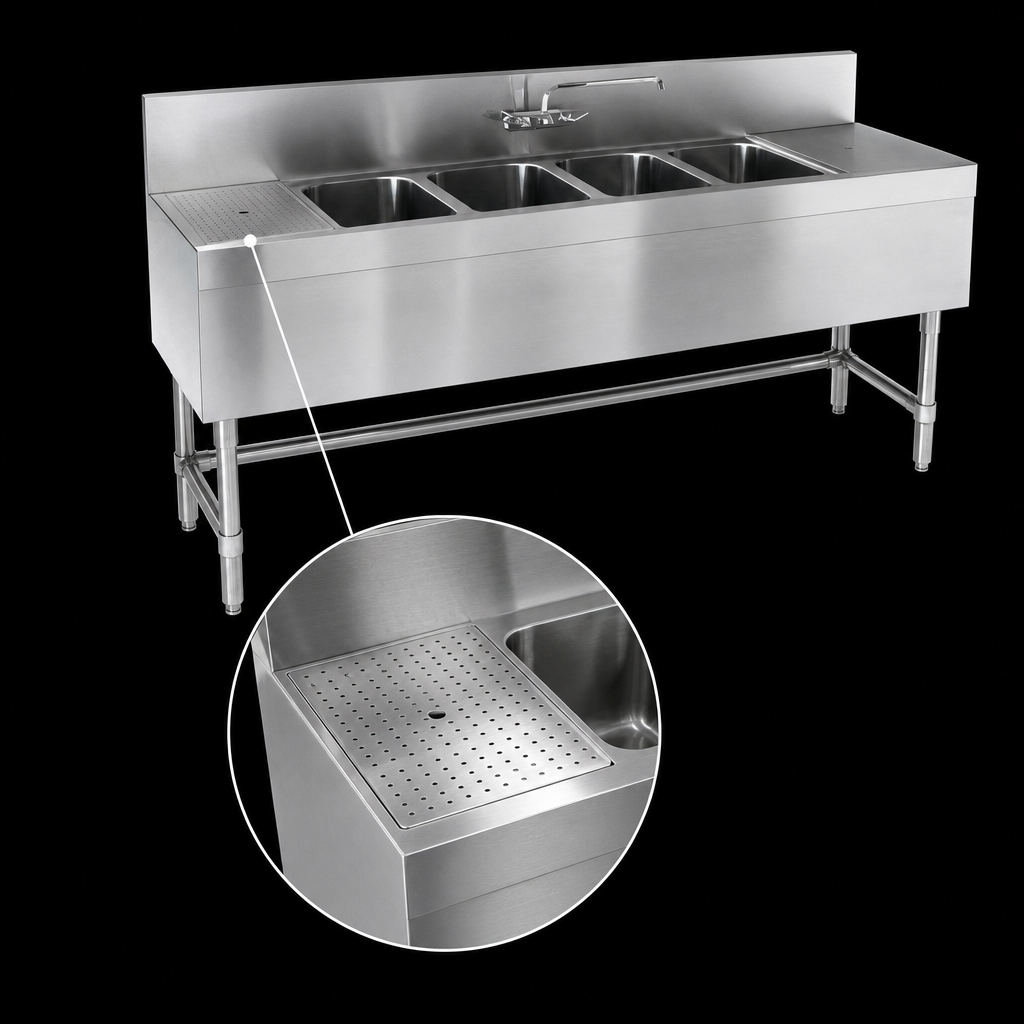

Left Drainboard

A 12-inch drainboard on the left side provides extra landing space and includes a removable perforated stainless steel insert.

Left Drainboard

304 Stainless Steel Construction

Body, bowls, legs, leg channels, and crossbracing are built from type 304 stainless steel for strength and corrosion resistance.

Backsplash-Mounted Faucet

Supplied with a splash-mounted double-hinged T&S faucet on 4-inch centers with a 1/2-inch NPT inlet; hot and cold water connections are required.

Integrated Drain Components

Includes 1-1/2-inch drains and removable overflow standpipes for each compartment.

Stainless Steel Apron Panels

Front and side apron panels provide a clean finish and added protection in wet service areas.

Adjustable Bullet Feet

Stainless steel adjustable bullet feet make it easier to level the unit during installation.

Type Underbar Sink Unit
Style Four-Compartment
Installation Type Freestanding
Compartments 4
Material 304 Stainless Steel
Finish Stainless Steel
Shipping Width 60 Inches
Shipping Depth 24 Inches
Shipping Height 37 Inches
Shipping Weight 85 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four sink compartments.
Each compartment measures 10 inches wide x 14 inches front-to-back x 9-1/2 inches deep.
Yes. This model has a 12-inch drainboard on the left with a removable perforated stainless steel insert.
It includes a splash-mounted double-hinged T&S faucet on 4-inch centers with a 1/2-inch NPT inlet.
Yes. Hot and cold water connections are required.
The unit includes 1-1/2-inch drains and removable overflow standpipes.
