Eagle Group

Eagle Spec-Bar 3-Compartment Underbar Sink Unit with Right Drainboard, 66W x 19D x 37H

SKU: B5.5-3-R-19
$2,806.34
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Eagle Spec-Bar 3-Compartment Underbar Sink Unit with Right Drainboard, 66W x 19D x 37H

304 Stainless Steel, 8-Inch Backsplash, 12-Inch Swing Spout Included

Built for fast-paced bars, this 3-compartment sink combines durable stainless steel construction with a right-side drainboard and included swing spout.

  • Three 10" x 14" front-to-back sink compartments support efficient bar cleanup.
  • 30" right-side drainboard includes a removable perforated stainless steel insert.
  • 8" backsplash with splash-mounted faucet holes on 4" centers.
  • Includes a 12" swing spout and 1-1/2" drains with removable overflow standpipes.
  • Heavy-duty stainless steel construction with 16-gauge legs, crossbracing, and adjustable bullet feet.
  • Hot and cold water connections are required.

Overall Dimensions:

66.0"W x 19.0"D x 37.0"H

Product Weight:

233.0 lb

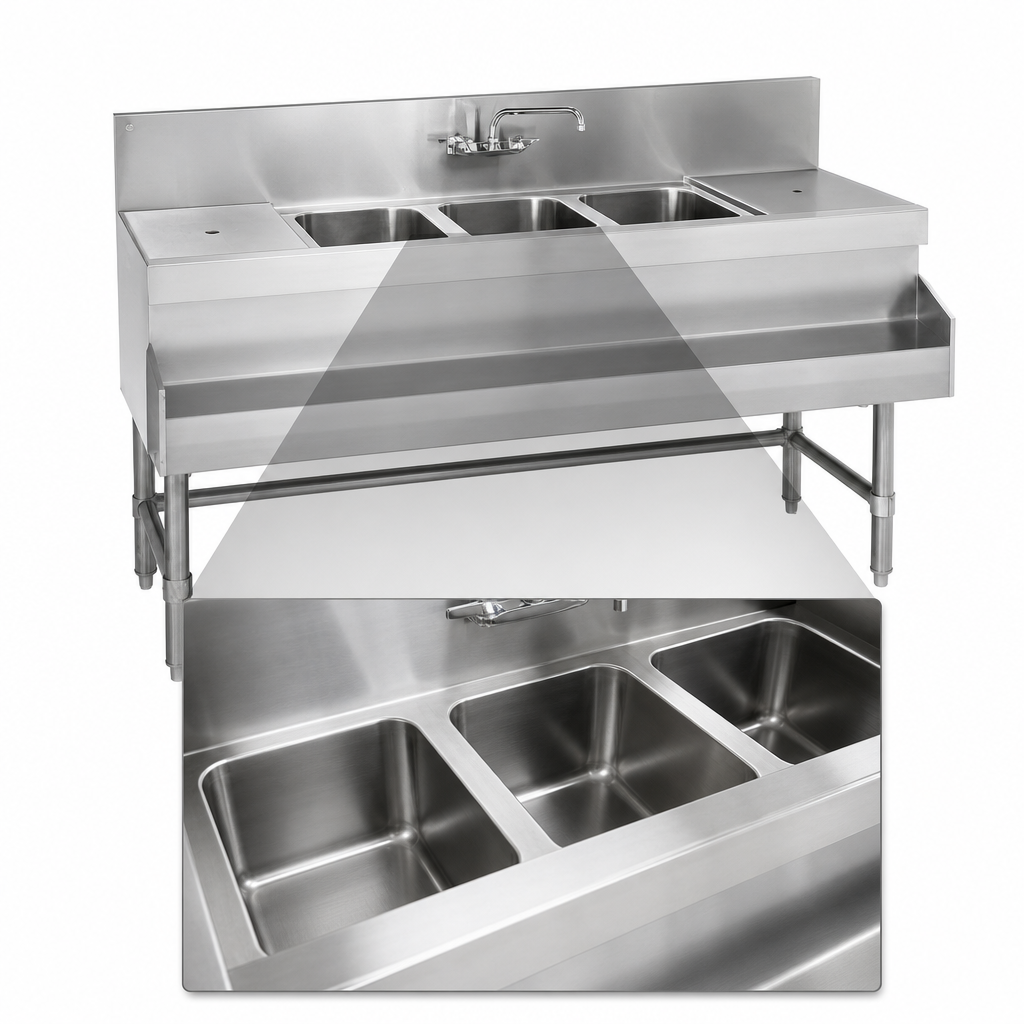

Three Compartment Sink Bowls

Three stainless steel sink bowls measure 10" x 14" front-to-back and 9" deep for multi-step wash, rinse, and sanitize tasks.

Three Compartment Sink Bowls

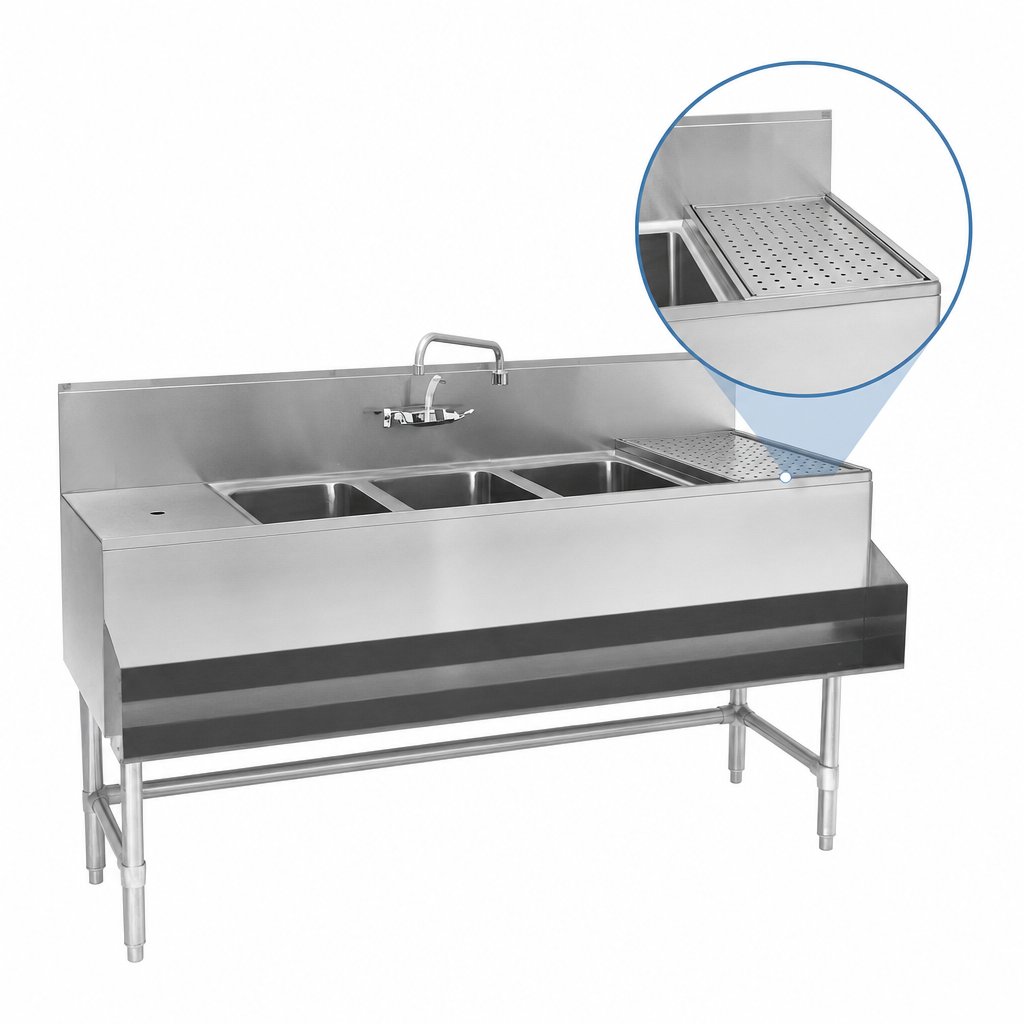

Right-Side Drainboard

A 30" drainboard is positioned on the right side and includes a removable perforated stainless steel insert.

Right-Side Drainboard

Splash-Mounted Faucet Setup

The backsplash includes splash-mount faucet holes on 4" centers, and the unit includes a 12" swing spout.

Heavy-Duty Stainless Steel Construction

Built with 20/304 stainless steel construction and 16/304 stainless steel legs, side and rear crossbracing, and leg channels for strength and corrosion resistance.

Adjustable Bullet Feet

Stainless steel adjustable bullet feet help level the sink on uneven floors.

Drain and Overflow Hardware

1-1/2" drains and removable overflow standpipes are included for each compartment.

Type Underbar Sink Unit
Style Three Compartment
Installation Type Undercounter
Compartments 3
Drainboard Location Right
Drainboard Length 30 Inches
Backsplash Height 8 Inches
Faucet Hole Centers 4 Inches
Bowl Size 10 Inches x 14 Inches Front-to-Back
Bowl Depth 9 Inches
Material 304 Stainless Steel
Finish Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 1-1/2 Inches IPS Threaded
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Spec-bar® modular bar die PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three compartments, each measuring 10" x 14" front-to-back x 9" deep.
This model has a drainboard on the right side.
Yes. It includes splash-mounted faucet holes on 4" centers and a 12" swing spout.
The sink includes 1-1/2" drains with removable overflow standpipes.
The overall size is 66"W x 19"D x 37"H.
The unit is built with 20/304 stainless steel construction and 16/304 stainless steel legs and crossbracing.
