Eagle Group Spec-Bar 3-Compartment Underbar Sink Unit with Left Drainboard, 66W x 19D x 37H

20/304 Stainless Steel, 8-Inch Backsplash, Includes Splash-Mounted Faucet

Built for busy bars and beverage stations, this 3-compartment sink pairs a wide left drainboard with rugged stainless steel construction for efficient cleanup.

  • Three-compartment underbar sink designed for bar and beverage service.
  • 30-inch left drainboard with removable perforated stainless steel insert.
  • 8-inch backsplash with splash-mount faucet holes on 4-inch centers.
  • Includes 1-1/2-inch drains, removable overflow standpipes, and a swing spout faucet.
  • 20/304 stainless steel construction with 16/304 stainless steel legs, side and rear crossbracing, and adjustable bullet feet.
  • Optional speed rail and scrap basket available.

Overall Dimensions:

66.0"W x 19.0"D x 37.0"H

Product Weight:

233.0 lb

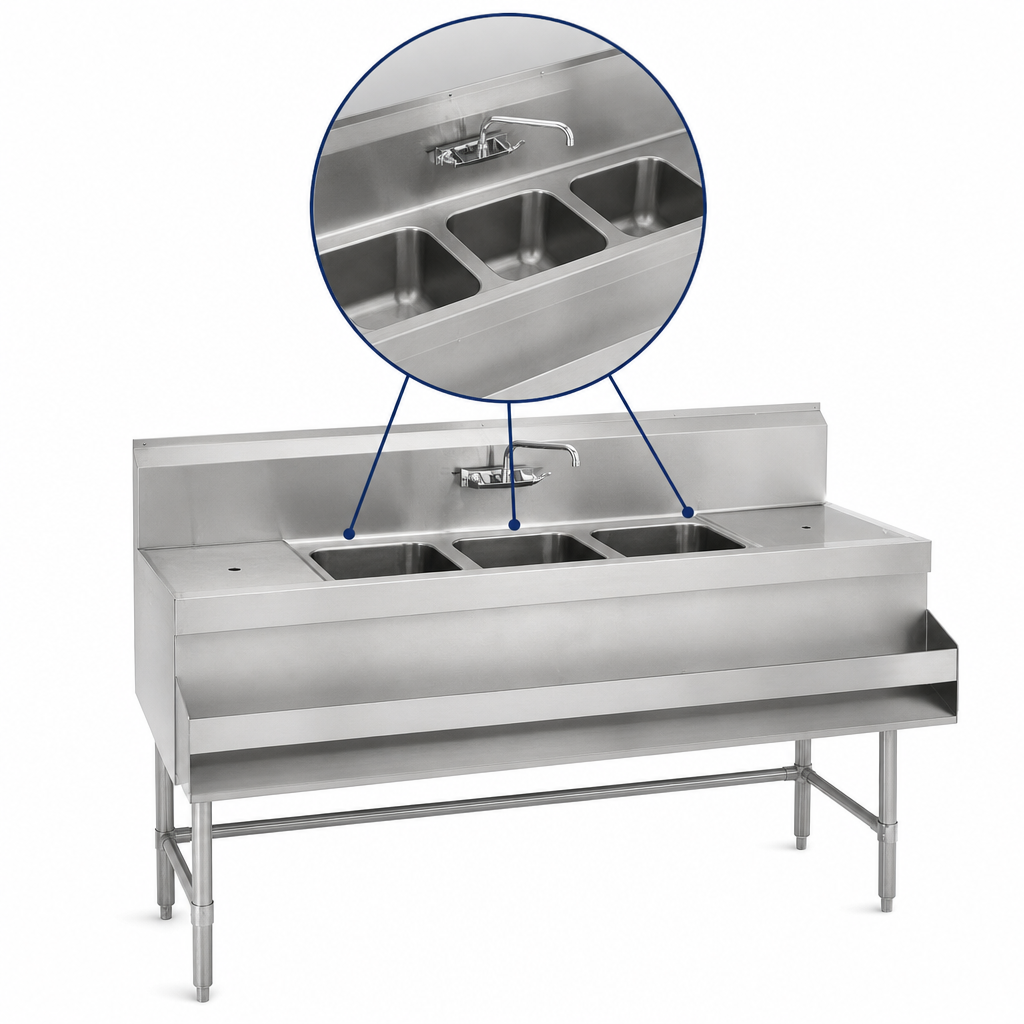

Three-Compartment Bowl Layout

Three stainless steel sink compartments provide separate wash, rinse, and sanitizing stations for bar service.

Three-Compartment Bowl Layout

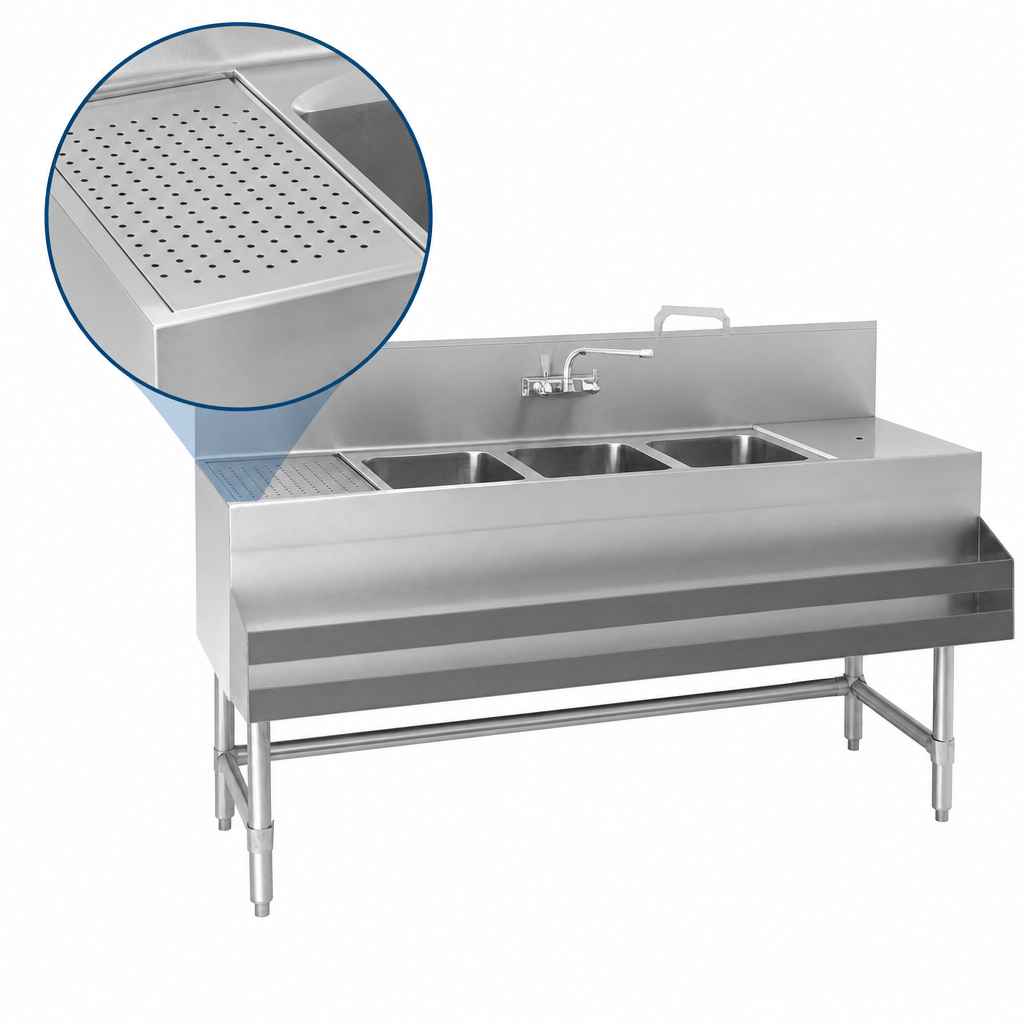

Left Drainboard

A 30-inch left-side drainboard with a removable perforated stainless steel insert gives you a convenient drainage and drying area.

Left Drainboard

Splash-Mounted Faucet Setup

Includes an 8-inch backsplash with splash-mount faucet holes on 4-inch centers and a swing spout faucet.

Stainless Steel Construction

Built with 20/304 stainless steel construction and 16/304 stainless steel legs, leg channels, and crossbracing for strength and corrosion resistance.

Drain and Overflow Hardware

1-1/2-inch drains and removable overflow standpipes are included for each compartment.

Adjustable Bullet Feet

Adjustable bullet feet help level the unit on uneven floors.

Type Underbar Sink Unit
Style Three-Compartment
Compartments 3
Bowl Size 10 Inches x 14 Inches Front-to-Back
Drainboard Location Left
Drainboard Length 30 Inches
Backsplash Height 8 Inches
Material 304 Stainless Steel
Spout Length 12 Inches
Connection Size 1/2 Inch NPT
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Assembly instructions PDF Download PDF Brochure PDF Download PDF Spec-bar® modular bar die PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This unit has three sink compartments.
Yes. It includes a 30-inch drainboard on the left side with a removable perforated stainless steel insert.
The sink includes 1-1/2-inch drains, removable overflow standpipes, and a splash-mounted faucet with a swing spout.
Yes. Hot and cold water connections are required, and the faucet uses a 1/2-inch NPT inlet.
Optional accessories listed for the series include a speed rail and a scrap basket.
