Spec-Bar 3-Compartment Underbar Sink Unit with Right Drainboard, 60 Inch W x 19 Inch D
Spec-Bar 3-Compartment Underbar Sink Unit with Right Drainboard, 60 Inch W x 19 Inch D
304 Stainless Steel, 8-Inch Backsplash, 37-Inch High
A durable three-compartment underbar sink built for busy beverage service, with a right-side drainboard, stainless steel construction, and a full backsplash to help contain messes.
- Three 10 x 14 inch compartments with 9-inch depth support washing, rinsing, and staging tasks.
- 24-inch right drainboard with removable perforated stainless steel insert adds convenient drying space.
- Heavy-gauge 304 stainless steel construction with reinforced legs and crossbracing for long-lasting durability.
- 8-inch backsplash and splash-mounted faucet layout help reduce backsplash and splatter.
- Includes drains, removable overflow standpipes, and adjustable bullet feet for easier setup and leveling.
Overall Dimensions:
60.0"W x 19.0"D x 37.0"HProduct Weight:

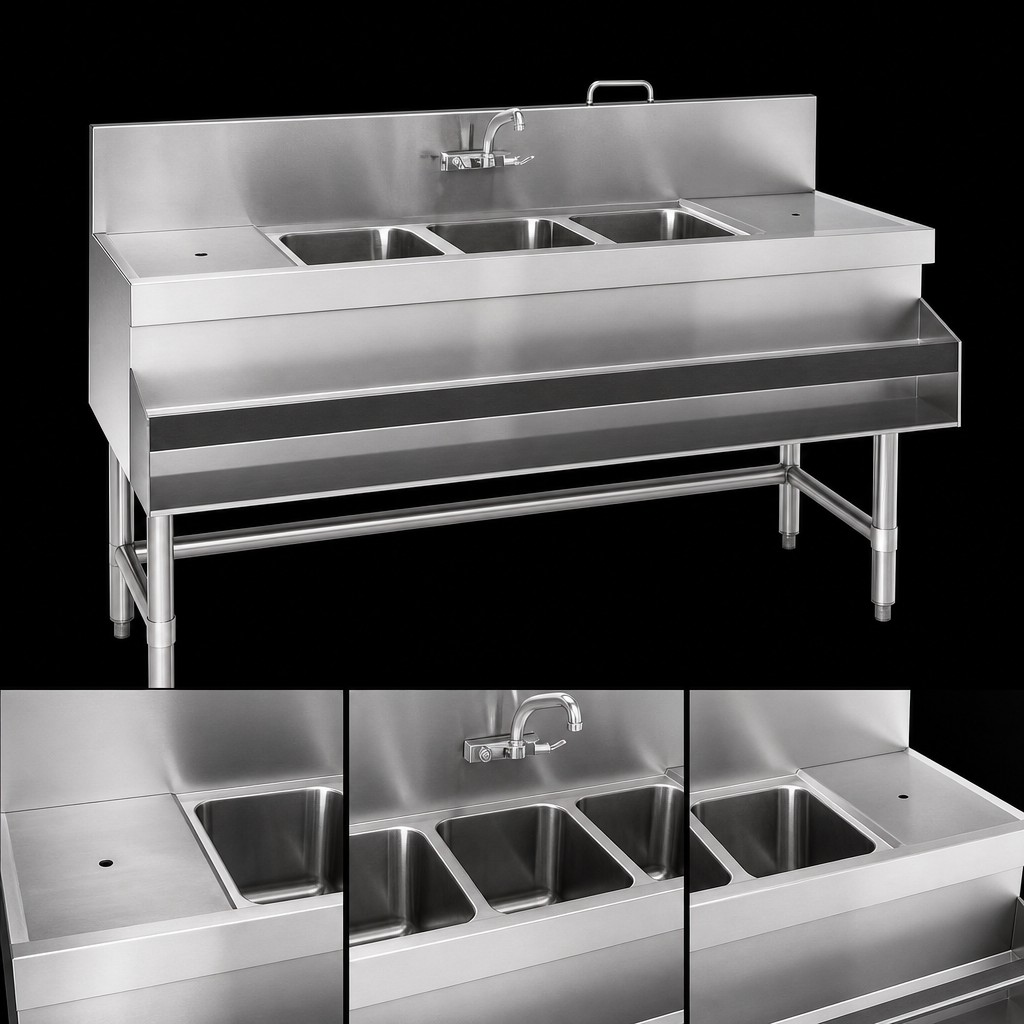

80.0 lbThree-Compartment Design
Three separate sink bowls streamline wash, rinse, and drain tasks in a bar or beverage service area.

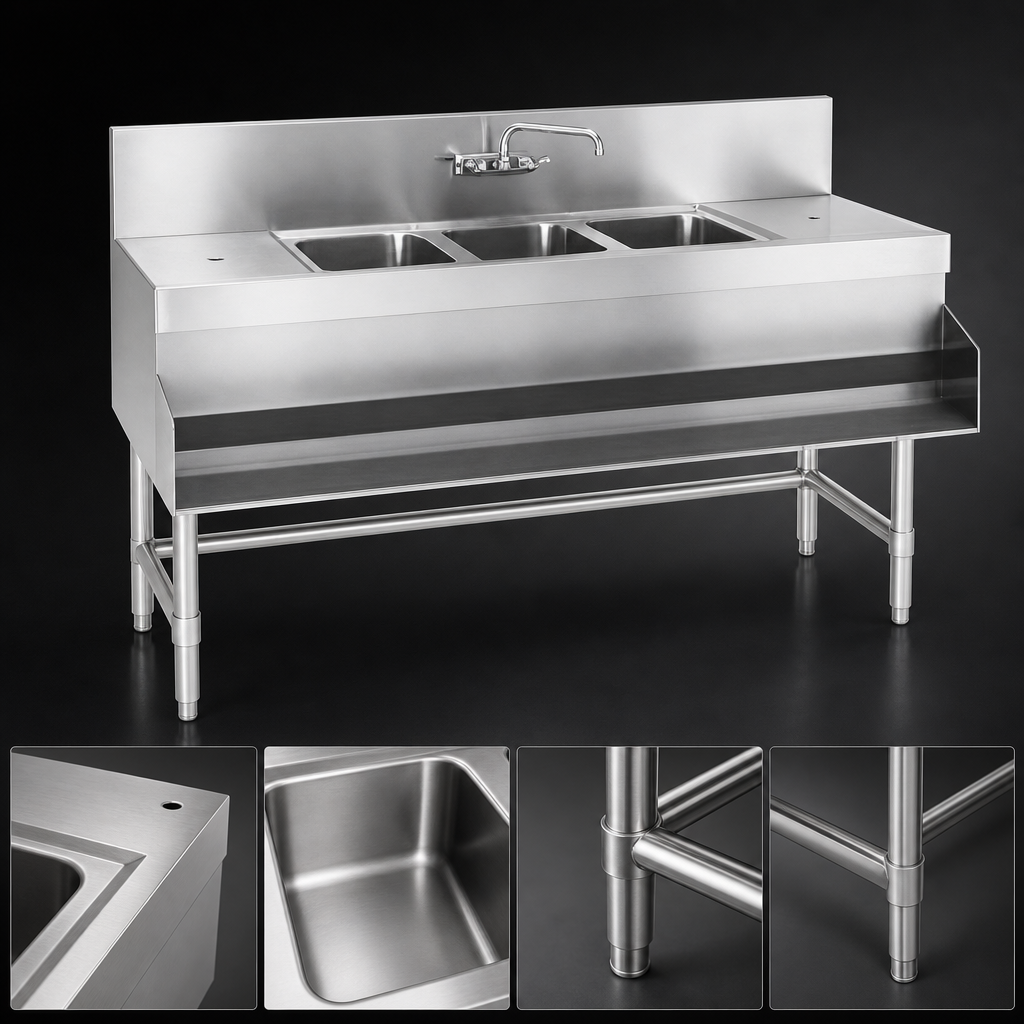

304 Stainless Steel Construction
Body, sink bowls, legs, leg channels, and cross rails are built from type 304 stainless steel for strength and corrosion resistance.
20-Gauge Sink Surfaces
Backsplash, sides, bottom, front panel, drain pans, perforated inserts, and bowls are made from 20-gauge stainless steel.
16-Gauge Support Frame
Leg channels, legs, and crossbracing use 16-gauge stainless steel to add rigidity and support.
Right-Side Drainboard
Integrated 24-inch drainboard on the right side includes a removable perforated stainless steel insert.
8-Inch Backsplash
Tall backsplash helps protect the wall and provides a clean mounting area for the faucet.
Splash-Mounted Faucet Setup
Includes splash mount faucet holes on 4-inch centers with a 1/2-inch NPT inlet; hot and cold water connections are required.
Included Drain Components
Each compartment includes a 1-1/2-inch drain and a removable overflow standpipe.
Adjustable Bullet Feet
Stainless steel bullet feet make it easier to level the unit on uneven floors.
Optional Accessories
Optional speed rail and scrap basket accessories are listed in the documentation.
Certifications & Compliance
Warranty & Protection
1-year limited warranty from original installation, not to exceed 18 months from shipment.
