Eagle Group

Spec-Bar Three-Compartment Underbar Sink Unit with Dual Drainboards, 60 x 19 x 37 Inches

SKU: B5-3-LR-19
$2,779.36
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Eagle Group Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

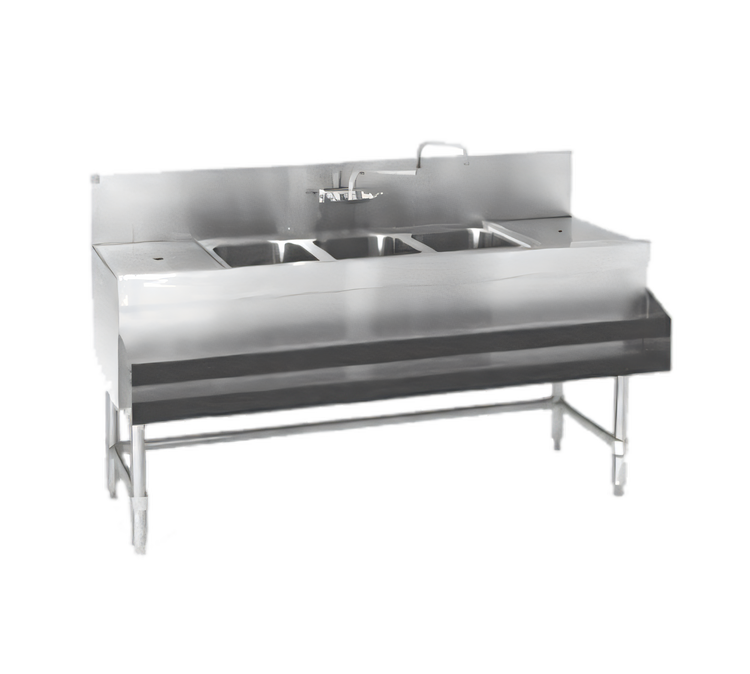

Spec-Bar Three-Compartment Underbar Sink Unit with Dual Drainboards, 60 x 19 x 37 Inches

304 Stainless Steel, 8-Inch Backsplash, Freestanding

A rugged three-compartment bar sink with dual drainboards, stainless steel construction, and a compact 60-inch footprint built for high-volume underbar service.

  • Three 10" x 14" x 9" deep sink compartments support wash, rinse, and sanitize tasks.
  • Left and right 12" drainboards add drying and prep space with removable perforated stainless inserts.
  • Heavy-duty 304 stainless steel body, bowls, legs, and crossbracing resist corrosion in wet environments.
  • 8" backsplash with splash-mount faucet holes helps contain splashes behind the sink.
  • 1-1/2" drains, removable overflow standpipes, and adjustable bullet feet improve drainage and leveling.
  • Optional speed rail and scrap basket are available as add-ons.

Overall Dimensions:

60.0"W x 19.0"D x 37.0"H

Product Weight:

201.0 lb

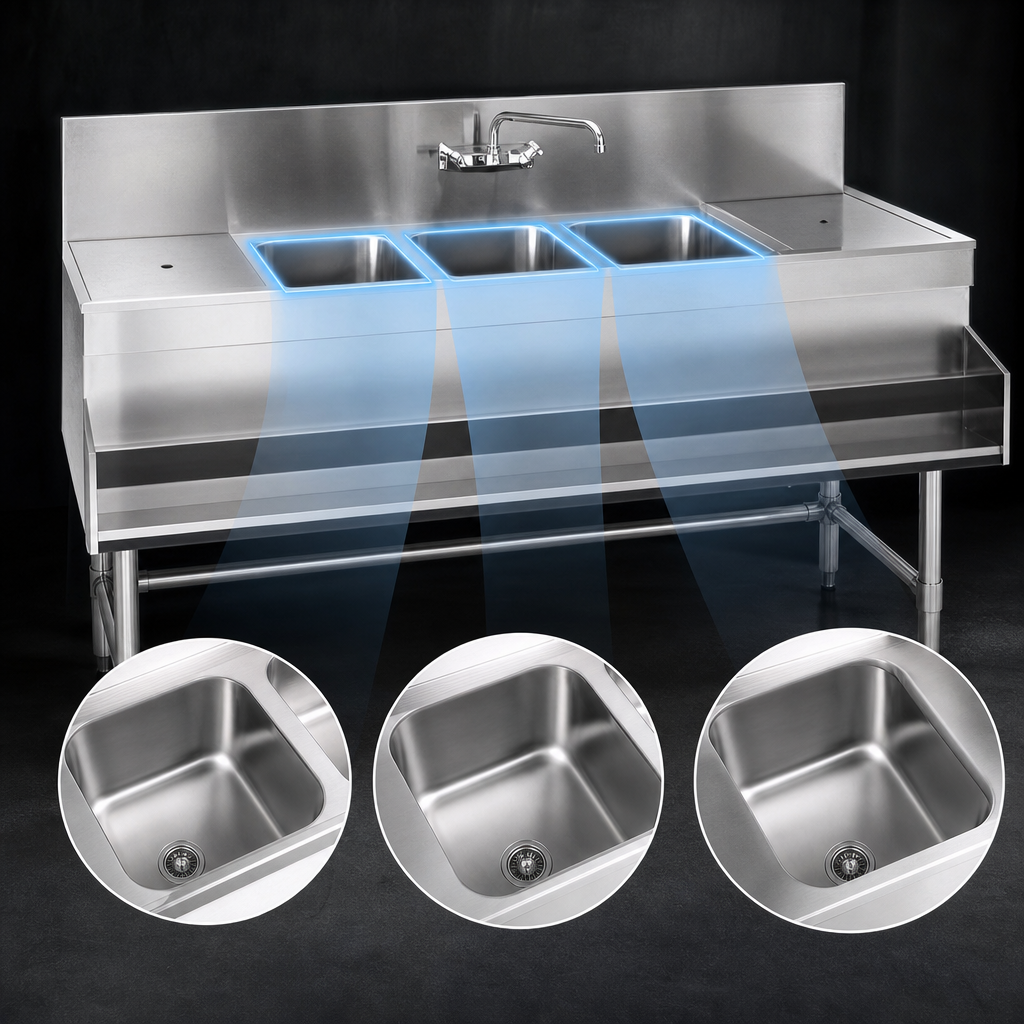

Three Deep Compartments

Three 10" x 14" x 9" stainless steel bowls provide separate stations for washing and rinsing.

Three Deep Compartments

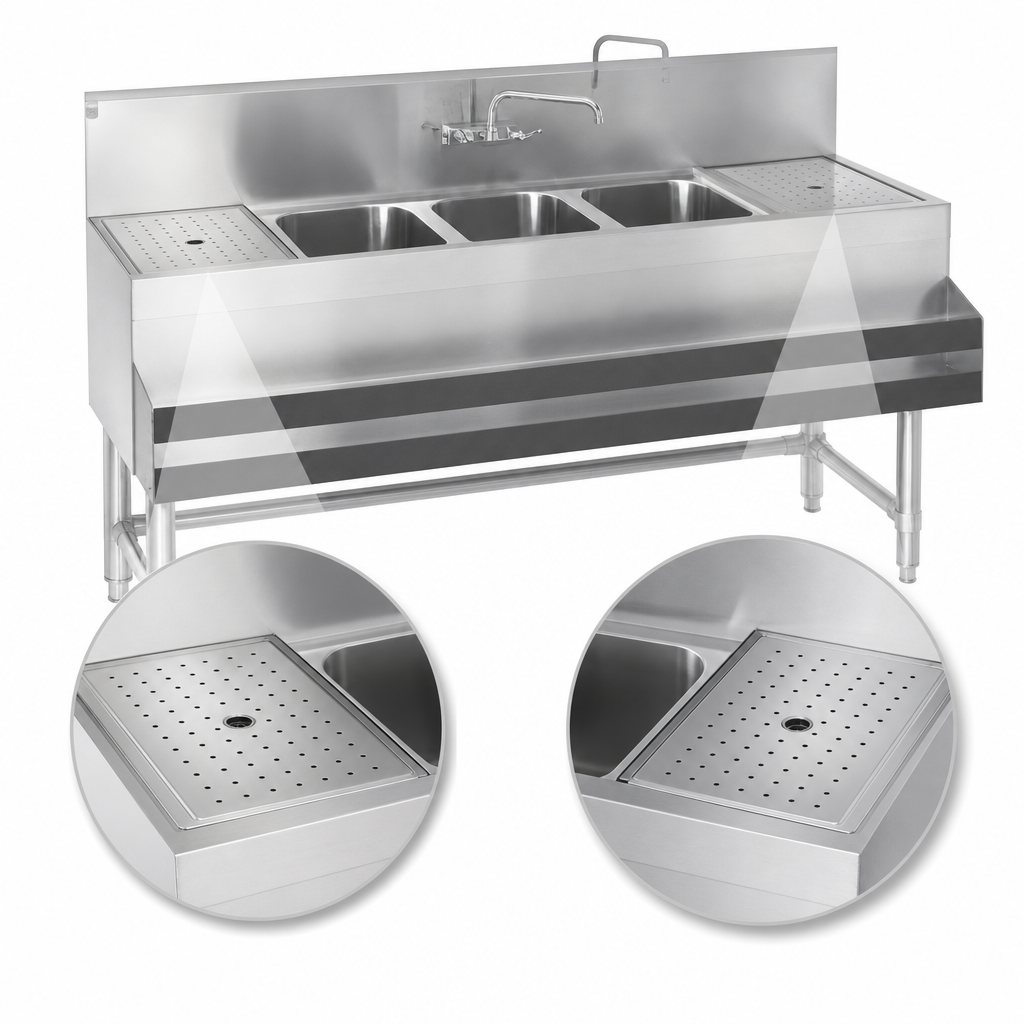

Dual Drainboards

12" drainboards on the left and right sides include removable perforated stainless steel inserts and independent drains.

Dual Drainboards

304 Stainless Steel Construction

Heavy-gauge type 304 stainless steel construction on the bowls, body, legs, and crossbracing for strength and corrosion resistance.

8-Inch Backsplash

An 8" backsplash helps protect the wall behind the sink and supports backsplash-mounted faucet installation.

Faucet And Plumbing Setup

Includes splash-mounted faucet holes on 4" centers, a swing-spout faucet, 1/2" NPT water inlet, and 1-1/2" IPS drain connections.

Removable Overflow Standpipes

Overflow standpipes are removable for easier cleaning and maintenance.

Adjustable Bullet Feet

Adjustable stainless steel bullet feet make it easier to level the sink on uneven floors.

Type Underbar Sink Unit
Style Three Compartment
Installation Type Freestanding
Compartments 3
Material 304 Stainless Steel
Water Inlet Size 1/2 Inch NPT
Water Connection Required
Drain Connection Size 1-1/2 Inches IPS
Drain Connection Required
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 201 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Spec-bar® modular bar die PDF Download PDF Brochure PDF Download PDF Assembly instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three 10" x 14" x 9" deep compartments with drains and overflow standpipes.
Yes, it has 12" drainboards on both the left and right sides with removable perforated stainless steel inserts.
The unit uses heavy-gauge type 304 stainless steel for the body, bowls, legs, and crossbracing.
Yes, it features backsplash-mounted faucet holes on 4" centers and includes a swing-spout faucet; hot and cold water connections are required.
Optional accessories listed for this series include a speed rail and a scrap basket.
The general limited warranty covers the unit for 1 year from installation, not to exceed 18 months from shipment.
