Eagle Group 1800 Series 48" 3-Compartment Underbar Sink Unit with Left Drainboard, 304 Stainless Steel

20" Deep, 33-1/2" High, 4-1/2" Backsplash

Built for busy beverage stations, this compact underbar sink combines three deep compartments, a left drainboard, and durable stainless steel construction in a 48-inch footprint.

  • Compact 48-inch underbar design fits back-bar and beverage service areas.
  • Three deep-drawn compartments support washing, rinsing, and staging tasks.
  • Left-side 12-inch drainboard adds convenient drying and landing space.
  • 304 stainless steel construction with galvanized support components for everyday durability.
  • Includes 1-1/2-inch drains, removable overflow standpipes, and a 4-inch on-center splash-mount faucet with 10-inch spout.
  • 4-1/2-inch backsplash and bullnose front edge help contain splashes and improve comfort.

Overall Dimensions:

48.0"W x 20.0"D x 33.5"H

Product Weight:

74.0 lb

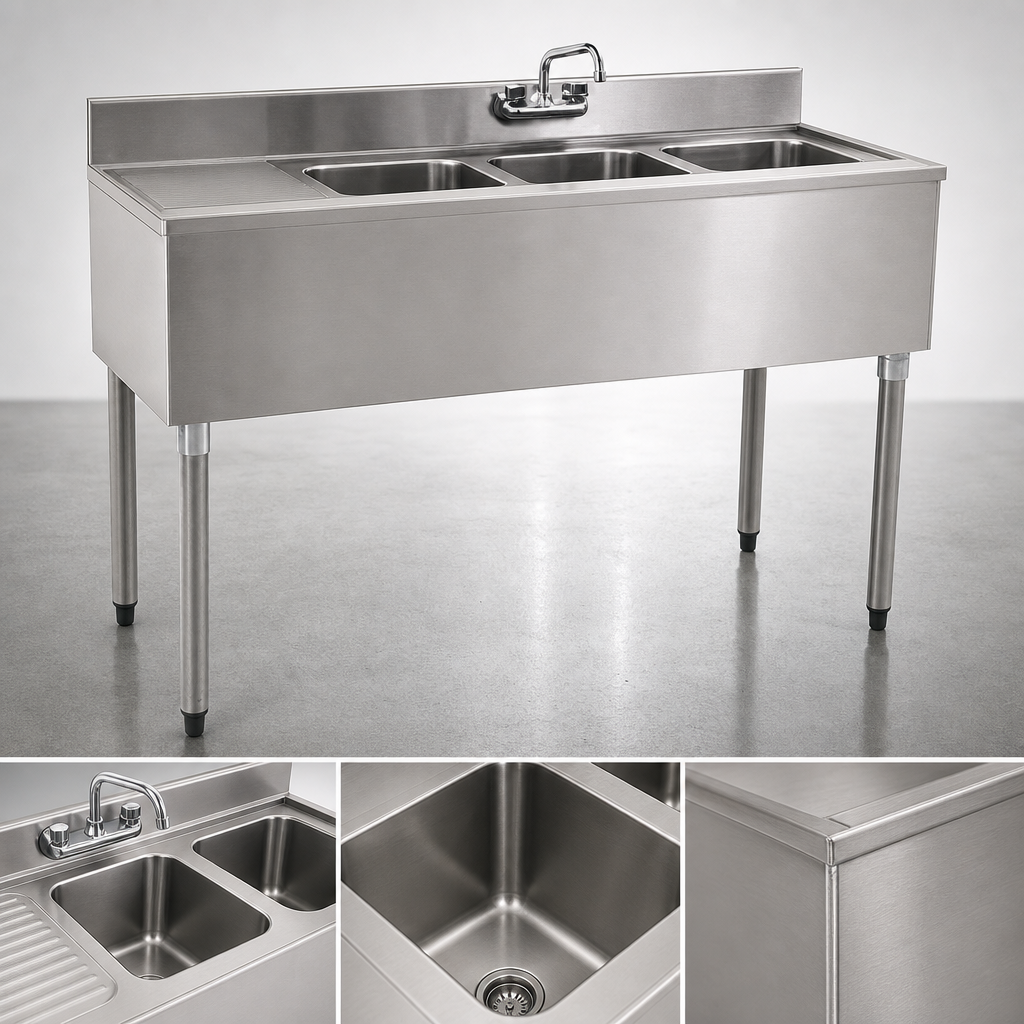

Three Seamless Compartments

Each bowl measures 10 inches wide by 14 inches front-to-back by 10 inches deep for beverage and bar sink tasks.

Three Seamless Compartments

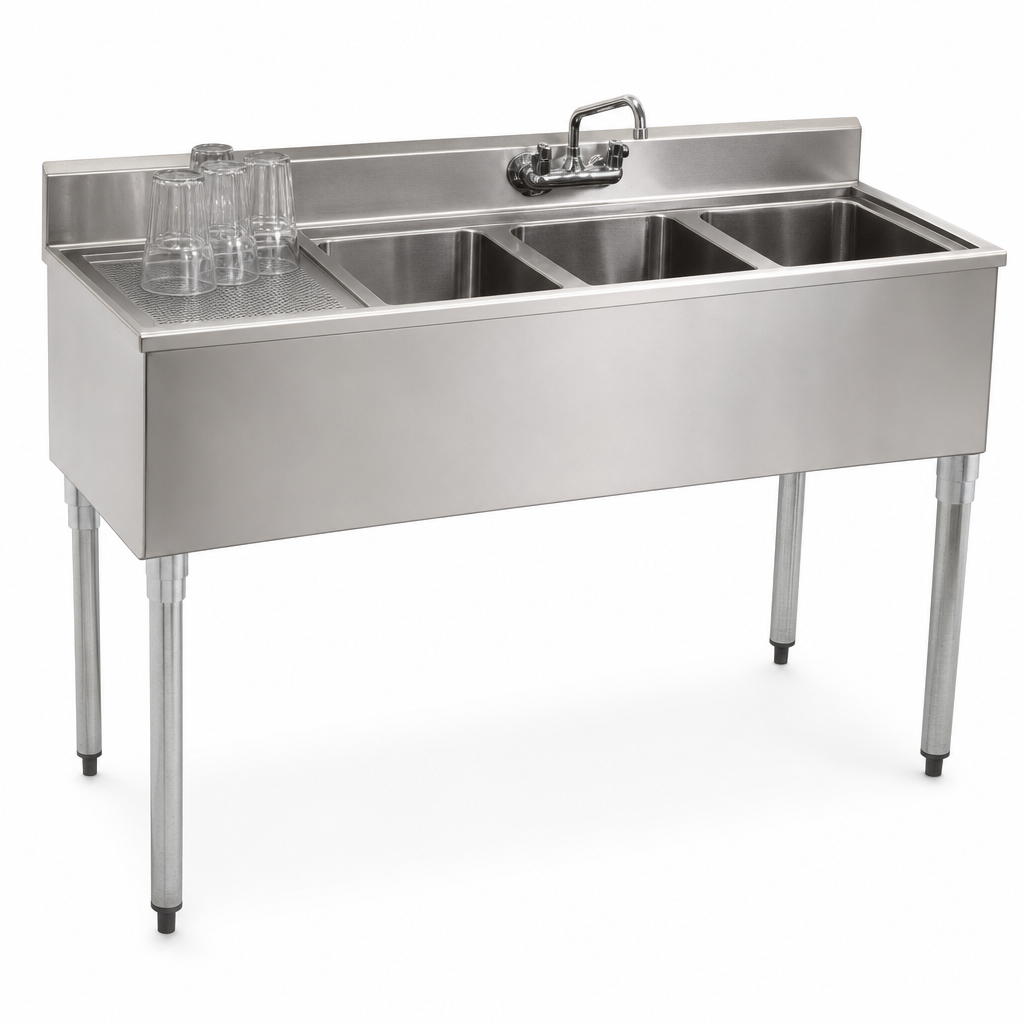

Left Drainboard

A 12-inch drainboard on the left provides extra space for drying, staging, or bus tray handling.

Left Drainboard

304 Stainless Steel Construction

Durable stainless steel work surfaces are designed for long-term use in demanding underbar environments.

Splash-Control Design

The 4-1/2-inch backsplash helps reduce backsplash, while the bullnose front edge improves user comfort.

Included Plumbing Components

Includes 1-1/2-inch drains and removable overflow standpipes, with a 4-inch on-center splash-mount faucet and 10-inch spout specified in the design.

Galvanized Support Structure

Galvanized back and end panels, plus galvanized legs with adjustable bullet feet, provide stable support and leveling.

Type Underbar Sink Unit
Style 3 Compartment
Installation Type Freestanding
Compartments 3
Material 304 Stainless Steel
Shipping Width 48 Inches
Shipping Depth 20 Inches
Shipping Height 34 Inches
Shipping Weight 74 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Modular bar dies PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three compartments.
Each compartment measures 10 inches wide by 14 inches front-to-back by 10 inches deep.
Yes. It has a 12-inch drainboard on the left side.
The unit includes 1-1/2-inch drains and removable overflow standpipes, and it is specified with a 4-inch on-center splash-mount faucet with a 10-inch spout.
The unit features 304 stainless steel construction with galvanized back and end panels and galvanized legs.
Eagle’s general limited warranty covers defects for 1 year from original installation, not to exceed 18 months from shipment.
