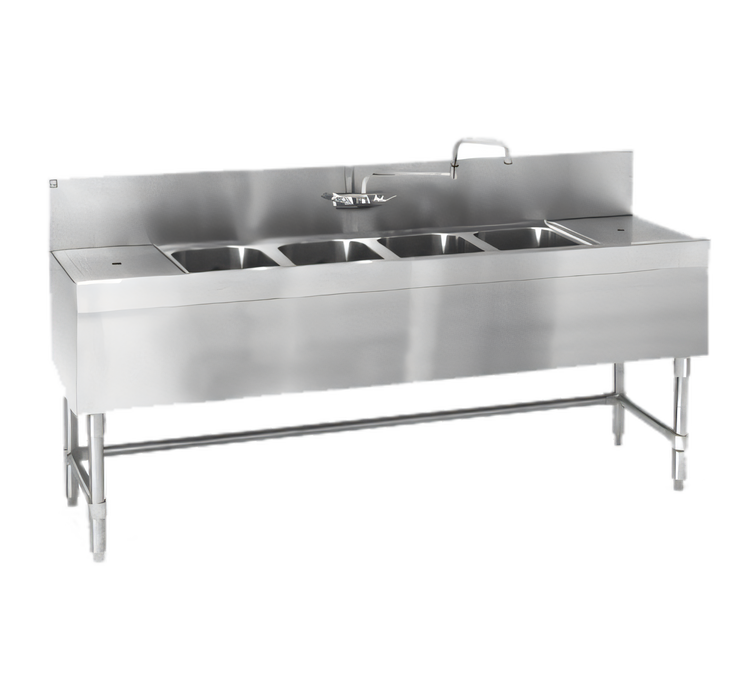

Eagle Group Spec-Bar Four-Compartment Underbar Sink Unit, 48-Inch x 24-Inch, 304 Stainless Steel
Eagle Group Spec-Bar Four-Compartment Underbar Sink Unit, 48-Inch x 24-Inch, 304 Stainless Steel
8-Inch Backsplash, Splash-Mounted T&S Faucet, No Drainboards
A space-saving four-compartment sink that pairs stainless steel durability with an included faucet and integrated drainage for busy bar service.
- Four-compartment underbar sink designed for beverage and bar service.
- 48-inch-wide by 24-inch-deep footprint fits compact underbar layouts.
- 304 stainless steel construction supports daily commercial use and corrosion resistance.
- Includes an 8-inch backsplash, splash-mounted double-hinged T&S faucet, drains, and overflow standpipes.
- No drainboards for a streamlined, space-saving design.
- Adjustable stainless steel bullet feet help simplify leveling on uneven floors.
Overall Dimensions:
48.0"W x 24.0"D x 37.0"HProduct Weight:

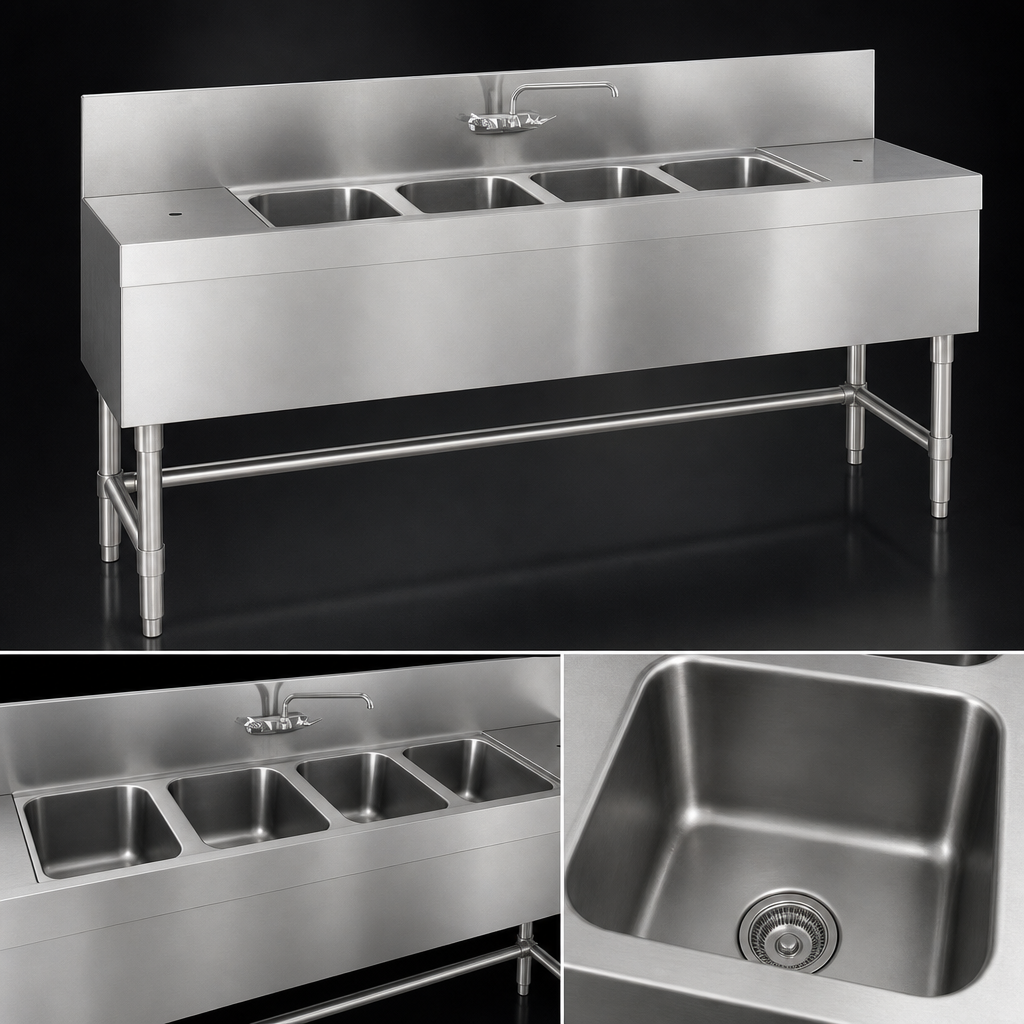

169.0 lbFour Sink Compartments
Four bowls measure 10 in. x 14 in. front-to-back x 9-1/2 in. deep for multi-station sink use.

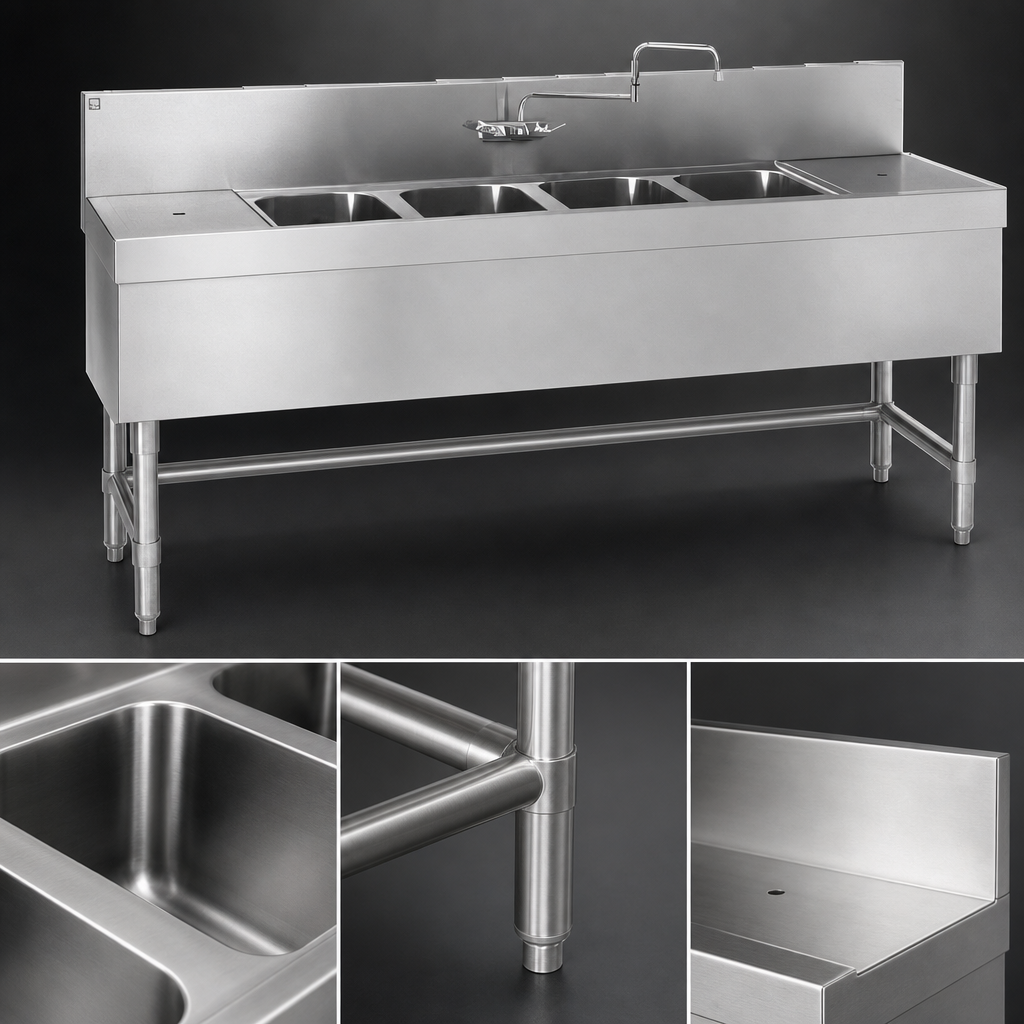

304 Stainless Steel Construction
Body, bowls, legs, and cross rails are made from type 304 stainless steel for durability and corrosion resistance.
Heavy-Gauge Build
The sink uses 20-gauge stainless steel for the top and bowls, with 16-gauge legs and crossbracing.
8-Inch Backsplash
An 8-inch backsplash helps protect adjacent walls from splashes and spills.
Splash-Mounted T&S Faucet
Includes a double-hinged T&S faucet mounted on 4-inch centers with a 1/2-inch NPT inlet.
Integrated Drainage
Each compartment includes a 1-1/2-inch IPS threaded drain and removable overflow standpipe.
Stainless Steel Apron
A stainless steel apron on the front and sides gives the unit a finished look and added protection.
Adjustable Bullet Feet
Stainless steel adjustable bullet feet make it easier to level the unit during installation.
No Drainboards
This model is the no-drainboard version, keeping the footprint simple and compact for underbar use.
Hot and Cold Water Connections Required
The included faucet requires hot and cold water connections.
Certifications & Compliance
Warranty & Protection
1 year from original installation, not to exceed 18 months from shipment.
