Eagle Spec-Bar B4-3-L-19 Three-Compartment Underbar Sink — 48 Inches W x 19 Inches D x 37 Inches H (Left Drainboard)
Eagle Spec-Bar B4-3-L-19 Three-Compartment Underbar Sink — 48 Inches W x 19 Inches D x 37 Inches H (Left Drainboard)
Three 10 x 14 x 9 Inches Bowls • 12 Inches Left Drainboard • NSF Certified
Commercial-grade 304 stainless three-compartment underbar sink with an integrated left drainboard, independent drains and adjustable bullet feet for durable, efficient barware cleaning.
- Durable 304 stainless steel construction — 20 gauge tops and bowls with 16 gauge legs and crossbracing.
- Three 10 x 14 x 9 Inches deep drawn bowls with 1-1/2 Inch I.P.S. drains and removable overflow standpipes.
- 12 Inches left drainboard with removable perforated stainless steel insert and independent drain.
- 8 Inches backsplash with splash-mounted faucet holes on 4 Inches centers; 1/2 Inch NPT faucet inlet (hot and cold connections required).
- Adjustable stainless steel bullet feet, side and rear crossbracing; NSF certified for commercial use.
Overall Dimensions:
48.0"W x 19.0"D x 37.0"HProduct Weight:

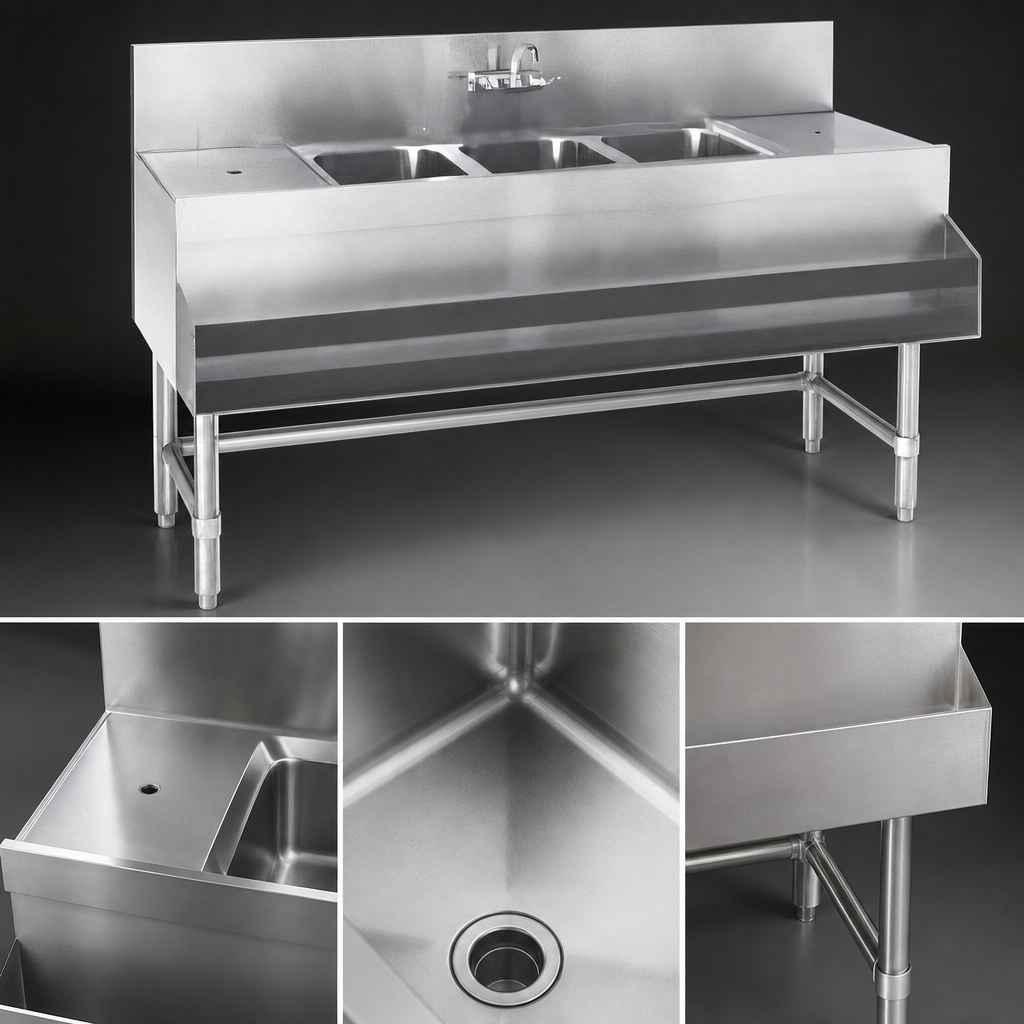

175.0 lbConstruction
Body, bowls, sides, bottom, front panel and drain pans are 20 gauge type 304 stainless steel; leg channels, legs and crossbracing are 16 gauge type 304 stainless steel for strength and corrosion resistance.

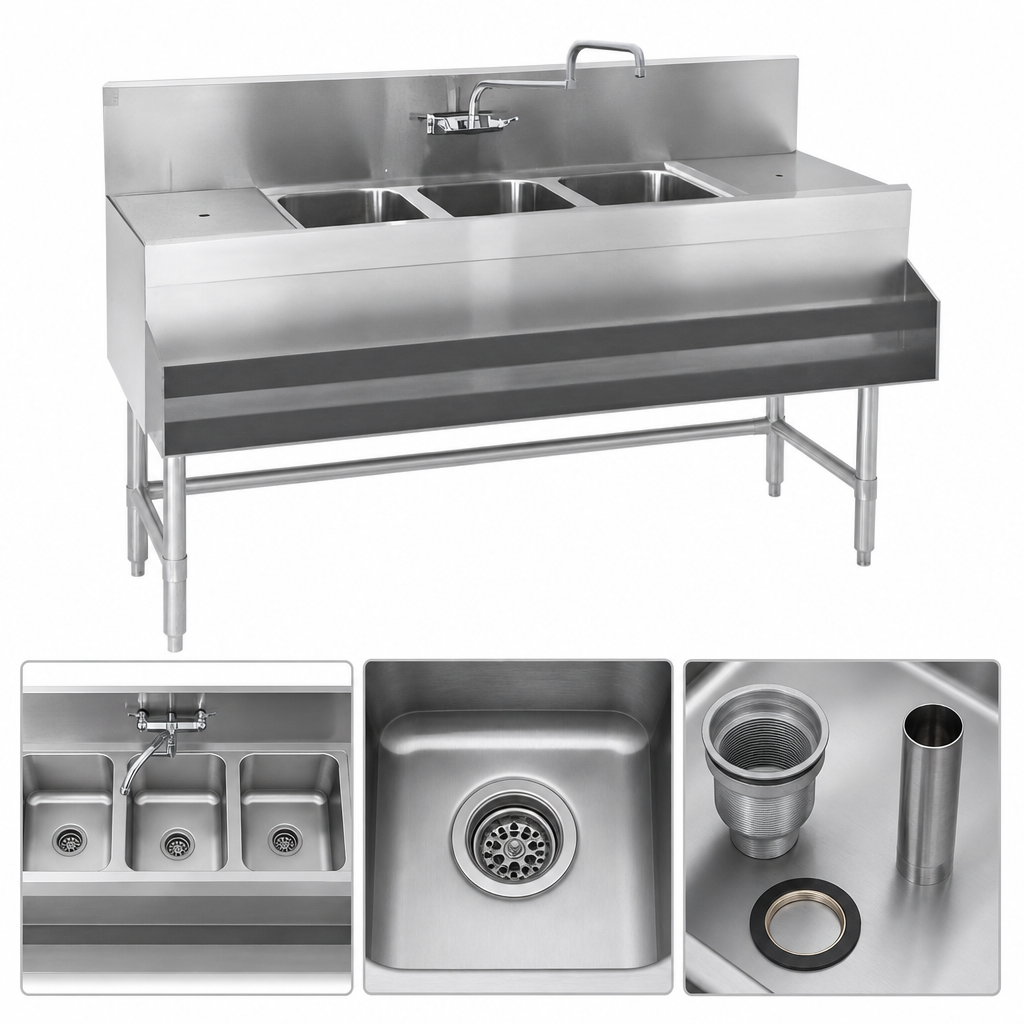

Bowls and Drains
Three drawn stainless steel bowls, each 10 x 14 x 9 Inches (W x front-to-back x depth) with 1-1/2 Inch I.P.S. threaded drains (nut and washer) and removable overflow standpipes.
Drainboard
12 Inches left drainboard with removable perforated stainless steel insert and independent drain pan for rapid drainage and prep space.
Faucet & Plumbing
One set of splash-mount faucet holes on 4 Inches centers; faucet inlet is 1/2 Inch NPT. Hot and cold water connections required. Manufacturer supplies T&S backsplash-mounted faucet provisions.
Stability & Support
1-5/8 Inch diameter 304 stainless legs with stainless steel bullet feet plus side and rear crossbracing for rigidity and leveling.
Certifications
NSF certified for commercial foodservice use.
Optional Accessories
Speed rail and scrap basket available as optional accessories; perforated drainboard insert included standard.
Certifications & Compliance
Warranty & Protection
One year limited warranty from date of original installation (not to exceed 18 months from date of shipment).
