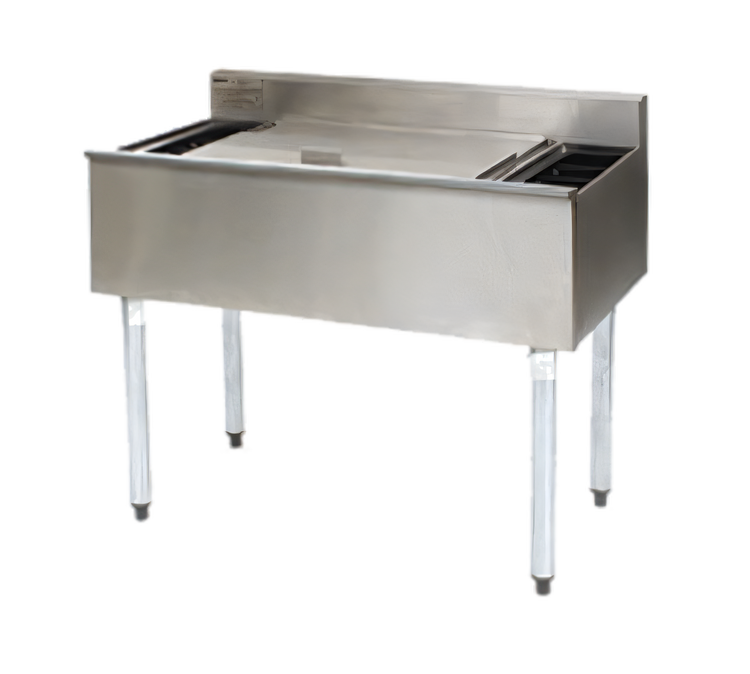

Eagle Group 1800 Series Underbar Cocktail Unit with 16-Inch Insulated Ice Bin and 7-Circuit Cold Plate

36" W x 20" D, 75 lb Capacity, 304 Stainless Steel, Stainless Sliding Cover

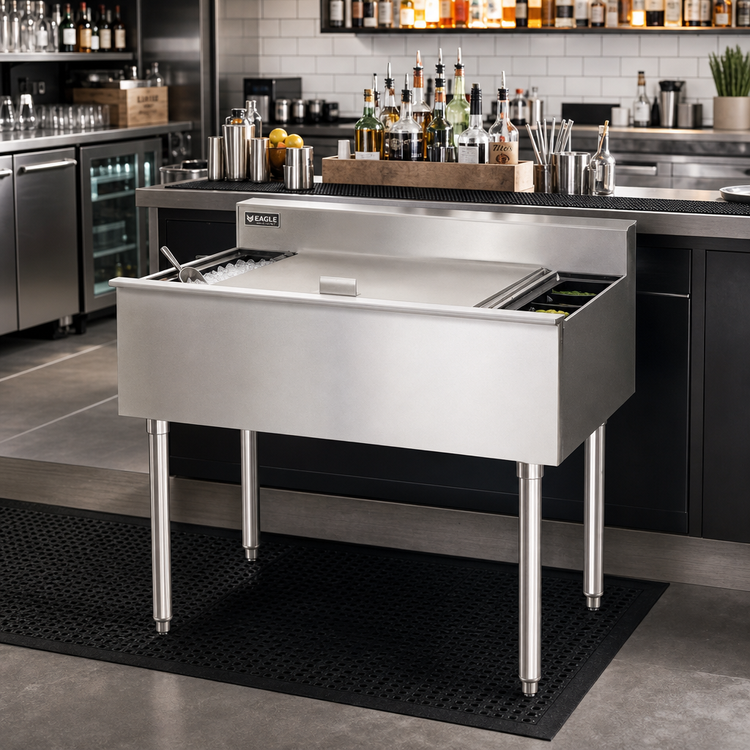

Built for busy bars, this underbar cocktail unit combines insulated ice storage, bottle wells, and a built-in 7-circuit cold plate in a compact stainless steel design.

  • Combines ice storage and beverage staging in one underbar cocktail station.
  • 16-inch deep insulated ice bin holds up to 75 lb of ice.
  • Built-in 7-circuit cold plate supports chilled beverage service.
  • 304 stainless steel top, backsplash, and bin help withstand wet-bar conditions.
  • Eight bottle wells keep frequently used bottles within easy reach.
  • Includes a stainless steel sliding cover to help protect stored ice.

Overall Dimensions:

36.0"W x 20.0"D x 33.5"H

Product Weight:

182.0 lb

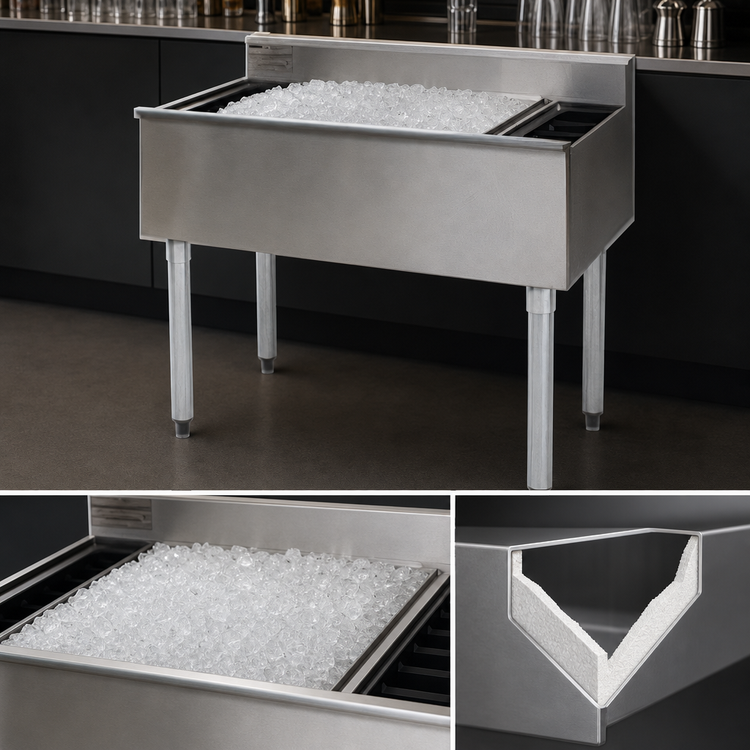

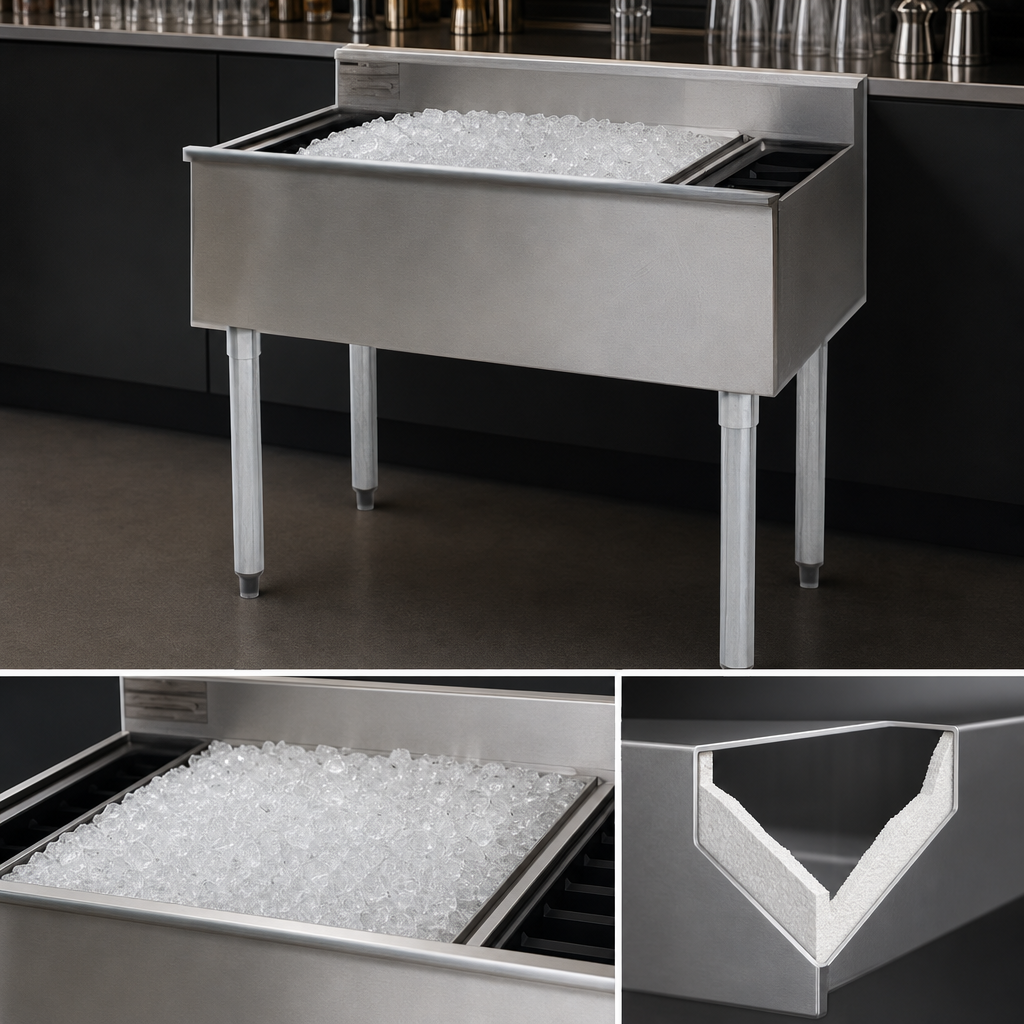

Insulated Ice Bin

The 16-inch deep insulated bin is designed to hold up to 75 lb of ice.

Insulated Ice Bin

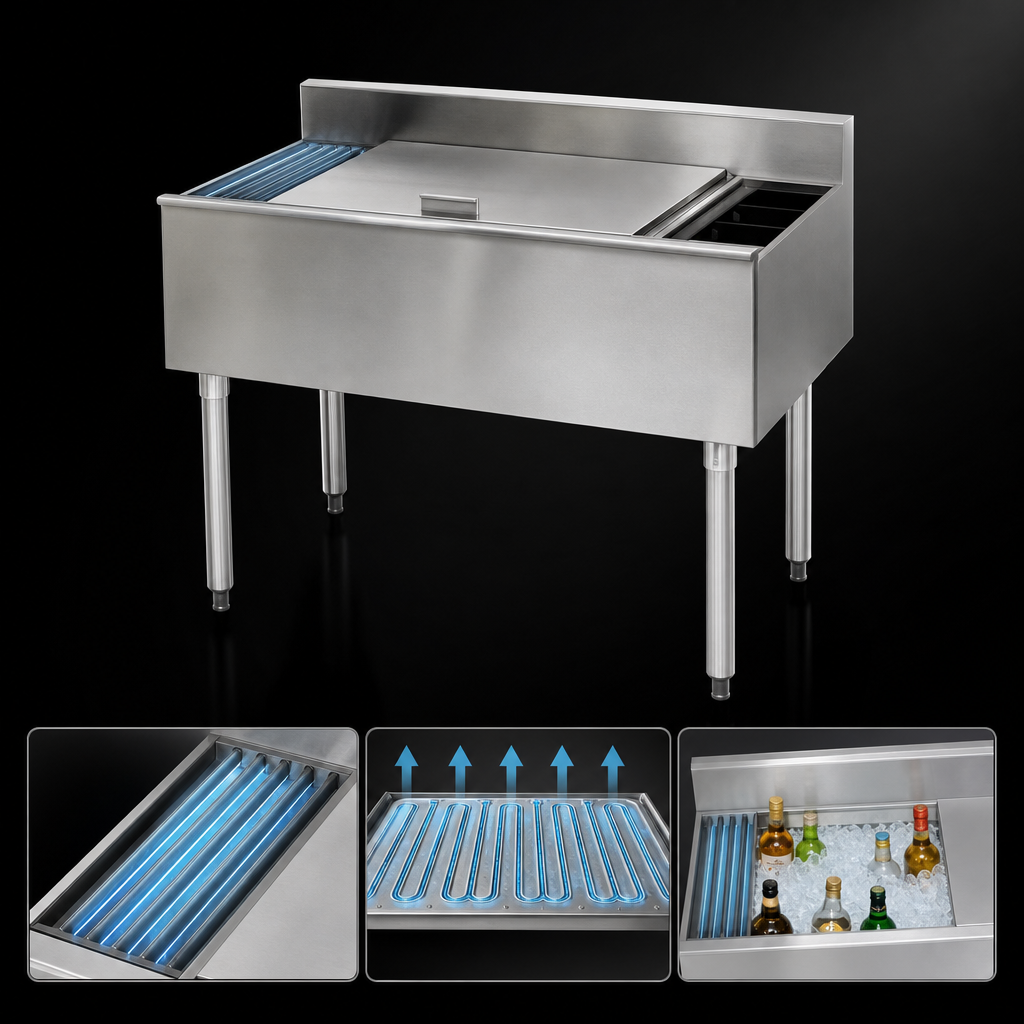

7-Circuit Cold Plate

Built-in cold plate helps keep beverages cold during service.

7-Circuit Cold Plate

Eight Bottle Wells

Bottle wells located outside the bin provide quick access to bar ingredients.

304 Stainless Steel Construction

Top, backsplash, and bin are made from 304 stainless steel for durability in wet environments.

Reinforced Mixed-Material Build

Front and ends are 22/304 stainless steel, with galvanized back and bottom panels for added support.

Backsplash and Bullnose Front Edge

The backsplash helps contain splashes, while the bullnose front edge improves user comfort.

Sliding Cover and Adjustable Legs

Includes a stainless steel sliding cover and 1-5/8" O.D. galvanized tubular legs with adjustable plastic bullet feet.

Type Underbar Cocktail Unit
Style Insulated Ice Bin
Installation Type Freestanding
Capacity 75 Pounds
Material 304 Stainless Steel
Splash 4 Inches
Cold Plate 7-Circuit
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 20 Inches
Shipping Height 34 Inches
Shipping Weight 182 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Modular bar dies PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The insulated ice bin has a 75 lb ice capacity.
Yes, it includes a 7-circuit cold plate.
The top, backsplash, and bin are 304 stainless steel; the front and ends are 22/304 stainless steel; and the back and bottom panels are galvanized.
Yes, a stainless steel sliding cover is included.
Eagle's general limited warranty covers the product for 1 year from original installation, not to exceed 18 months from shipment, subject to the warranty terms and exclusions.
