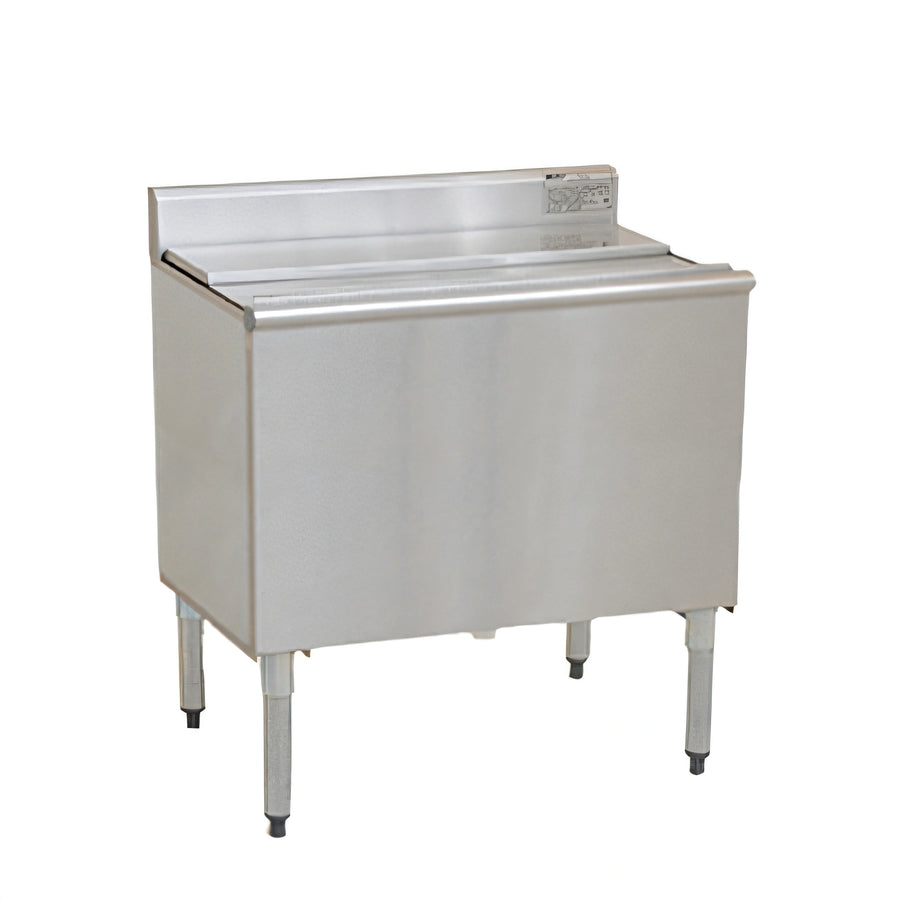

Eagle 1800 Series 36 Inch Underbar Ice Chest — 8 Inch Insulated Bin with Sealed-In 7-Circuit Cold Plate
Eagle 1800 Series 36 Inch Underbar Ice Chest — 8 Inch Insulated Bin with Sealed-In 7-Circuit Cold Plate
36 Inches W x 20 Inches D; Type 304 Stainless Steel Top/Front/Backsplash; Galvanized Ends & Back Panel
Durable 36-inch underbar ice chest with a fully insulated 8-inch stainless steel bin and a sealed-in 7-circuit cold plate for efficient post-mix cooling and easy cleaning.
- 36 Inches W x 20 Inches D underbar ice chest with 8 Inches deep insulated stainless steel bin — 59 Pounds ice capacity.
- Sealed-in 7-circuit post-mix cold plate mounted flush to the bin bottom for efficient cooling; 1/4 Inch tube connections provided.
- Heavy-gauge Type 304 stainless steel top, front, backsplash, ice bin and sliding cover; galvanized ends and back panel for durable service.
- 1-1/2 Inch centered drain (1-1/2 Inch NPT) and 1-5/8 Inch O.D. galvanized tubular legs with adjustable corrosion-resistant bullet feet.
- NSF certified; units with cold plates packaged and shipped wood-crated.
Overall Dimensions:
36.0"W x 20.0"D x 33.5"HProduct Weight:

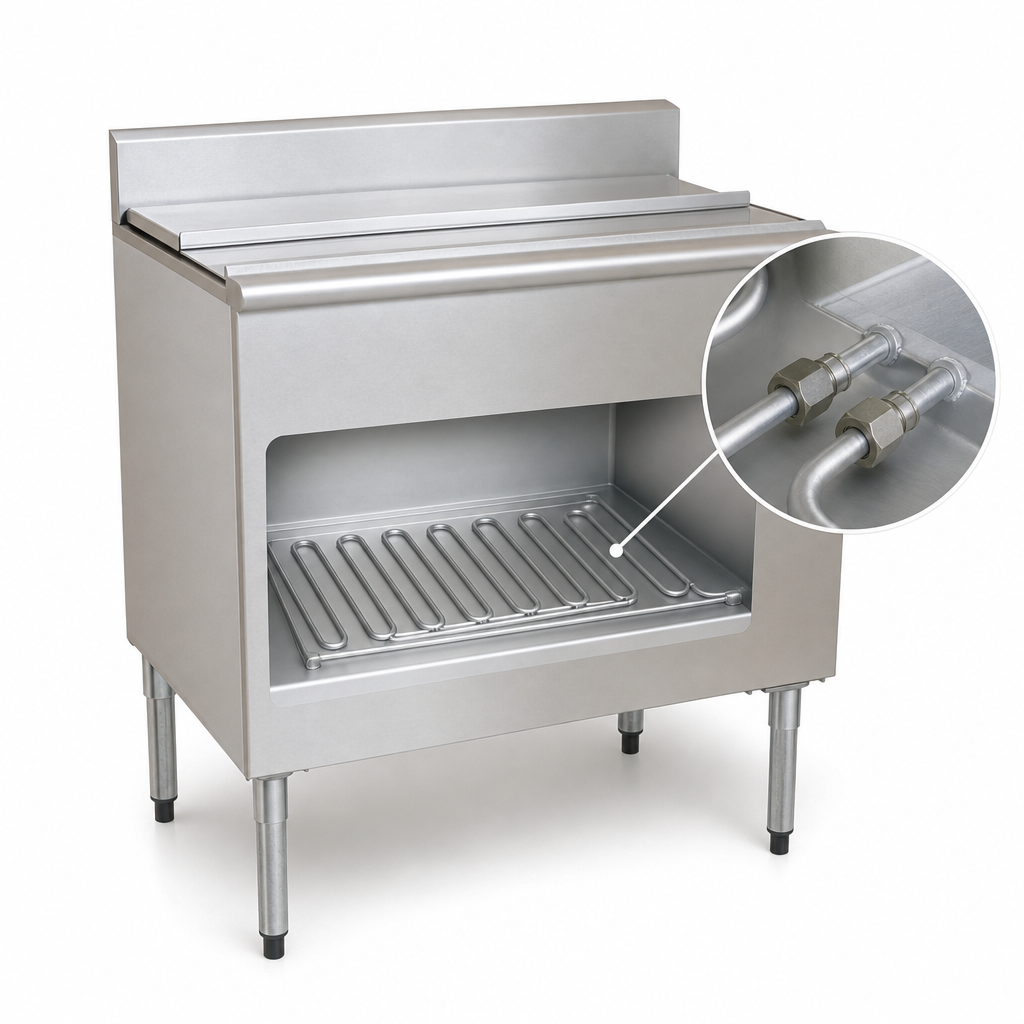

176.0 lbSealed-In Cold Plate
Aluminum casting sealed-in 7-circuit post-mix cold plate with seven stainless-steel beverage-grade tubing circuits; mounted flush with the interior bin bottom for maximum efficiency and easy cleaning. 1/4 Inch tube connections provided.

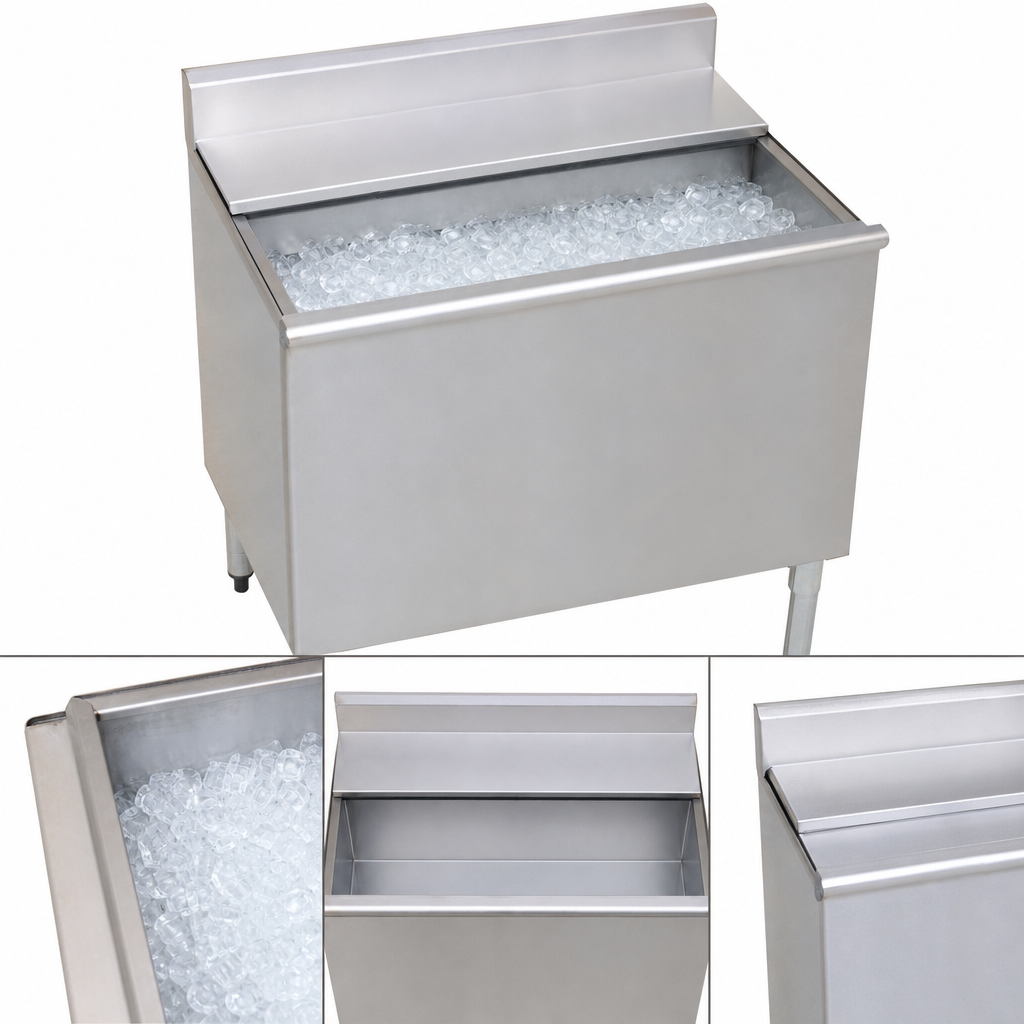

Ice Bin
Fabricated, fully insulated 8 Inch deep ice bin rated for approximately 59 Pounds of ice capacity.
Construction
Top, front, backsplash and ice bin are heavy-gauge Type 304 stainless steel; ends and back panel are galvanized for strength and value.
Sliding Cover
304 stainless steel sliding ice cover for secure, hygienic storage and easy access.
Drain
1-1/2 Inch centered drain (1-1/2 Inch NPT) located front and back of the ice bin for positive drainage.
Legs & Feet
1-5/8 Inch O.D. galvanized tubular legs with high-impact, corrosion-resistant, fully adjustable bullet feet.
Bullnose Front
Bullnose front edge provides a finished appearance and comfortable service edge.
Packaging & Certification
NSF certified; ice chests with cold plates are packaged and shipped wood-crated to protect the sealed-in cold plate.
Options
Optional stainless steel leg kits and speed rails available (see accessories).
Certifications & Compliance
Warranty & Protection
Limited 1-year warranty against defects in materials and workmanship from date of original installation (not to exceed 18 months from shipment).
