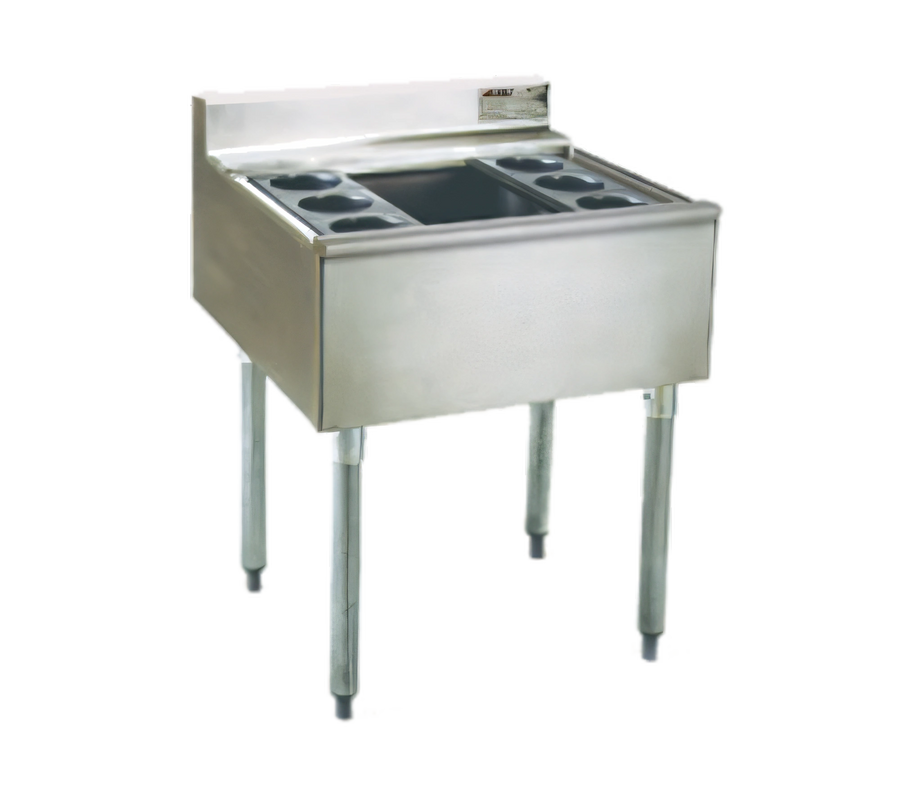

Eagle Group 1800 Series Underbar Cocktail Unit with 16-Inch Deep Insulated Ice Bin, 24 x 20 Inches
Eagle Group 1800 Series Underbar Cocktail Unit with 16-Inch Deep Insulated Ice Bin, 24 x 20 Inches
No Cold Plate, 6 Bottle Wells, 304 Stainless Steel Top and Bin
This durable underbar cocktail station combines a deep insulated ice bin, built-in bottle wells, and stainless steel construction to keep bar service moving efficiently.
- Standard no-cold-plate configuration for simpler underbar installation.
- 16-inch deep insulated ice bin with 125-lb. capacity for high-volume bar service.
- Six bottle wells inside the bin keep mixers and bottles organized and within reach.
- 304 stainless steel top, backsplash, and bin with a 22-gauge stainless front for long-lasting durability.
- Galvanized back, bottom, and end panels add structural support.
- Bullnose front edge and adjustable bullet feet help improve safety and leveling.
Overall Dimensions:
24.0"W x 20.0"D x 33.5"HProduct Weight:

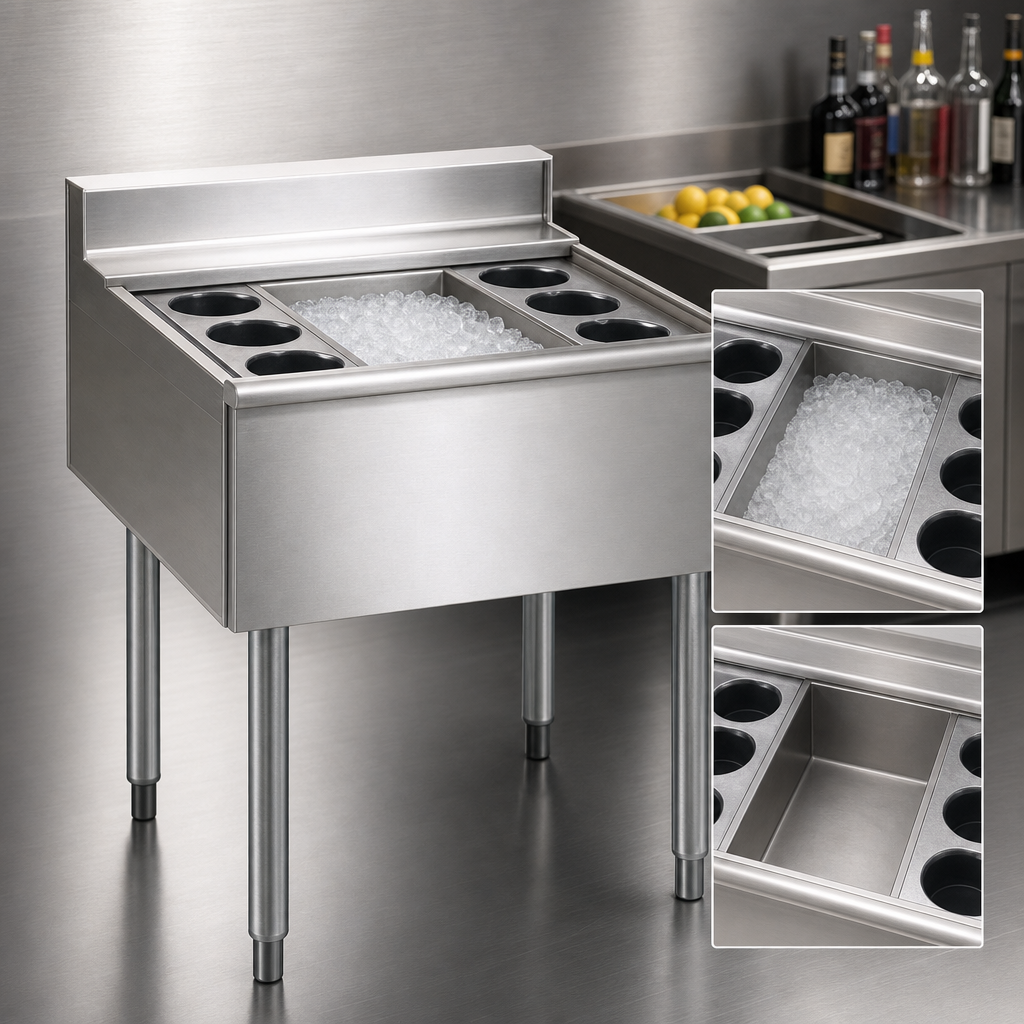

107.0 lbNo Cold Plate Configuration
This model is the standard version without the sealed-in 7-circuit post-mix cold plate.

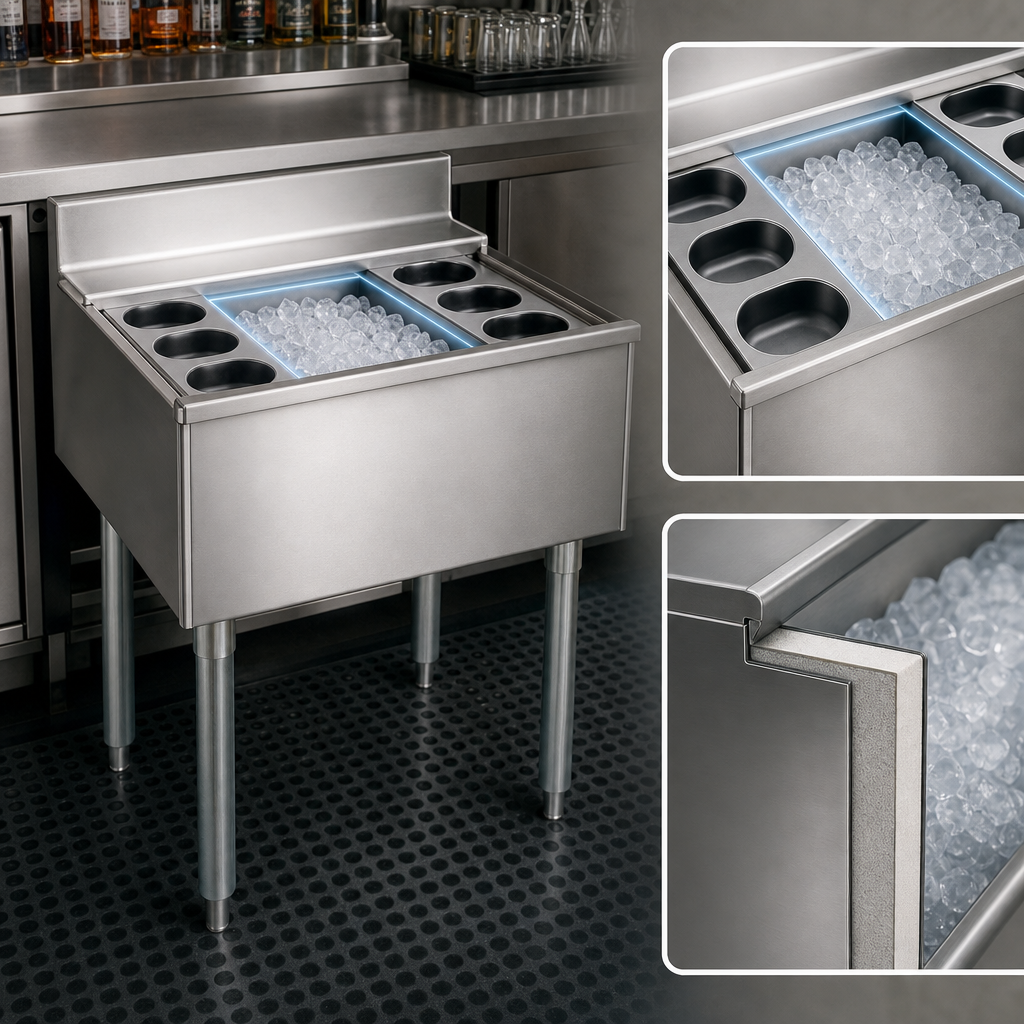

16-Inch Deep Insulated Ice Bin
The fabricated ice bin is fully insulated to help hold ice longer during busy service.
125-Lb. Ice Capacity
The 16-inch deep bin is designed to hold up to 125 lb. of ice.
Six Bottle Wells
Built-in plastic bottle holders inside the bin keep bottles accessible and organized.
304 Stainless Steel Construction
Top, backsplash, and ice bin are heavy-gauge type 304 stainless steel for durability and easy cleaning.
Galvanized Support Panels
Back, bottom, and end panels are galvanized steel for added strength.
Bullnose Front Edge
Rounded front edge improves the unit's finished look and helps reduce sharp edges.
Adjustable Bullet Feet
Plastic bullet feet make it easier to level the unit on uneven floors.
1-1/2-Inch Drain
The bin includes a 1-1/2 inch drain for straightforward drainage.
Modular Underbar Design
Modular construction allows the unit to be used in custom underbar equipment layouts.
Certifications & Compliance
Warranty & Protection
1 year from original installation, not to exceed 18 months from shipment.
