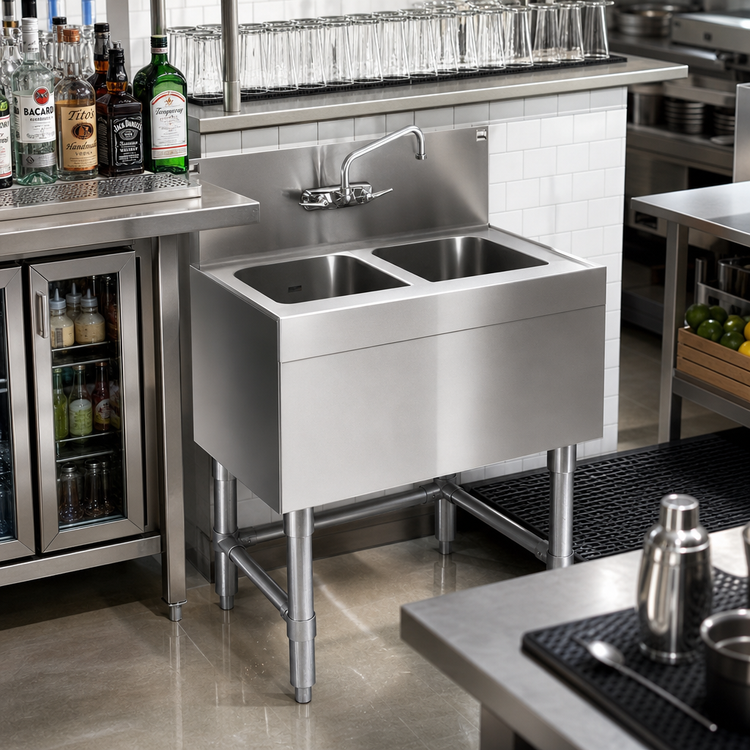

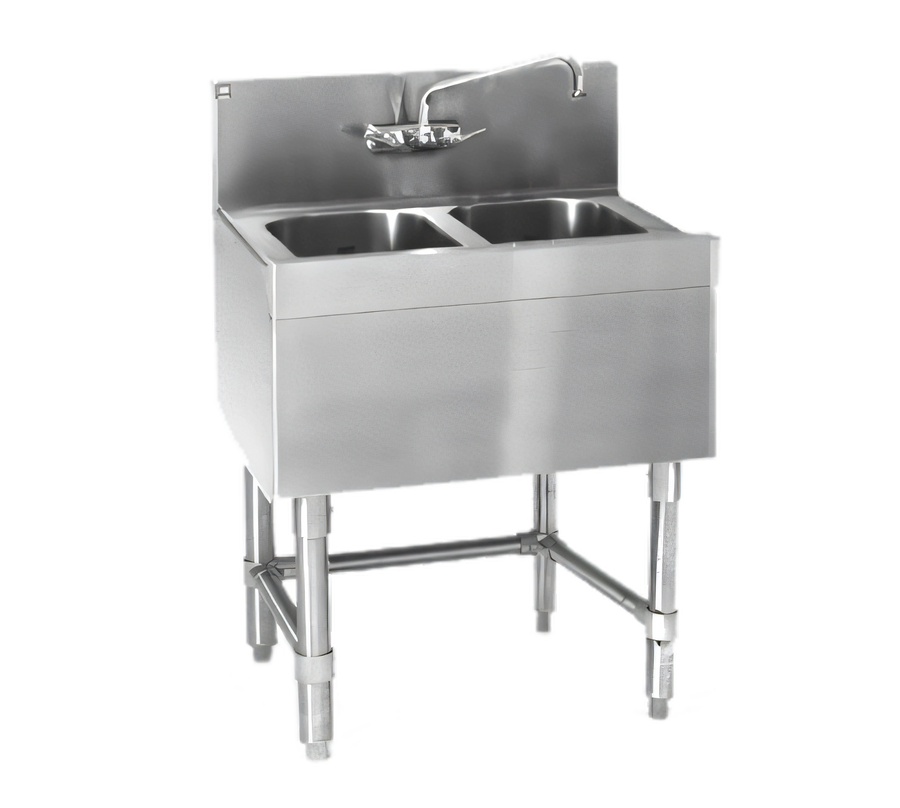

Eagle Spec-Bar Two-Compartment Underbar Sink Unit, 24-Inch Wide, 304 Stainless Steel
Eagle Spec-Bar Two-Compartment Underbar Sink Unit, 24-Inch Wide, 304 Stainless Steel
10" x 14" x 9-1/2" bowls, 8" backsplash, and splash-mounted T&S faucet
Built for compact bar stations, this stainless steel two-compartment sink includes the faucet, drains, and leveling feet you need for a ready-to-install underbar setup.
- Two 10" x 14" x 9-1/2" deep sink bowls support washing and rinse tasks in one compact unit.
- 304 stainless steel construction adds corrosion resistance and long-term durability.
- Includes a splash-mounted T&S faucet, 1-1/2" drains, and removable overflow standpipes.
- 8" backsplash helps protect walls and surrounding equipment from splashback.
- Stainless steel adjustable bullet feet make leveling and installation easier.
- Designed without drainboards to conserve valuable underbar space.
Overall Dimensions:
24.0"W x 24.0"D x 37.0"HProduct Weight:

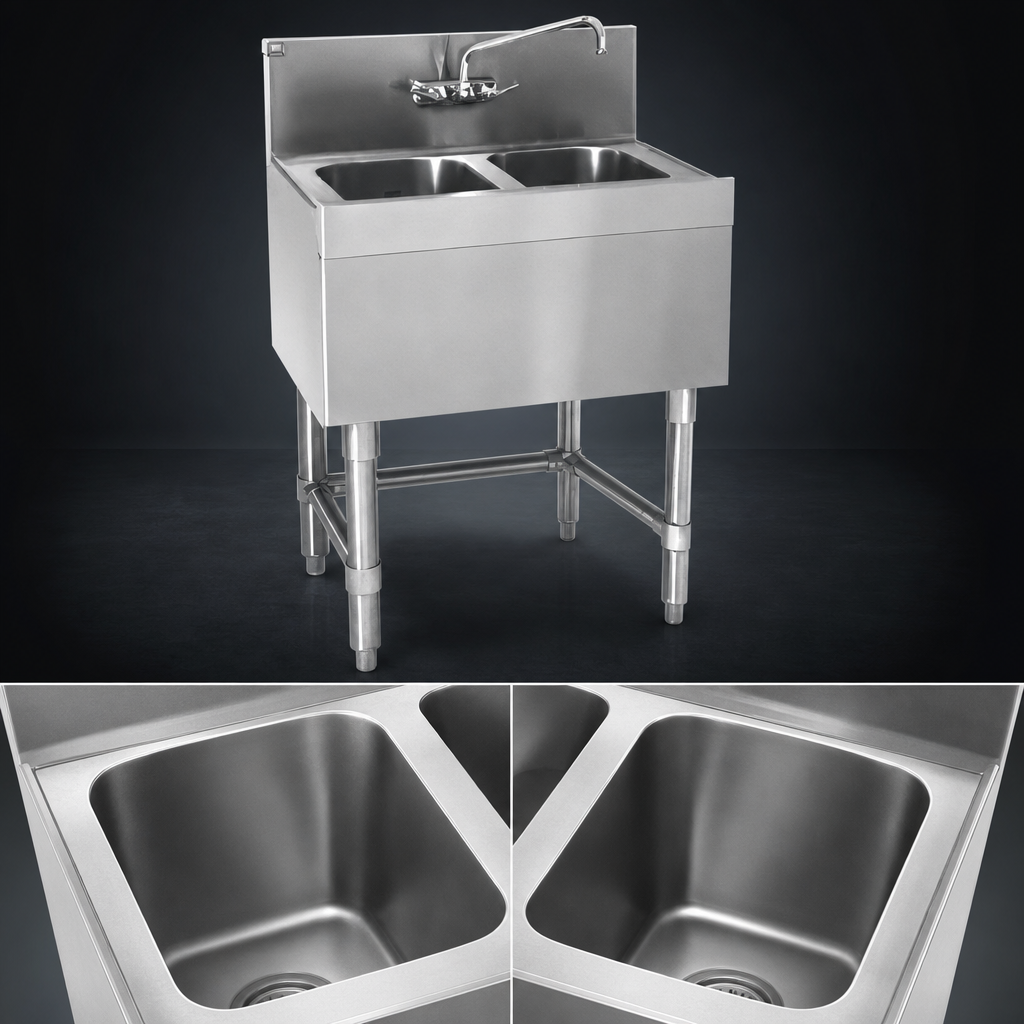

66.0 lbTwo Compartment Sink Bowls
Two 10" x 14" front-to-back x 9-1/2" deep drawn bowls provide separate wash and rinse areas.

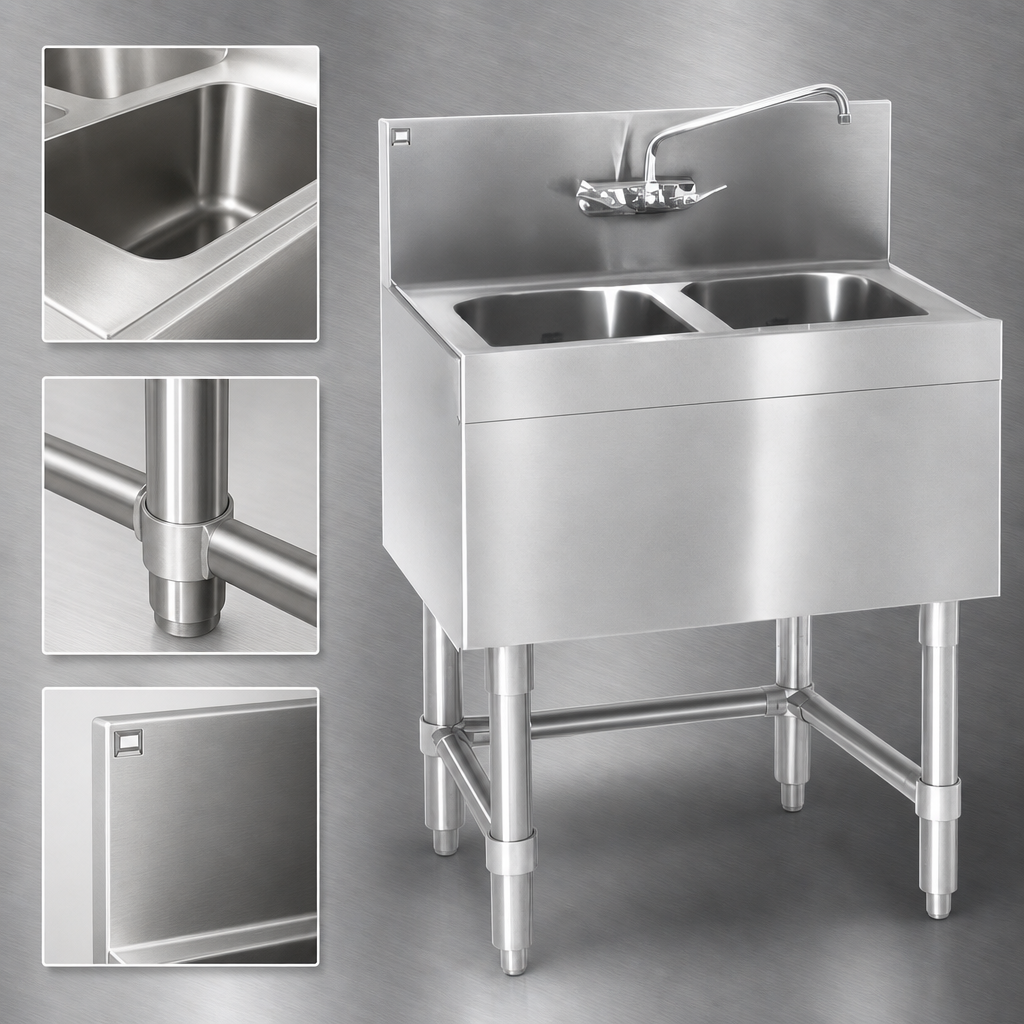

304 Stainless Steel Construction
Body, bowls, legs, leg channels, and cross rails are stainless steel for durability and corrosion resistance.
Splash-Mounted T&S Faucet
Faucet mounts on 4" centers with a 1/2" NPT inlet.
Integrated Drain Assembly
Includes 1-1/2" IPS threaded drains, nut and washer, and removable overflow standpipes.
8-Inch Backsplash
Helps contain splashes and protect the wall behind the sink.
Adjustable Bullet Feet
Stainless steel adjustable bullet feet help level the unit on uneven floors.
Heavy-Duty Base Support
16-gauge stainless steel legs, leg channels, and crossbracing add rigidity.
No Drainboards
Compact layout keeps the unit suited to underbar installations.
Certifications & Compliance
Warranty & Protection
1 year from original installation, not to exceed 18 months from shipment.
