Key specifications

BTU
30,000 BTU
Gas Type
Natural Gas
Dimensions
63.5"W × 30.5"D × 34.5"H
Type
Hot Food Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: AWT4-NG-FM-X

Eagle Group AWT4-NG-FM-X 4-Well Natural Gas Hot Food Table

$2,915.62
/each
Estimated to ship in 3–6 business days
Width
Gas typeNatural gas
Overshelf kit
Factory Add-Ons
Gas Connector
Included: Eagle Group warranty Eagle warrants hot food tables for 12 months from the date of shipment from the factory or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $270/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Hot Food Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Gauge 20 Gauge
Gas Type Natural Gas
BTU 30,000 BTU
Heating Type Water Bath
Well Type Open Well
Pan Size 12 x 20 Inches
Pan Capacity 4 Pans
Overall Width 63.5 Inches
Overall Depth 30.5 Inches
Overall Height 44.5 Inches
Working Height 34 Inches
Base Finish Galvanized
Undershelf Material Galvanized Steel
Overshelf Count 2
Overshelf Depth 10 Inches
Post Height 30 Inches
Cutting Board Material Polycarbonate
Cutting Board Width 8 Inches
Dish Shelf Material Stainless Steel
Gas Connection 1/2 NPT, Right Side
Feet Type Adjustable Plastic Feet

Description

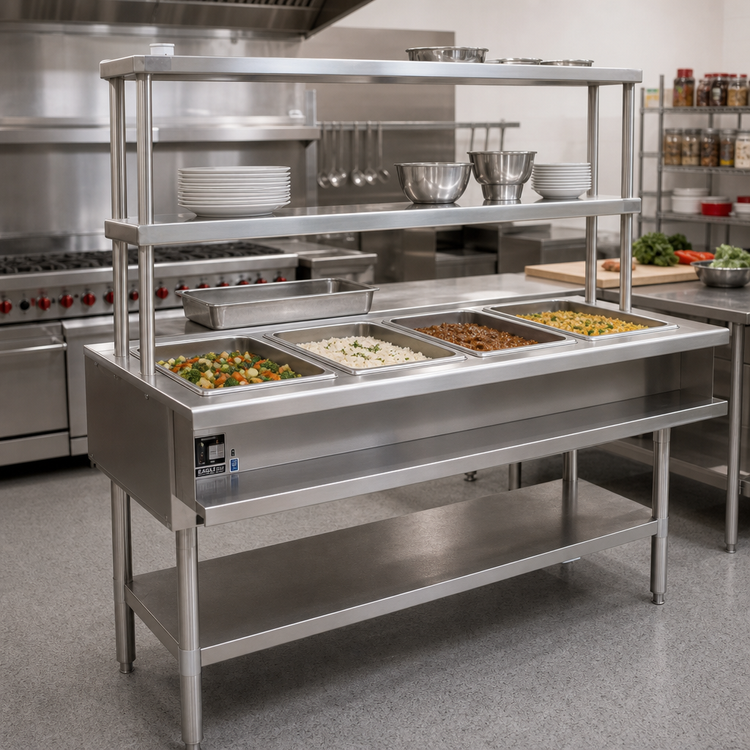

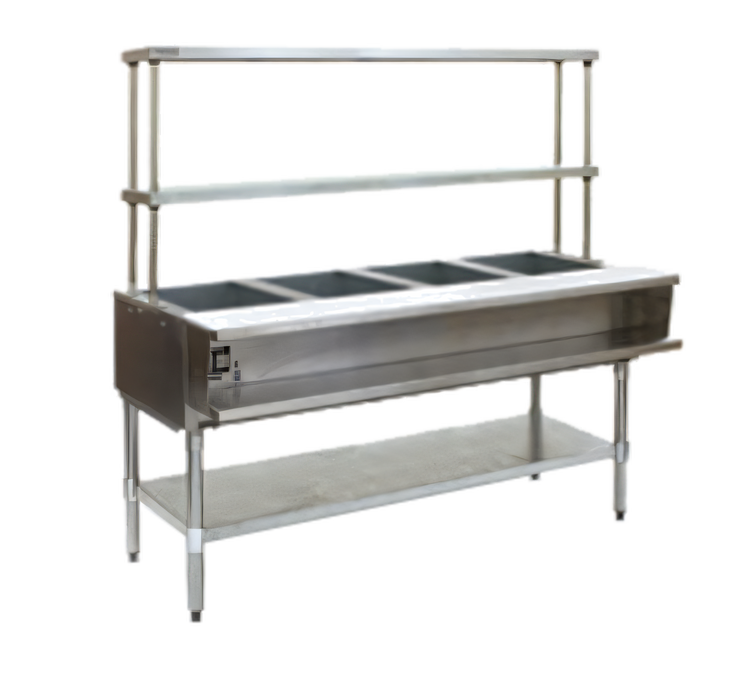

The Eagle Group AWT4-NG-FM-X is a four-well natural gas water bath hot food table with an open base and two Flex-Master overshelves.

  • Four openings accommodate 12 x 20-inch food pans.
  • The table has a 20-gauge 430 stainless steel top and body.
  • A removable 8-inch polycarbonate cutting board and stainless steel dish shelf are provided.
  • Galvanized legs and undershelf include adjustable plastic feet.
  • The unit uses 30,000 BTU natural gas heating with a 1/2 NPT pipe connection on the right side.

Overall Dimensions:

63.5"W x 30.5"D x 34.5"H

Product Weight:

192.0 lb

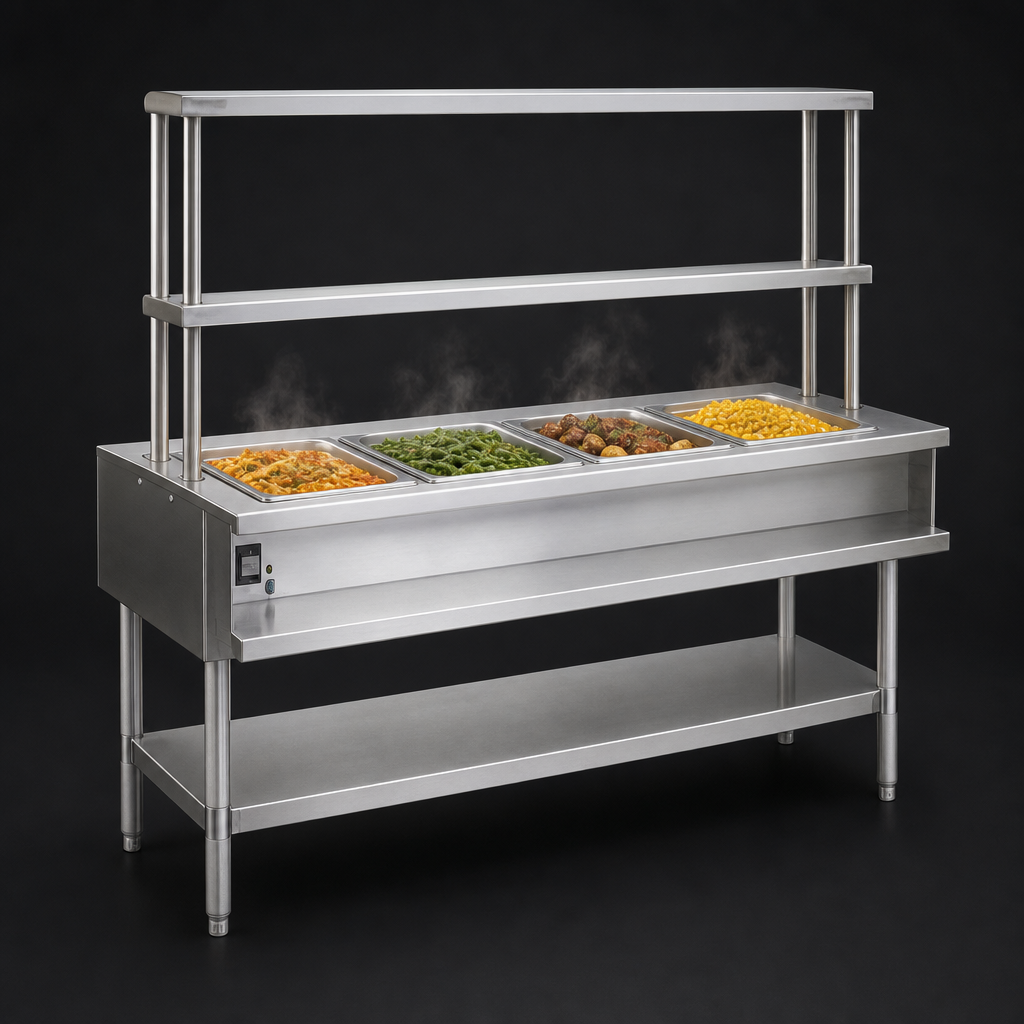

Four-Well Water Bath

Four openings are sized to accommodate 12 x 20-inch food pans.

Natural Gas Heating

The unit provides 30,000 BTU heating and has a 1/2 NPT pipe connection on the right side.

Flex-Master Overshelves

Two 10-inch-deep overshelves are supplied with 30-inch posts.

Open Base

Galvanized legs and an undershelf provide the open-base configuration, with adjustable plastic feet.

Work Surface

A removable 8-inch polycarbonate cutting board and stainless steel dish shelf are provided.

Stainless Steel Construction

The top and body are constructed of 20-gauge 430 stainless steel.

Frequently Asked Questions

It uses natural gas.
It has four openings sized for 12 x 20-inch food pans.
Yes. The product includes two 10-inch-deep Flex-Master overshelves with 30-inch posts.
The unit has a 1/2 NPT pipe connection on the right side.
A removable 8-inch polycarbonate cutting board and a stainless steel dish shelf are provided.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
