Key specifications

BTU
30,000 BTU
Gas Type
Propane
Dimensions
63.5"W × 30.5"D × 34.5"H
Type
Steam Table
Style
Open Base
Installation Type
Floor Model
Spec sheet
Eagle Group SKU: AWT4-LP

Eagle Group AWT4-LP 4-Pan Propane Steam Table

$1,949.31
/each
Estimated to ship in 3–6 business days
Number of Compartments
Gas type
Flex-Master overshelf kit
Factory Add-Ons
Replacement parts
Gas Connector

Need something else? Contact us.

Included: Eagle Group warranty 12 months from the date of shipment or 6 months from the date first placed into service, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $180/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Steam Table
Style Open Base
Installation Type Floor Model
Material 430 Stainless Steel
Finish Polished
Gas Type Propane
BTU 30,000 BTU
Pan Capacity 4 Pans
Pan Size 12 in x 20 in
Well Type Open Well
Working Height 34 in
Water Pan Material 304 Stainless Steel
Base Finish Galvanized
Cutting Board Material Polycarbonate
Cutting Board Width 8 in
Connection Size 1/2 in NPT
Connection Location Right Side
Drain Diameter 1.5 in
Feet Type Adjustable Plastic Feet

Description

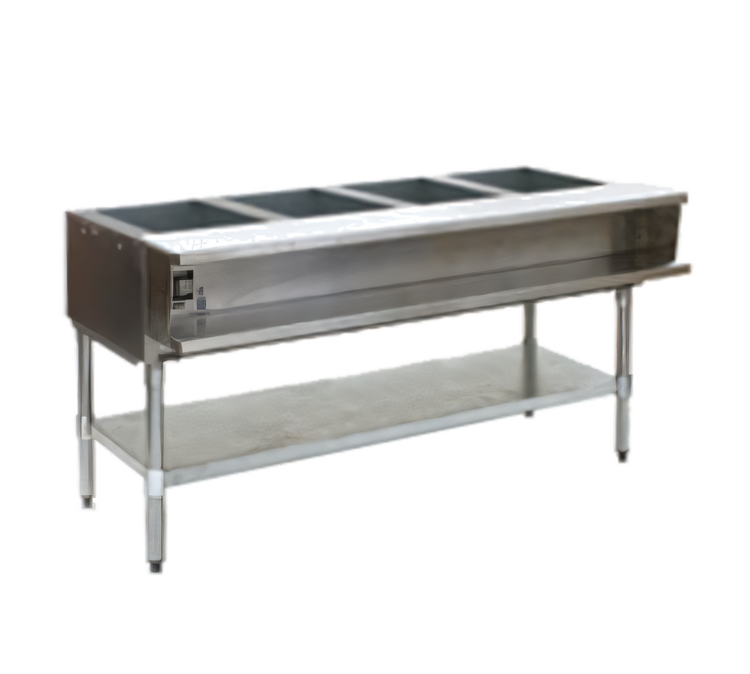

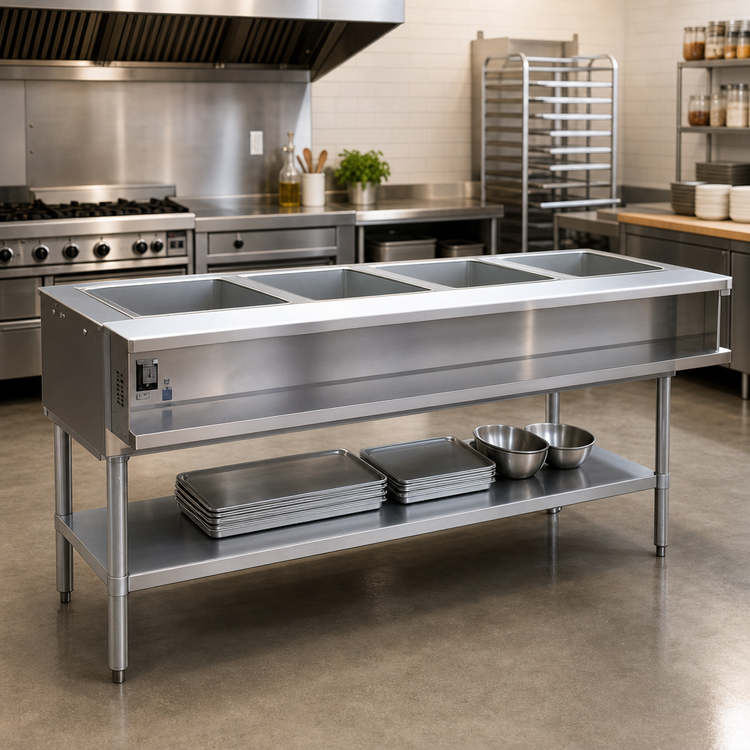

The Eagle Group AWT4-LP is a liquid propane water bath hot food table with four 12 in x 20 in openings, an open base, and an undershelf.

  • Four openings: Sized for 12 in x 20 in steam table pans.
  • Propane operation: Uses liquid propane with a 30,000 BTU burner.
  • Construction: 20-gauge 430 stainless steel top and body with a 304 stainless steel water pan.
  • Included components: Removable 8 in polycarbonate cutting board and stainless steel dish shelf.
  • Base: Galvanized legs and undershelf with adjustable plastic feet.

Overall Dimensions:

63.5"W x 30.5"D x 34.5"H

Product Weight:

192.0 lb

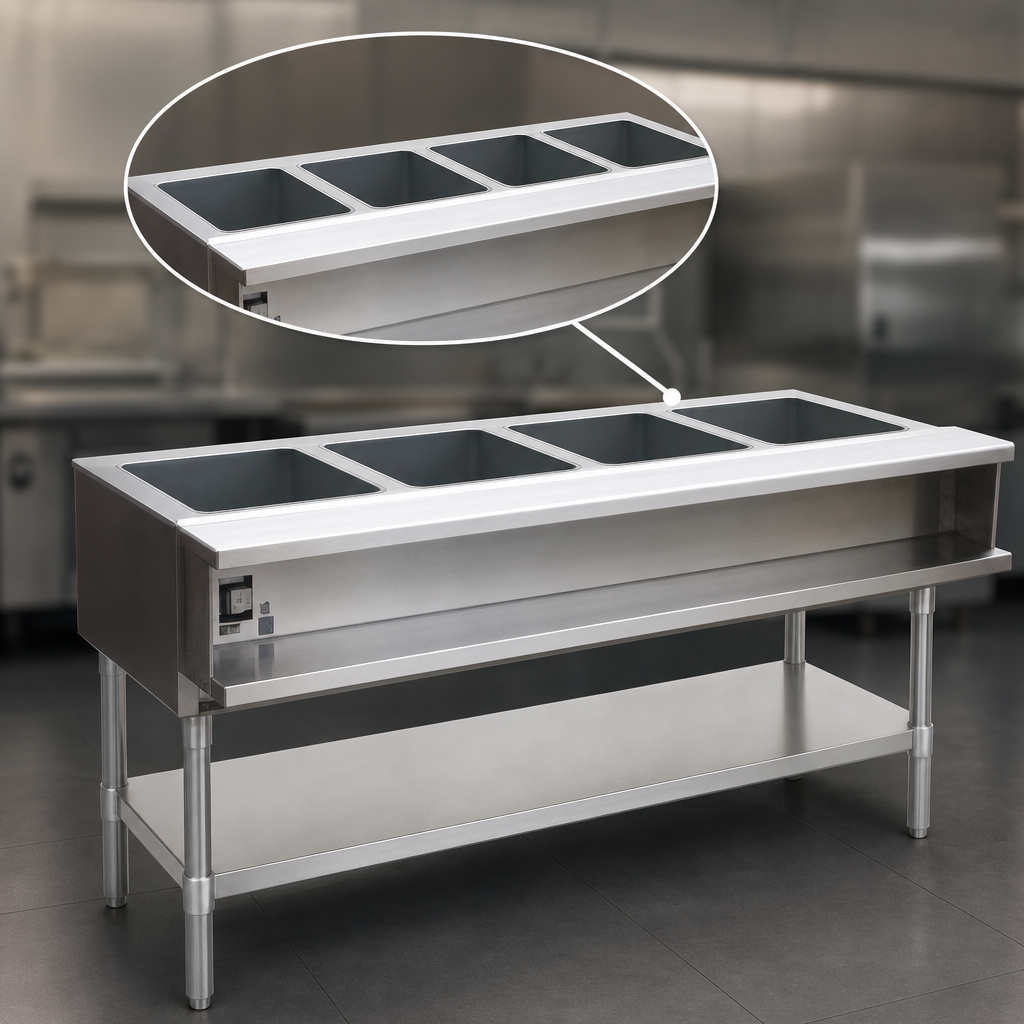

Four Pan Openings

Four 12 in x 20 in openings accommodate steam table pans.

Propane Fuel

Uses liquid propane and has a 30,000 BTU burner.

Water Bath Design

Designed as a water bath hot food table.

Open Base

Open base with galvanized legs and undershelf.

Stainless Steel Construction

The top and body are made of 20-gauge 430 stainless steel.

Water Pan

Includes a 20-gauge 304 stainless steel water pan with a 1.5 in brass drain.

Cutting Board

Includes a removable 8 in polycarbonate cutting board.

Dish Shelf

Includes a stainless steel dish shelf.

Gas Connection

Has a 1/2 in NPT pipe connection on the right side.

Frequently Asked Questions

The AWT4-LP uses liquid propane.
It has four openings, each sized for a 12 in x 20 in steam table pan.
The overall dimensions are 63.5 in wide x 30.5 in deep x 34.5 in high.
It includes a removable 8 in polycarbonate cutting board and a stainless steel dish shelf.
The 1/2 in NPT pipe connection is located on the right side.
Eagle's hot food table warranty is 12 months from the date of shipment or 6 months from the date first placed into service, whichever comes first.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
