Eagle Group ASWTFT-2496-SG 96-Inch Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain

Full-Size, Stainless Steel, Subway-Style Grating

Ensure safe and code-compliant drain water temperatures with this robust 96-inch anti-splash cool trough system featuring a grated floor drain and integral tempering.

  • Large 96"W x 24"D footprint for extensive cooling capacity.
  • Durable 14-gauge 304 stainless steel construction ensures longevity.
  • Integral mechanical temperature sensor for automatic tempering without electrical connection.
  • Features anti-splash design with stainless steel subway-style grating and removable perforated basket.
  • Built-in pitch towards a 4-inch drain for efficient water evacuation.
  • Includes essential plumbing components: shutoff valve and two pressure check valves.
  • NSF certified for commercial foodservice applications.

Anti-Splash Design

Engineered to prevent splashing and ensure a clean, safe environment, ideal for high-volume dishwashing operations.

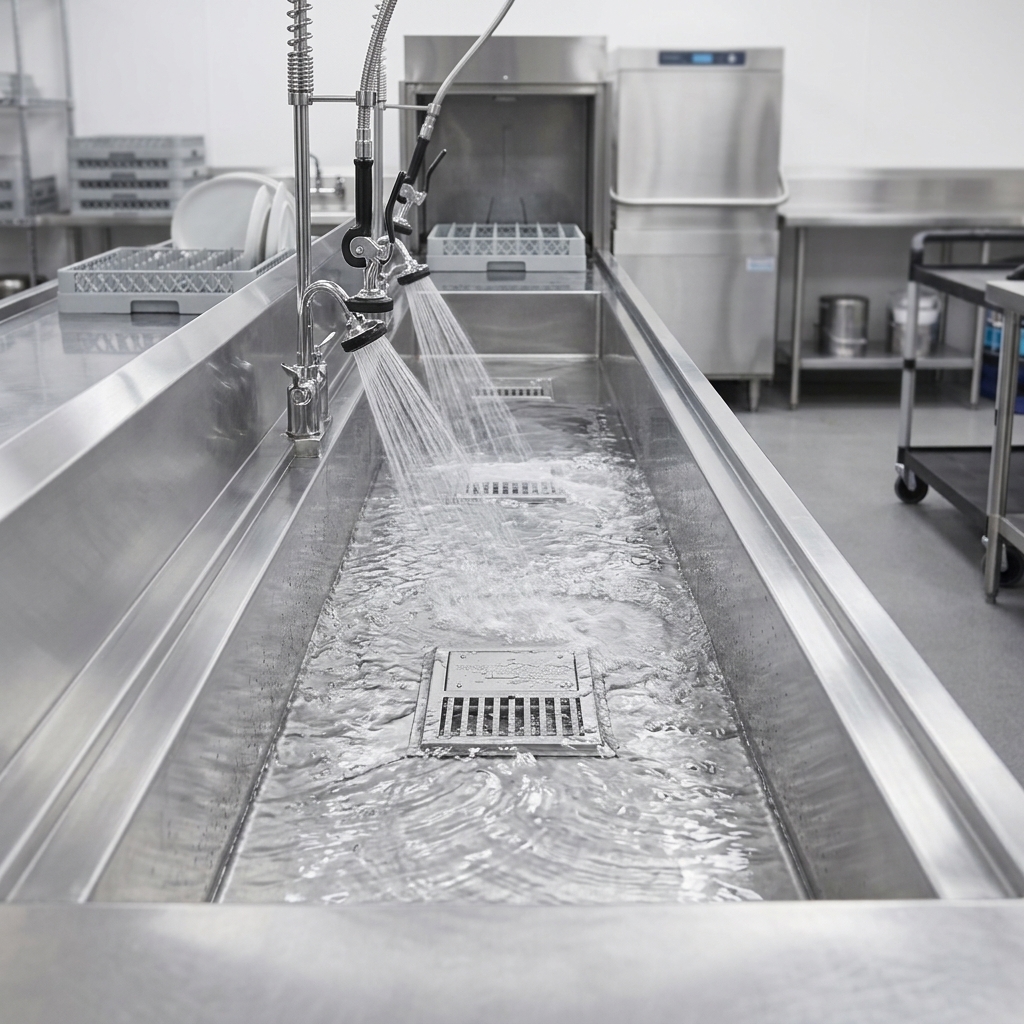

Experience a clean and safe dishwashing environment with the anti-splash design of this 96-inch cool trough water tempering system.

14-Gauge 304 Stainless Steel Construction

Provides exceptional durability and corrosion resistance, ensuring long-term commercial use in demanding environments.

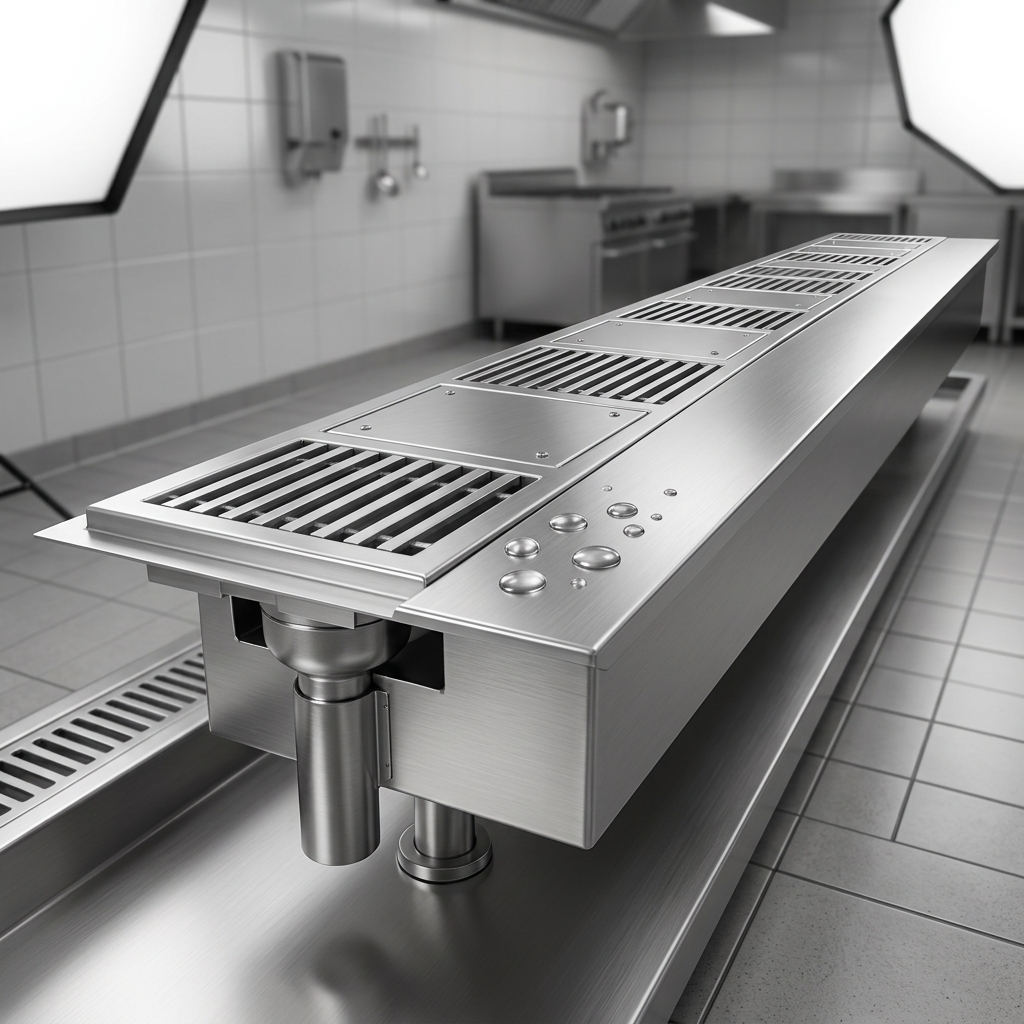

Experience exceptional durability and corrosion resistance with this cool trough water tempering system, expertly crafted from 14-gauge 304 stainless steel.

Stainless Steel Subway-Style Grating

Offers a robust, aesthetically pleasing, and functional cover for the trough, capable of handling heavy foot traffic.

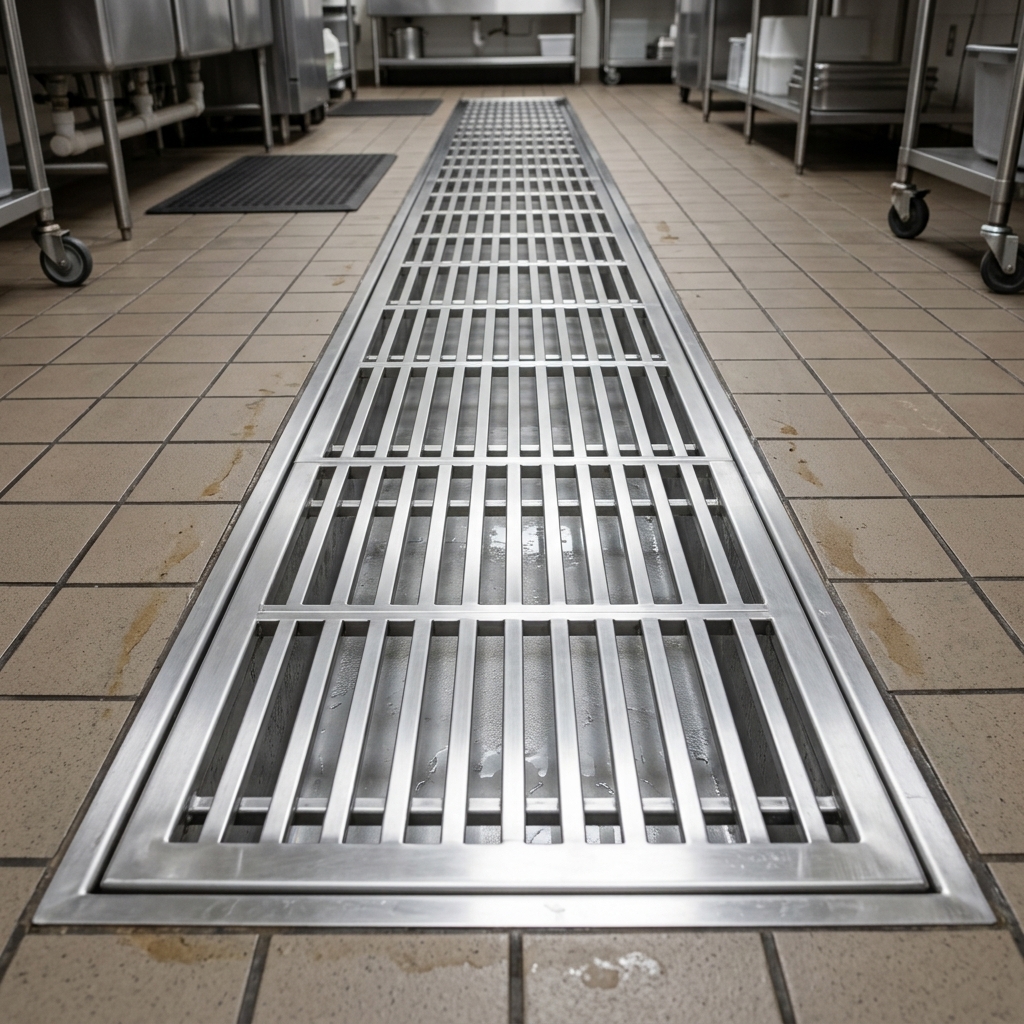

Observe the robust stainless steel subway-style grating, offering durable and aesthetically pleasing protection for high-traffic commercial environments.

Removable Perforated Basket

Catches debris and solid waste to prevent drain clogs, easily removable for quick and hygienic cleaning.

Built-in Pitch

The trough floor is designed with an internal slope, facilitating efficient and complete drainage towards the 4-inch drain.

Integral Mechanical Temperature Sensor

Automatically tempers drain water to safe, code-compliant temperatures without requiring any electrical connection.

Included Shutoff Valve and Pressure Check Valves

Comes with essential plumbing components for convenient installation and adherence to plumbing codes.

Removable Stainless Steel Cover with Water-Tight Rubber Gasket

Provides secure access to internal components for maintenance while preventing leaks.

Stainless Steel Anchor Clips

Facilitate secure and stable installation of the trough into recessed concrete slabs.

Specifications

Type Water Tempering System
Style Cool Trough
Installation Type Drop-In (into recessed concrete slab)
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Grate Type Subway-Style Grating
Grate Material Stainless Steel
Pan Type Anti-Splash
Trough Construction 14 Gauge Stainless Steel
Trough Depth 4 Inches
Drain Connection Required
Drain Connection Size 4 Inches
Water Connection Required
Water Inlet Size 1 Inch
Controls Mechanical Temperature Sensor
Shipping Width 96 Inches
Shipping Depth 24 Inches
Shipping Height 16 Inches
Shipping Weight null
Selling Unit Each
Units Per Case 1
Country of Origin USA

Overall Dimensions:

96.0"W x 24.0"D x 15.25"H
Manufacturer Eagle Group
Certifications ["NSF"]
Height 15.25in
Width 96.0in
Depth 24.0in
Deep (pan depth) 4"
Trough Construction 14 ga stainless steel trough
Width (long side) 85" - 96" (8 ft)
Pan Type anti-splash
Grate Type subway-style grating
Grate Construction stainless steel grates
Depth (short side) 24"
Specifications Anti-Splash Cool Trough® Water Tempering Systems, grated floor drain, 96"W x 24"D x 15-1/4"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor warranty from installation (not to exceed 18 months from shipment).

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Cool Trough® Water Tempering System is designed to safely temper drain water to comply with local plumbing codes, often required for high-temperature dish machine discharge, preventing damage to plumbing systems and ensuring safety.
No, this system features an integral mechanical temperature sensor that automatically tempers water without the need for an electrical connection.
An RPZ (Reduced Pressure Zone) valve, supplied by Eagle Group, is required and must be installed by a plumbing contractor. It should be mounted at least 12 inches above the trough's flood level and be easily accessible for testing and service.
For the 24" wide, 96" long model, the trough rough-in hole should be 21.25" wide x 96" long x 4.25" deep. The plumbing compartment rough-in should be 33.375" wide x 14.75" long x 11.25" deep, with specific placement instructions for F, G, and L dimensions provided in the installation sheet.
The backflow preventer assembly must be tested periodically in compliance with local codes, but at least once per year. Refer to Watts instruction sheets (IS-TK-DP/DL, IS-TK-9A, IS-TK-99E, IS-TK-99D) for field testing procedures.
