Eagle Group ASWTFT-2436-SG Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain, 36"W x 24"D

SKU: ASWTFT-2436-SG
$10,288.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Eagle Group Floor Drains Floor Maintenance New Arrivals Sinks & Handwashing Stations

Eagle Group ASWTFT-2436-SG Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain, 36"W x 24"D

36"W x 24"D, Stainless Steel Grating, Mechanical Temperature Sensor

The Eagle Group ASWTFT-2436-SG Cool Trough system efficiently tempers drain water before it enters the plumbing system, featuring robust stainless steel construction and an easy-to-clean design.

  • Efficiently tempers drain water with an integral mechanical temperature sensor, requiring no electrical connection.
  • Features durable 14 gauge, 304 stainless steel construction for long-lasting commercial use.
  • Equipped with subway-style stainless steel grating and a removable perforated basket for easy cleaning and debris collection.
  • Designed with a built-in pitch towards the 4-inch drain, ensuring optimal water flow and drainage.
  • Includes essential plumbing components like a shutoff valve and two pressure check valves for complete control and safety.
  • Anti-splash design minimizes mess and maintains a cleaner working environment.

Anti-Splash Cool Trough® Design

Engineered to minimize splashing, ensuring a cleaner and safer work area.

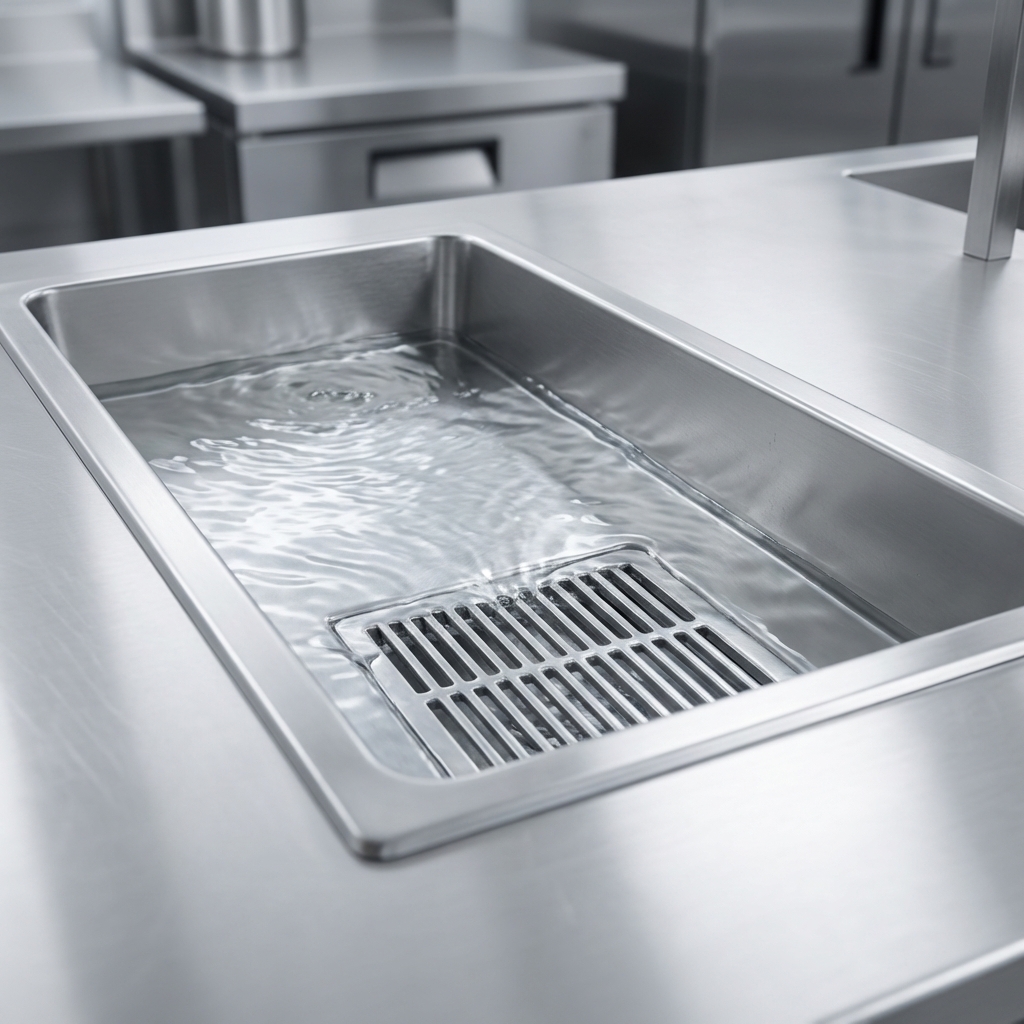

Experience a cleaner and safer work environment with the Anti-Splash Cool Trough® design, expertly containing water to minimize splashing.

Heavy-Duty Stainless Steel Construction

Constructed from 14 gauge, Type 304 stainless steel for superior durability, corrosion resistance, and hygiene in commercial environments.

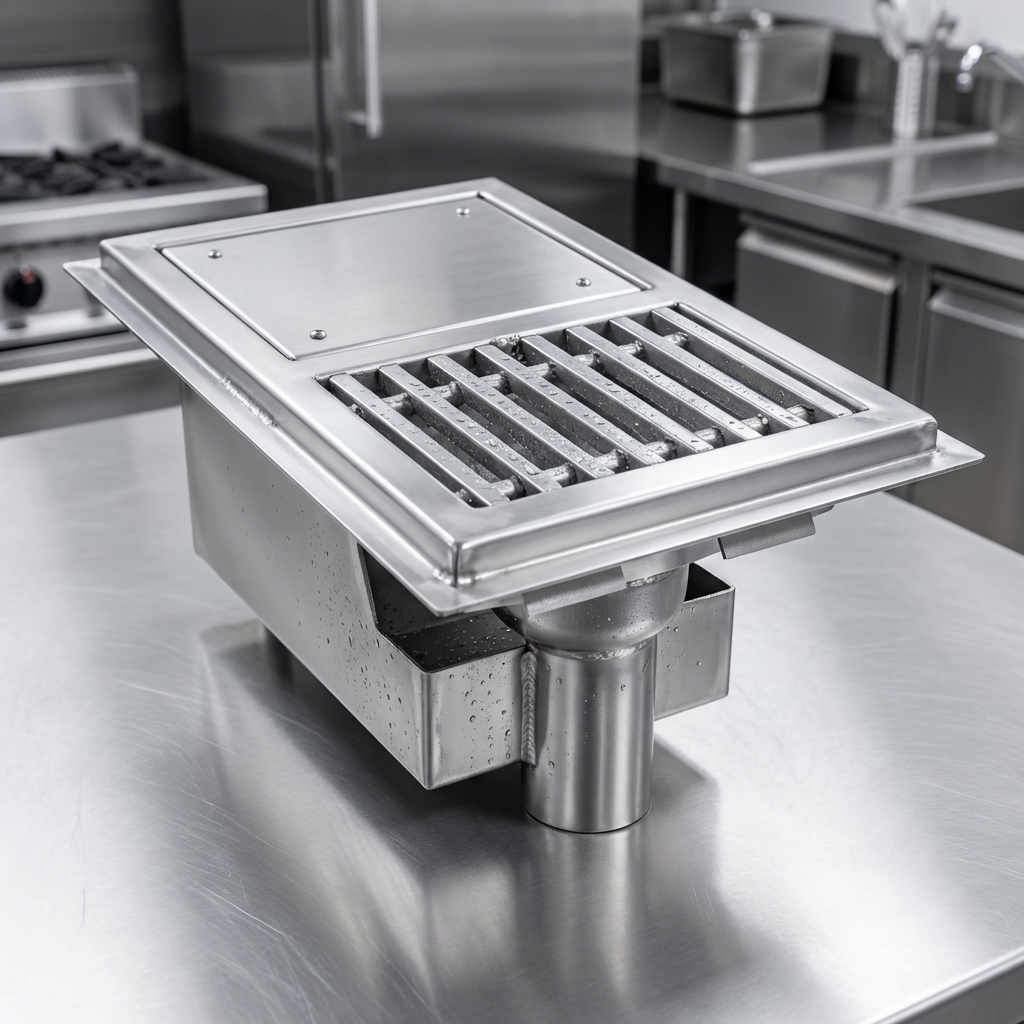

Experience unparalleled durability and hygiene with the heavy-duty, corrosion-resistant stainless steel construction of this tempering system.

Stainless Steel Subway-Style Grating

Provides a robust and easy-to-clean surface, allowing efficient water flow while preventing large debris from entering the drain.

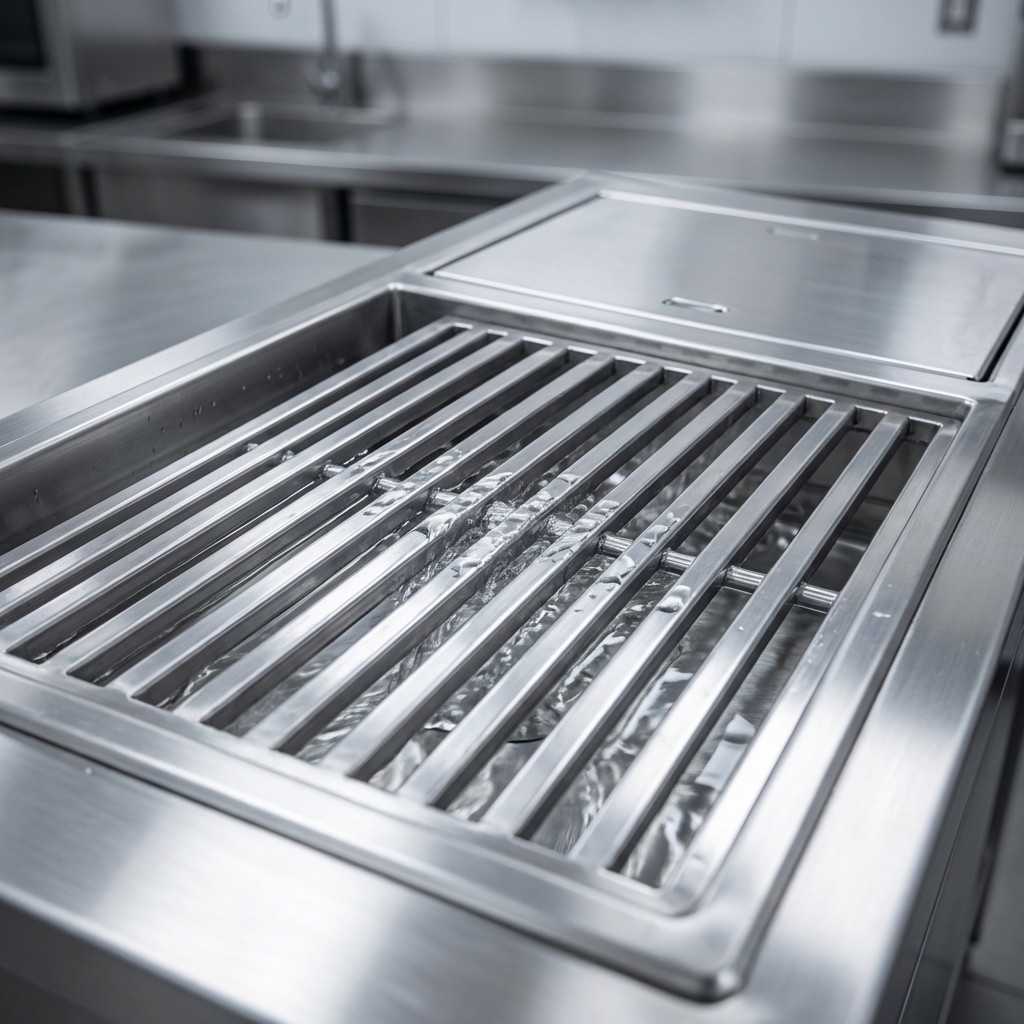

This image highlights the robust, easy-to-clean stainless steel subway-style grating, ensuring efficient water flow in the trough system.

Removable Perforated Basket

Collects food particles and other debris, preventing clogs and making daily maintenance simple.

Built-in Pitch to Drain

The trough floor is designed with a consistent pitch towards the 4-inch drain, ensuring complete and efficient water removal.

Integral Mechanical Temperature Sensor

Automatically tempers drain water to meet plumbing codes without the need for an electrical connection, simplifying installation and operation.

Included Plumbing Valves

Comes with a shutoff valve and two pressure check valves for complete control over water flow and backflow prevention, enhancing operational safety.

Specifications

Type Anti-Splash Cool Trough Water Tempering System
Style Cool Trough
Installation Type Drop-In
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Trough Material 14 Gauge Stainless Steel
Pan Type Anti-Splash
Pan Depth 4 Inches
Grate Type Subway-Style Grating
Grate Material Stainless Steel
Drain Connection Size 4 Inches
Water Connection Required
Water Inlet Size 1 Inch
Controls Mechanical Temperature Sensor
Shipping Width 36 Inches
Shipping Depth 24 Inches
Shipping Height 16 Inches
Shipping Weight 202.0 lb
Country of Origin USA
Selling Unit Each
Units Per Case 1

Overall Dimensions:

36.0"W x 24.0"D x 15.25"H

Product Weight:

202.0 lb
Manufacturer Eagle Group
Certifications ["NSF"]
Height 15.25in
Width 36.0in
Depth 24.0in
Shipping Weight 202.0lbs
Deep (pan depth) 4"
Pan Type anti-splash
Trough Construction 14 ga stainless steel trough
Depth (short side) 24"
Grate Type subway-style grating
Grate Construction stainless steel grates
Width (long side) 25" - 36" (3 ft)
Specifications Anti-Splash Cool Trough® Water Tempering Systems, grated floor drain, 36"W x 24"D x 15-1/4"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on defects in materials and workmanship.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This Cool Trough system is designed to temper drain water before it enters the plumbing system, ensuring compliance with local codes, while also serving as a grated floor drain for efficient liquid waste management.
No, the system features an integral mechanical temperature sensor that automatically tempers water without the need for any electrical connection.
The Cool Trough system, including the floor pan and grating, is constructed from durable 14 gauge, Type 304 stainless steel. The grating is a subway-style design.
The system includes an integral mechanical temperature sensor, a shutoff valve, and two pressure check valves. It also features a removable perforated basket and a built-in pitch towards a 4-inch drain.
Yes, it is crucial to consult local building and plumbing codes prior to installation, as these codes must be followed, especially regarding the backflow preventer which requires periodic testing.
The backflow preventer must be easily accessible for testing and servicing, mounted at least 12 inches above the trough flood level, and tested periodically (at least once per year) in compliance with local codes. It should never be installed in concealed locations.
