Eagle Group ASWTFT-1848-SG Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain, 48"W x 18"D

48" Wide, 18" Deep, 14 Gauge Stainless Steel, Drop-In

Ensure proper water tempering and efficient draining in your commercial kitchen with the NSF-certified Eagle Group Anti-Splash Cool Trough System.

  • Heavy-duty 14 gauge / 304 stainless steel construction ensures durability and corrosion resistance.
  • Integrated mechanical temperature sensor provides reliable water tempering without electrical connections.
  • Features a removable perforated basket and subway-style grating for effective debris capture and easy cleaning.
  • Built-in pitch directs water efficiently to the 4" drain, preventing standing water.
  • Includes essential plumbing components: shutoff valve and two pressure check valves for complete installation.
  • Anti-splash design minimizes mess and improves safety in busy work areas.

Heavy-Duty Stainless Steel Construction

Constructed from durable 14 gauge / 304 stainless steel for the floor pan and access compartment, offering superior strength and resistance to corrosion in demanding commercial environments.

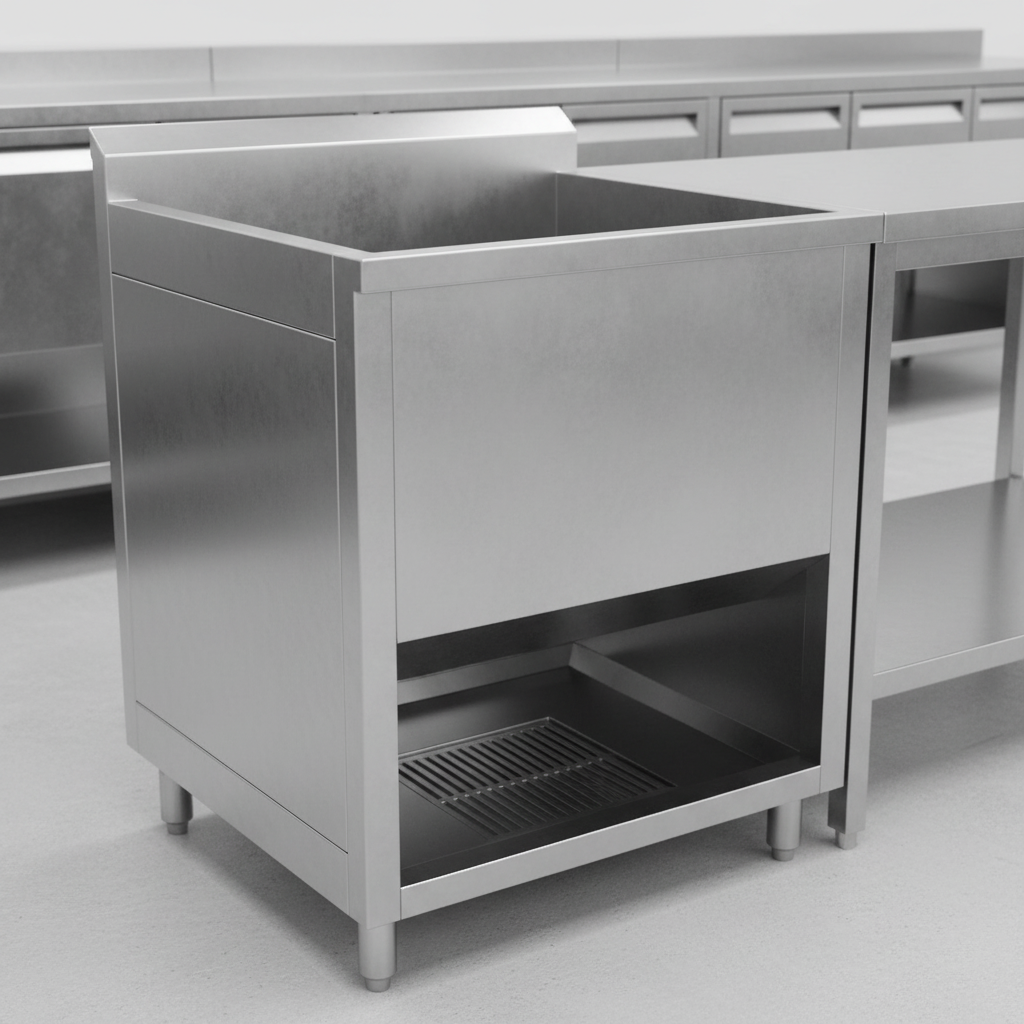

Showcasing robust 14 gauge / 304 stainless steel, this anti-splash cool trough is engineered for superior strength and corrosion resistance.

Anti-Splash Design

Engineered to minimize water splash, keeping your work area drier and safer while managing tempered water discharge.

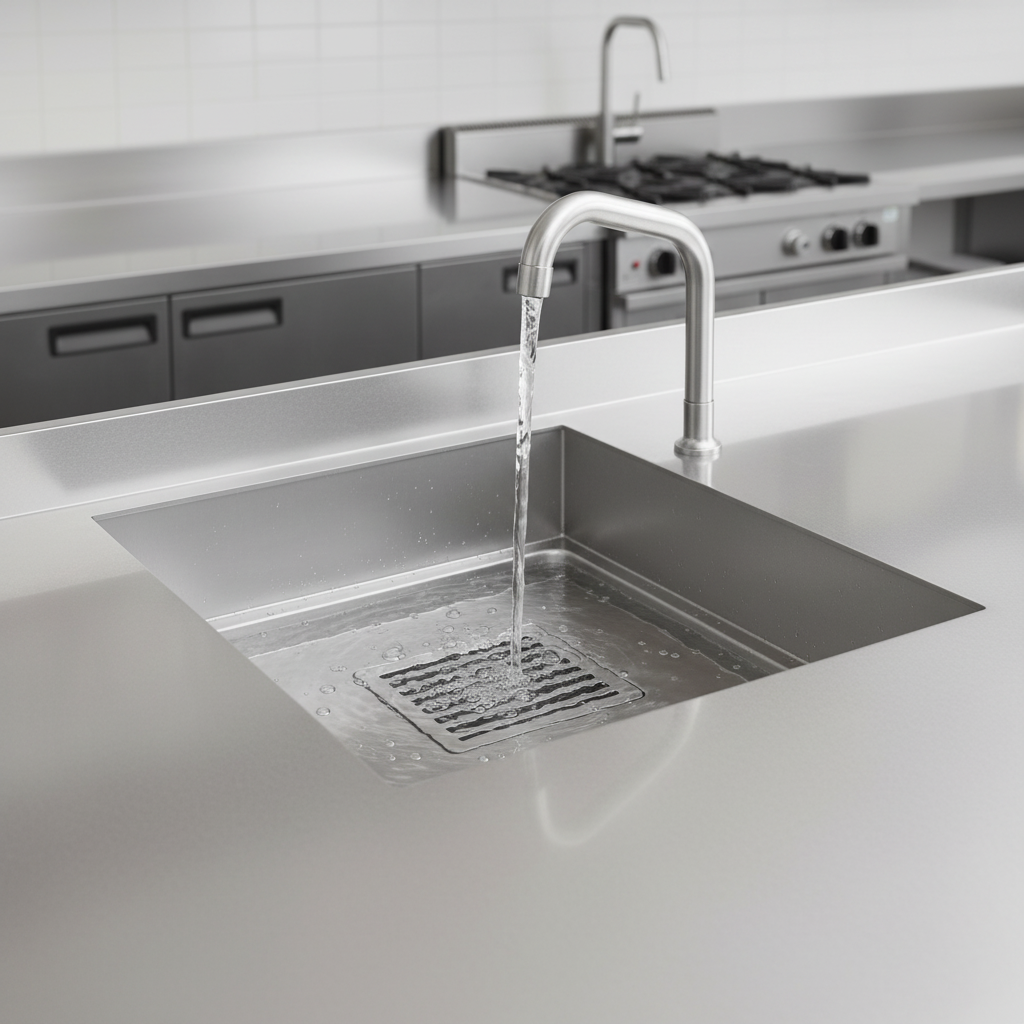

This image highlights the innovative anti-splash design of the cool trough water tempering system, keeping your commercial kitchen workspace dry and safe.

Integral Mechanical Temperature Sensor

Equipped with a mechanical temperature sensor that regulates water temperature without requiring any electrical connection, simplifying installation and operation.

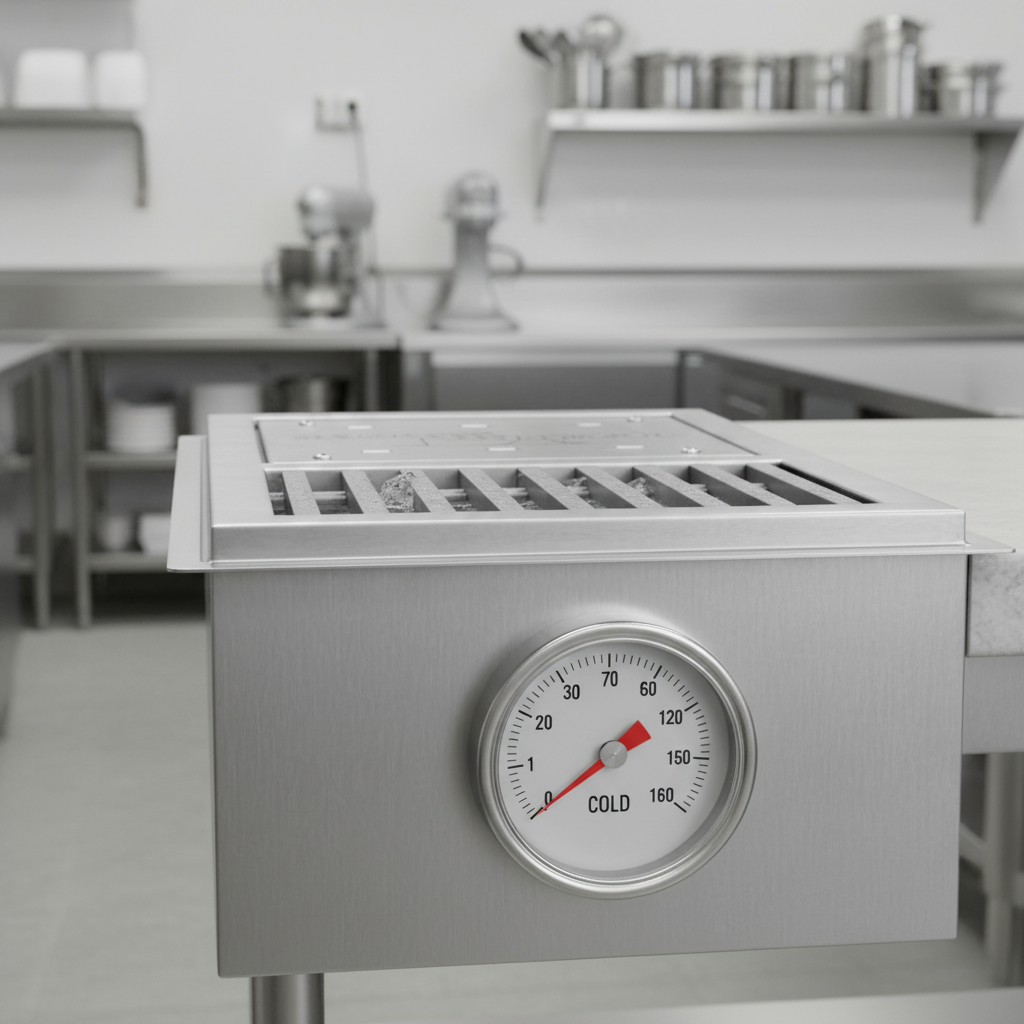

This image highlights the integral mechanical temperature sensor, regulating water temperature without requiring any electrical connection.

Stainless Steel Subway-Style Grating

Features durable stainless steel subway-style grating, designed for effective water flow and support, while allowing easy removal for cleaning.

Removable Perforated Basket

Includes a removable perforated basket that efficiently captures food debris and other solids, preventing drain clogs and facilitating maintenance.

Built-In Pitch Toward Drain

The trough floor is designed with a built-in pitch that ensures efficient drainage of water to the 4" drain, eliminating standing water.

Included Plumbing Components

Comes with a shutoff valve and two pressure check valves, providing necessary components for plumbing connections and ensuring proper system function.

Easy Access Compartment

Features a 14 gauge stainless steel access compartment for plumbing connections, designed for convenience during installation and servicing.

Specifications

Type Cool Trough Water Tempering System
Style Anti-Splash
Installation Type Drop-In
Material 14 Gauge 304 Stainless Steel
Interior Finish 304 Stainless Steel
Grate Type Subway-Style Grating
Grate Material Stainless Steel
Pan Depth 4 Inches
Drain Connection Size 4 Inches
Water Connection Required
Water Inlet Size 1 Inch
Controls Integral Mechanical Temperature Sensor
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 18 Inches
Shipping Height 16 Inches
Shipping Weight null

Overall Dimensions:

48.0"W x 18.0"D x 15.25"H
Manufacturer Eagle Group
Certifications ["NSF"]
Height 15.25in
Width 48.0in
Depth 18.0in
Trough Construction 14 ga stainless steel trough
Deep (pan depth) 4"
Grate Construction stainless steel grates
Width (long side) 37" - 48" (4 ft)
Grate Type subway-style grating
Depth (short side) 18"
Pan Type anti-splash
Specifications Anti-Splash Cool Trough® Water Tempering Systems, grated floor drain, 48"W x 18"D x 15-1/4"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This system requires a 1" water line connection and a 4" drain connection. A plumbing contractor is responsible for installing the 1" water line in the wall or above the ceiling, and for connecting the Eagle-supplied RPZ valve.
No, the ASWTFT-1848-SG model features an integral mechanical temperature sensor, meaning no electrical connection is required for its operation.
Eagle Group provides a limited warranty of one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle, covering defects in materials and workmanship under normal use.
Yes, the RPZ valve (backflow preventer) must be mounted a minimum of 12" above the trough flood level and must be easily accessible for testing and servicing. It should never be mounted above the ceiling or in concealed locations.
For the ASWTFT-1848-SG, the rough-in hole for the trough should be 15.25" wide (Dimension D for 18" wide models) by 48" long (Dimension J for 48" long models) by 4.25" deep. The plumbing compartment rough-in has specific dimensions (Dimension E for width, 14.75" for length, and 11.25" for depth) and placement details (Dimensions F, G, L) which should be referenced in the provided diagrams.
