Eagle Group ASWTFT-1596-SG Anti-Splash Cool Trough Water Tempering System, 96" Wide, 15" Deep

Recessed Floor Drain Design with Subway-Style Grating and Mechanical Temperature Control

Optimize kitchen sanitation and ensure plumbing code compliance with this robust stainless steel tempering trough, designed for efficient drain water temperature regulation.

  • Ensures drain water meets local temperature codes with an integral mechanical sensor, requiring no electrical connection.
  • Constructed from durable 14 gauge 304 stainless steel for exceptional longevity and corrosion resistance.
  • Features an anti-splash design with stainless steel subway-style grating and a removable perforated basket.
  • Includes essential plumbing components: a shutoff valve and two pressure check valves.
  • Designed for seamless recessed floor installation, providing a hygienic and integrated solution.
  • Built-in pitch facilitates efficient and complete drainage into a 4-inch floor drain.

Integral Mechanical Temperature Sensor

Automatically tempers drain water to meet local codes, operating entirely without the need for an electrical connection.

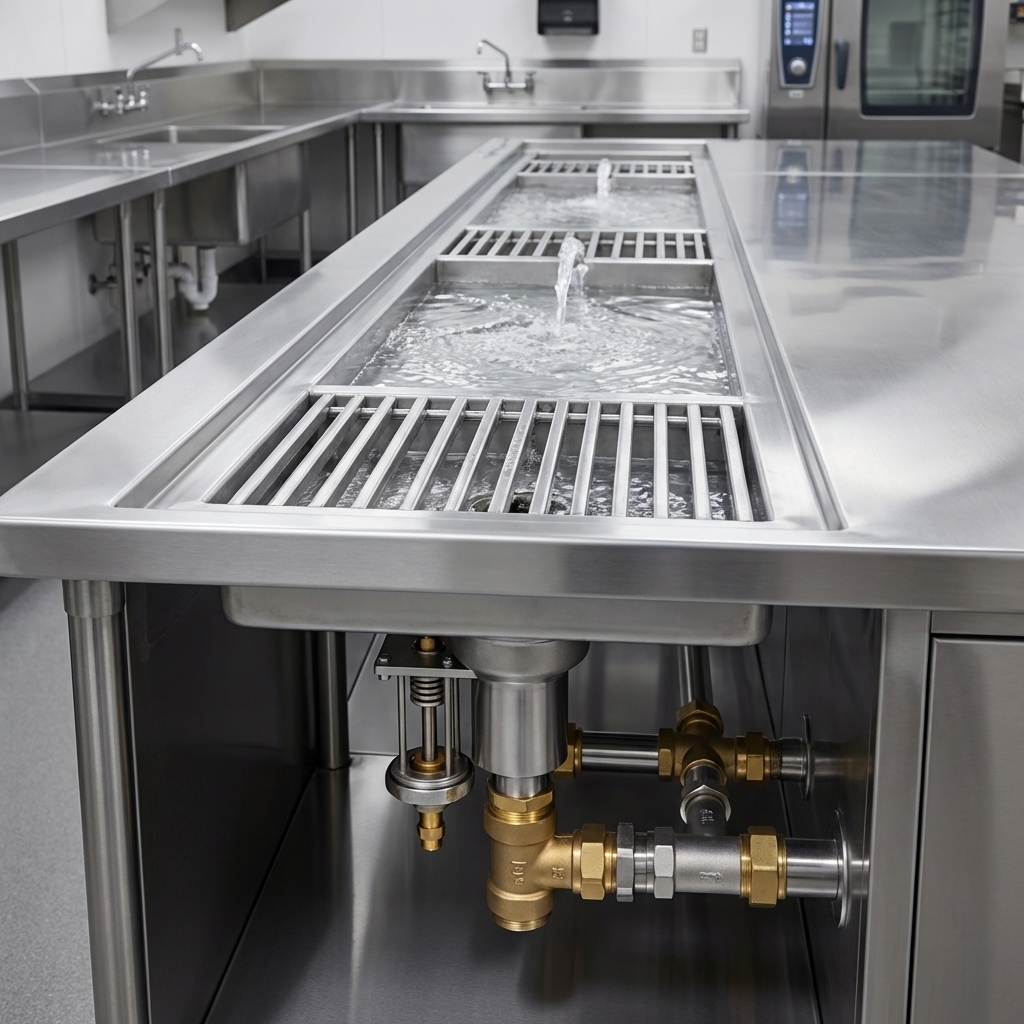

Observe the integral mechanical temperature sensor, ensuring automatic water tempering without the need for an electrical connection.

14/304 Stainless Steel Construction

Provides exceptional durability and corrosion resistance, ensuring a long service life in demanding commercial environments.

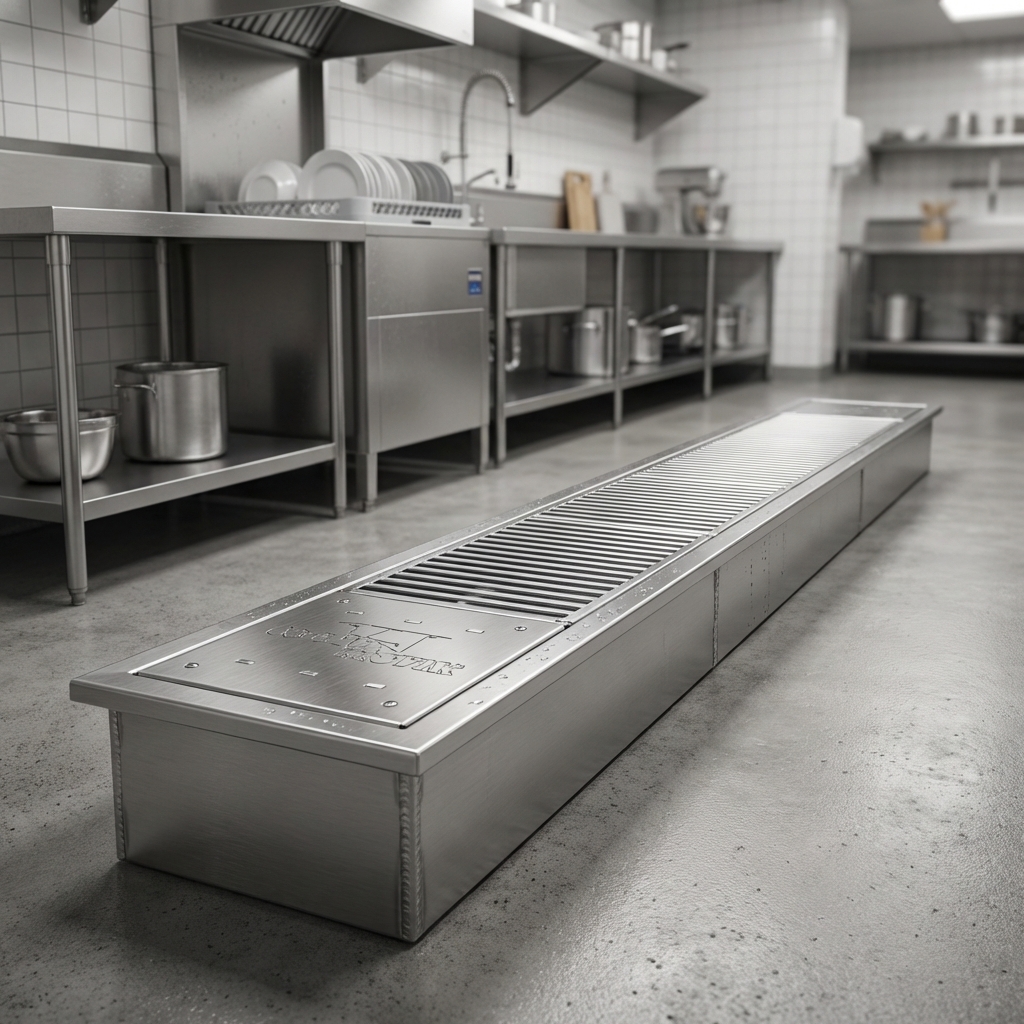

Built for the toughest commercial environments, this anti-splash cool trough features exceptional 14/304 stainless steel construction for lasting durability and corrosion resistance.

Stainless Steel Subway-Style Grating

Offers robust support and an effective anti-splash design. The grating is removable for convenient cleaning and maintenance.

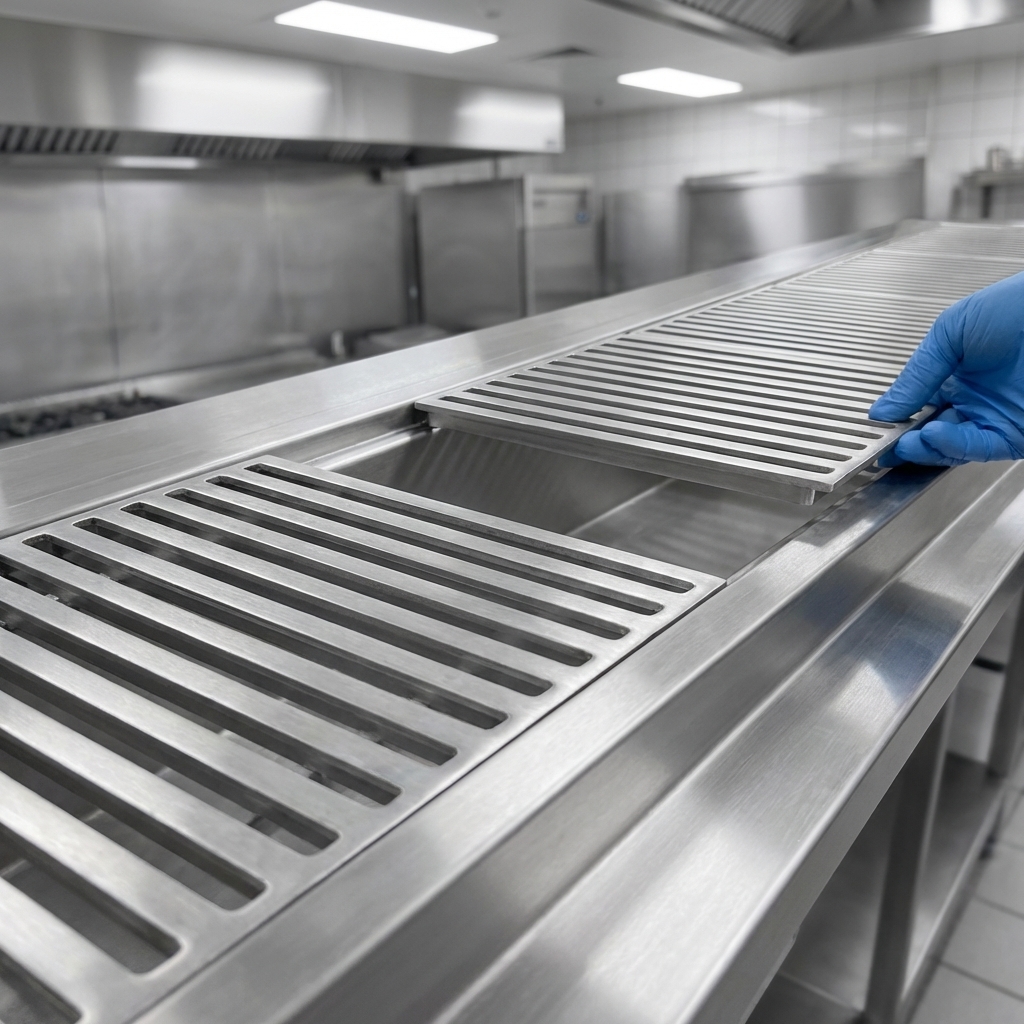

Experience the robust support and easy cleaning of the removable stainless steel subway-style grating on this anti-splash cool trough system.

Removable Perforated Basket

Designed to catch debris and prevent drain clogs, easily removable for cleaning to maintain optimal drainage.

Built-in Pitch to Drain

Ensures efficient and complete drainage of water towards the 4-inch drain, preventing water pooling.

Included Plumbing Components

Comes equipped with a shutoff valve and two pressure check valves for comprehensive system control and ease of installation.

Backflow Prevention Ready

Designed for integration with a Reduced Pressure Zone (RPZ) valve (supplied by Eagle, installed by a plumbing contractor) to prevent backflow into the water supply.

Specifications

Type Water Tempering System
Style Cool Trough
Installation Type Built-In (Recessed Floor Model)
Material 304 Stainless Steel
Interior Finish Stainless Steel
Pan Type Anti-Splash
Grate Type Subway-Style Grating
Controls Mechanical Temperature Sensor
Water Inlet Size 1 Inch
Drain Connection Size 4 Inches
Water Connection Required
Drain Connection Required
Shipping Width 96 Inches
Shipping Depth 15 Inches
Shipping Height 16 Inches
Selling Unit Each
Units Per Case 1

Overall Dimensions:

96.0"W x 15.0"D x 15.25"H
Manufacturer Eagle Group
Certifications ["NSF"]
Height 15.25in
Width 96.0in
Depth 15.0in
Trough Construction 14 ga stainless steel trough
Depth (short side) 15"
Pan Type anti-splash
Width (long side) 85" - 96" (8 ft)
Grate Type subway-style grating
Deep (pan depth) 4"
Grate Construction stainless steel grates
Specifications Anti-Splash Cool Trough® Water Tempering Systems, grated floor drain, 96"W x 15"D x 15-1/4"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The system is designed to temper drain water to comply with local plumbing codes, ensuring water discharged into the drainage system meets required temperature standards.
No, the integral mechanical temperature sensor operates without any electrical connection.
The trough and access compartment are constructed from 14 gauge 304 stainless steel, and it features stainless steel subway-style grating.
Yes, a 1-inch water line and a backflow preventer (RPZ valve) supplied by Eagle must be installed by a plumbing contractor, mounted a minimum of 12 inches above the trough's flood level. Local codes should always be consulted.
The system includes a removable perforated basket and a built-in pitch toward the 4-inch drain to effectively catch debris and ensure efficient drainage.
The backflow preventer must be tested periodically in compliance with local codes, but at least once per year, and must be easily accessible for testing and servicing.
