Eagle Group ASWTFT-1296-SG 96 Inch Wide Anti-Splash Cool Trough Floor Drain Water Tempering System

SKU: ASWTFT-1296-SG
$11,923.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Eagle Group Floor Drains Floor Maintenance New Arrivals Sinks & Handwashing Stations

Eagle Group ASWTFT-1296-SG 96 Inch Wide Anti-Splash Cool Trough Floor Drain Water Tempering System

96 Inches Wide, 12 Inches Deep, Stainless Steel Subway-Style Grating

Ensure proper water tempering and efficient drainage with this durable stainless steel anti-splash floor trough system, designed for commercial environments.

  • Constructed from heavy-duty 14/304 stainless steel for lasting durability and hygiene.
  • Features a grated floor drain with subway-style grating and a removable perforated basket for easy cleaning.
  • Includes a built-in pitch towards a 4-inch drain for efficient water runoff.
  • Equipped with an integral mechanical temperature sensor, requiring no electrical connection for water tempering.
  • Comes with essential plumbing components including a shutoff valve and two pressure check valves.
  • NSF certified for commercial foodservice applications, ensuring sanitation standards are met.

Anti-Splash Design

The innovative design minimizes splashing during operation, maintaining a cleaner and safer work area.

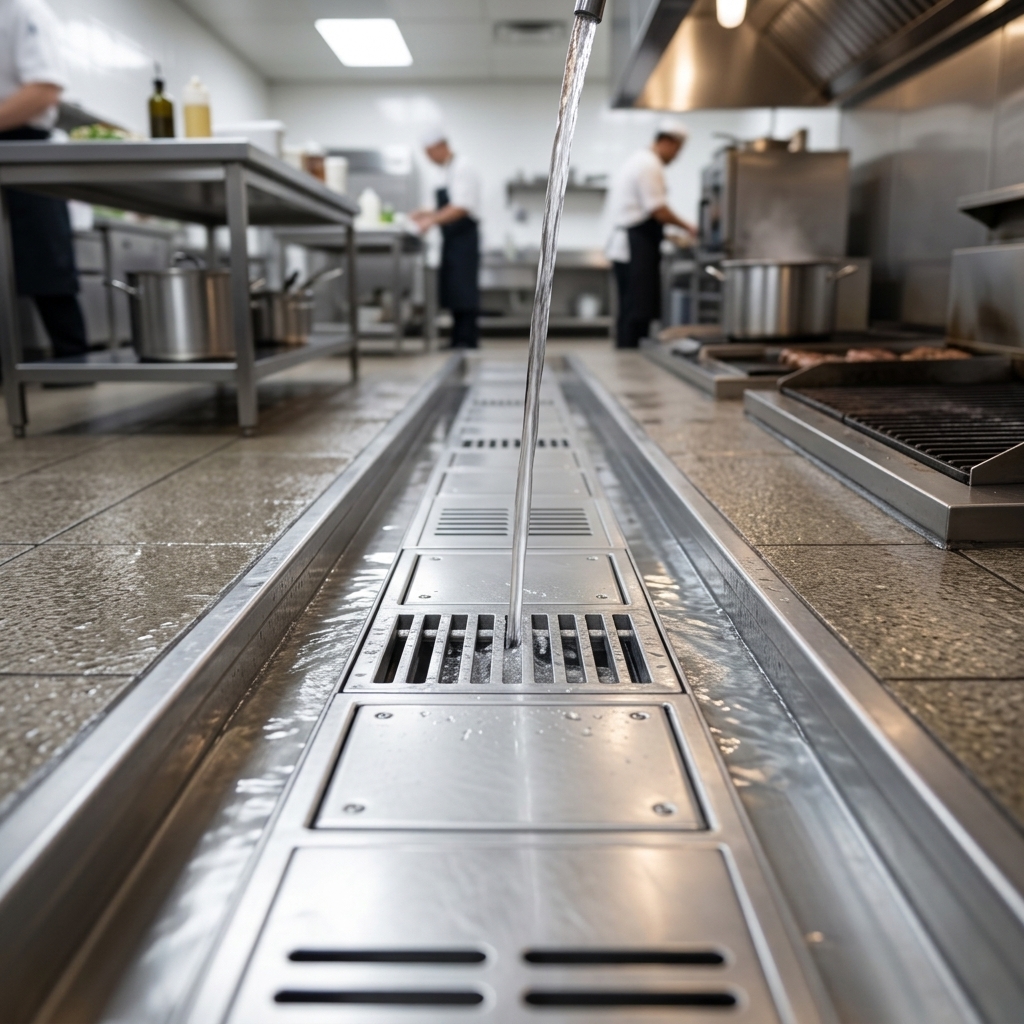

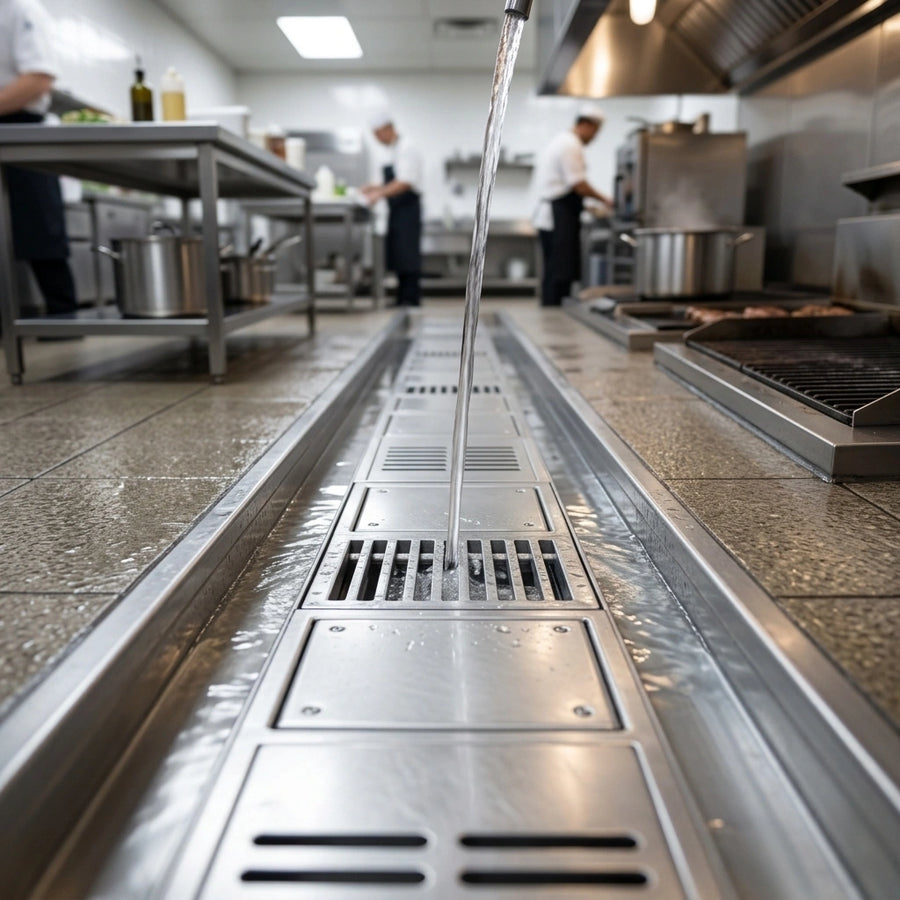

Observe the controlled, anti-splash design of this wide trough floor drain, keeping your commercial kitchen environment cleaner and safer.

Heavy-Duty Stainless Steel Construction

Made from 14 gauge, 304 stainless steel, offering superior corrosion resistance and longevity in demanding commercial settings.

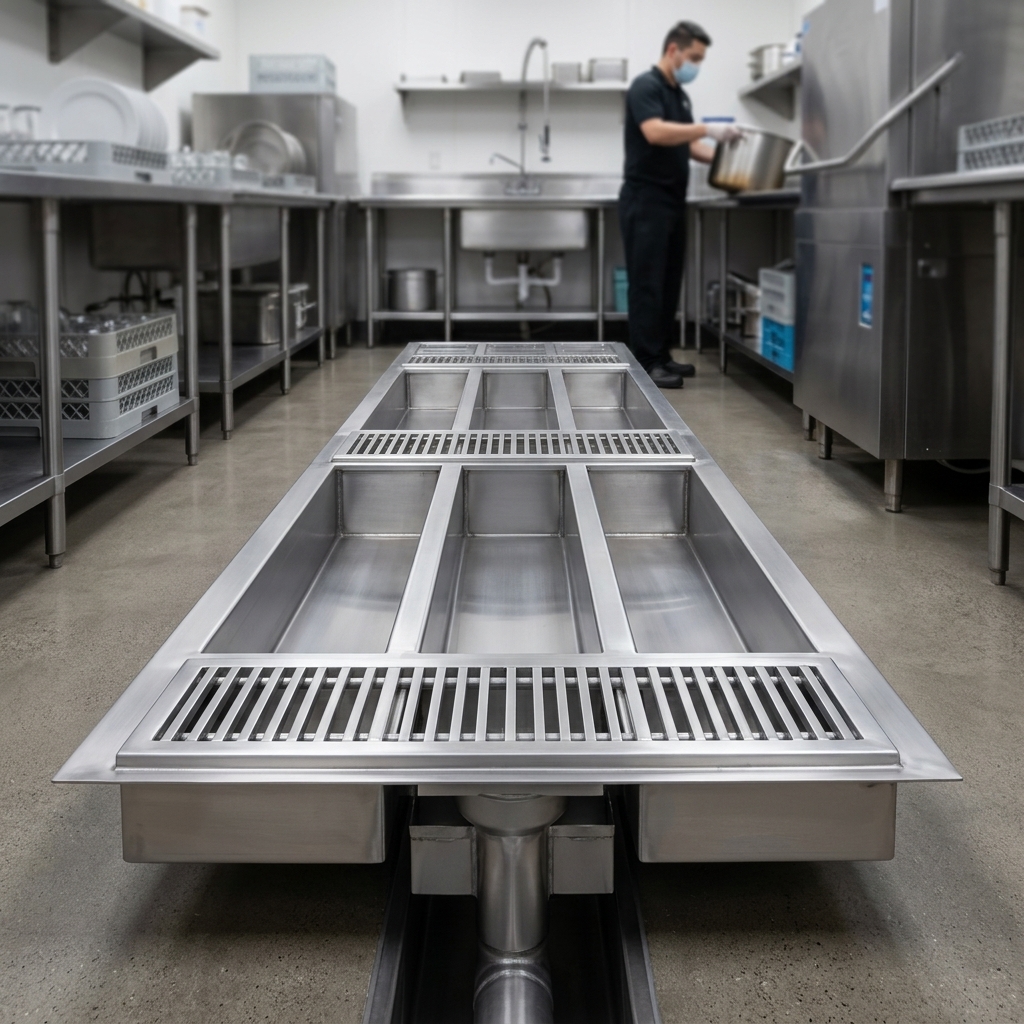

This image showcases the floor drain water tempering system's heavy-duty 14-gauge, 304 stainless steel construction, ensuring exceptional durability in commercial settings.

Subway-Style Grating

Durable stainless steel subway-style grating provides a secure walking surface and effective debris filtration.

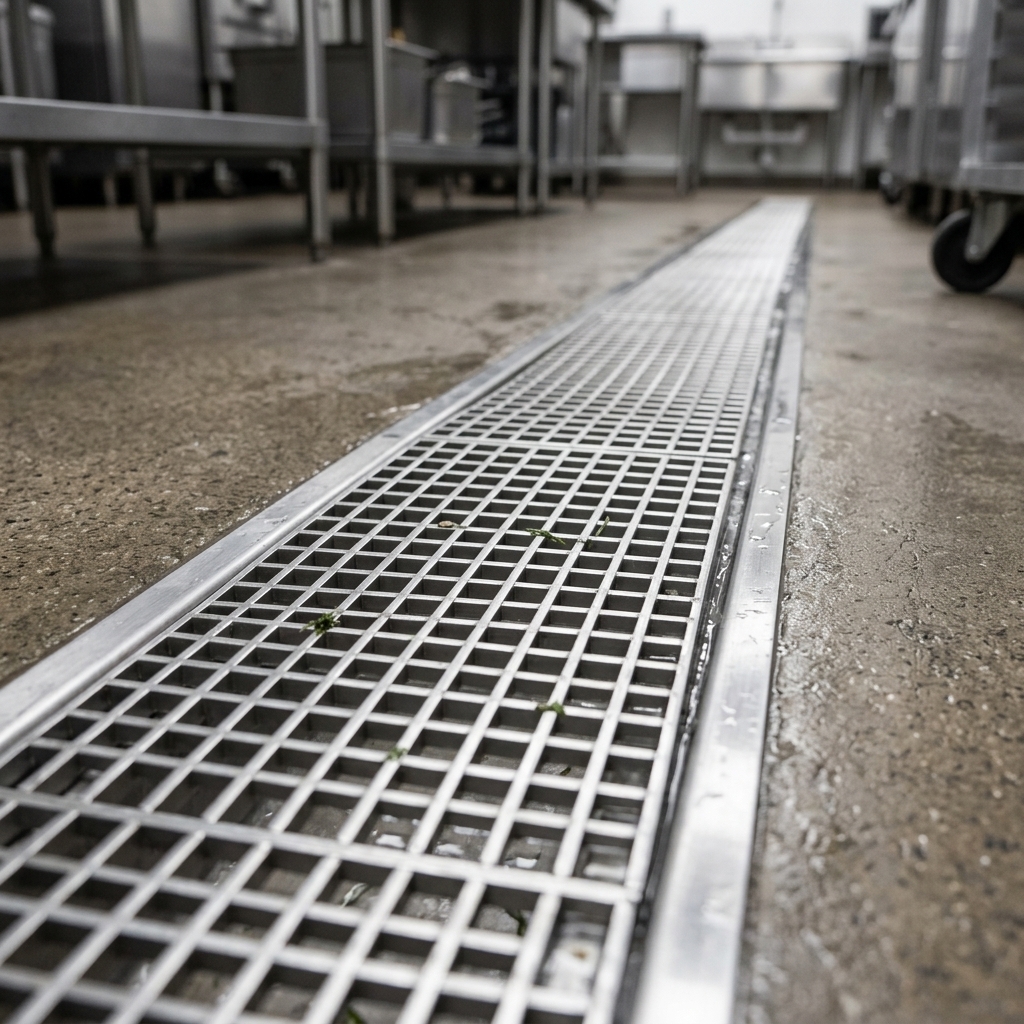

This image highlights the durable subway-style grating, designed for secure walking and effective debris filtration in busy commercial kitchens.

Removable Perforated Basket

A removable perforated basket is included to easily capture solids, preventing drain clogs and simplifying maintenance.

Built-in Pitch

The trough features a built-in pitch that guides water efficiently towards the 4-inch drain, ensuring complete drainage.

Integral Mechanical Temperature Sensor

This system utilizes a mechanical temperature sensor for water tempering, eliminating the need for an electrical connection and simplifying installation.

Included Plumbing Valves

Supplied with a shutoff valve and two pressure check valves, facilitating easy installation and maintenance of the water tempering system.

Specifications

Type Anti-Splash Cool Trough Water Tempering System
Installation Type Floor Model (Recessed)
Material 14/304 Stainless Steel
Grate Type Subway-Style Grating
Drain Connection Size 4 Inches
Water Connection Required
Drain Connection Required
Controls Mechanical Temperature Sensor
Selling Unit Each
Units Per Case 1
Shipping Width 96 Inches
Shipping Depth 12 Inches
Shipping Height 16 Inches

Overall Dimensions:

96.0"W x 12.0"D x 15.25"H
Manufacturer Eagle Group
Certifications ["NSF"]
Height 15.25in
Width 96.0in
Depth 12.0in
Grate Construction stainless steel grates
Width (long side) 85" - 96" (8 ft)
Trough Construction 14 ga stainless steel trough
Deep (pan depth) 4"
Pan Type anti-splash
Grate Type subway-style grating
Depth (short side) 12"
Specifications Anti-Splash Cool Trough® Water Tempering Systems, grated floor drain, 96"W x 12"D x 15-1/4"H, stainless steel subway-style grating, removable perforated basket, built-in pitch toward 4" drain, integral mechanical temperature sensor (no electrical connection required), includes shutoff valve & (2) pressure check valves, 14/304 stainless steel construction, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited warranty on parts and workmanship from installation date, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This system requires installation into a recessed concrete slab. It's crucial to consult local building and plumbing codes before installation to ensure compliance.
No, the Cool Trough features an integral mechanical temperature sensor for water tempering and does not require an electrical connection.
For the ASWTFT-1296-SG model (12" wide x 96" long), the trough rough-in hole should be 9.25" wide x 96" long x 4.25" deep. The plumbing compartment rough-in should be 21.375" wide x 14.75" long x 11.25" deep, with specific placement relative to the trough.
The product is covered by a limited warranty for one year from the date of original installation, not to exceed 18 months from the date of shipment from Eagle. This warranty covers defects in materials and workmanship under normal use.
An RPZ (Reduced Pressure Zone) valve is supplied by Eagle and installed by a plumbing contractor, but its model number is not specified. It must be mounted at least 12 inches above the trough flood level and be accessible for testing.
