Eagle Group ASWTFT-1260-SG Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain
Eagle Group ASWTFT-1260-SG Anti-Splash Cool Trough Water Tempering System with Grated Floor Drain
60" Wide, 12" Deep, 14 Gauge 304 Stainless Steel Construction
Ensure proper water temperature management and efficient drainage with this robust, built-in anti-splash cool trough system, designed for commercial floor applications.
- Constructed from durable 14 gauge 304 stainless steel for long-lasting performance in demanding environments.
- Features anti-splash design to minimize mess and maintain a clean working area.
- Includes a stainless steel subway-style grating and removable perforated basket for easy debris collection and cleaning.
- Equipped with an integral mechanical temperature sensor that requires no electrical connection, simplifying installation.
- Designed with a built-in pitch towards a 4-inch drain for effective water runoff.
- Ships with essential plumbing components including a shutoff valve and two pressure check valves.

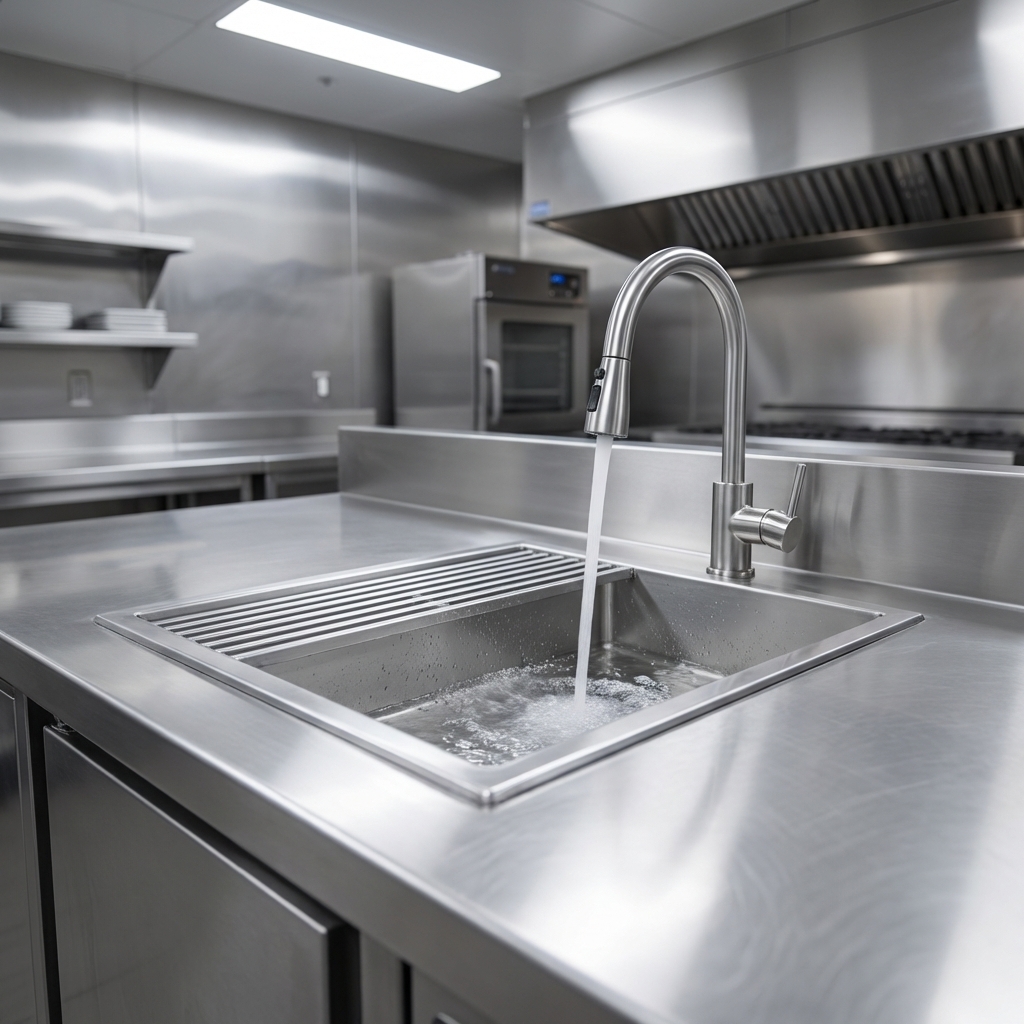

Anti-Splash Design
Engineered to control water splashing, keeping the surrounding area drier and safer.

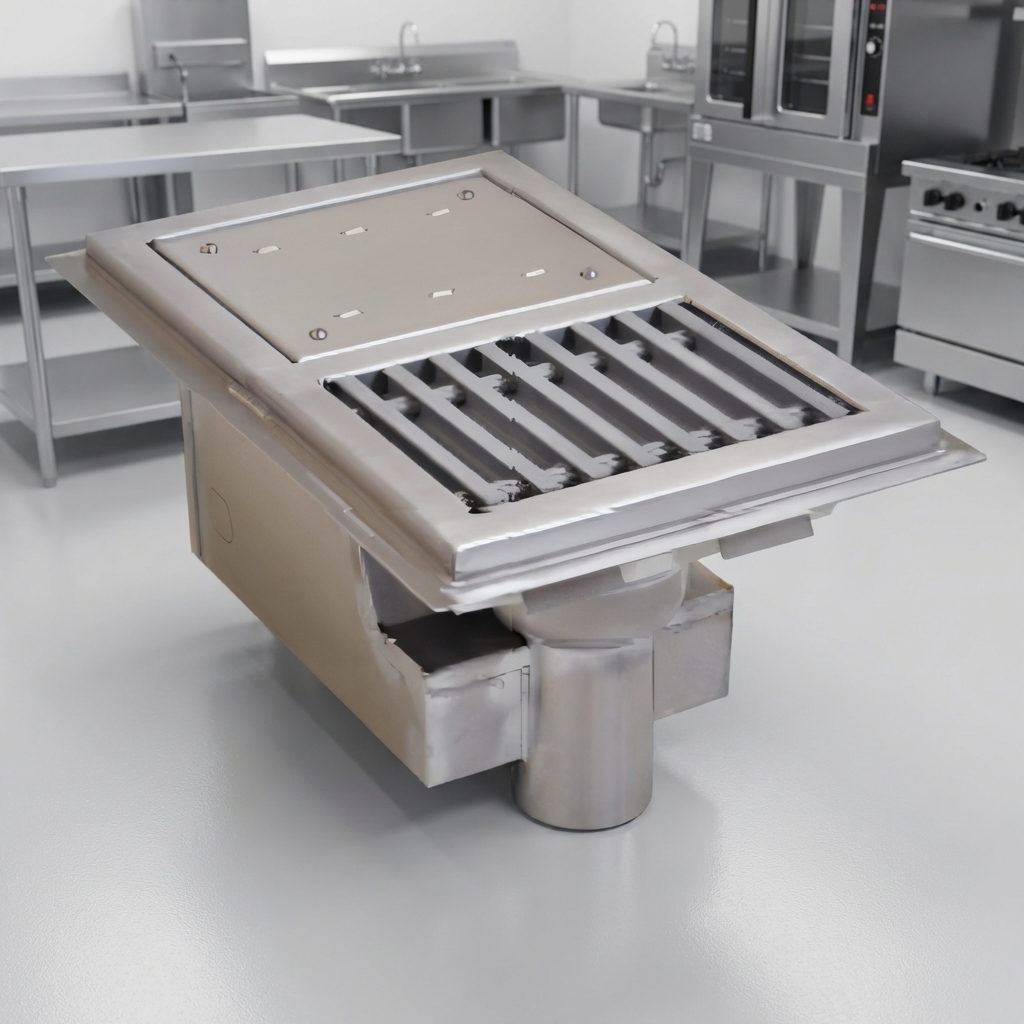

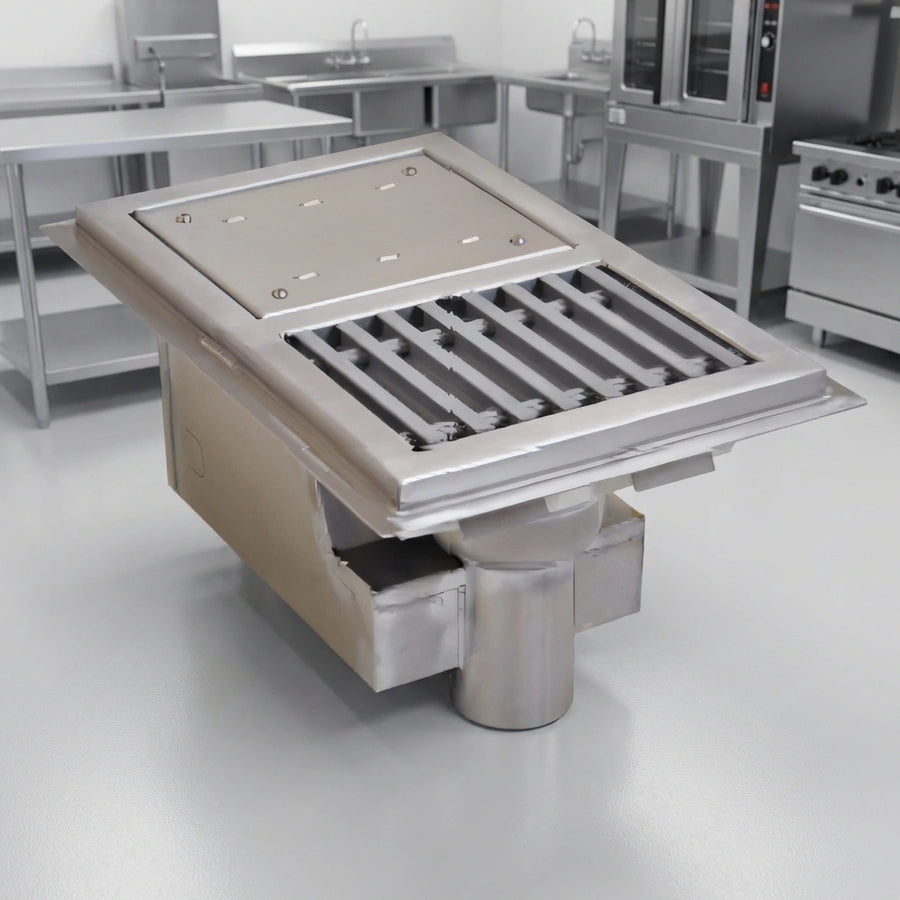

Heavy-Duty Stainless Steel Construction
Fabricated from 14 gauge 304 stainless steel, providing exceptional durability and corrosion resistance for commercial use.

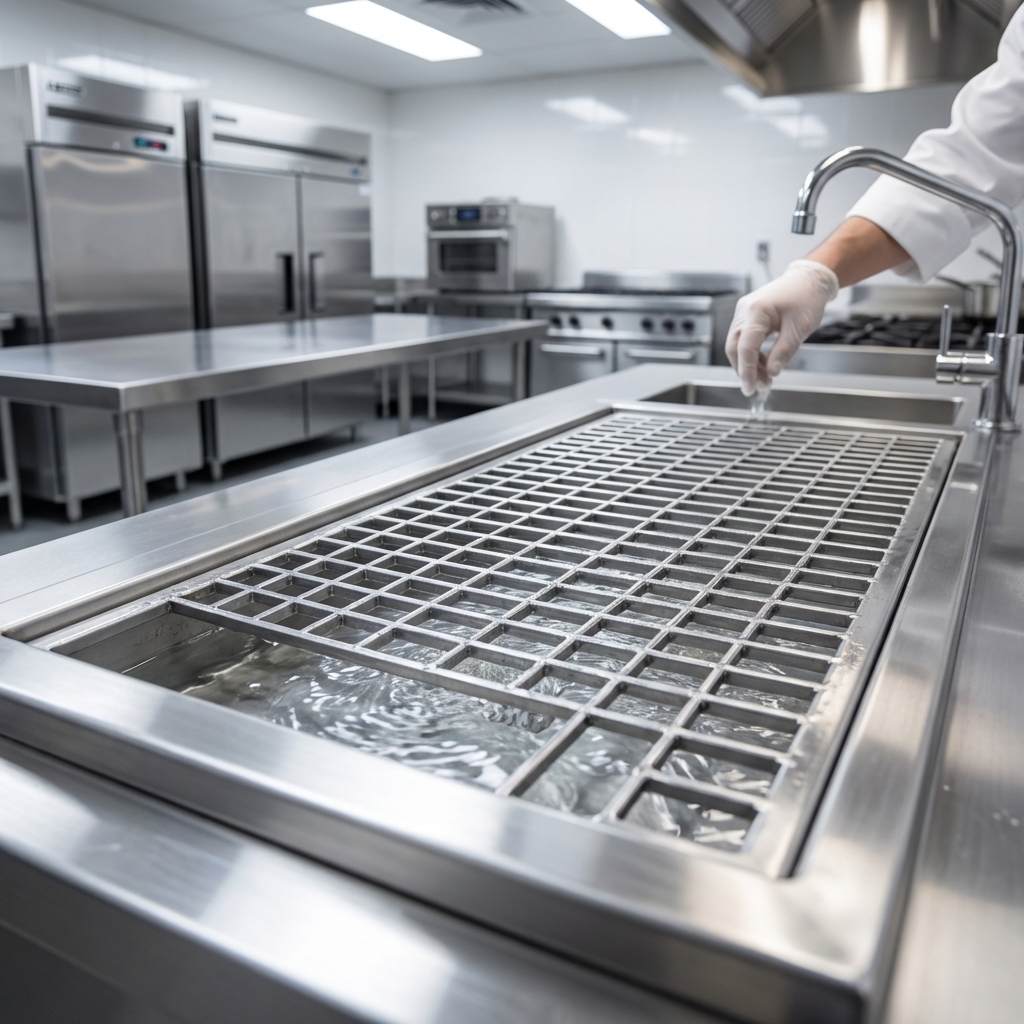

Subway-Style Grating
Includes robust stainless steel subway-style grating for a secure and visually appealing surface.
Removable Perforated Basket
Allows for easy collection and disposal of debris, preventing drain clogs and simplifying maintenance.
Built-In Pitch
Features a pre-engineered slope towards the drain, ensuring efficient water runoff and preventing standing water.
Mechanical Temperature Sensor
An integral mechanical temperature sensor eliminates the need for an electrical connection, simplifying installation and operation.
Plumbing Components Included
Comes equipped with a shutoff valve and two pressure check valves for convenient installation and system control.
Required Backflow Prevention (RPZ Valve)
An RPZ (Reduced Pressure Zone) valve is supplied by Eagle and must be installed by a plumbing contractor, mounted a minimum of 12 inches above the trough flood level, and accessible for testing and service.
Specifications
| Type | Water Tempering System |
|---|---|
| Style | Floor Drain Trough |
| Installation Type | Built-In (Floor) |
| Material | 304 Stainless Steel |
| Interior Finish | 304 Stainless Steel |
| Pan Type | Anti-Splash |
| Grate Type | Subway-Style Grating |
| Pan Depth | 4 Inches |
| Drain Connection Size | 4 Inches |
| Water Inlet Size | 1 Inch |
| Water Connection | Required |
| Drain Connection | Required |
| Controls | Integral Mechanical Temperature Sensor |
| Country of Origin | USA |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 60 Inches |
| Shipping Depth | 12 Inches |
| Shipping Height | 16 Inches |
Overall Dimensions:
60.0"W x 12.0"D x 15.25"HCertifications & Compliance
Warranty & Protection
1-year parts and labor warranty from installation, not to exceed 18 months from shipment.
