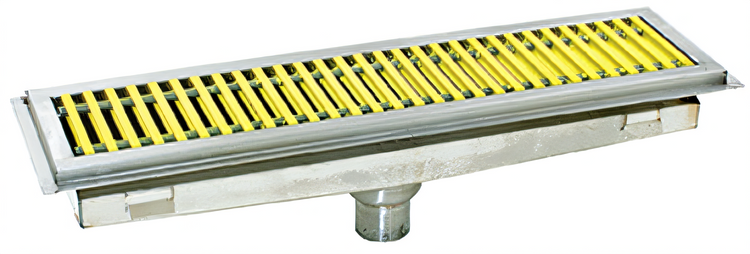

Eagle Group Anti-Splash Floor Trough Drain with Yellow Fiberglass Subway-Style Grating, 60 x 24 x 6 Inch

SKU: ASFT-2460-FG
$3,328.92
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Eagle Group Floor Drains Floor Maintenance New Arrivals Sinks & Handwashing Stations

Eagle Group Anti-Splash Floor Trough Drain with Yellow Fiberglass Subway-Style Grating, 60 x 24 x 6 Inch

All-welded 14/304 stainless steel construction with removable perforated basket

Built for safer, cleaner drainage areas, this anti-splash trough combines non-slip fiberglass grating, a pitched 6-inch pan, and durable stainless steel construction.

  • Anti-splash floor trough design helps contain splash around the drain area.
  • Yellow fiberglass subway-style grating features a non-slip surface for safer footing.
  • 6-inch-deep trough pan includes a built-in pitch toward the drain for efficient drainage.
  • Stainless steel removable perforated basket helps capture debris and simplify cleaning.
  • All-welded 14/304 stainless steel construction is built for demanding commercial use.
  • Accommodates drain pipes up to 4 inches in diameter.
  • NSF listed for commercial sanitation applications.

Overall Dimensions:

60.0"W x 24.0"D

Product Weight:

163.0 lb

Anti-Splash Trough Design

Helps reduce splash and keep surrounding floor areas cleaner.

Fiberglass Subway-Style Grating

Yellow grating provides a non-slip walking surface and a distinctive visible finish.

Built-In Drain Pitch

The trough pan is pitched toward the drain to promote faster, more efficient drainage.

Removable Perforated Basket

Stainless steel basket can be removed for routine cleaning and debris removal.

All-Welded Stainless Steel Construction

14/304 stainless steel construction adds durability for wet, high-use environments.

Drain Pipe Clearance

Designed to accommodate drain pipes up to 4 inches in diameter.

NSF Listed

Suitable for sanitation-focused commercial applications.

Type Anti-Splash Floor Trough
Style Subway-Style Grating
Material 304 Stainless Steel
Grate Construction Fiberglass
Trough Construction 14 Gauge Stainless Steel
Pan Depth 6 Inches
Drain Pipe Capacity Up To 4 Inches Diameter
Selling Unit Each
Units Per Case 1
Shipping Width 60 Inches
Shipping Depth 24 Inches
Shipping Weight 163 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Brochure 1 PDF Download PDF Brochure 2 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The unit measures 60 inches wide by 24 inches deep and has a 6-inch-deep trough pan.
It uses yellow fiberglass subway-style grating with a non-slip surface.
Yes. It includes a stainless steel removable perforated basket for debris capture and easier cleaning.
It accommodates drain pipes up to 4 inches in diameter.
It is built with all-welded 14/304 stainless steel construction.
Eagle's general limited warranty covers defects in materials and workmanship for 1 year from original installation, not to exceed 18 months from shipment.
