Eagle Group

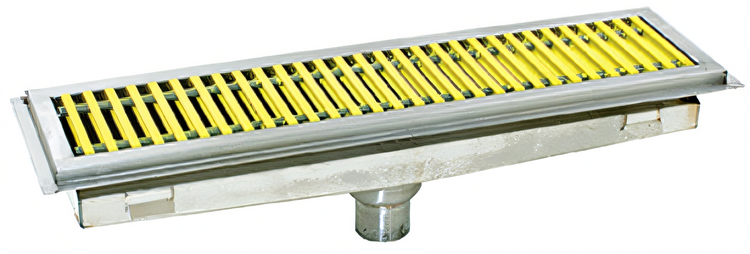

Eagle Group Anti-Splash Floor Trough, 96"W x 15"D, 6" Deep, 14-Gauge 304 Stainless Steel

SKU: ASFT-1596-FG
$3,226.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Commercial Faucets & Plumbing Eagle Group Floor Drains Floor Maintenance New Arrivals Sinks & Handwashing Stations

Eagle Group Anti-Splash Floor Trough, 96"W x 15"D, 6" Deep, 14-Gauge 304 Stainless Steel

Yellow Non-Slip Subway-Style Fiberglass Grating with Removable Perforated Basket

This anti-splash floor trough combines a deep pitched pan, non-slip fiberglass grating, and stainless steel construction to channel runoff cleanly and safely.

  • 96" x 15" floor trough with a 6" deep pan for efficient wastewater collection.
  • Anti-splash design helps reduce splatter around the drain area.
  • Yellow fiberglass subway-style grating features a non-slip surface for added traction.
  • Built-in pitch directs flow toward the drain for better drainage performance.
  • All-welded 14-gauge 304 stainless steel construction supports long-term durability.
  • Includes a removable perforated stainless steel basket for easier debris capture and cleaning.
  • Accommodates drain pipe up to 4" in diameter.

Overall Dimensions:

96.0"W x 15.0"D

Product Weight:

214.0 lb

Anti-Splash Design

Helps contain runoff and reduce splash around the drain area.

Built-In Pitch Toward Drain

The trough pan is sloped to move water efficiently toward the drain connection.

Fiberglass Subway-Style Grating

Yellow grating provides a non-slip walking surface while allowing drainage.

6-Inch Deep Trough Pan

A deeper pan helps collect and channel more runoff through the drain.

Removable Perforated Basket

Stainless steel basket lifts out for debris capture and easier cleaning.

14-Gauge 304 Stainless Steel Construction

All-welded stainless steel build is designed for durability and corrosion resistance.

4-Inch Drain Pipe Capacity

Designed to accommodate drain pipe up to 4 inches in diameter.

Type Floor Trough
Style Anti-Splash
Installation Type Floor Model
Material 304 Stainless Steel
Trough Construction 14-Gauge 304 Stainless Steel
Grate Construction Fiberglass
Grate Type Subway-Style Grating
Pan Depth 6 Inches
Drain Pipe Diameter Up to 4 Inches
Shipping Width 96 Inches
Shipping Depth 15 Inches
Shipping Weight 214 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year from original installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Brochure 1 PDF Download PDF Brochure 2 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The trough pan is 6 inches deep.
It accommodates drain pipe up to 4 inches in diameter.
It features all-welded 14-gauge 304 stainless steel construction.
Yes, the yellow fiberglass subway-style grating has a non-slip surface.
Yes, it includes a removable perforated stainless steel basket.
