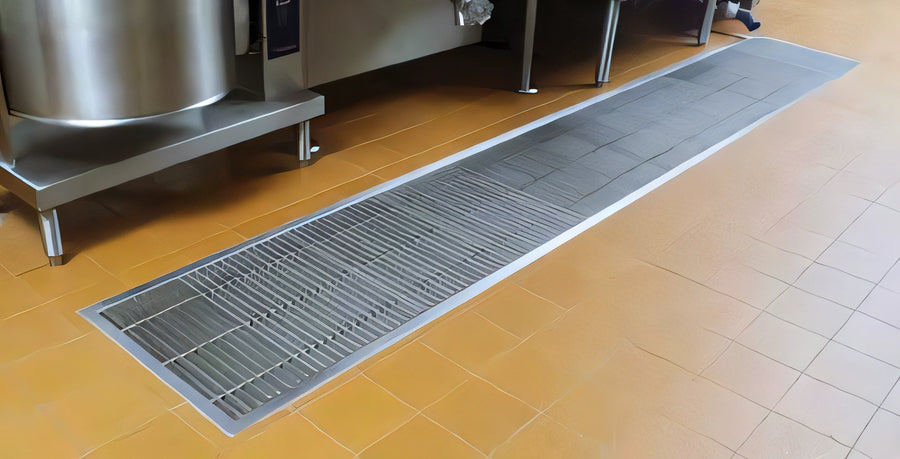

Eagle Group ASFT-15120-SG 120"W x 15"D Anti-Splash Floor Trough with Stainless Steel Subway-Style Grating

120-Inch Width, 15-Inch Depth, Stainless Steel Construction

Ensure superior hygiene and prevent splash-back with the Eagle Group ASFT-15120-SG Anti-Splash Floor Trough, designed for efficient drainage in commercial environments.

  • Patented anti-splash design prevents splash back and ensures complete drainage.
  • Constructed from durable 14 gauge Type 304 stainless steel for long-lasting performance.
  • Features subway-style stainless steel grating for easy drainage and robust support.
  • Equipped with a built-in pitch towards the drain and a removable perforated basket for simplified maintenance.
  • Accommodates up to a 4-inch diameter drain pipe for versatile installation.

Overall Dimensions:

120.0"W x 15.0"D

Product Weight:

266.0 lb

Patented Anti-Splash Design

Patented (patent #D519,618 S) 'anti-splash' design assures complete drainage while preventing splash back onto the floor.

Heavy-Duty Stainless Steel Construction

Unit is constructed of 14 gauge Type 304 stainless steel with all-welded construction for durability and sanitation.

Built-In Pitch for Complete Drainage

The trough pan features a built-in pitch towards the drain, insuring complete and efficient liquid evacuation.

Integrated Drain with Perforated Basket

A stainless steel drain accommodates up to a 4-inch (102mm) diameter pipe and includes a removable perforated stainless steel basket for easy debris collection and cleaning.

Subway-Style Stainless Steel Grating

Comes with robust subway-style stainless steel grating, featuring 3/16" x 1" vertically positioned bars spaced 1" apart for excellent drainage. Two 3/4" stainless steel rods are welded to the bars to eliminate swaying.

Type Anti-Splash Floor Trough
Style Subway-Style Grating
Installation Type Floor Model
Material 304 Stainless Steel
Interior Finish 304 Stainless Steel
Trough Construction 14 Gauge 304 Stainless Steel
Grating Material Stainless Steel
Grating Bar Size 3/16" x 1"
Grating Bar Spacing 1 Inch
Drain Connection Size Up to 4 Inches Diameter
Pan Capacity 6 Inches Deep
Grating Usable Length 117 Inches
Trough Bottom Interior Width 10 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 120 Inches
Shipping Depth 15 Inches
Shipping Weight 266 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor warranty from installation, not to exceed 18 months from shipment.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Brochure 2 PDF Download PDF Brochure 1 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The ASFT-15120-SG floor trough measures 120 inches in width, 15 inches in depth, and has an overall structural height of 12 inches. The internal trough pan is 6 inches deep.
This floor trough is constructed from heavy-duty 14 gauge Type 304 stainless steel with all-welded construction for maximum durability and sanitation.
Yes, it comes with a stainless steel drain that accommodates up to a 4-inch diameter pipe. It also includes a removable perforated stainless steel basket.
The ASFT-15120-SG model comes standard with subway-style stainless steel grating, featuring 3/16" x 1" vertically positioned bars spaced 1" apart.
Yes, ADA-compliant grating is available as an option. This grating features additional stainless steel flat bars spaced 1/4" apart and is available in gray color. To order, the model number would include the '-ADA' suffix.
